CE108G-BWMDS (1991)
Toyota Sprinter
(9106- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

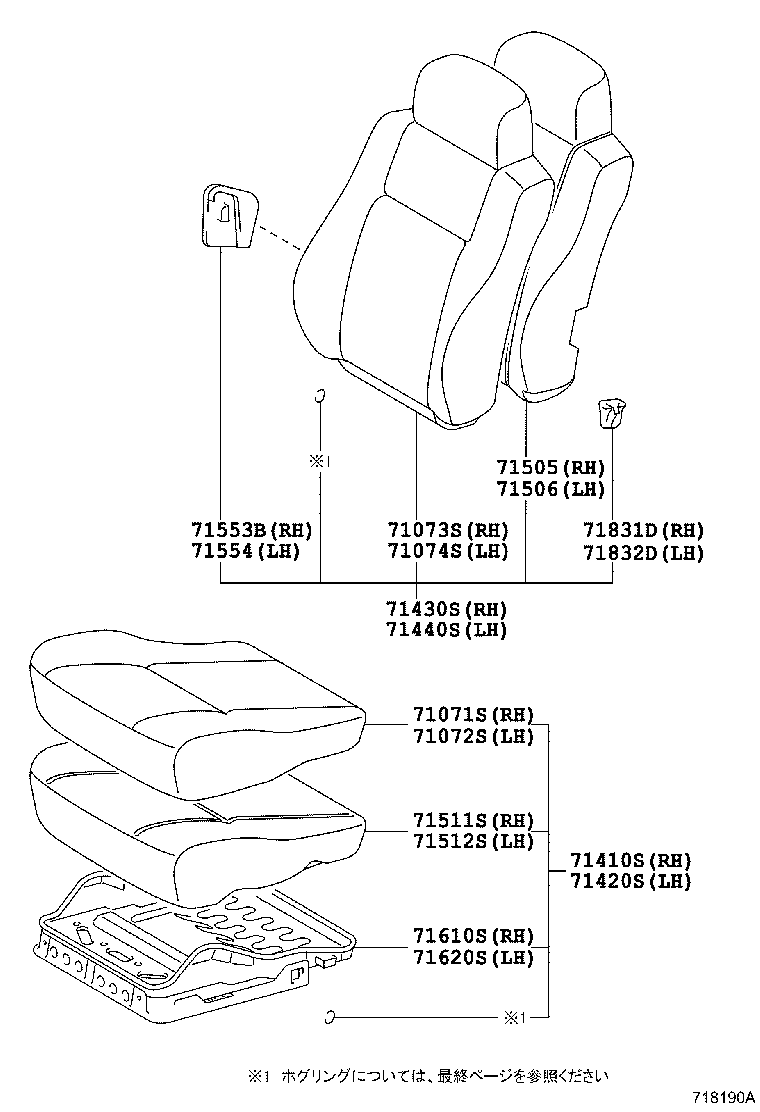

ILLUST NO. 1 OF 2(9109-9401)CE106,108,109,EE106,107,108..CTD,DX,L; (9401- )AE109,CE102,105,106,1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-13260B0 |
CE106,108,109,EE106,107,108..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1K410B0 |
CE108,EE104,108 L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13261B0 |
AE109,CE106,108,109,EE102,103,104..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13320B0 |
CE108,EE104 L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-13210B0 |
CE106,108,109,EE106,107,108..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71072-13211B0 |
CE106,108,109,EE102,103,104..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13261B0 |
AE109,CE106,108,109,EE102,103,104..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E340B0 |
CE108,EE104,108 L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-13270B0 |
CE108,EE104 L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-13190B0 |
CE106,108,109,EE106,107,108..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13191B0 |
AE109,CE106,108,109,EE102,103,104..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K090B0 |
CE108,EE104,108 L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K091B2 |
CE108,EE104 L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-13160B0 |
CE106,108,109,EE106,107,108..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H030B0 |
CE108,EE104,108 L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H031B1 |
CE108,EE104 L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-13161B0 |
AE109,CE106,108,109,EE102,103,104..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-13270B0 |
CE106,108,109,EE106,107,108..DX,L ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K640B0 |
CE108,EE104,108 ***,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-13300B1 |
CE108,EE104 ***,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-13271B0 |
AE109,CE106,108,109,EE102,103,104..DX,L ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-13220B0 |
CE106,108,109,EE106,107,108..DX,L ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E560B0 |
CE108,EE104,108 ***,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13221B1 |
AE109,CE10#,EE10#..DX,L ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13430B0 |
CE10#,EE103,104..L,XL ***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13250B0 |
CE108,EE104 ***,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13221B0 |
AE109,CE106,108,109,EE102,103,104..DX,L ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1K370B0 |
CE108,EE104,108 ***,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-13210B0 |
CE106,108,109,EE106,107,108..DX,L ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K371B1 |
CE108,EE104 ***,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-13211B0 |
AE109,CE106,108,109,EE102,103,104..DX,L ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-13200B0 |
CE106,108,109,EE106,107,108..DX,L ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K300B0 |
CE108,EE104,108 ***,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-13201B0 |
AE109,CE106,108,109,EE102,103,104..DX,L ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K301B1 |
CE108,EE104 ***,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12760 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12760 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12360 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12240 |
AE10#,CE10#,EE10# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
AE10#,CE10#,EE10# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
AE10#,CE10#,EE10# |
1 | ||
ILLUST NO. 2 OF 2(9106- )CTD,DX,DXJ,L,LX,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12260P0 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12220P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12220P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12210P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12590 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12560 |
AE100,101,104,CE100,102,104,108,EE101,104,108 |
1 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010P0 |
CE106,108,109,EE106,107,108..DX,L,XL SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010P0 |
CE106,109,EE106,107..DX,XL;AE10#,CE100,104,108,EE101,108..GT,L,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010C0 |
AE101,CE106,108,109,EE102,103,104,106,107,108..DX,GT,L,XL BLACK,TRIM1# |
3 | ||
| 72127-12010C0 |
AE109,CE10#,EE10# BLACK,TRIM1# |
4 | ||
| 72127-12010C0 |
CE106,108,EE10# BLACK,TRIM1# |
4 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12590 |
AE100,CE100,102,106,107,108,EE10#..CTD,DX,DXJ,L,LX,XL |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72137-12030P0 |
CE106,108,109,EE106,107,108 SHADOW GRAY,TRIM1# |
1 | ||
| 72137-12030C0 |
AE109,CE10#,EE10# BLACK,TRIM1# |
1 | ||
| 72137-12030C0 |
CE106,108,EE10# BLACK,TRIM1# |
1 | ||
| 72137-12030C0 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,GT,L,XL BLACK,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-12040C0 |
CE106,108,EE10# BLACK,TRIM1# |
1 | ||
| 72138-12040P0 |
CE106,108,109,EE106,107,108 SHADOW GRAY,TRIM1# |
1 | ||
| 72138-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72138-12040C0 |
AE109,CE10#,EE10# BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,GT,L,XL BLACK,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12500 |
AE100,101,CE100,102,108,EE101,104,108 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12030P0 |
CE106,108,EE106,107,108 SHADOW GRAY,TRIM1# |
1 | ||
| 72157-12030C0 |
AE100,101,CE100,102,106,107,108,EE10#..CTD,DX,DXJ,GT,L,XL BLACK,TRIM1# |
1 | ||
| 72157-12030P0 |
AE100,101,CE100,106,108,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12030P0 |
AE100,101,CE100,106,108,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72158-12030C0 |
AE100,101,CE100,102,106,107,108,EE10#..CTD,DX,DXJ,GT,L,XL BLACK,TRIM1# |
1 | ||
| 72158-12030P0 |
CE106,108,EE106,107,108 SHADOW GRAY,TRIM1# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12160 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12160 |
AE109,CE10#,EE10# |
1 | ||
| 72301-12160 |
AE10#,CE100,104,108,EE101,104,108 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100P0 |
AE10#,CE10#,EE10#..CTD,DX,GT,L,LX,SEL,XE,XL SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12100P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08970 | ||||
| 90119-10229 | ||||
| 90119-10769 | ||||
| 90167-40044 | ||||
| 90386-12046 | ||||
| 93249-54006 | ||||
