CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )

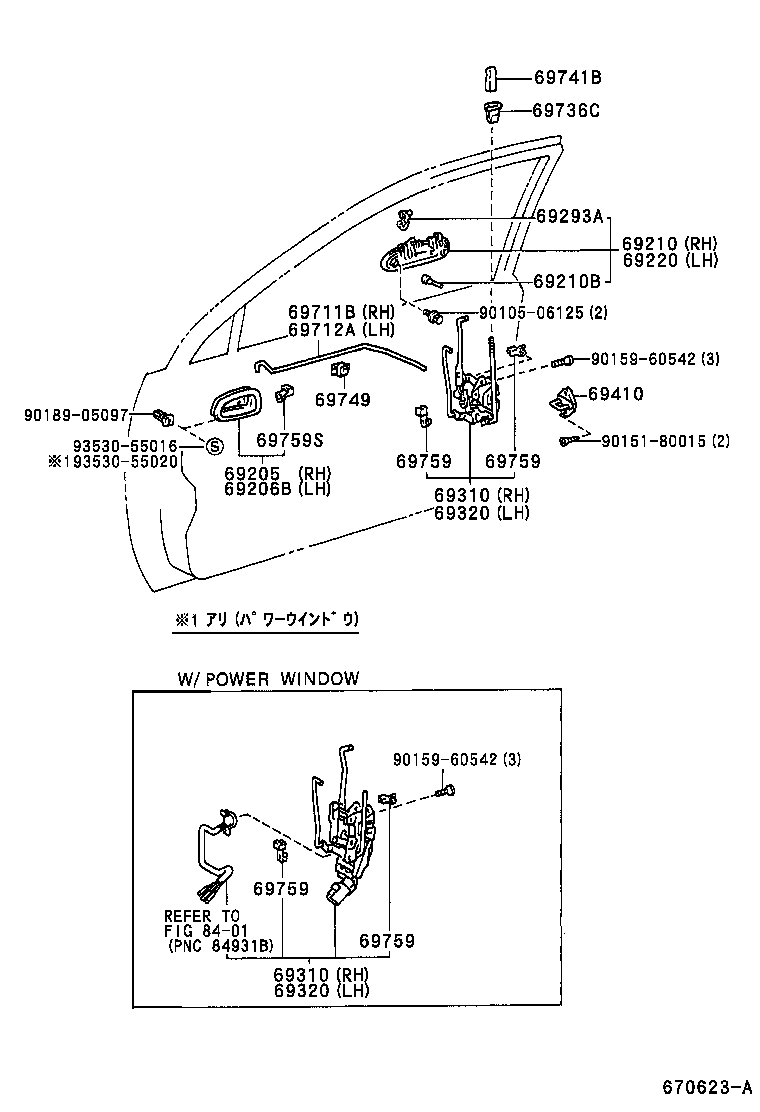

Click highlighted areas on diagram

diagram 69205 69206B 69210 69210B 69220 69293A 69310 69310 69320 69320 69410 69711B 69712A 69736C 69741B 69749 69759 69759 69759 69759 69759S 8401 9010506125 9015180015 9015960542 9015960542 9018905097 9353055016 9353055020
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1213003

AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL

SHADOW GRAY,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1213003

AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL

SHADOW GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-12160

AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL

 1
69210-12160

AE100,109,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,XL

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04014

AE10#,CE10#,EE10#

 4
90541-04014

EE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ)

(J)

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-12160

AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL

 1
69220-12160

AE100,109,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,XL

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040

AE10#,CE10#,EE10#

(J),左側

 1
69293-12030

AE10#,CE10#,EE10#

(J),右側

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-12440

AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-12440

AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-12450

AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-12450

AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20070

AE10#,CE10#,EE10#

 2
69410-87001

AE10#,CE10#,EE10#

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-12130

AE10#,CE10#,EE10#

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-12140

AE10#,CE10#,EE10#

 1
69736C - GUIDE, FRONT DOOR LOCKING LINK
69736-12100

AE109,CE106,108,109,EE102,103,104..DX,L

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 2
69736-12100

CE108

L ｴｸｽﾄﾗ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 2
69736-12100

CE108

L ｴｸｽﾄﾗ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 2
69751-1202003

CE106,108,109,EE106,107,108..CTD,DX,L

SHADOW GRAY,TRIM1#

 2
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-8700313

AE109,CE106,108,109,EE102,103,104..DX,L

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ),SHADOW GRAY,TRIM1#

 2
69741-8700313

CE108

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ),SHADOW GRAY,TRIM1#

 2
69741-90K0043

CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L

GRAY,TRIM1#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-50020

AE10#,CE10#,EE10#

ｲｴﾛｰ

 2
69749-50020

AE10#,CE10#,EE10#

 2
69749-12070

AE109,CE106,108,109,EE102,103,104,106,107,108

ﾌﾞﾙｰ

 2
69749-12070

AE109,CE10#,EE10#

 2
69749-12070

AE10#,CE10#,EE10#

ﾌﾞﾙｰ

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24010

AE10#,CE10#,EE10#

ﾅﾁｭﾗﾙ

 1
69759-24060

AE10#,CE10#,EE10#

ｸﾞﾚｰ

 2
69759-24050

AE10#,CE10#,EE10#

ｸﾞﾘｰﾝ

 2
69759-24020

AE10#,CE10#,EE10#

ﾌﾞﾙｰ

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24010

AE10#,CE10#,EE10#

ﾅﾁｭﾗﾙ

 1
69759-24060

AE10#,CE10#,EE10#

ｸﾞﾚｰ

 2
69759-24050

AE10#,CE10#,EE10#

ｸﾞﾘｰﾝ

 2
69759-24020

AE10#,CE10#,EE10#

ﾌﾞﾙｰ

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24010

AE10#,CE10#,EE10#

ﾅﾁｭﾗﾙ

 1
69759-24060

AE10#,CE10#,EE10#

ｸﾞﾚｰ

 2
69759-24050

AE10#,CE10#,EE10#

ｸﾞﾘｰﾝ

 2
69759-24020

AE10#,CE10#,EE10#

ﾌﾞﾙｰ

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24010

AE10#,CE10#,EE10#

ﾅﾁｭﾗﾙ

 1
69759-24060

AE10#,CE10#,EE10#

ｸﾞﾚｰ

 2
69759-24050

AE10#,CE10#,EE10#

ｸﾞﾘｰﾝ

 2
69759-24020

AE10#,CE10#,EE10#

ﾌﾞﾙｰ

 1
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-22050

AE10#,CE10#,EE10#

右側

 1
69759-22040

AE10#,CE10#,EE10#

左側

 1
Common parts
90105-06125
90151-80015
90159-60542
90189-05097
93530-55016
93530-55020
Linked diagrams
8401
