CE108G-BWMDS (1991)
Toyota Sprinter
(9401-9704)CE108,EE104

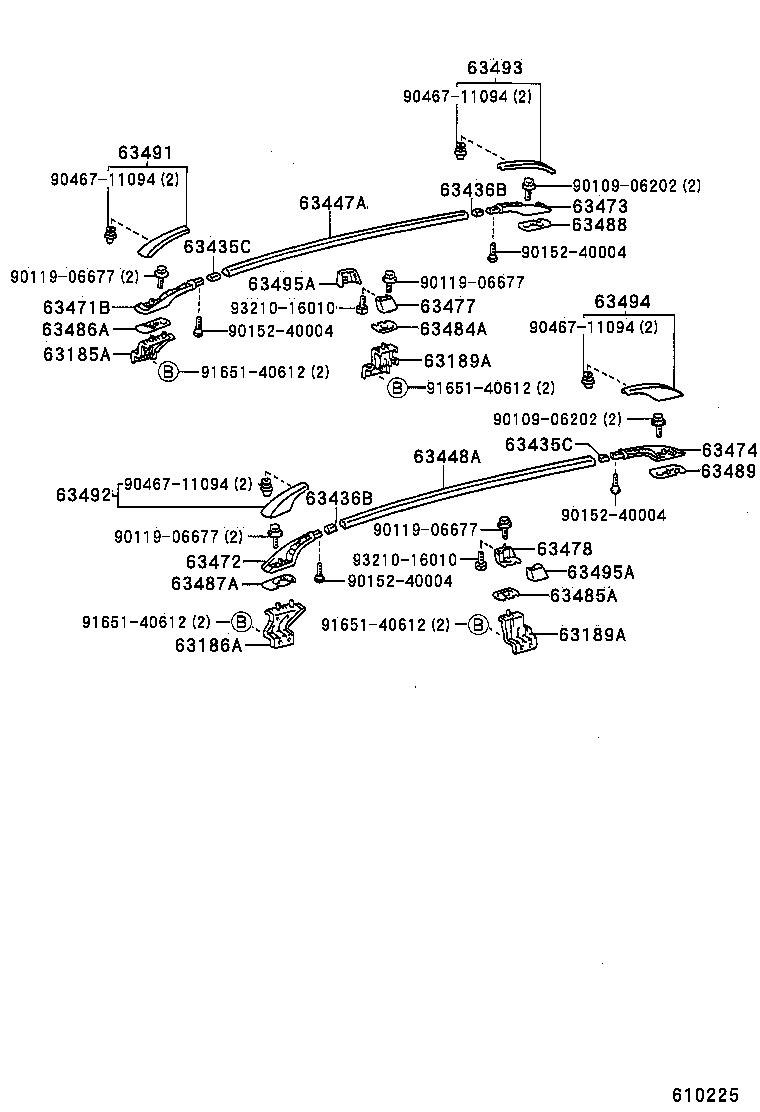

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-13020 |
CE108,EE104 |
1 | ||
| 63185-13050 |
CE102,108,EE104 |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-13020 |
CE108,EE104 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63186-13050 |
CE102,108,EE104 |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-13050 |
CE102,108,EE104 右側 |
1 | ||
| 63189-13020 |
CE108,EE104 右側 |
1 | ||
| 63199-13020 |
CE108,EE104 左側 |
1 | ||
| 63199-13040 |
CE102,108,EE104 左側 |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-13050 |
CE102,108,EE104 右側 |
1 | ||
| 63189-13020 |
CE108,EE104 右側 |
1 | ||
| 63199-13020 |
CE108,EE104 左側 |
1 | ||
| 63199-13040 |
CE102,108,EE104 左側 |
1 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63435-13020 |
CE108,EE104 |
2 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63435-13020 |
CE108,EE104 |
2 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63436-13030 |
CE108,EE104 |
2 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63436-13030 |
CE108,EE104 |
2 | ||
| 63447A - ROOF RAIL, RH | ||||
| 63447-13030 |
CE108,EE104 |
1 | ||
| 63460-13060 |
CE102,108,EE104 |
1 | ||
| 63448A - ROOF RAIL, LH | ||||
| 63448-13030 |
CE108,EE104 |
1 | ||
| 63470-13060 |
CE102,108,EE104 |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-13020 |
CE108,EE104 |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-13020 |
CE108,EE104 |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-13030 |
CE108,EE104 |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-13030 |
CE108,EE104 |
1 | ||
| 63477 - SUPPORT, ROOF RACK, CENTER RH | ||||
| 63477-13030 |
CE108,EE104 |
1 | ||
| 63478 - SUPPORT, ROOF RACK, CENTER LH | ||||
| 63478-13030 |
CE108,EE104 |
1 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-13020 |
CE108,EE104 |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-13020 |
CE108,EE104 |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-13020 |
CE108,EE104 |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-13020 |
CE108,EE104 |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-13030 |
CE108,EE104 |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-13030 |
CE108,EE104 |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-13020 |
CE108,EE104 |
1 | ||
| 63491-13020 |
CE108,EE104 |
1 | ||
| 63491-13020 |
CE108,EE104 ｱﾘ(ﾙ-ﾌ ﾚ-ﾙ) |
1 | ||
| 63491-13050 |
CE102,108,EE104 |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-13050 |
CE102,108,EE104 |
1 | ||
| 63492-13020 |
CE108,EE104 |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-13060 |
CE102,108,EE104 |
1 | ||
| 63493-13030 |
CE108,EE104 |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-13030 |
CE108,EE104 |
1 | ||
| 63494-13060 |
CE102,108,EE104 |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63496-13020 |
CE108,EE104 左側 |
1 | ||
| 63495-13020 |
CE108,EE104 ｱﾘ(ﾙ-ﾌ ﾚ-ﾙ),右側 |
1 | ||
| 63496-13020 |
CE108,EE104 左側 |
1 | ||
| 63495-13020 |
CE108,EE104 右側 |
1 | ||
| 63495-13050 |
CE102,108,EE104 右側 |
1 | ||
| 63496-13020 |
CE108,EE104 ｱﾘ(ﾙ-ﾌ ﾚ-ﾙ),左側 |
1 | ||
| 63495-13020 |
CE108,EE104 右側 |
1 | ||
| 63496-13050 |
CE102,108,EE104 左側 |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63496-13020 |
CE108,EE104 左側 |
1 | ||
| 63495-13020 |
CE108,EE104 ｱﾘ(ﾙ-ﾌ ﾚ-ﾙ),右側 |
1 | ||
| 63496-13020 |
CE108,EE104 左側 |
1 | ||
| 63495-13020 |
CE108,EE104 右側 |
1 | ||
| 63495-13050 |
CE102,108,EE104 右側 |
1 | ||
| 63496-13020 |
CE108,EE104 ｱﾘ(ﾙ-ﾌ ﾚ-ﾙ),左側 |
1 | ||
| 63495-13020 |
CE108,EE104 右側 |
1 | ||
| 63496-13050 |
CE102,108,EE104 左側 |
1 | ||
| Common parts | ||||
| 90109-06202 | ||||
| 90119-06677 | ||||
| 90152-40004 | ||||
| 90467-11094 | ||||
| 91651-40612 | ||||
| 93210-16010 | ||||
(9109- )AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

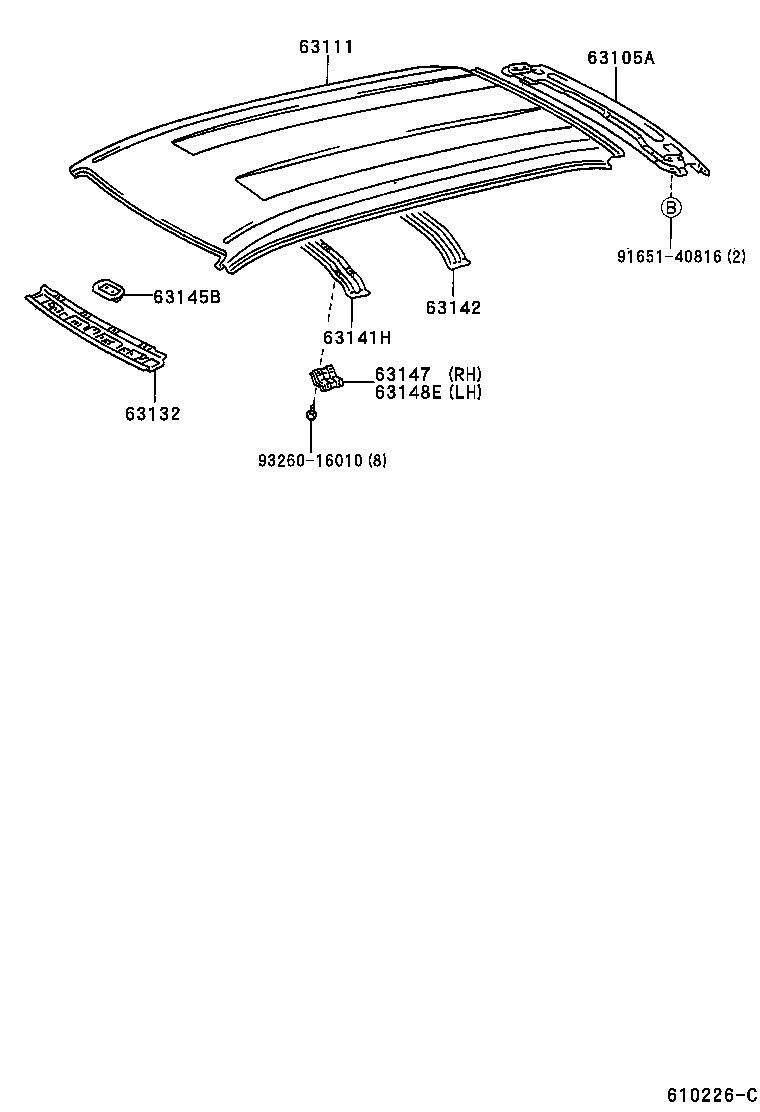

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-13120 |
CE102,108,EE104 ｱﾘ(ﾙ-ﾌ ﾚ-ﾙ & ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 63105-13070 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-13020 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-13050 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-12100 |
AE109,CE10#,EE10# |
1 | ||
| Common parts | ||||
| 91651-40816 | ||||
| 93260-16010 | ||||
(9704- )CE102,108,EE104

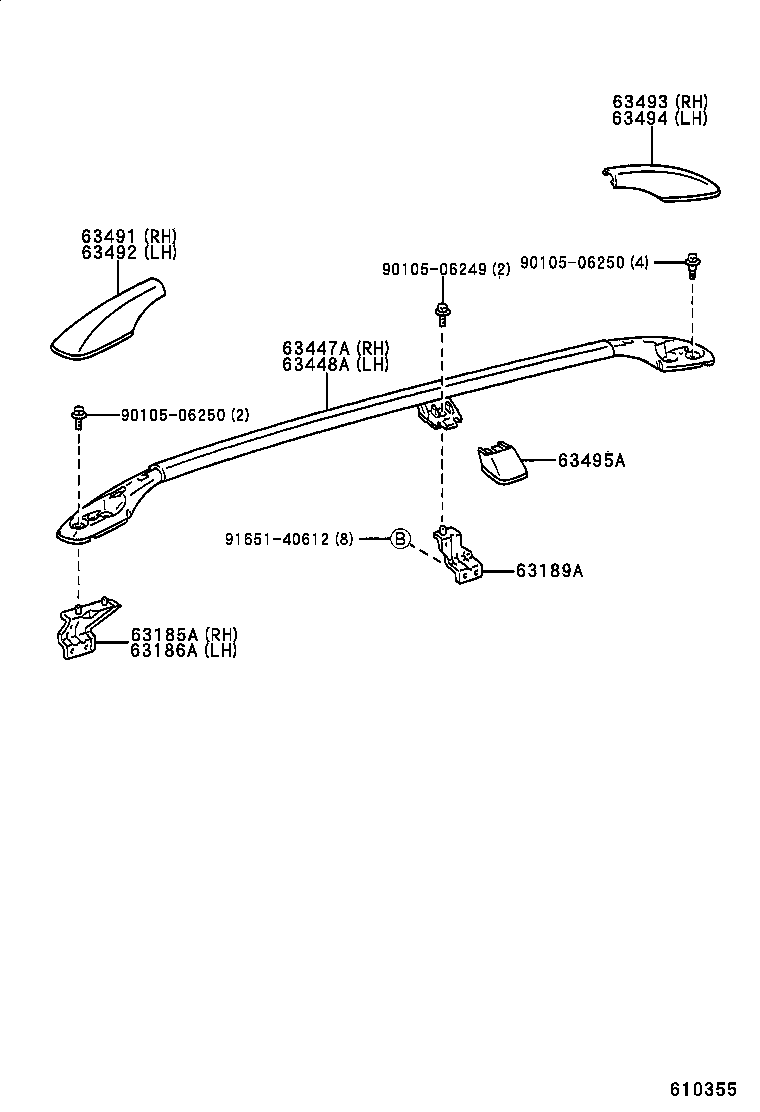

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-13020 |
CE108,EE104 |
1 | ||
| 63185-13050 |
CE102,108,EE104 |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-13020 |
CE108,EE104 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63186-13050 |
CE102,108,EE104 |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-13050 |
CE102,108,EE104 右側 |
1 | ||
| 63189-13020 |
CE108,EE104 右側 |
1 | ||
| 63199-13020 |
CE108,EE104 左側 |
1 | ||
| 63199-13040 |
CE102,108,EE104 左側 |
1 | ||
| 63447A - ROOF RAIL, RH | ||||
| 63447-13030 |
CE108,EE104 |
1 | ||
| 63460-13060 |
CE102,108,EE104 |
1 | ||
| 63448A - ROOF RAIL, LH | ||||
| 63448-13030 |
CE108,EE104 |
1 | ||
| 63470-13060 |
CE102,108,EE104 |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-13020 |
CE108,EE104 |
1 | ||
| 63491-13020 |
CE108,EE104 |
1 | ||
| 63491-13020 |
CE108,EE104 ｱﾘ(ﾙ-ﾌ ﾚ-ﾙ) |
1 | ||
| 63491-13050 |
CE102,108,EE104 |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-13050 |
CE102,108,EE104 |
1 | ||
| 63492-13020 |
CE108,EE104 |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-13060 |
CE102,108,EE104 |
1 | ||
| 63493-13030 |
CE108,EE104 |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-13030 |
CE108,EE104 |
1 | ||
| 63494-13060 |
CE102,108,EE104 |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63496-13020 |
CE108,EE104 左側 |
1 | ||
| 63495-13020 |
CE108,EE104 ｱﾘ(ﾙ-ﾌ ﾚ-ﾙ),右側 |
1 | ||
| 63496-13020 |
CE108,EE104 左側 |
1 | ||
| 63495-13020 |
CE108,EE104 右側 |
1 | ||
| 63495-13050 |
CE102,108,EE104 右側 |
1 | ||
| 63496-13020 |
CE108,EE104 ｱﾘ(ﾙ-ﾌ ﾚ-ﾙ),左側 |
1 | ||
| 63495-13020 |
CE108,EE104 右側 |
1 | ||
| 63496-13050 |
CE102,108,EE104 左側 |
1 | ||
| Common parts | ||||
| 90105-06249 | ||||
| 90105-06250 | ||||
| 91651-40612 | ||||
