CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109-9401)CE106,108,EE106,107,108 ; (9401-9505)CE106,108,EE102,103,104

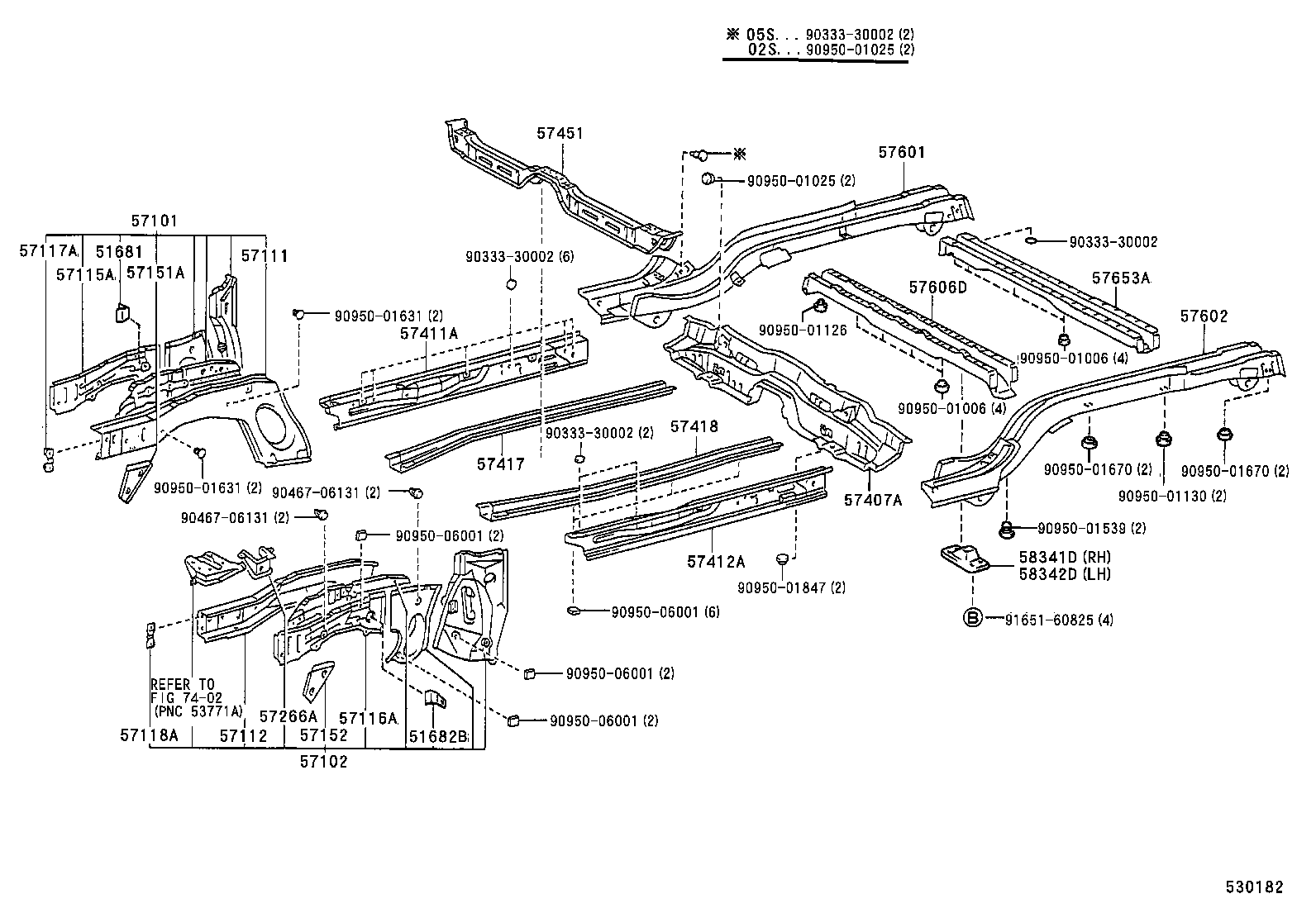

Click highlighted areas on diagram

diagram 51681 51682B 57101 57102 57111 57112 57115A 57116A 57117A 57118A 57151A 57152 57266A 57407A 57411A 57412A 57417 57418 57451 57601 57602 57606D 57653A 58341D 58342D 7402 9033330002 9033330002 9033330002 9033330002 9046706131 9046706131 9095001006 9095001006 9095001025 9095001025 9095001126 9095001130 9095001539 9095001631 9095001631 9095001670 9095001670 9095001847 9095006001 9095006001 9095006001 9095006001 9165160825
Part # Description Qty Price
51681 - BRACKET, FLEXIBLE HOSE
51681-12050

AE10#,CE10#,EE10#

 1
51682B - BRACKET, FLEXIBLE HOSE, LH
51682-12060

AE10#,CE10#,EE10#

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-12441

CE10#,EE10#

 1
57101-12440

CE10#,EE10#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-12400

CE10#

 1
57102-12401

CE10#

 1
57111 - MEMBER, FRONT SIDE, RH
57111-12200

AE10#,CE10#,EE10#

 1
57111-12201

AE109,CE10#,EE10#

 1
57112 - MEMBER, FRONT SIDE, LH
57112-12142

AE109,CE10#,EE10#

 1
57112-12141

AE109,CE10#,EE10#

 1
57112-12140

AE10#,CE10#,EE10#

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-12060

AE10#,CE10#,EE10#

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-12060

AE10#,CE10#,EE10#

 1
57117A - REINFORCEMENT, FRONT BUMPER MOUNTING
57117-12110

AE10#,CE10#,EE10#

 1
57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH
57117-12110

AE10#,CE10#,EE10#

 1
57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57151-12100

AE10#,CE10#,EE10#

 1
57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57152-12070

AE10#,CE10#,EE10#

 1
57266A - BRACKET, ENGINE MOUNTING, LH
57208-12110

CE10#

 1
57208-12111

CE10#

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-12460

AE10#,CE10#,EE10#

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-12460

AE10#,CE10#,EE10#

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-13010

AE109,CE10#,EE10#

 1
57417-12100

AE10#,CE10#,EE10#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-13010

AE109,CE10#,EE10#

 1
57418-12060

AE10#,CE10#,EE10#

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-12130

AE100,101,CE100,106,108,EE10#

 1
57606D - MEMBER SUB-ASSY, REAR ABSORBER MOUNTING
57606-13070

CE102,106,107,108,EE102,103,104,106,107,108

 1
57653A - MEMBER, REAR FLOOR CROSS, NO.2
57653-13020

CE102,106,107,108,EE102,103,104,106,107,108

 1
58341D - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58341-13030

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
58342D - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58342-13030

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
Common parts
90333-30002
90467-06131
90950-01006
90950-01025
90950-01126
90950-01130
90950-01539
90950-01631
90950-01670
90950-01847
90950-06001
91651-60825
Linked diagrams
7402

(9505-9704)CE106,108,EE10#

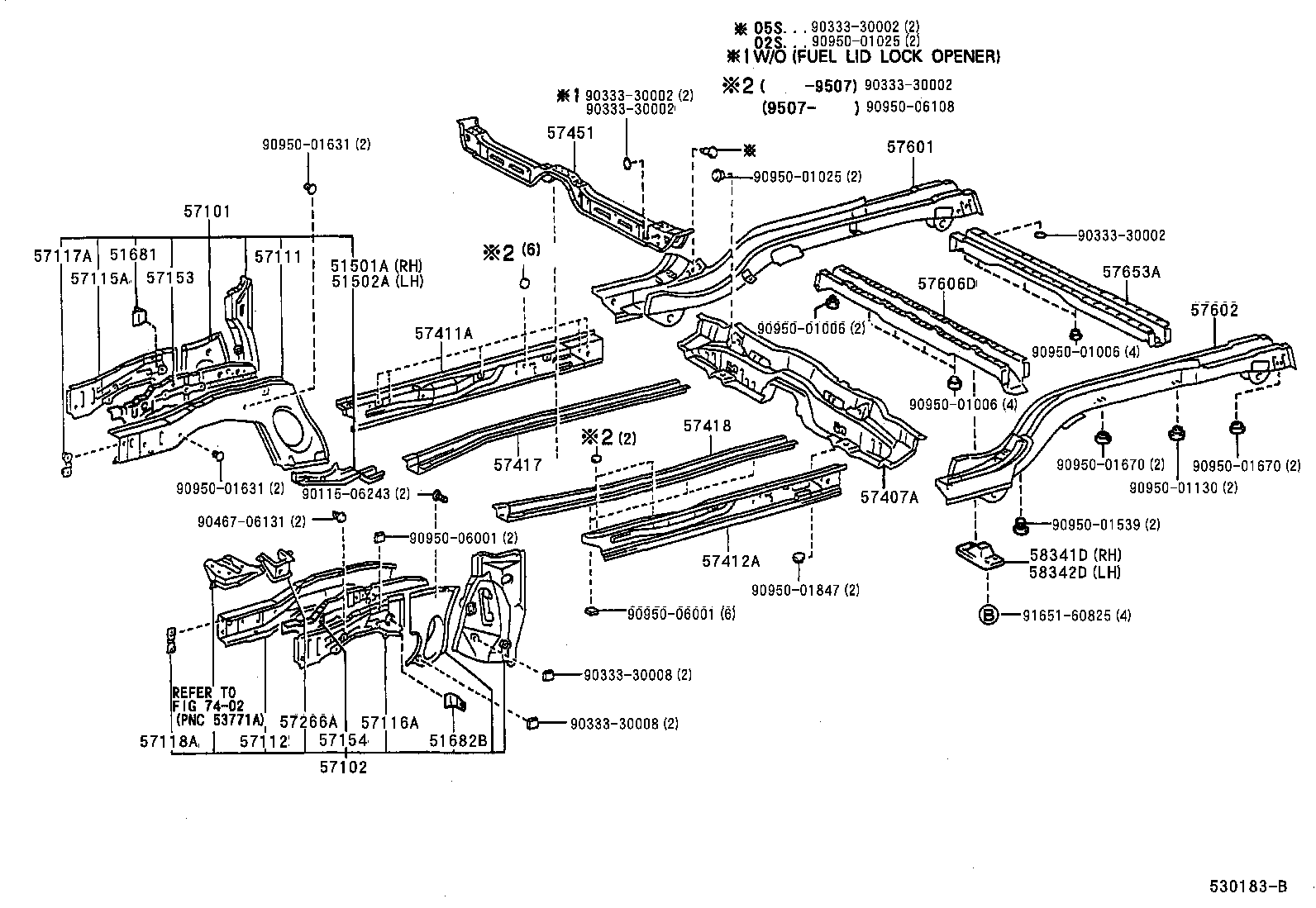

Click highlighted areas on diagram

diagram 51501A 51502A 51681 51682B 57101 57102 57111 57112 57115A 57116A 57117A 57118A 57153 57154 57266A 57407A 57411A 57412A 57417 57418 57451 57601 57602 57606D 57653A 58341D 58342D 9011506243 9033330002 9033330002 9033330002 9033330002 9033330002 9033330008 9033330008 9046706131 9095001006 9095001006 9095001006 9095001025 9095001025 9095001130 9095001539 9095001631 9095001631 9095001670 9095001670 9095001847 9095006001 9095006001 9095006108 9165160825
Part # Description Qty Price
51681 - BRACKET, FLEXIBLE HOSE
51681-12050

AE10#,CE10#,EE10#

 1
51682B - BRACKET, FLEXIBLE HOSE, LH
51682-12060

AE10#,CE10#,EE10#

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-12441

CE10#,EE10#

 1
57101-12440

CE10#,EE10#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-12400

CE10#

 1
57102-12401

CE10#

 1
57111 - MEMBER, FRONT SIDE, RH
57111-12200

AE10#,CE10#,EE10#

 1
57111-12201

AE109,CE10#,EE10#

 1
57112 - MEMBER, FRONT SIDE, LH
57112-12142

AE109,CE10#,EE10#

 1
57112-12141

AE109,CE10#,EE10#

 1
57112-12140

AE10#,CE10#,EE10#

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-12060

AE10#,CE10#,EE10#

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-12060

AE10#,CE10#,EE10#

 1
57117A - REINFORCEMENT, FRONT BUMPER MOUNTING
57117-12110

AE10#,CE10#,EE10#

 1
57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH
57117-12110

AE10#,CE10#,EE10#

 1
57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57017-13010

AE109,CE10#,EE10#

 1
57017-12040

CE10#

 1
57266A - BRACKET, ENGINE MOUNTING, LH
57208-12110

CE10#

 1
57208-12111

CE10#

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-12460

AE10#,CE10#,EE10#

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-12460

AE10#,CE10#,EE10#

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-13010

AE109,CE10#,EE10#

 1
57417-12100

AE10#,CE10#,EE10#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-13010

AE109,CE10#,EE10#

 1
57418-12060

AE10#,CE10#,EE10#

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-12130

AE100,101,CE100,106,108,EE10#

 1
57606D - MEMBER SUB-ASSY, REAR ABSORBER MOUNTING
57606-13070

CE102,106,107,108,EE102,103,104,106,107,108

 1
57653A - MEMBER, REAR FLOOR CROSS, NO.2
57653-13020

CE102,106,107,108,EE102,103,104,106,107,108

 1
58341D - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58341-13030

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
58342D - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58342-13030

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
Common parts
90115-06243
90333-30002
90333-30008
90467-06131
90950-01006
90950-01025
90950-01130
90950-01539
90950-01631
90950-01670
90950-01847
90950-06001
90950-06108
91651-60825

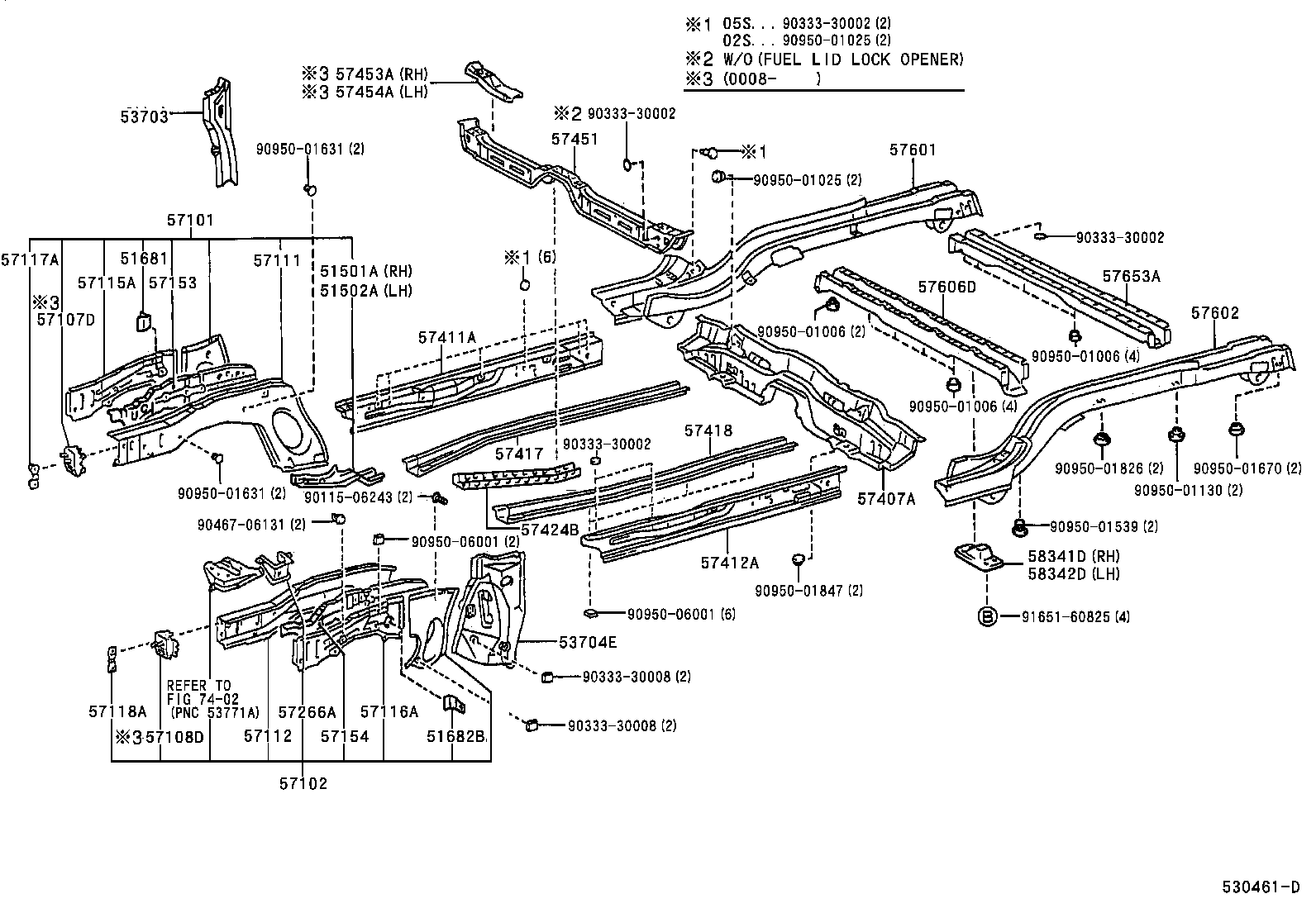

(9704- )CE102,106,107,108,EE10#

Click highlighted areas on diagram

diagram 51501A 51502A 51681 51682B 53703 53704E 57101 57102 57107D 57108D 57111 57112 57115A 57116A 57117A 57118A 57153 57154 57266A 57407A 57411A 57412A 57417 57418 57424B 57451 57453A 57454A 57601 57602 57606D 57653A 58341D 58342D 7402 9011506243 9033330002 9033330002 9033330002 9033330002 9033330008 9033330008 9046706131 9095001006 9095001006 9095001006 9095001025 9095001025 9095001130 9095001539 9095001631 9095001631 9095001670 9095001826 9095001847 9095006001 9095006001 9165160825
Part # Description Qty Price
51681 - BRACKET, FLEXIBLE HOSE
51681-12050

AE10#,CE10#,EE10#

 1
51682B - BRACKET, FLEXIBLE HOSE, LH
51682-12060

AE10#,CE10#,EE10#

 1
53704E - APRON SUB-ASSY, FRONT FENDER, REAR LH
53704-12020

AE109,CE10#,EE10#

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-12441

CE10#,EE10#

 1
57101-12440

CE10#,EE10#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-12400

CE10#

 1
57102-12401

CE10#

 1
57111 - MEMBER, FRONT SIDE, RH
57111-12200

AE10#,CE10#,EE10#

 1
57111-12201

AE109,CE10#,EE10#

 1
57112 - MEMBER, FRONT SIDE, LH
57112-12142

AE109,CE10#,EE10#

 1
57112-12141

AE109,CE10#,EE10#

 1
57112-12140

AE10#,CE10#,EE10#

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-12060

AE10#,CE10#,EE10#

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-12060

AE10#,CE10#,EE10#

 1
57117A - REINFORCEMENT, FRONT BUMPER MOUNTING
57117-12110

AE10#,CE10#,EE10#

 1
57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH
57117-12110

AE10#,CE10#,EE10#

 1
57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57017-13010

AE109,CE10#,EE10#

 1
57017-12040

CE10#

 1
57266A - BRACKET, ENGINE MOUNTING, LH
57208-12110

CE10#

 1
57208-12111

CE10#

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-12460

AE10#,CE10#,EE10#

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-12460

AE10#,CE10#,EE10#

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-13010

AE109,CE10#,EE10#

 1
57417-12100

AE10#,CE10#,EE10#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-13010

AE109,CE10#,EE10#

 1
57418-12060

AE10#,CE10#,EE10#

 1
57424B - REINFORCEMENT, FRONT FLOOR UNDER, INNER LH
57424-12020

AE109,CE10#,EE10#

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-12130

AE100,101,CE100,106,108,EE10#

 1
57606D - MEMBER SUB-ASSY, REAR ABSORBER MOUNTING
57606-13070

CE102,106,107,108,EE102,103,104,106,107,108

 1
57653A - MEMBER, REAR FLOOR CROSS, NO.2
57653-13020

CE102,106,107,108,EE102,103,104,106,107,108

 1
58341D - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58341-13030

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
58342D - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58342-13030

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
Common parts
90115-06243
90333-30002
90333-30008
90467-06131
90950-01006
90950-01025
90950-01130
90950-01539
90950-01631
90950-01670
90950-01826
90950-01847
90950-06001
91651-60825
Linked diagrams
7402
