CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )AE100,101,CE100,102,106,107,108,EE10#

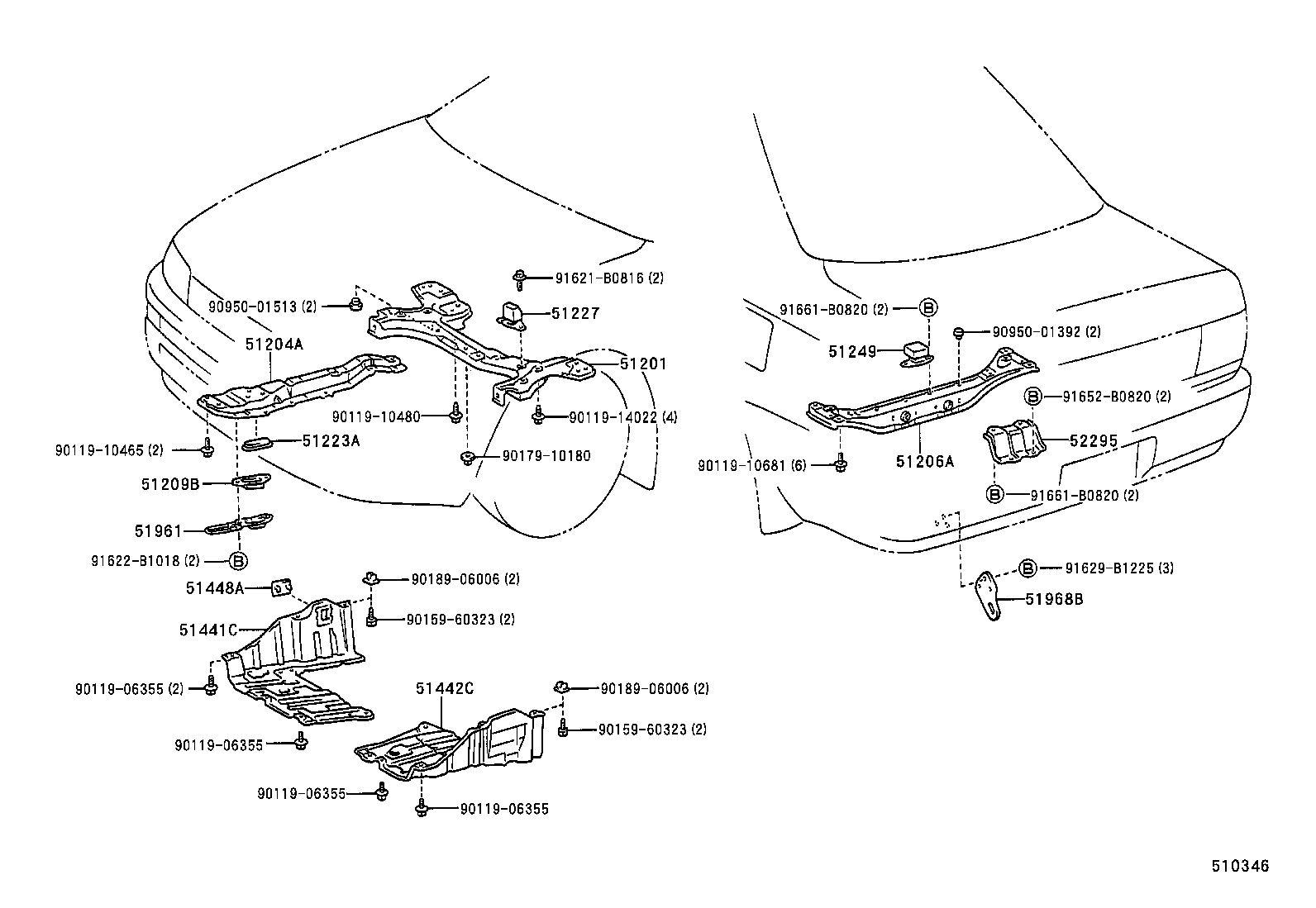

Click highlighted areas on diagram

diagram 51201 51204A 51206A 51209B 51223A 51227 51249 51441C 51442C 51448A 51961 51968B 52295 9011906355 9011906355 9011906355 9011906355 9011910465 9011910480 9011910681 9011914022 9015960323 9015960323 9017910180 9018906006 9018906006 9095001392 9095001513 91621B0816 91622B1018 91629B1225 91652B0820 91661B0820 91661B0820
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-12370

CE106,108,EE10#

 1
51201-12320

AE100,101,CE100,106,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL

 1
51201-12380

CE102,106,107,108,EE10#

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-12080

AE100,101,CE100,102,106,107,108,EE10#

 1
51209B - PROTECTOR SUB-ASSY, CENTER MEMBER, FRONT
51209-12010

AE10#,CE10#,EE10#

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-12010

AE10#,CE10#,EE10#

 1
51227 - WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51227-12040

AE100,101,CE100,106,108,EE10#

 1
51441C - COVER, ENGINE UNDER, RH
51441-12140

AE10#,CE10#,EE10#

 1
51442C - COVER, ENGINE UNDER, LH
51442-12080

AE10#,CE10#,EE10#..MTM

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20010

AE10#,CE10#,EE10#

 1
51961 - HOOK, NO.1
51960-12060

AE109,CE10#,EE10#

 1
Common parts
90119-06355
90119-10465
90119-10480
90119-10681
90119-14022
90159-60323
90179-10180
90189-06006
90950-01392
90950-01513
91621-B0816
91622-B1018
91629-B1225
91652-B0820
91661-B0820
