CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )CE102,106,107,108,EE102,103,104

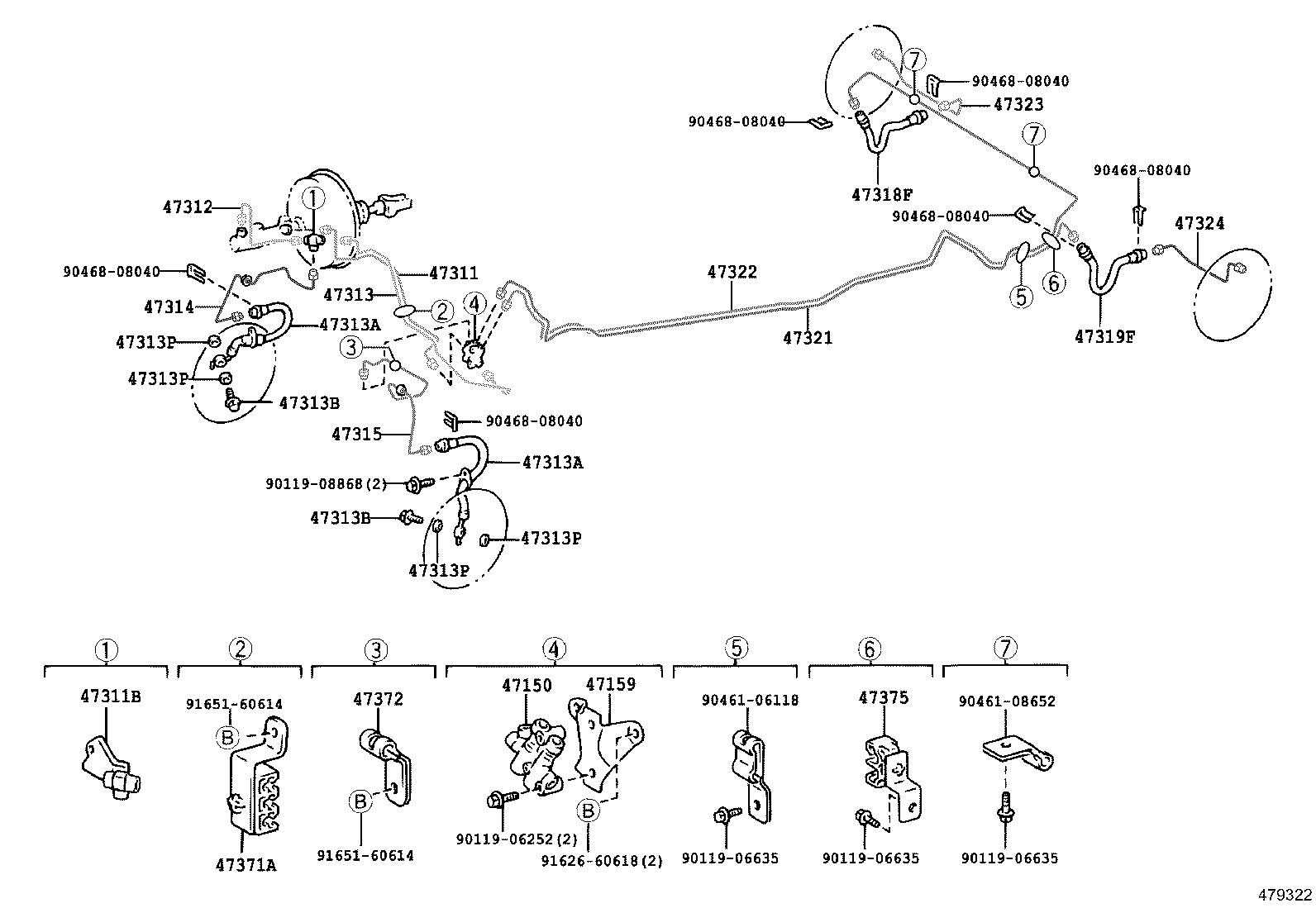

Click highlighted areas on diagram

diagram 47150 47159 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47314 47315 47318F 47319F 47321 47322 47323 47324 47371A 47372 47375 9011906252 9011906635 9011906635 9011906635 9011908868 9046106118 9046108652 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040 9162660618 9165160614 9165160614
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12270

AE100,101,CE108,109,EE101,104,108..DX,L,LX,SEG,SEL,XE,XL

 1
47150-12270

CE102,108,EE104

ﾅｼ(ABS)

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-12070

AE10#,CE10#,EE10#

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-12450

AE100,101,CE100,106,108,109,EE10#..CTD,DX,L,LX,SEG,SEL,XE,XL

 1
47311-12450

CE106,108,EE106,107,108

 1
47311-12540

AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10262

AE10#,CE10#,EE10#

 1
90413-10262

CE106,108,109,EE106,107,108

 1
47391-12010

AE100,101,109,CE100,102,105,106,107,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-12290

AE100,101,CE100,106,108,109,EE10#

 1
47312-12290

CE106,108,109,EE106,107,108

 1
47312-12330

AE100,101,109,CE100,102,105,106,107,108,109,EE10#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-12260

AE100,101,CE100,106,108,109,EE10#..CTD,DX,L,LX,SEG,SEL,XE,XL

 1
47313-12340

AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL

 1
47313-12260

CE106,108,EE106,107,108

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02660

AE100,101,CE100,106,108,EE10#

左側

 1
90947-02659

AE100,101,CE100,106,108,EE10#

右側

 1
90947-02799

AE100,101,CE100,106,108,EE10#

左側

 1
90947-02910

CE102,106,107,108,EE10#

右側

 1
90947-02798

AE100,101,CE100,106,108,EE10#

右側

 1
90947-02913

CE102,106,107,108,EE10#

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02660

AE100,101,CE100,106,108,EE10#

左側

 1
90947-02659

AE100,101,CE100,106,108,EE10#

右側

 1
90947-02799

AE100,101,CE100,106,108,EE10#

左側

 1
90947-02910

CE102,106,107,108,EE10#

右側

 1
90947-02798

AE100,101,CE100,106,108,EE10#

右側

 1
90947-02913

CE102,106,107,108,EE10#

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AE10#,CE10#,EE10#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AE10#,CE10#,EE10#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AE10#,CE10#,EE10#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AE10#,CE10#,EE10#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AE10#,CE10#,EE10#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AE10#,CE10#,EE10#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-12320

CE106,108,EE106,107,108

 1
47314-12290

AE109,CE10#,EE10#

 1
47314-12320

AE100,101,CE100,106,108,109,EE10#..CTD,DX,L,LX,SEG,SEL,XE,XL

 1
47314-12400

AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-12460

AE10#,CE10#,EE10#

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02908

CE102,106,107,108,EE10#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02908

CE102,106,107,108,EE10#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-13060

CE102,106,107,108,EE102,103,104,106,107,108

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-13100

CE102,106,107,108,EE102,103,104,106,107,108

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-12100

AE10#,CE10#,EE10#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90461-06119

AE10#,CE10#,EE10#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47375-12030

CE102,106,107,108,EE102,103,104,106,107,108

 1
Common parts
90119-06252
90119-06635
90119-08868
90461-06118
90461-08652
90468-08040
91626-60618
91651-60614
