CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9106- )CE10#,EE101 ; (9401-9508)EE102,103,104

Click highlighted areas on diagram

diagram 1905 44704 44730 44730 44730F 44730F 44758 44772B 44773F 44773F 44776 8401 9011910550 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9165140614
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-12060

CE10#

 1
44704-12070

CE10#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

EE106,107,108

 1
44730-60050

CE10#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

EE106,107,108

 1
44730-60050

CE10#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09075

CE106..4FC;CE100,104,108

 1
90404-51034

EE106,107,108

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09075

CE106..4FC;CE100,104,108

 1
90404-51034

EE106,107,108

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12460

EE106,107,108

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12540

CE10#

 1
44773-12580

CE10#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12540

CE10#

 1
44773-12580

CE10#

 1
44776 - HOSE, BRAKE BOOSTER
44776-12090

CE106,108,109

 1
44776-12070

CE100,106,108,109

 1
44776-12120

CE10#

 1
Common parts
90119-10550
90467-16002
91651-40614
Linked diagrams
1905
8401

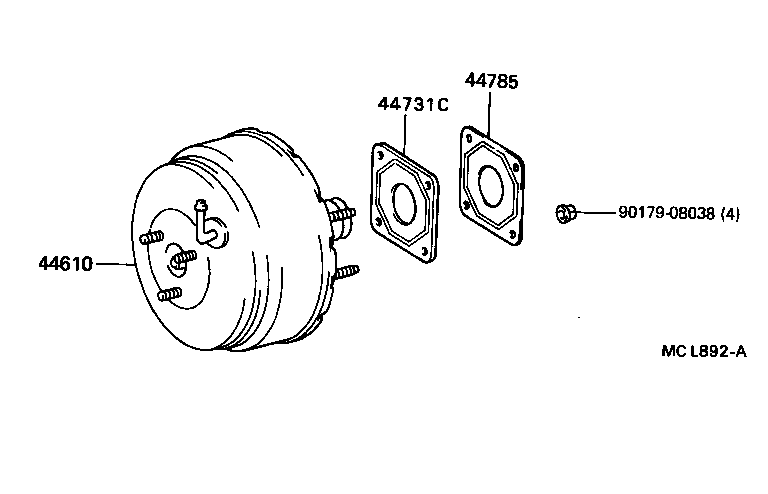

ILLUST NO. 1 OF 2(9106-9508) ; (9508- )CE10#

Click highlighted areas on diagram

diagram 44610 44731C 44785 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-1A310

EE106,107,108

 1
44610-1A330

CE100,108

 1
44610-1A330

CE108

 1
44610-1A270

CE10#

 1
44610-1A830

CE100,108

 1
44731C - BRACKET, BRAKE BOOSTER
44731-12050

AE100..4FC..SEL;CE100,106,108,109,EE102,103,106,107,108

ｱﾘ(ABS)

 1
44731-12050

AE100,101,CE100,106,108,109,EE10#..CTD,DX,L,LX,SEG,SEL,XE,XL

 1
44785 - GASKET, BRAKE BOOSTER
44785-12010

AE10#,CE10#,EE10#

 1
44785-20020

AE10#,CE10#,EE10#

 1
Common parts
90179-08038

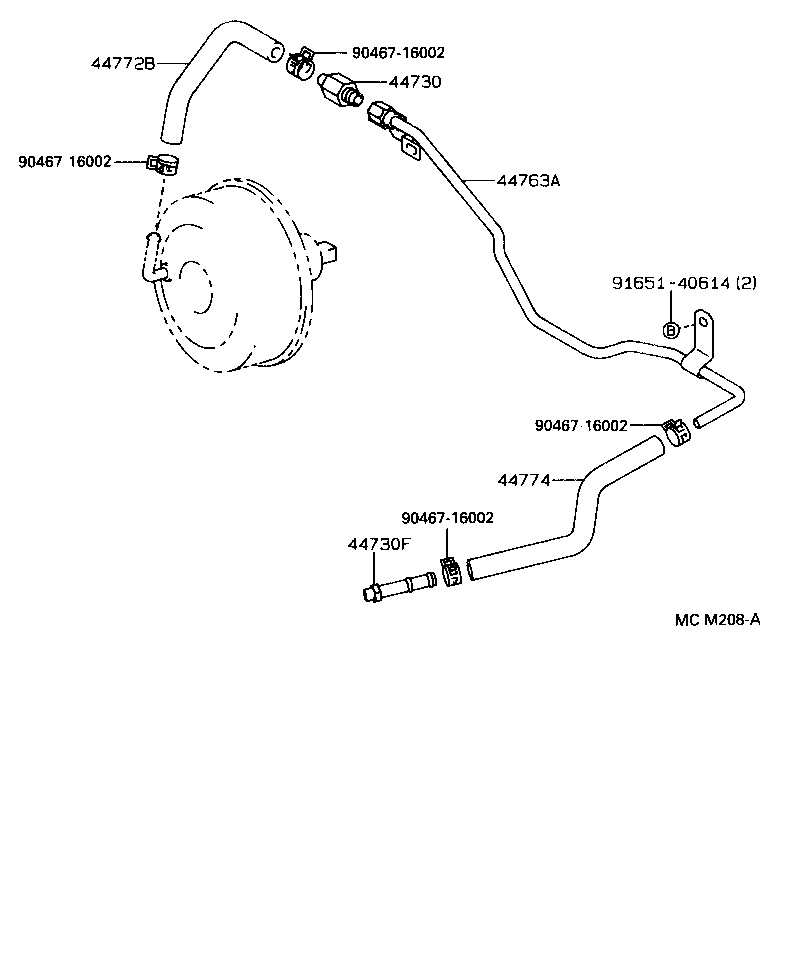

ILLUST NO. 2 OF 2(9109-9401)EE106,107,108

Click highlighted areas on diagram

diagram 44730 44730F 44763A 44772B 44774 9046716002 9046716002 9046716002 9046716002 9165140614
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

EE106,107,108

 1
44730-60050

CE10#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09075

CE106..4FC;CE100,104,108

 1
90404-51034

EE106,107,108

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12190

EE106,107,108

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12460

EE106,107,108

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12300

EE106,107,108

 1
Common parts
90467-16002
91651-40614
