CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )

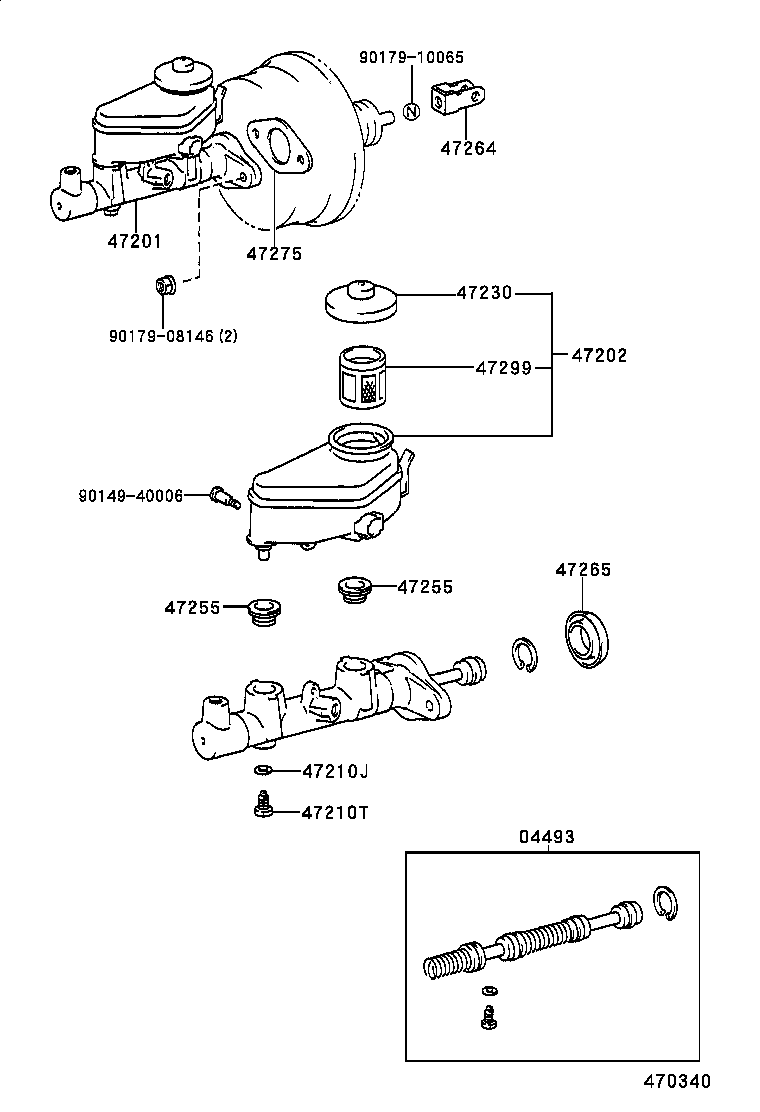

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47230 47255 47255 47264 47265 47275 47299 9014940006 9017908146 9017910065
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-16080

CE102,106,107,108,EE10#

 1
04493-12180

AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-12680

AE100,101,CE100,106,108,109,EE10#..CTD,DX,L,LX,SEG,SEL,XE,XL

 1
47201-12680

CE106,108,109,EE106,107,108

 1
47201-12870

AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL

 1
47201-1A050

CE102,106,107,108,EE10#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-32060

AE109,CE10#,EE10#

 1
47202-12390

AE10#,CE10#,EE10#

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

AE10#,CE10#,EE10#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

AE10#,CE10#,EE10#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-12040

AE10#,CE10#,EE10#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

AE10#,CE10#,EE10#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

AE10#,CE10#,EE10#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-16020

AE10#,CE10#,EE10#

 1
47264-16020

AE10#,CE10#,EE10#

 1
47264-16020

AE10#,CE10#,EE101,102,103

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

AE10#,CE10#,EE10#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-32010

AE10#,CE10#,EE10#

ｱﾘ(ABS)

 1
47275-12020

AE100,101,109,CE100,102,105,106,107,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010

AE10#,CE10#,EE10#

 1
Common parts
90149-40006
90179-08146
90179-10065
