CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )

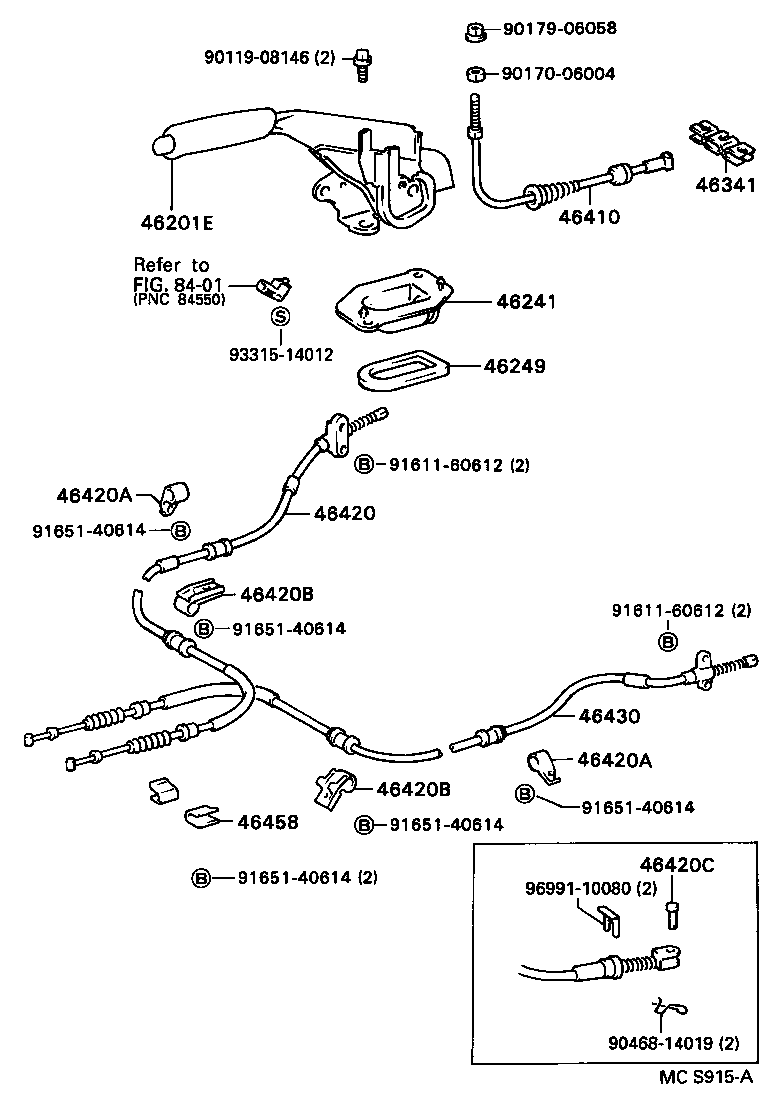

Click highlighted areas on diagram

diagram 46201E 46241 46249 46341 46410 46420 46420A 46420A 46420B 46420B 46420C 46430 46458 8401 9011908146 9017006004 9017906058 9046814019 9161160612 9161160612 9165140614 9165140614 9165140614 9165140614 9165140614 9331514012 9699110080
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-12150B0

AE100,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,XL

SHADOW GRAY,TRIM1#

 1
46201-12180B0

AE109,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-12090

AE100,101,CE100,106,108,EE10#

 1
46241-12110

AE109,CE10#,EE10#

 1
46241-12090

AE100,101,CE100,106,108,EE10#..CTD,DX,DXJ,GT,L,XL

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-12010

AE10#,CE10#,EE10#

 1
46249-12010

AE104,CE104;AE100,101,109,CE100,102,105,106,107,108,109,EE10#..CTD,DX,DXJ,GT,L,XL

 1
46341 - EQUALIZER, PARKING BRAKE
46341-12020

AE10#,CE10#,EE10#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12210

AE100,101,CE100,106,108,EE10#

 1
46410-12250

AE109,CE10#,EE10#

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01746

AE10#,CE10#,EE10#

 2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01746

AE10#,CE10#,EE10#

 2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01744

AE100,101,CE100,102,106,107,108,EE10#

左側

 1
90949-01747

AE100,101,CE100,102,106,107,108,EE10#

右側

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01744

AE100,101,CE100,102,106,107,108,EE10#

左側

 1
90949-01747

AE100,101,CE100,102,106,107,108,EE10#

右側

 1
46458 - RETAINER, CABLE
46458-50010

AE10#,CE10#,EE10#

 2
Common parts
90119-08146
90170-06004
90179-06058
90468-14019
91611-60612
91651-40614
93315-14012
96991-10080
Linked diagrams
8401
