CE108G-BWMDS (1991)
Toyota Sprinter

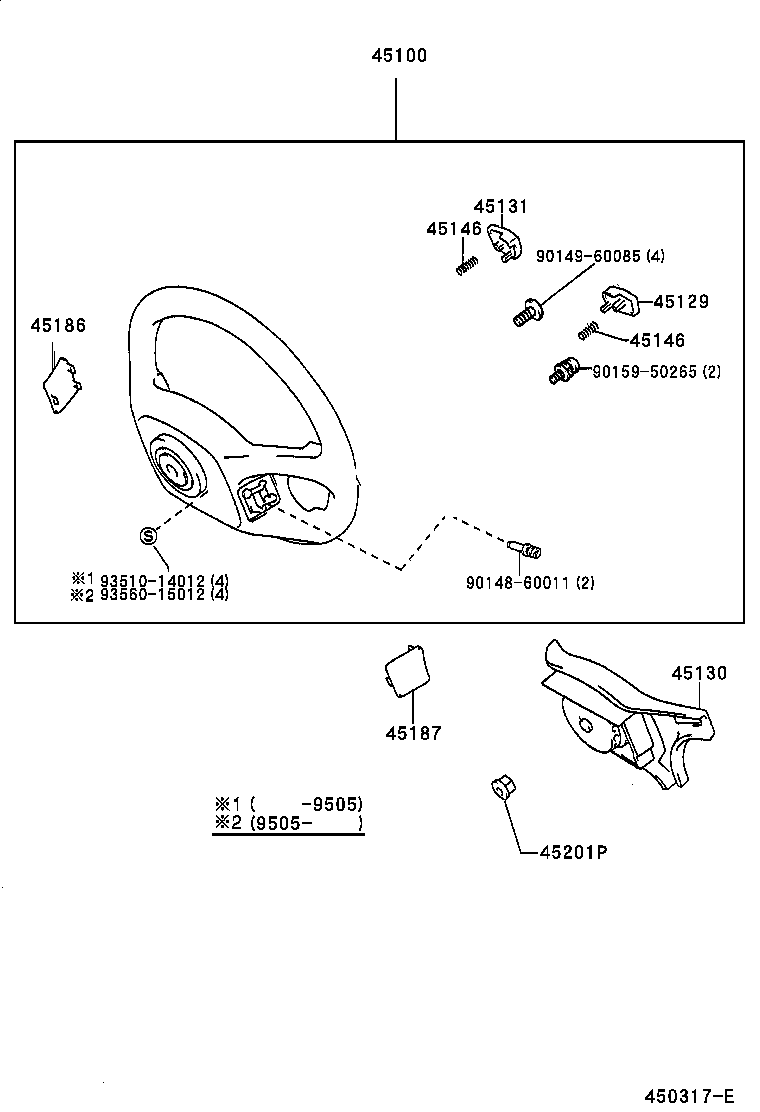

(9612- )
4-SPOKE, ｳﾚﾀﾝ, ｱﾘ(ﾃﾞﾝｷｼｷ *80)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12660P0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2B230B0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12630P0 |
CE108 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12630P0 |
CE108,EE108 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,L ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2B231B0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12631P0 |
CE108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12610P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12790B0 |
CE108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12800B0 |
CE108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12820B0 |
AE109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12860B0 |
CE108,EE104 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12880B0 |
AE109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12721P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12722P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12723P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),GRAY,TRIM1# |
1 | ||
| 45130-12690P0 |
CE108 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12690P0 |
CE108,EE108 L ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A010B0 |
CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12880B0 |
CE10#,EE103,104..L,XL ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12670P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL ｱﾘ(2-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A050B0 |
CE108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A010B0 |
CE108,EE104 SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12691P0 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12870B0 |
CE108,EE104 SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A100B0 |
AE109,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12724P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-20020P0 |
CE106,108,109,EE107,108..L,XL ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45186-10010B0 |
AE109,CE10#,EE10#..CTD,DX,DXJ,L GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
CE108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45186-44010C0 |
CE10#,EE10#..CTD,DXJ,L,XL BLACK,TRIM2# |
1 | ||
| 45186-20020P0 |
AE100,104,CE10#,EE101,103,104,107,108..L,LX,XL ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-20010P0 |
CE106,108,109,EE107,108..L,XL ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45187-20030P0 |
CE106,108,109,EE107,108..L,XL ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45187-20030P0 |
AE100,104,CE10#,EE101,103,104,107,108..L,LX,XL ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
CE108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45187-10010B0 |
CE10#,EE103,104..L,XL ｱﾘ(ｷｶｲｼｷ *80),GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AE10#,CE10#,EE10# |
1 | ||
| 90179-12071 |
AE10#,CE10#,EE10# |
1 | ||
| Common parts | ||||
| 90148-60011 | ||||

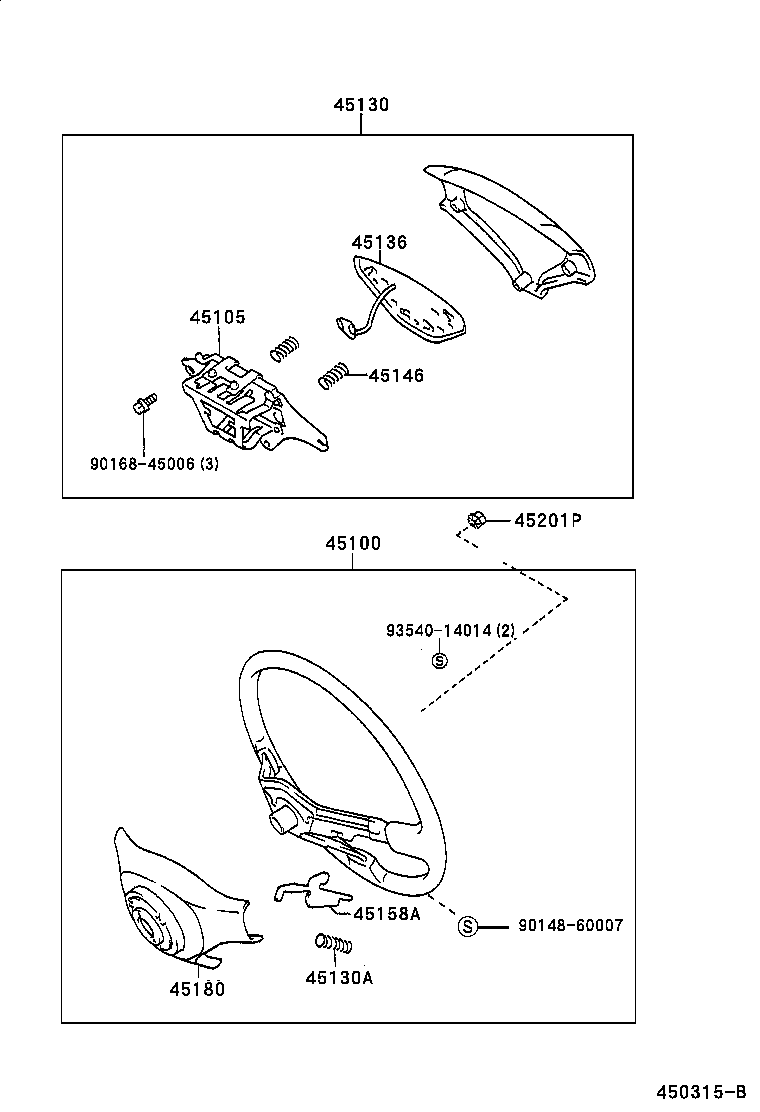

(9106- )
3-SPOKE,ｳﾚﾀﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12660P0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2B230B0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12630P0 |
CE108 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12630P0 |
CE108,EE108 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,L ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2B231B0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12631P0 |
CE108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12610P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12790B0 |
CE108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12800B0 |
CE108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12820B0 |
AE109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12860B0 |
CE108,EE104 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12880B0 |
AE109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-12150 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL |
1 | ||
| 45105-12130 |
CE108,EE108 L ｴｸｽﾄﾗ |
1 | ||
| 45105-12130 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 45105-12210 |
CE108,EE104 |
1 | ||
| 45105-12150 |
AE100,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,XL |
1 | ||
| 45105-12220 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12721P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12722P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12723P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),GRAY,TRIM1# |
1 | ||
| 45130-12690P0 |
CE108 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12690P0 |
CE108,EE108 L ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A010B0 |
CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12880B0 |
CE10#,EE103,104..L,XL ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12670P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL ｱﾘ(2-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A050B0 |
CE108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A010B0 |
CE108,EE104 SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12691P0 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12870B0 |
CE108,EE104 SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A100B0 |
AE109,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12724P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130A - SPRING, COMPRESSION(FOR HORN BUTTON) | ||||
| 90501-09112 |
AE100,104,CE10#,EE101,107,108..L,LX,XE,XL |
1 | ||
| 90501-09112 |
AE100,104,CE10#,EE101,107,108..L,XE,XL |
1 | ||
| 90501-09112 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 90501-09112 |
AE100,104,CE100,104,106,109,EE101,103,107,108..L,LX,XE,XL |
1 | ||
| 90501-09112 |
CE10#,EE103,104..L,XL |
1 | ||
| 45136 - PLATE, HORN BUTTON CONTACT | ||||
| 45136-12220 |
AE100,104,CE10#,EE101,107,108..L,LX,XE,XL |
1 | ||
| 45136-12220 |
AE100,104,CE10#,EE101,107,108..L,XE,XL |
1 | ||
| 45136-12230 |
CE108,EE104 |
1 | ||
| 45136-12220 |
AE100,104,CE100,104,106,109,EE101,103,107,108..L,LX,XE,XL |
1 | ||
| 45136-12220 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20140 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 45146-20140 |
CE108,EE108 L ｴｸｽﾄﾗ |
2 | ||
| 45146-20140 |
CE108,EE104 |
2 | ||
| 45146-20230 |
AE10#,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80) |
2 | ||
| 45158A - SOCKET, HORN BUTTON JOINT | ||||
| 45158-12050 |
AE100,104,CE10#,EE101,107,108..L,XE,XL |
1 | ||
| 45158-12050 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 45158-12050 |
AE100,104,CE100,104,106,109,EE101,103,107,108..L,LX,XE,XL |
1 | ||
| 45158-12050 |
CE10#,EE103,104..L,XL |
1 | ||
| 45158-12050 |
AE100,104,CE10#,EE101,107,108..L,LX,XE,XL |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-12130B0 |
EE106,107,108 SHADOW GRAY,TRIM1# |
1 | ||
| 45180-12110B0 |
AE100,104,CE10#,EE101,107,108..L,XE,XL ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45180-12110B0 |
AE100,104,CE10#,EE101,103,104,107,108..L,LX,XE,XL ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45180-12130B0 |
AE100,104,CE10#,EE101,102,103,104..CTD,DX,DXJ,L,LX,XL ｱﾘ(2-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45180-12210B0 |
CE108,EE104 SHADOW GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AE10#,CE10#,EE10# |
1 | ||
| 90179-12071 |
AE10#,CE10#,EE10# |
1 | ||
| Common parts | ||||
| 90148-60007 | ||||
| 90168-45006 | ||||
| 93540-14014 | ||||
(9106-9804)
4-SPOKE, ｳﾚﾀﾝ, ｱﾘ(ｷｶｲｼｷ *80)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12660P0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2B230B0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12630P0 |
CE108 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12630P0 |
CE108,EE108 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,L ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2B231B0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12631P0 |
CE108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12610P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12790B0 |
CE108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12800B0 |
CE108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12820B0 |
AE109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12860B0 |
CE108,EE104 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12880B0 |
AE109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45129 - BUTTON, HORN, NO.2 | ||||
| 45129-33010B0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12721P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12722P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12723P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),GRAY,TRIM1# |
1 | ||
| 45130-12690P0 |
CE108 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12690P0 |
CE108,EE108 L ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A010B0 |
CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12880B0 |
CE10#,EE103,104..L,XL ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12670P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL ｱﾘ(2-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A050B0 |
CE108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A010B0 |
CE108,EE104 SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12691P0 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12870B0 |
CE108,EE104 SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A100B0 |
AE109,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12724P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-33010B0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20140 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 45146-20140 |
CE108,EE108 L ｴｸｽﾄﾗ |
2 | ||
| 45146-20140 |
CE108,EE104 |
2 | ||
| 45146-20230 |
AE10#,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80) |
2 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20140 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 45146-20140 |
CE108,EE108 L ｴｸｽﾄﾗ |
2 | ||
| 45146-20140 |
CE108,EE104 |
2 | ||
| 45146-20230 |
AE10#,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80) |
2 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-20020P0 |
CE106,108,109,EE107,108..L,XL ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45186-10010B0 |
AE109,CE10#,EE10#..CTD,DX,DXJ,L GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
CE108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45186-44010C0 |
CE10#,EE10#..CTD,DXJ,L,XL BLACK,TRIM2# |
1 | ||
| 45186-20020P0 |
AE100,104,CE10#,EE101,103,104,107,108..L,LX,XL ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-20010P0 |
CE106,108,109,EE107,108..L,XL ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45187-20030P0 |
CE106,108,109,EE107,108..L,XL ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45187-20030P0 |
AE100,104,CE10#,EE101,103,104,107,108..L,LX,XL ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
CE108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45187-10010B0 |
CE10#,EE103,104..L,XL ｱﾘ(ｷｶｲｼｷ *80),GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AE10#,CE10#,EE10# |
1 | ||
| 90179-12071 |
AE10#,CE10#,EE10# |
1 | ||
| Common parts | ||||
| 90148-60011 | ||||
| 90149-60085 | ||||
| 90159-50265 | ||||
| 93510-14012 | ||||
| 93560-15012 | ||||

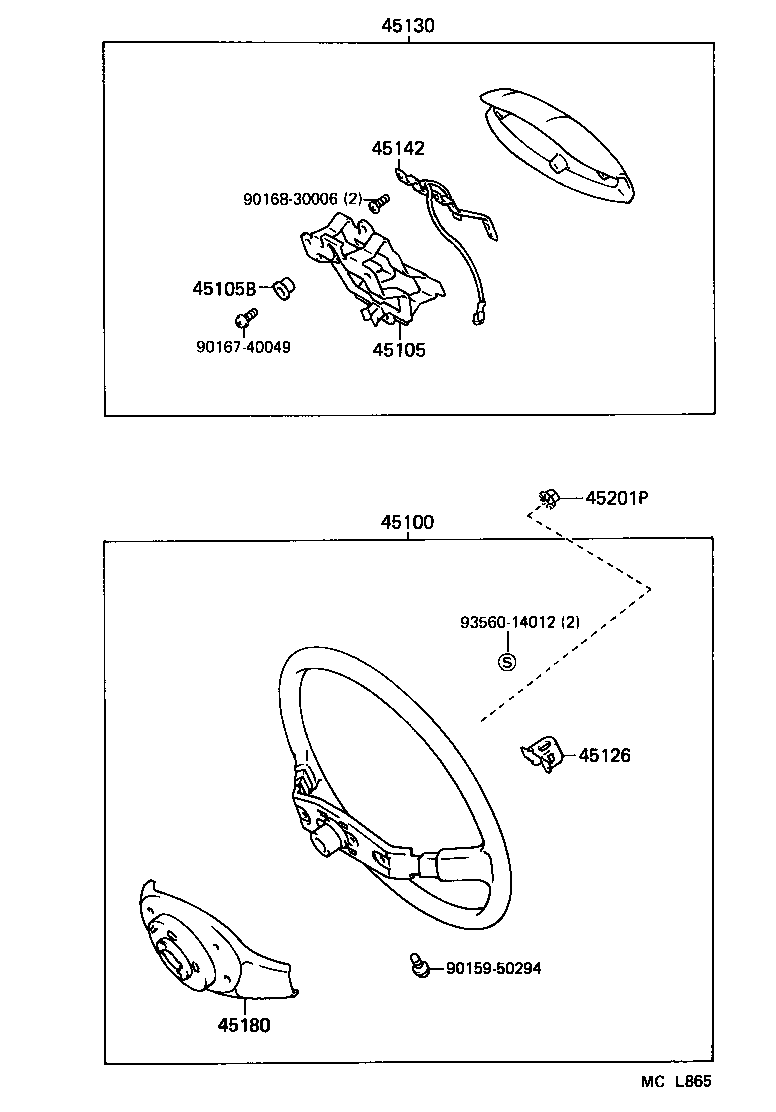

(9106-9804)CTD,DX,DXJ,L,LX,XL
2-SPOKE,PP(ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12660P0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2B230B0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12630P0 |
CE108 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12630P0 |
CE108,EE108 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,L ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2B231B0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12631P0 |
CE108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12610P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12790B0 |
CE108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12800B0 |
CE108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12820B0 |
AE109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12860B0 |
CE108,EE104 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12880B0 |
AE109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-12150 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL |
1 | ||
| 45105-12130 |
CE108,EE108 L ｴｸｽﾄﾗ |
1 | ||
| 45105-12130 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 45105-12210 |
CE108,EE104 |
1 | ||
| 45105-12150 |
AE100,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,XL |
1 | ||
| 45105-12220 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90561-04014 |
AE100,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,XL |
1 | ||
| 90561-04014 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL |
1 | ||
| 45126 - PLATE, STEERING WHEEL PAD SET | ||||
| 45126-16040 |
AE10#,CE10#,EE10#..CTD,DX,L,LX,SEG,SEL,XL |
1 | ||
| 45126-16040 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,L,SEG,SEL,XL |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12721P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12722P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12723P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),GRAY,TRIM1# |
1 | ||
| 45130-12690P0 |
CE108 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12690P0 |
CE108,EE108 L ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A010B0 |
CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12880B0 |
CE10#,EE103,104..L,XL ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12670P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL ｱﾘ(2-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A050B0 |
CE108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A010B0 |
CE108,EE104 SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12691P0 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12870B0 |
CE108,EE104 SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A100B0 |
AE109,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12724P0 |
AE10#,CE10#,EE10# ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45142 - SEAT, HORN BUTTON CONTACT, NO.1 | ||||
| 45142-12100 |
AE100,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,XL |
1 | ||
| 45142-12100 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-12130B0 |
EE106,107,108 SHADOW GRAY,TRIM1# |
1 | ||
| 45180-12110B0 |
AE100,104,CE10#,EE101,107,108..L,XE,XL ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45180-12110B0 |
AE100,104,CE10#,EE101,103,104,107,108..L,LX,XE,XL ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45180-12130B0 |
AE100,104,CE10#,EE101,102,103,104..CTD,DX,DXJ,L,LX,XL ｱﾘ(2-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45180-12210B0 |
CE108,EE104 SHADOW GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AE10#,CE10#,EE10# |
1 | ||
| 90179-12071 |
AE10#,CE10#,EE10# |
1 | ||
| Common parts | ||||
| 90159-50294 | ||||
| 90167-40049 | ||||
| 90168-30006 | ||||
| 93560-14012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
