CE108G-BWMDS (1991)
Toyota Sprinter
Production
Sep 1991
-
Apr 1998
Engine
2C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

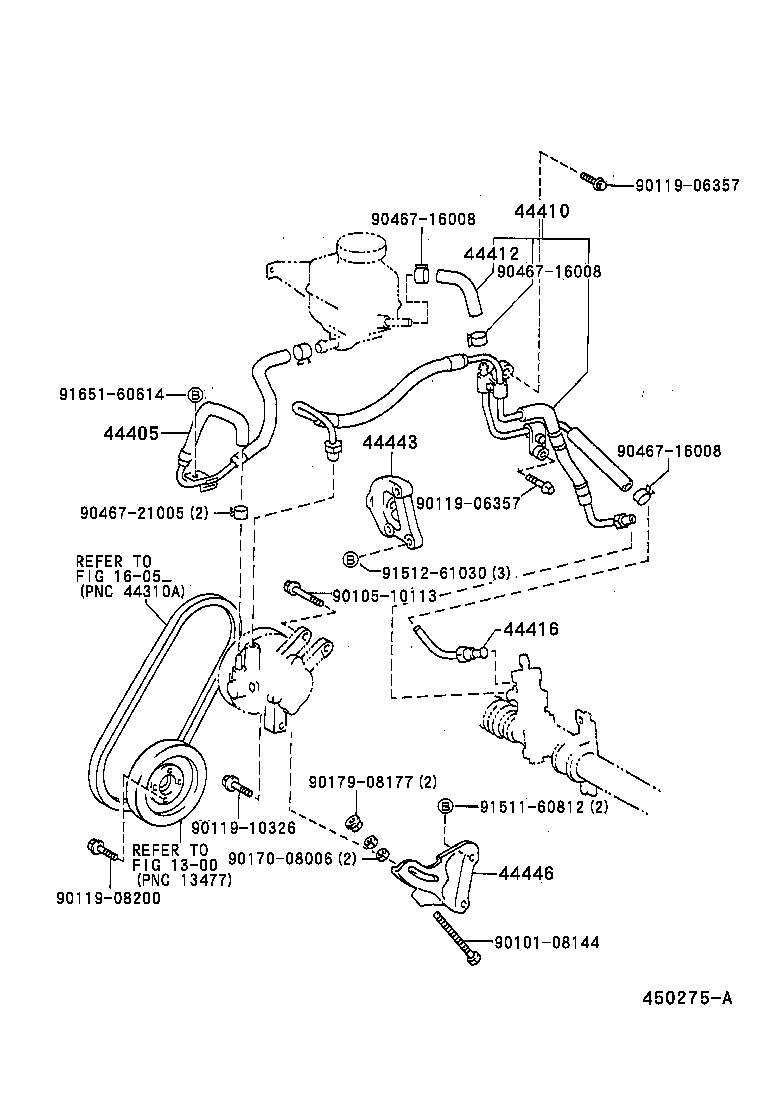

(9109-9401)EE106,107,108 ; (9401-9505)EE102,103,104
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44405 - TUBE SUB-ASSY, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44405-12100 |
CE10# |
1 | ||
| 44405-12151 |
CE10# |
1 | ||
| 44405-12101 |
CE10# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44040-12070 |
CE100,106,108 |
1 | ||
| 44040-12071 |
CE100,106,108 |
1 | ||
| 44040-12072 |
CE106,108 |
1 | ||
| 44040-12073 |
CE102,106,107,108 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-12200 |
AE101,CE10#,EE10#..CTD,DX,DXJ,GT,L,LX,SEL,XE,XL |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-12210 |
AE100,104,CE10#,EE10# |
1 | ||
| 44416-12210 |
CE10#,EE10# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-13010 |
EE107,108 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-16061 |
EE106,107,108 |
1 | ||
| Common parts | ||||
| 90101-08144 | ||||
| 90105-10113 | ||||
| 90119-06357 | ||||
| 90119-08200 | ||||
| 90119-10326 | ||||
| 90170-08006 | ||||
| 90179-08177 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91511-60812 | ||||
| 91512-61030 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 1300 | ||||
| 1605 | ||||

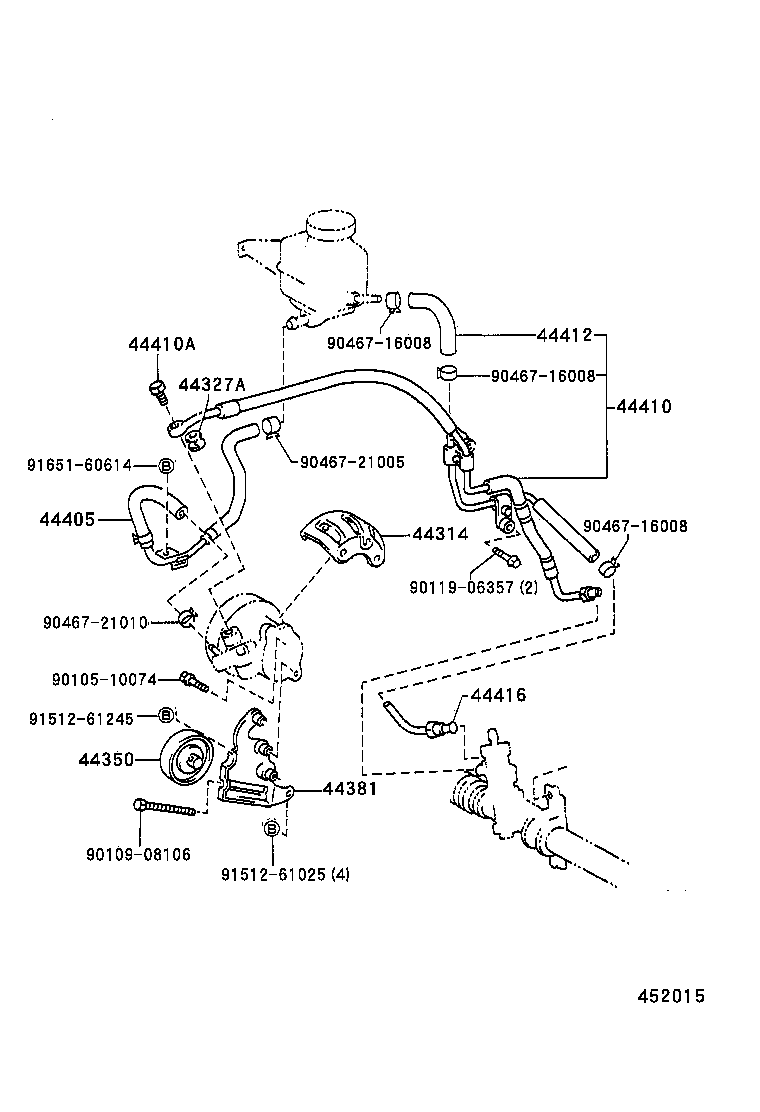

(9106- )CE10#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44314 - COVER, PULLEY | ||||
| 44314-12010 |
CE10# |
1 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AE10#,CE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-12052 |
CE10# |
1 | ||
| 44350-12051 |
CE10# |
1 | ||
| 44381 - BRACKET, POWER STEERING IDLE PULLEY | ||||
| 44381-12020 |
CE10# |
1 | ||
| 44405 - TUBE SUB-ASSY, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44405-12100 |
CE10# |
1 | ||
| 44405-12151 |
CE10# |
1 | ||
| 44405-12101 |
CE10# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44040-12070 |
CE100,106,108 |
1 | ||
| 44040-12071 |
CE100,106,108 |
1 | ||
| 44040-12072 |
CE106,108 |
1 | ||
| 44040-12073 |
CE102,106,107,108 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16012 |
AE10#,CE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-12200 |
AE101,CE10#,EE10#..CTD,DX,DXJ,GT,L,LX,SEL,XE,XL |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-12210 |
AE100,104,CE10#,EE10# |
1 | ||
| 44416-12210 |
CE10#,EE10# |
1 | ||
| Common parts | ||||
| 90105-10074 | ||||
| 90109-08106 | ||||
| 90119-06357 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 90467-21010 | ||||
| 91512-61025 | ||||
| 91512-61245 | ||||
| 91651-60614 | ||||
