CE108G-BWMDS (1991)
Toyota Sprinter
(9106- )CE100,102,106,107,108..5F
S50,S51

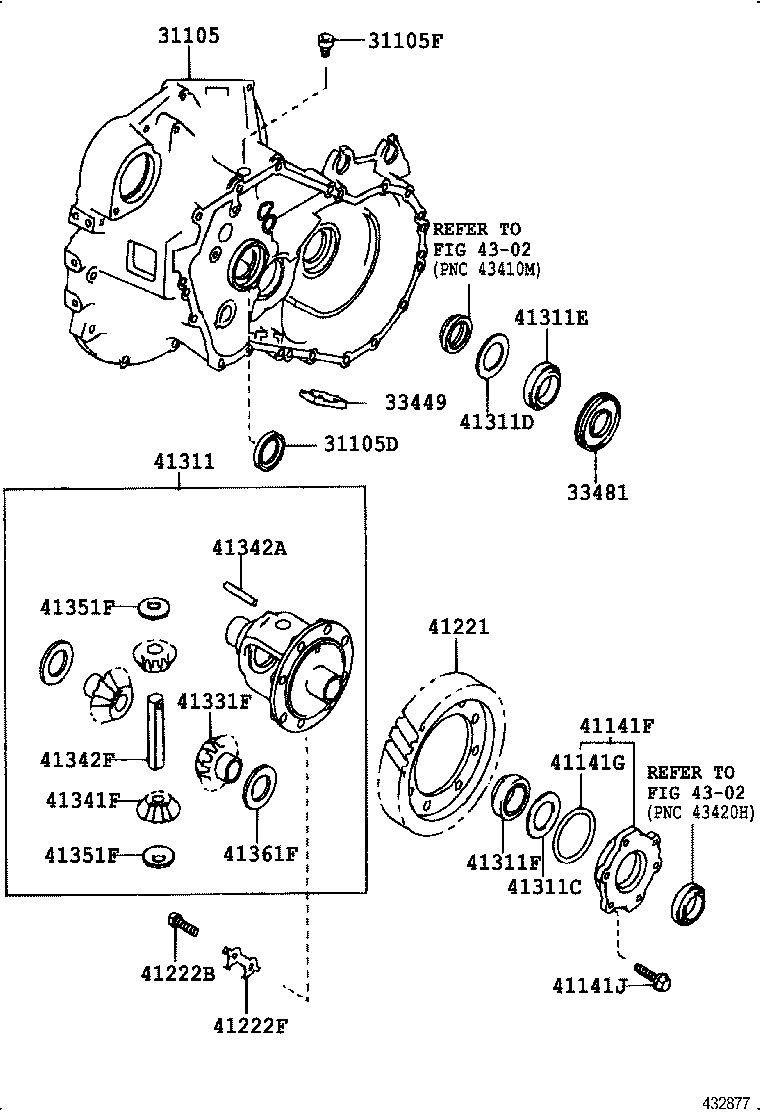

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105 - CASE SUB-ASSY, TRANSAXLE(MTM) | ||||
| 31105-32070 |
CE102,106,107,108..5F |
1 | ||
| 31105-33020 |
CE100,106,108..5F |
1 | ||
| 31105-32052 |
CE100,106,108..5F |
1 | ||
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-30006 |
AE104,109,CE10#..5F |
1 | ||
| 31105F - PLUG(FOR TRANSAXLE CASE) | ||||
| 90341-10065 |
CE100,102,106,107,108..5F |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-32020 |
CE100,102,106,107,108..5F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-32060 |
CE100,102,106,107,108..5F 歯数=25 |
1 | ||
| 41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING | ||||
| 41101-32010 |
CE100,102,106,107,108..5F |
1 | ||
| 41141G - RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90301-63004 |
CE100,102,106,107,108..5F |
1 | ||
| 41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90105-08061 |
CE100,102,106,107,108..5F *8−1.25PX26.5−23.5 |
6 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-12330 |
EE103,104..MTM;AE101,EE102,106,107,108..(3FC,4F,5F)..(CTD,DX,DXJ,L,SEG,XL) |
1 | ||
| 41221-32080 |
CE100,107,108..5F |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11003 |
CE100,106,108..5F |
8 | ||
| 90105-11040 |
CE102,106,107,108,EE10#..MTM |
8 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-32010 |
CE100,106,108..5F |
4 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-32060 |
CE100,102,106,107,108..5F |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-45006 |
CE100,102,106,107,108..5F 厚さ=2.15,ﾏｰｸ 06 |
1 | ||
| 90564-45007 |
CE100,102,106,107,108..5F 厚さ=2.20,ﾏｰｸ 07 |
1 | ||
| 90564-45002 |
CE100,102,106,107,108..5F 厚さ=1.95,ﾏｰｸ 02 |
1 | ||
| 90564-45008 |
CE100,102,106,107,108..5F 厚さ=2.25,ﾏｰｸ 08 |
1 | ||
| 90564-45005 |
CE100,102,106,107,108..5F 厚さ=2.10,ﾏｰｸ 05 |
1 | ||
| 90564-45004 |
CE100,102,106,107,108..5F 厚さ=2.05,ﾏｰｸ 04 |
1 | ||
| 90564-45003 |
CE100,102,106,107,108..5F 厚さ=2.00,ﾏｰｸ 03 |
1 | ||
| 90564-45011 |
CE100,102,106,107,108..5F 厚さ=2.40,ﾏｰｸ 11 |
1 | ||
| 90564-45010 |
CE100,102,106,107,108..5F 厚さ=2.35,ﾏｰｸ 10 |
1 | ||
| 90564-45001 |
CE100,102,106,107,108..5F 厚さ=1.90,ﾏｰｸ 01 |
1 | ||
| 90564-45014 |
CE100,102,106,107,108..5F 厚さ=2.55,ﾏｰｸ 14 |
1 | ||
| 90564-45013 |
CE100,102,106,107,108..5F 厚さ=2.50,ﾏｰｸ 13 |
1 | ||
| 90564-45015 |
CE100,102,106,107,108..5F 厚さ=2.60,ﾏｰｸ 15 |
1 | ||
| 90564-45009 |
CE100,102,106,107,108..5F 厚さ=2.30,ﾏｰｸ 09 |
1 | ||
| 90564-45016 |
CE100,102,106,107,108..5F 厚さ=2.65,ﾏｰｸ 16 |
1 | ||
| 90564-45017 |
CE100,102,106,107,108..5F 厚さ=2.70,ﾏｰｸ 17 |
1 | ||
| 90564-45018 |
CE100,102,106,107,108..5F 厚さ=2.75,ﾏｰｸ 18 |
1 | ||
| 90564-45012 |
CE100,102,106,107,108..5F 厚さ=2.45,ﾏｰｸ 12 |
1 | ||
| 90564-45019 |
CE100,102,106,107,108..5F 厚さ=2.80,ﾏｰｸ 19 |
1 | ||
| 41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90564-45011 |
CE100,102,106,107,108..5F 厚さ=2.40,ﾏｰｸ 11 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-40016 |
CE100,102,106,107,108..5F |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-40023 |
CE100,106,108..5F |
1 | ||
| 90366-40064 |
CE102,106,107,108..5F |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-32010 |
CE100,102,106,107,108 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30011 |
CE100,106,108 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
AE100,101,CE100,102,106,107,108,EE10# |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CE100,102,106,107,108 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CE100,102,106,107,108 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22020 |
EE10#;AE100,101,CE100,106,108..5F 厚さ=1.00,ﾏｰｸ 02 |
2 | ||
| 41361-22030 |
EE10#;AE100,101,CE100,106,108..5F 厚さ=1.10,ﾏｰｸ 03 |
2 | ||
| 41361-22150 |
EE10#;AE100,101,CE100,106,108..5F 厚さ=1.05,ﾏｰｸ 15 |
2 | ||
| 41361-22140 |
EE10#;AE100,101,CE100,106,108..5F 厚さ=0.95,ﾏｰｸ 14 |
2 | ||
| 41361-22040 |
EE10#;AE100,101,CE100,106,108..5F 厚さ=1.20,ﾏｰｸ 04 |
2 | ||
| 41361-22160 |
EE10#;AE100,101,CE100,106,108..5F 厚さ=1.15,ﾏｰｸ 16 |
2 | ||
| 41361-22150 |
CE102,106,107,108,EE10#..MTM 厚さ=1.05,ﾏｰｸ 15 |
2 | ||
| 41361-22160 |
CE102,106,107,108,EE10#..MTM 厚さ=1.15,ﾏｰｸ 16 |
2 | ||
| 41361-22040 |
CE102,106,107,108,EE10#..MTM 厚さ=1.20,ﾏｰｸ 04 |
2 | ||
| 41361-22030 |
CE102,106,107,108,EE10#..MTM 厚さ=1.10,ﾏｰｸ 03 |
2 | ||
| 41361-22020 |
CE102,106,107,108,EE10#..MTM 厚さ=1.00,ﾏｰｸ 02 |
2 | ||
| 41361-22140 |
CE102,106,107,108,EE10#..MTM 厚さ=0.95,ﾏｰｸ 14 |
2 | ||
| Linked diagrams | ||||
| 4302 | ||||
