Toyota Sprinter CE108 DISC WHEEL & WHEEL CAP

CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998

Engine 2C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

Part #	Description	Period	Qty

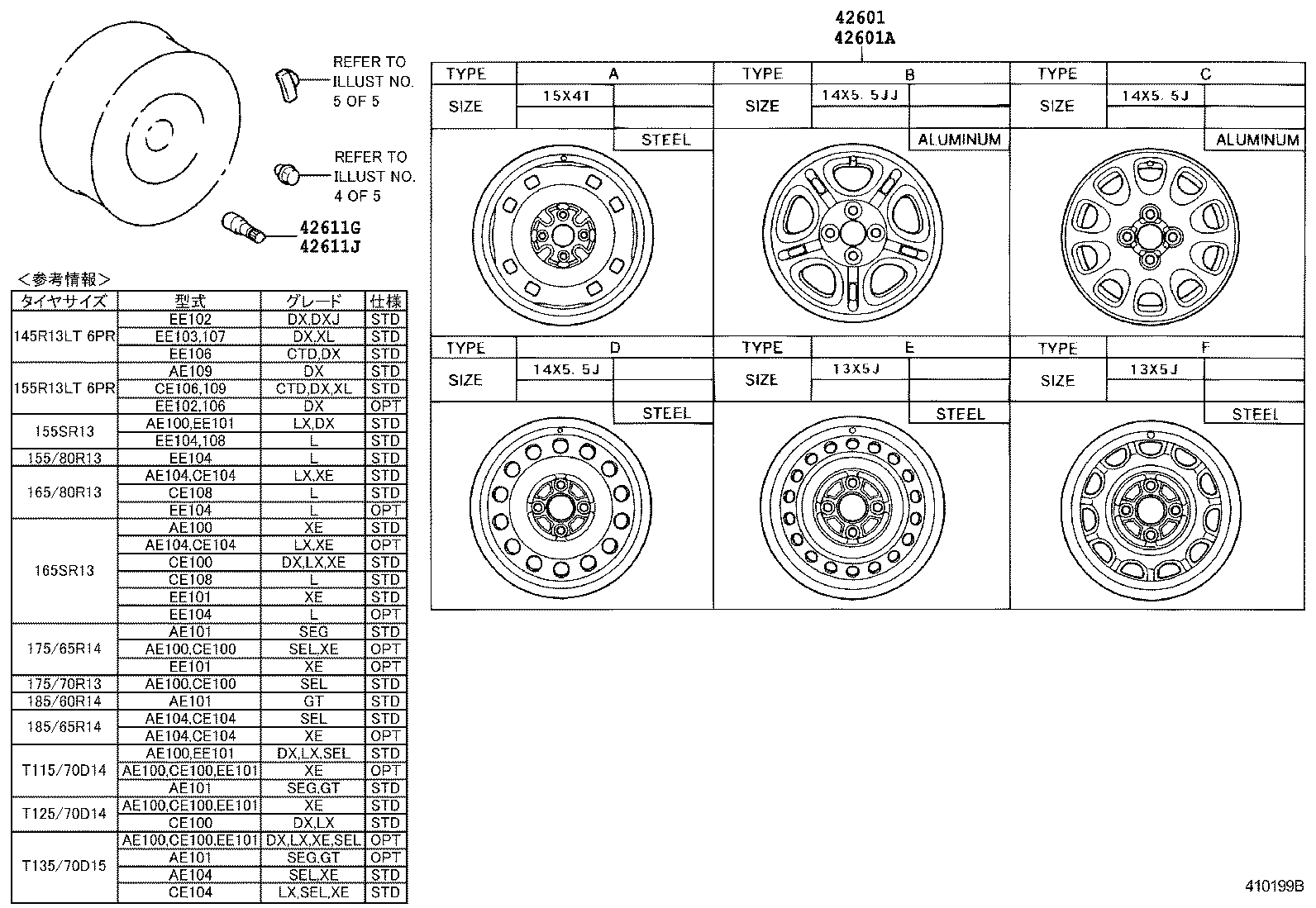

42601 - WHEEL, DISC
42611-1A16003	AE104,CE100,104..DX,LX;AE100,CE102,108,EE101,104,108..DX,L 13X5J,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER M.	05/1993 - 12/2999	4
42611-1A16003	AE100,104,CE100,104,108,EE101,108..DX,L,LX 13X5J,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER M.	06/1991 - 05/1993	4
42611-1A15001	AE104,CE104..LX,XE;AE100,CE100,102,108,EE101,104..L,LX,SEL,XE 13X5J,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	08/1993 - 12/2999	4
42601A - WHEEL, DISC (FOR SPARE)
42611-1A16003	AE100,104,CE100,102,104,108,EE101,104,108..DX,L,LX 13X5J,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER M.	06/1991 - 12/2999	1
42611-1A15001	AE104,CE104..LX,XE;AE100,CE100,102,108,EE101,104..L,LX,SEL,XE 13X5J,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	01/1994 - 12/2999	1
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	AE10#,CE10#,EE10#	06/1991 - 12/2999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	AE10#,CE10#,EE10#	06/1991 - 12/2999	1

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-1A16003	AE104,CE100,104..DX,LX;AE100,CE102,108,EE101,104,108..DX,L 13X5J,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER M.	05/1993 - 12/2999	4
42611-1A16003	AE100,104,CE100,104,108,EE101,108..DX,L,LX 13X5J,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER M.	06/1991 - 05/1993	4
42611-1A15001	AE104,CE104..LX,XE;AE100,CE100,102,108,EE101,104..L,LX,SEL,XE 13X5J,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	08/1993 - 12/2999	4
42601A - WHEEL, DISC (FOR SPARE)
42611-1A16003	AE100,104,CE100,102,104,108,EE101,104,108..DX,L,LX 13X5J,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER M.	06/1991 - 12/2999	1
42611-1A15001	AE104,CE104..LX,XE;AE100,CE100,102,108,EE101,104..L,LX,SEL,XE 13X5J,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	01/1994 - 12/2999	1
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	AE10#,CE10#,EE10#	06/1991 - 12/2999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	AE10#,CE10#,EE10#	06/1991 - 12/2999	1

Click highlighted areas on diagram

Part #	Description	Period	Qty

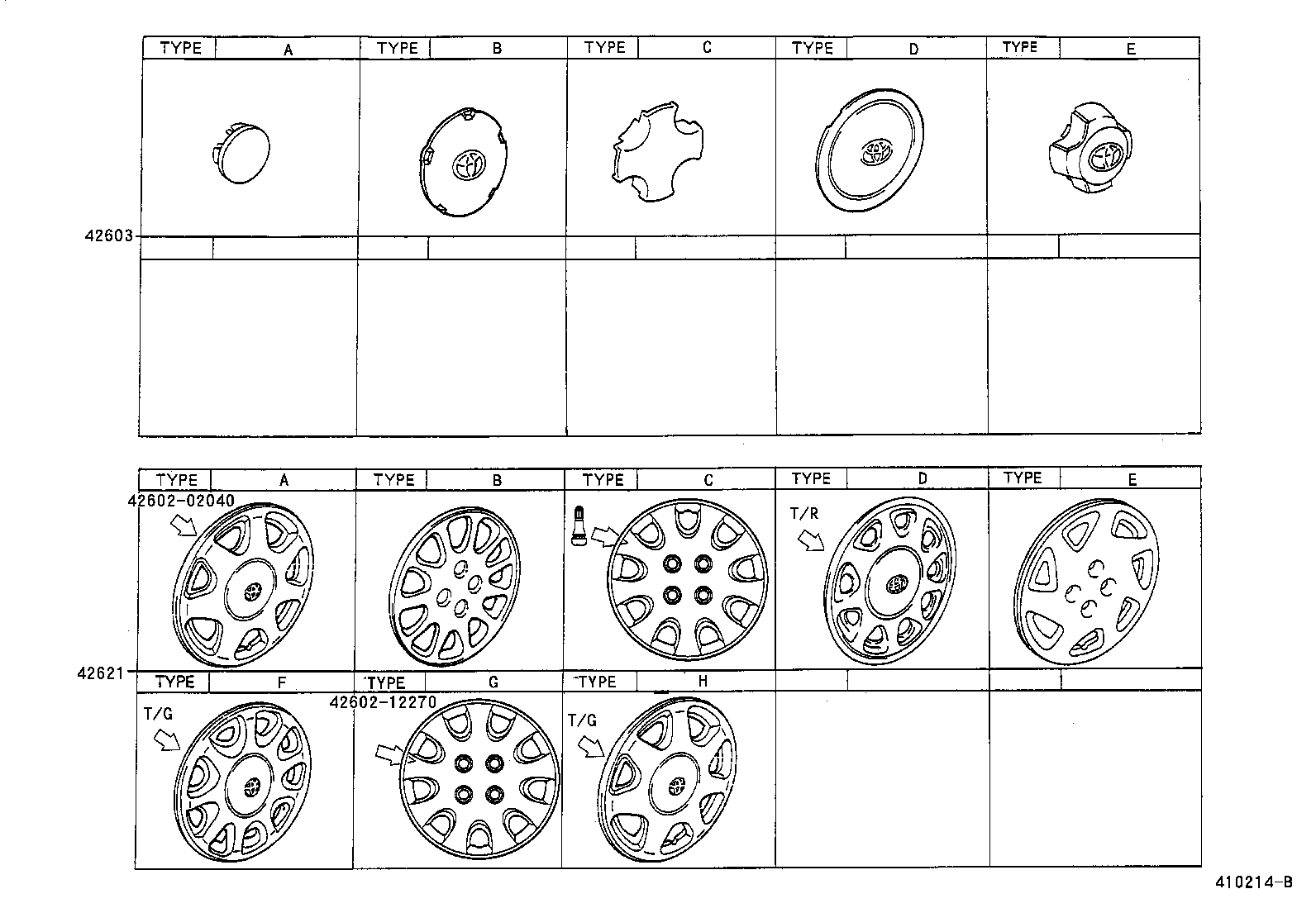

42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42638-12290	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L *STE,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 12/2999	4
42603-12540	CE105,106,107,109,EE103,107..XL;AE100,104,CE100,102,104,108,EE101,104,108..DX,L,LX *STE,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 08/2000	4
42621 - CAP, WHEEL
42602-12250	CE102,108,EE104 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	08/1993 - 12/2999	4

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601C - NUT, HUB (FOR AXLE)
90942-01007	CE106,109,EE107..XL;AE10#,CE100,104,108,EE101,108 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1993	16
90942-01059	CE106,108,109,EE106,107,108..CTD,DX,L TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 01/1994	16
90942-01021	AE101,109,CE102,105,106,107,108,109,EE102,103,104..CTD,DX,DXJ,GT,L TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	01/1994 - 12/2999	16

Click highlighted areas on diagram
