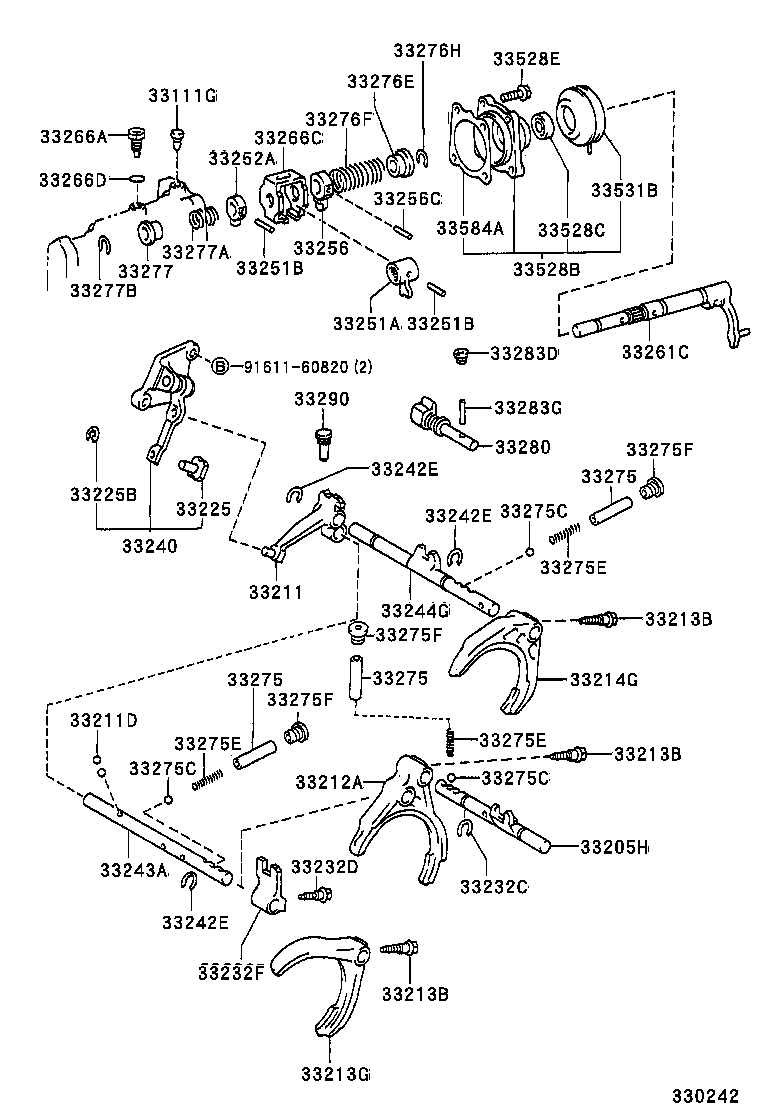

CE108G-BWMDS (1991)
Toyota Sprinter
(9106-9410)AE100,101,EE103,104,107,108..5F
C50,C52,C56
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03133 |
CE100,106,108..5F |
1 | ||
| 90930-03133 |
AE100,101,CE100,102,106,107,108,EE10#..MTM |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-12020 |
AE100,101,EE103,104,107,108..5F |
1 | ||
| 33270-32010 |
CE100,106,108..5F |
1 | ||
| 33270-33011 |
CE100,102,106,107,108..5F |
1 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-06004 |
AE100,101,EE102,103,104,107,108..5F 外径=6.35,STEEL |
2 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33210-32022 |
CE100,106,108..5F |
1 | ||
| 33210-32023 |
CE100,102,106,107,108..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06065 |
CE100,102,106,107,108..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06065 |
CE100,102,106,107,108..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06065 |
CE100,102,106,107,108..5F |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33220-32022 |
CE100,106,108..5F |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-32021 |
CE100,106,108..5F |
1 | ||
| 33214-12030 |
AE100,101,EE103,104,107,108..5F |
1 | ||
| 33214-33020 |
CE100,106,108..5F |
1 | ||
| 33214-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-32012 |
CE100,102,106,107,108..5F |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-32020 |
CE100,106,108..5F |
1 | ||
| 33240-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-32010 |
CE100,102,106,107,108..5F |
1 | ||
| 33244G - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-12053 |
AE100,101,EE103,104,107,108..5F |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-32031 |
CE100,106,108..5F |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05007 |
AE104,109,CE10#..5F 長さ=47.0 |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05007 |
AE104,109,CE10#..5F 長さ=47.0 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-32030 |
CE100,106,108..5F |
1 | ||
| 33252-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33261-32031 |
CE100,106,108..5F |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-32022 |
CE100,106,108..5F |
1 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-33011 |
CE100,102,106,107,108..5F |
1 | ||
| 33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) | ||||
| 90501-14129 |
CE100,106,108..5F |
1 | ||
| 90501-13036 |
CE100,102,106,107,108..5F |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) | ||||
| 90501-15009 |
CE100,106,108..5F |
1 | ||
| 90501-16135 |
CE100,106,108..5F |
1 | ||
| 90501-16144 |
CE100,102,106,107,108..5F |
1 | ||
| 33277B - RING, E (FOR SELECT SPRING NO.2 SEAT) | ||||
| 90523-12003 |
AE100,101,CE100,102,106,107,108,EE10#..MTM |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-12061 |
AE100,101,EE102,103,104,107,108..5F |
1 | ||
| 33280-32012 |
CE100,102,106,107,108..5F |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-10065 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04005 |
CE100,102,106,107,108..5F |
1 | ||
| 90254-05003 |
AE10#,CE104,105,109,EE102,103,104,107,108..5F |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-17010 |
CE100,106,108..5F |
1 | ||
| 33290-12011 |
AE100,101,EE102,103,104,107,108..5F |
1 | ||
| 33290-32012 |
CE100,106,108..5F |
1 | ||
| 33290-33011 |
CE102,106,107,108..5F |
1 | ||
| 33290-33010 |
CE100,106,108..5F |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33506-32040 |
CE100,106,108..5F |
1 | ||
| 33506-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33528C - SEAL, OIL (FOR CONTROL SHAFT COVER) | ||||
| 90311-18013 |
CE100,106,108..5F |
1 | ||
| 90311-18013 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-32011 |
CE100,106,108..5F |
1 | ||
| 33531-32011 |
CE102,106,107,108..5F |
1 | ||
| 33531-32011 |
CE100,106,108..5F |
2 | ||
| Common parts | ||||
| 91611-60820 | ||||

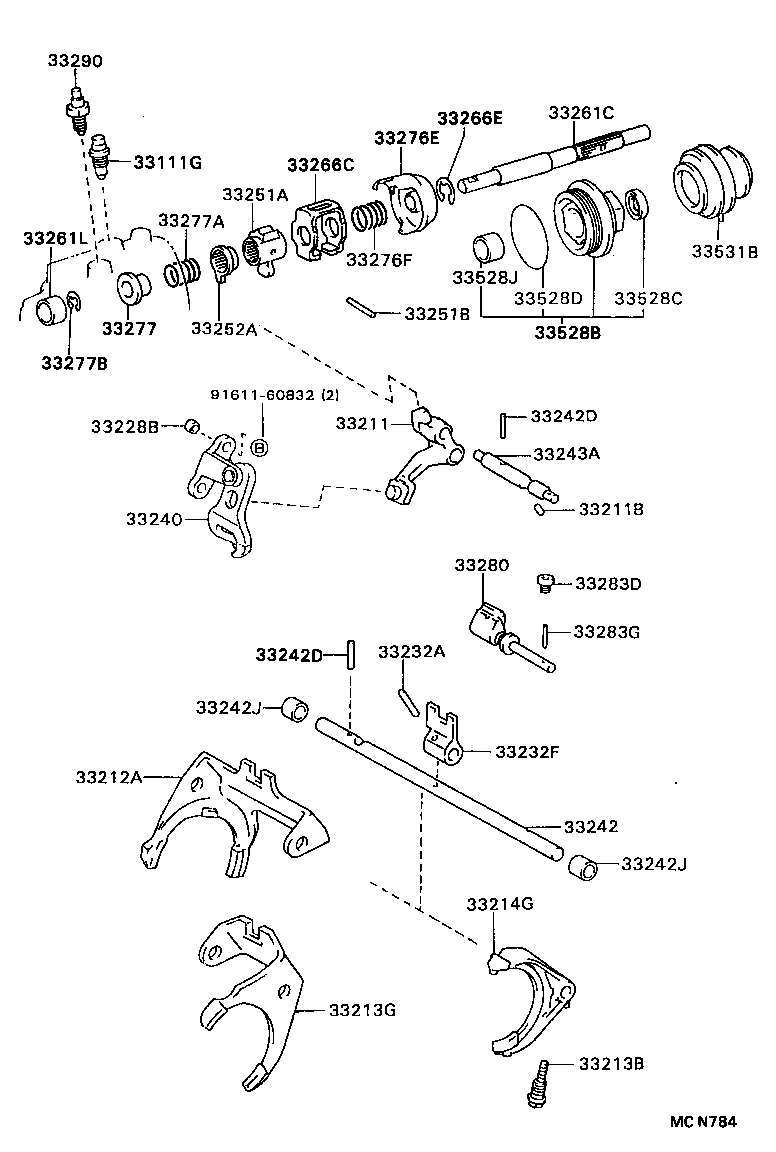

(9305- )CE100,102,106,107,108
S50,S51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03133 |
CE100,106,108..5F |
1 | ||
| 90930-03133 |
AE100,101,CE100,102,106,107,108,EE10#..MTM |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-12020 |
AE100,101,EE103,104,107,108..5F |
1 | ||
| 33270-32010 |
CE100,106,108..5F |
1 | ||
| 33270-33011 |
CE100,102,106,107,108..5F |
1 | ||
| 33211B - ROLLER(FOR REVERSE SHIFT FORK) | ||||
| 90361-08002 |
CE100,102,106,107,108..5F |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33210-32022 |
CE100,106,108..5F |
1 | ||
| 33210-32023 |
CE100,102,106,107,108..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06065 |
CE100,102,106,107,108..5F |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33220-32022 |
CE100,106,108..5F |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-32021 |
CE100,106,108..5F |
1 | ||
| 33214-12030 |
AE100,101,EE103,104,107,108..5F |
1 | ||
| 33214-33020 |
CE100,106,108..5F |
1 | ||
| 33214-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33228B - PIN, RING(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90253-11001 |
CE100,102,106,107,108..5F |
2 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05001 |
CE100,102,106,107,108..5F |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-32012 |
CE100,102,106,107,108..5F |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-32020 |
CE100,106,108..5F |
1 | ||
| 33240-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-32020 |
CE100,106,108..5F |
1 | ||
| 33242-33020 |
CE100,102,106,107,108..5F |
1 | ||
| 33242D - PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT) | ||||
| 90254-05001 |
CE100,102,106,107,108..5F |
2 | ||
| 33242D - PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT) | ||||
| 90254-05001 |
CE100,102,106,107,108..5F |
2 | ||
| 33242J - BUSH (FOR SHIFT FORK SHAFT) | ||||
| 90384-14005 |
CE100,102,106,107,108..5F 長さ=12.0 |
1 | ||
| 90389-14043 |
CE100,102,106,107,108..5F 長さ=10.1 |
1 | ||
| 33242J - BUSH (FOR SHIFT FORK SHAFT) | ||||
| 90384-14005 |
CE100,102,106,107,108..5F 長さ=12.0 |
1 | ||
| 90389-14043 |
CE100,102,106,107,108..5F 長さ=10.1 |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-32010 |
CE100,102,106,107,108..5F |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-32031 |
CE100,106,108..5F |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05007 |
AE104,109,CE10#..5F 長さ=47.0 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-32030 |
CE100,106,108..5F |
1 | ||
| 33252-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33261-32031 |
CE100,106,108..5F |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-32022 |
CE100,106,108..5F |
1 | ||
| 33266E - RING, E (FOR SHIFT INTER LOCK PLATE) | ||||
| 90523-14001 |
CE100,102,106,107,108..5F |
1 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-33011 |
CE100,102,106,107,108..5F |
1 | ||
| 33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) | ||||
| 90501-14129 |
CE100,106,108..5F |
1 | ||
| 90501-13036 |
CE100,102,106,107,108..5F |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) | ||||
| 90501-15009 |
CE100,106,108..5F |
1 | ||
| 90501-16135 |
CE100,106,108..5F |
1 | ||
| 90501-16144 |
CE100,102,106,107,108..5F |
1 | ||
| 33277B - RING, E (FOR SELECT SPRING NO.2 SEAT) | ||||
| 90523-12003 |
AE100,101,CE100,102,106,107,108,EE10#..MTM |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-12061 |
AE100,101,EE102,103,104,107,108..5F |
1 | ||
| 33280-32012 |
CE100,102,106,107,108..5F |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-10065 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04005 |
CE100,102,106,107,108..5F |
1 | ||
| 90254-05003 |
AE10#,CE104,105,109,EE102,103,104,107,108..5F |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-17010 |
CE100,106,108..5F |
1 | ||
| 33290-12011 |
AE100,101,EE102,103,104,107,108..5F |
1 | ||
| 33290-32012 |
CE100,106,108..5F |
1 | ||
| 33290-33011 |
CE102,106,107,108..5F |
1 | ||
| 33290-33010 |
CE100,106,108..5F |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33506-32040 |
CE100,106,108..5F |
1 | ||
| 33506-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33528C - SEAL, OIL (FOR CONTROL SHAFT COVER) | ||||
| 90311-18013 |
CE100,106,108..5F |
1 | ||
| 90311-18013 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33528D - RING, O (FOR CONTROL SHAFT COVER) | ||||
| 90301-65004 |
CE100,102,106,107,108..5F |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-32011 |
CE100,106,108..5F |
1 | ||
| 33531-32011 |
CE102,106,107,108..5F |
1 | ||
| 33531-32011 |
CE100,106,108..5F |
2 | ||
| Common parts | ||||
| 91611-60832 | ||||

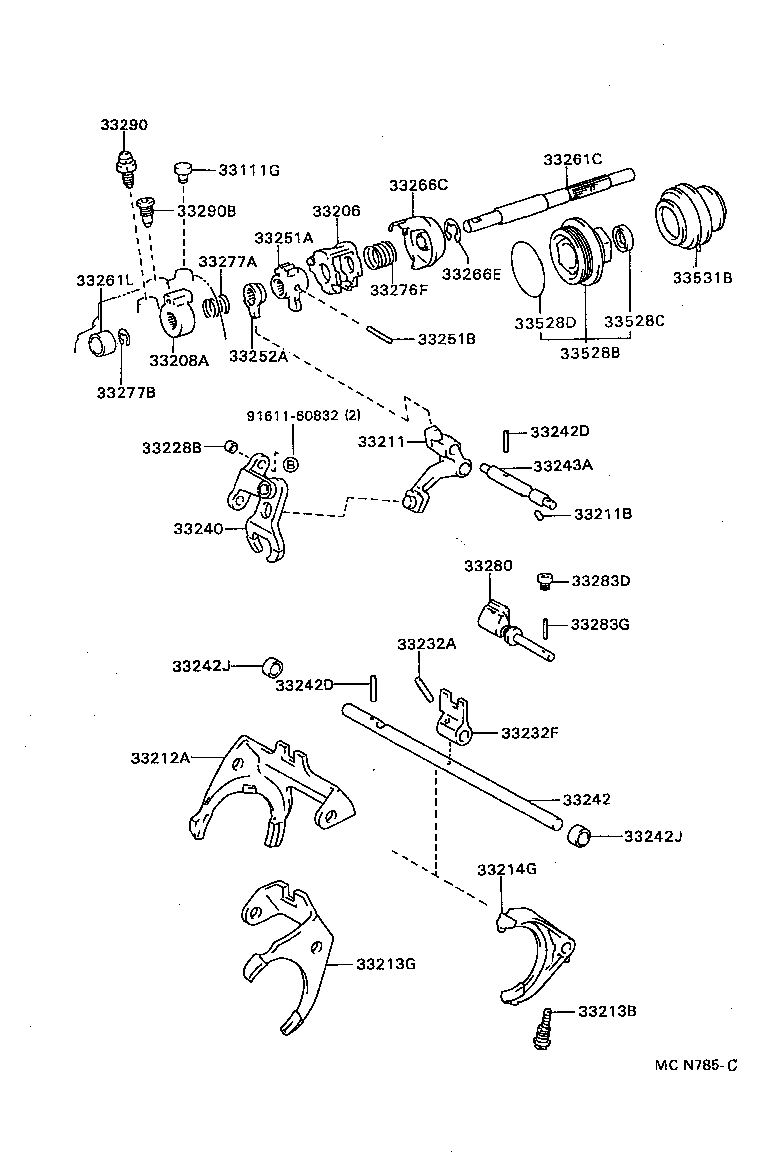

(9106-9305)CE100,106,108..5F
S50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03133 |
CE100,106,108..5F |
1 | ||
| 90930-03133 |
AE100,101,CE100,102,106,107,108,EE10#..MTM |
1 | ||
| 33206 - PLATE SUB-ASSY, SHIFT INTER LOCK | ||||
| 33206-32023 |
CE100,106,108..5F |
1 | ||
| 33208A - PIN SUB-ASSY, REVERSE RESTRICT | ||||
| 33208-32022 |
CE100,106,108..5F |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-12020 |
AE100,101,EE103,104,107,108..5F |
1 | ||
| 33270-32010 |
CE100,106,108..5F |
1 | ||
| 33270-33011 |
CE100,102,106,107,108..5F |
1 | ||
| 33211B - ROLLER(FOR REVERSE SHIFT FORK) | ||||
| 90361-08002 |
CE100,102,106,107,108..5F |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33210-32022 |
CE100,106,108..5F |
1 | ||
| 33210-32023 |
CE100,102,106,107,108..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06065 |
CE100,102,106,107,108..5F |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33220-32022 |
CE100,106,108..5F |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-32021 |
CE100,106,108..5F |
1 | ||
| 33214-12030 |
AE100,101,EE103,104,107,108..5F |
1 | ||
| 33214-33020 |
CE100,106,108..5F |
1 | ||
| 33214-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33228B - PIN, RING(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90253-11001 |
CE100,102,106,107,108..5F |
2 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05001 |
CE100,102,106,107,108..5F |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-32012 |
CE100,102,106,107,108..5F |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-32020 |
CE100,106,108..5F |
1 | ||
| 33240-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-32020 |
CE100,106,108..5F |
1 | ||
| 33242-33020 |
CE100,102,106,107,108..5F |
1 | ||
| 33242D - PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT) | ||||
| 90254-05001 |
CE100,102,106,107,108..5F |
2 | ||
| 33242D - PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT) | ||||
| 90254-05001 |
CE100,102,106,107,108..5F |
2 | ||
| 33242J - BUSH (FOR SHIFT FORK SHAFT) | ||||
| 90384-14005 |
CE100,102,106,107,108..5F 長さ=12.0 |
1 | ||
| 90389-14043 |
CE100,102,106,107,108..5F 長さ=10.1 |
1 | ||
| 33242J - BUSH (FOR SHIFT FORK SHAFT) | ||||
| 90384-14005 |
CE100,102,106,107,108..5F 長さ=12.0 |
1 | ||
| 90389-14043 |
CE100,102,106,107,108..5F 長さ=10.1 |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-32010 |
CE100,102,106,107,108..5F |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-32031 |
CE100,106,108..5F |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05007 |
AE104,109,CE10#..5F 長さ=47.0 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-32030 |
CE100,106,108..5F |
1 | ||
| 33252-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33261-32031 |
CE100,106,108..5F |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-32022 |
CE100,106,108..5F |
1 | ||
| 33266E - RING, E (FOR SHIFT INTER LOCK PLATE) | ||||
| 90523-14001 |
CE100,102,106,107,108..5F |
1 | ||
| 33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) | ||||
| 90501-14129 |
CE100,106,108..5F |
1 | ||
| 90501-13036 |
CE100,102,106,107,108..5F |
1 | ||
| 33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) | ||||
| 90501-15009 |
CE100,106,108..5F |
1 | ||
| 90501-16135 |
CE100,106,108..5F |
1 | ||
| 90501-16144 |
CE100,102,106,107,108..5F |
1 | ||
| 33277B - RING, E (FOR SELECT SPRING NO.2 SEAT) | ||||
| 90523-12003 |
AE100,101,CE100,102,106,107,108,EE10#..MTM |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-12061 |
AE100,101,EE102,103,104,107,108..5F |
1 | ||
| 33280-32012 |
CE100,102,106,107,108..5F |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-10065 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04005 |
CE100,102,106,107,108..5F |
1 | ||
| 90254-05003 |
AE10#,CE104,105,109,EE102,103,104,107,108..5F |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-17010 |
CE100,106,108..5F |
1 | ||
| 33290-12011 |
AE100,101,EE102,103,104,107,108..5F |
1 | ||
| 33290-32012 |
CE100,106,108..5F |
1 | ||
| 33290-33011 |
CE102,106,107,108..5F |
1 | ||
| 33290-33010 |
CE100,106,108..5F |
1 | ||
| 33290B - BALL ASSY, LOCK, NO.2 | ||||
| 90341-16015 |
CE100,106,108..5F |
1 | ||
| 33290-32021 |
CE100,106,108..5F |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33506-32040 |
CE100,106,108..5F |
1 | ||
| 33506-33010 |
CE100,102,106,107,108..5F |
1 | ||
| 33528C - SEAL, OIL (FOR CONTROL SHAFT COVER) | ||||
| 90311-18013 |
CE100,106,108..5F |
1 | ||
| 90311-18013 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33528D - RING, O (FOR CONTROL SHAFT COVER) | ||||
| 90301-65004 |
CE100,102,106,107,108..5F |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-32011 |
CE100,106,108..5F |
1 | ||
| 33531-32011 |
CE102,106,107,108..5F |
1 | ||
| 33531-32011 |
CE100,106,108..5F |
2 | ||
| Common parts | ||||
| 91611-60832 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
