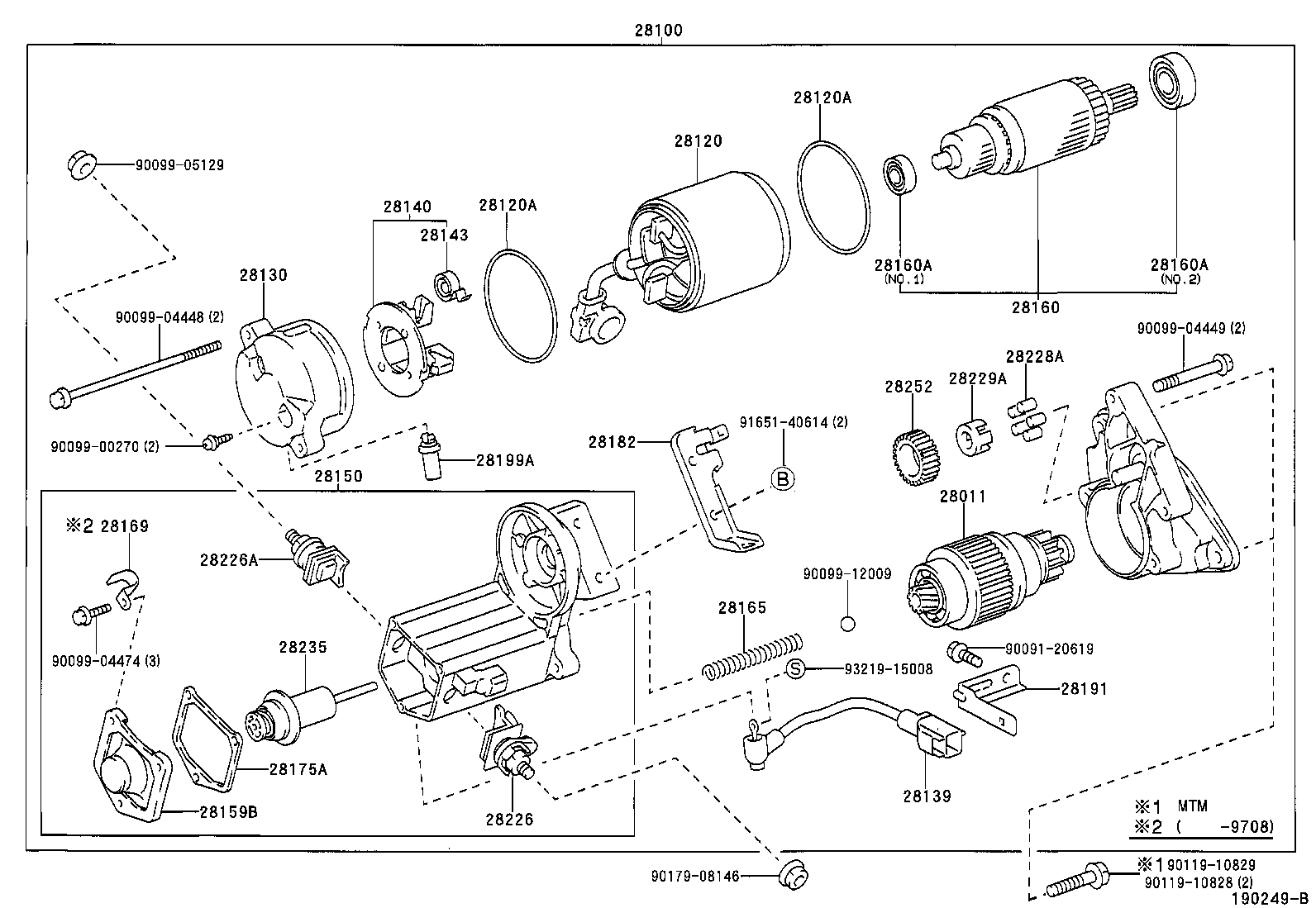

CE108G-BWMDS (1991)
Toyota Sprinter
(9106- )2C,3CE
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-64010 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28011-64130 |
2C,3CE..CE10# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64140 |
2C..CE10# 12V 2.2KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-64340 |
2C,3CE..CE10# 12V 1.4KW |
1 | ||
| 28100-64350 |
2C,3CE..CE10# 12V 2.2KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-64130 |
2C..CE10# 12V 1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64130 |
2C..CE10# |
1 | ||
| 28120-55050 |
2C,3CE..CE10# |
1 | ||
| 28120-64040 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-64040 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ |
1 | ||
| 90099-14064 |
2C,3CE..CE10# |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-64040 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ |
1 | ||
| 90099-14064 |
2C,3CE..CE10# |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-64130 |
2C,3CE..CE10# |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-64130 |
2C..CE10# |
1 | ||
| 28139-64140 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-64040 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140-64130 |
2C,3CE..CE10# |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
4 | ||
| 90099-17112 |
2C,3CE..CE10# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-64041 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-64130 |
2C..CE10# |
1 | ||
| 28150-64300 |
2C..CE10# |
1 | ||
| 28150-64341 |
2C,3CE..CE10# |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE..AE100,101,CE10#,EE101,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28159-10040 |
2E..EE106..3FC;4AGE,2C,3E,4EFE..AE101,CE10#,EE101,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28159-10040 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28159-10040 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE,5EFE..AE10#,CE10#,EE101,102,103,104,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28159-55050 |
2C,3CE..CE10# |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-74070 |
2C,3CE..CE10# |
1 | ||
| 28160-64041 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,NO.1 |
1 | ||
| 90099-10196 |
2C,3CE..CE10# NO.2 |
1 | ||
| 90099-10143 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
2C,3CE..CE10# NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,NO.1 |
1 | ||
| 90099-10196 |
2C,3CE..CE10# NO.2 |
1 | ||
| 90099-10143 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
2C,3CE..CE10# NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE,5EFE..AE10#,CE10#,EE101,102,103,104,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28165-26040 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28165-76070 |
2C,3CE..CE10# |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-55050 |
2C..CE10# |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28175-10040 |
2E..EE106..3FC;4AGE,2C,3E,4EFE..AE101,CE10#,EE101,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28175-10040 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE,5EFE..AE10#,CE10#,EE101,102,103,104,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28175-10040 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE..AE100,101,CE10#,EE101,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28175-55050 |
2C,3CE..CE10# |
1 | ||
| 28182 - STAY, STARTER COMMUTATOR END FRAME | ||||
| 28183-64131 |
2C,3CE..CE10# |
1 | ||
| 28183-64130 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28182-64140 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28182-64130 |
2C..CE10# |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-74110 |
2C,3CE..CE10# |
1 | ||
| 28199-46080 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
2 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-16130 |
2C..CE10# |
1 | ||
| 28226-55050 |
2C,3CE..CE10# |
1 | ||
| 28226-64020 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226-76100 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226-72010 |
4A#,5AFE,2C,2E,3E,4EFE,5EFE..AE10#,CE10#,EE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226-74070 |
2C,3CE..CE10# |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
2C,3CE..CE10# |
5 | ||
| 28228-26040 |
4A#,5AFE,2C,2E,3E,4EFE,5EFE..AE10#,CE10#,EE10# |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28229-26040 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE,5EFE..AE10#,CE10#,EE101,102,103,104,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28229-74070 |
2C,3CE..CE10# |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
2E..EE106..3FC;4A#,2C,3E,4EFE..AE101,104,CE10#,EE101,107,108..CTD,DX,GT,L,LX,SEL,XE,XL ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28235-35080 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28235-55050 |
2C,3CE..CE10# |
1 | ||
| 28235-35080 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE,5EFE..AE10#,CE10#,EE101,102,103,104,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28235-35080 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE..AE10#,CE10#,EE101,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-64130 |
2C,3CE..CE10# |
1 | ||
| 28254-64040 |
2C..CE10# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90091-20619 | ||||
| 90099-00270 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-04474 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90119-10828 | ||||
| 90119-10829 | ||||
| 90179-08146 | ||||
| 91651-40614 | ||||
| 93219-15008 | ||||

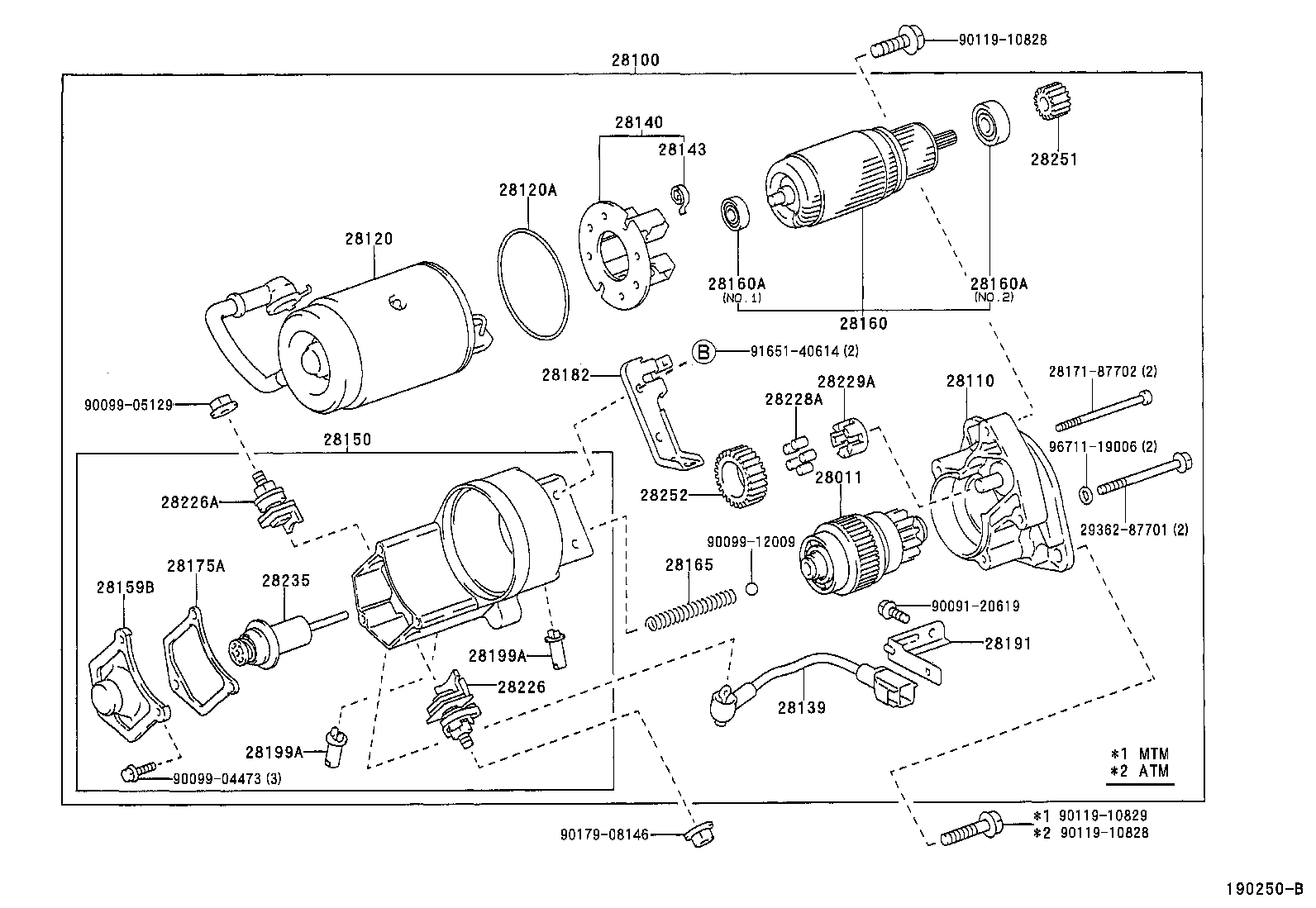

(9106- )2C,3CE
12V 2.2KW,ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-64010 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28011-64130 |
2C,3CE..CE10# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64140 |
2C..CE10# 12V 2.2KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-64340 |
2C,3CE..CE10# 12V 1.4KW |
1 | ||
| 28100-64350 |
2C,3CE..CE10# 12V 2.2KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-64130 |
2C..CE10# 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-64140 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28115-64350 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ |
1 | ||
| 28110-64340 |
2C,3CE..CE10# |
1 | ||
| 28110-64130 |
2C..CE10# |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64130 |
2C..CE10# |
1 | ||
| 28120-55050 |
2C,3CE..CE10# |
1 | ||
| 28120-64040 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-64040 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ |
1 | ||
| 90099-14064 |
2C,3CE..CE10# |
2 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-64130 |
2C..CE10# |
1 | ||
| 28139-64140 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-64040 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140-64130 |
2C,3CE..CE10# |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
4 | ||
| 90099-17112 |
2C,3CE..CE10# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-64041 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-64130 |
2C..CE10# |
1 | ||
| 28150-64300 |
2C..CE10# |
1 | ||
| 28150-64341 |
2C,3CE..CE10# |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE..AE100,101,CE10#,EE101,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28159-10040 |
2E..EE106..3FC;4AGE,2C,3E,4EFE..AE101,CE10#,EE101,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28159-10040 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28159-10040 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE,5EFE..AE10#,CE10#,EE101,102,103,104,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28159-55050 |
2C,3CE..CE10# |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-74070 |
2C,3CE..CE10# |
1 | ||
| 28160-64041 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,NO.1 |
1 | ||
| 90099-10196 |
2C,3CE..CE10# NO.2 |
1 | ||
| 90099-10143 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
2C,3CE..CE10# NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,NO.1 |
1 | ||
| 90099-10196 |
2C,3CE..CE10# NO.2 |
1 | ||
| 90099-10143 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
2C,3CE..CE10# NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE,5EFE..AE10#,CE10#,EE101,102,103,104,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28165-26040 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28165-76070 |
2C,3CE..CE10# |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28175-10040 |
2E..EE106..3FC;4AGE,2C,3E,4EFE..AE101,CE10#,EE101,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28175-10040 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE,5EFE..AE10#,CE10#,EE101,102,103,104,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28175-10040 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE..AE100,101,CE10#,EE101,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28175-55050 |
2C,3CE..CE10# |
1 | ||
| 28182 - STAY, STARTER COMMUTATOR END FRAME | ||||
| 28183-64131 |
2C,3CE..CE10# |
1 | ||
| 28183-64130 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28182-64140 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28182-64130 |
2C..CE10# |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-74110 |
2C,3CE..CE10# |
1 | ||
| 28199-46080 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
2 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-74110 |
2C,3CE..CE10# |
1 | ||
| 28199-46080 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
2 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-16130 |
2C..CE10# |
1 | ||
| 28226-55050 |
2C,3CE..CE10# |
1 | ||
| 28226-64020 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226-76100 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226-72010 |
4A#,5AFE,2C,2E,3E,4EFE,5EFE..AE10#,CE10#,EE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226-74070 |
2C,3CE..CE10# |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
2C,3CE..CE10# |
5 | ||
| 28228-26040 |
4A#,5AFE,2C,2E,3E,4EFE,5EFE..AE10#,CE10#,EE10# |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28229-26040 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE,5EFE..AE10#,CE10#,EE101,102,103,104,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28229-74070 |
2C,3CE..CE10# |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
2E..EE106..3FC;4A#,2C,3E,4EFE..AE101,104,CE10#,EE101,107,108..CTD,DX,GT,L,LX,SEL,XE,XL ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28235-35080 |
2C,3CE..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28235-55050 |
2C,3CE..CE10# |
1 | ||
| 28235-35080 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE,5EFE..AE10#,CE10#,EE101,102,103,104,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28235-35080 |
2E..EE106..3FC;4A#,5AFE,2C,3E,4EFE..AE10#,CE10#,EE101,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
2C..CE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-64130 |
2C,3CE..CE10# |
1 | ||
| 28254-64040 |
2C..CE10# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 28171-87702 | ||||
| 29362-87701 | ||||
| 90091-20619 | ||||
| 90099-04473 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90119-10828 | ||||
| 90119-10829 | ||||
| 90179-08146 | ||||
| 91651-40614 | ||||
| 96711-19006 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
