Toyota Sprinter CE108 ALTERNATOR

CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998

Engine 2C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9106-9305)2C ; (9305-9401)2C..CE106,108,109

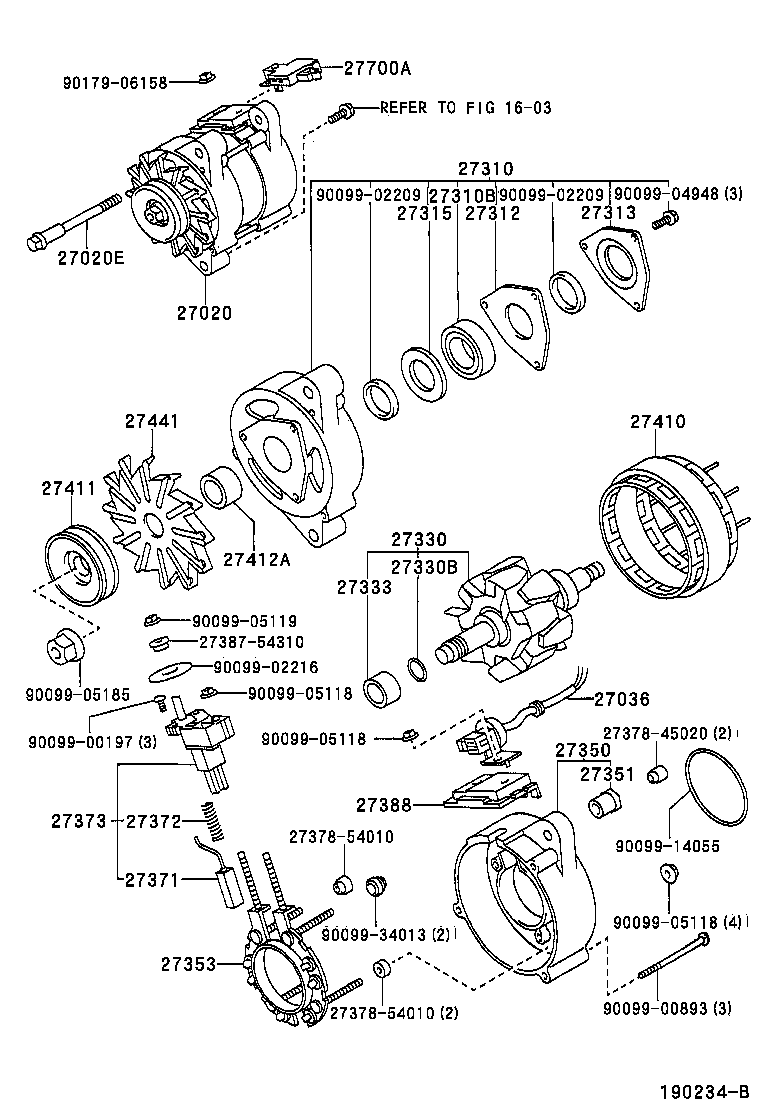

Click highlighted areas on diagram

12V 60A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-64310	2C..CE10# 12V 60A	06/1991 - 05/1993	1
27020-64310	2C..CE106,108,109 12V 60A	05/1993 - 01/1994	1
27060-64250	2C..CE106,108..5F 12V 70A	08/1995 - 04/1998	1
27060-64240	2C..CE106,108..5F 12V 70A	01/1994 - 08/1995	1
27020E - BOLT(FOR ALTERNATOR)
90901-05004	2C,3CE..CE10#	06/1991 - 12/2999	1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-64310	2C..CE10#	06/1991 - 05/1993	1
27036-64310	2C..CE106,108,109	05/1993 - 01/1994	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-64060	2C..CE10#	06/1991 - 05/1993	1
27310-64060	2C..CE106,108,109	05/1993 - 01/1994	1
27310-64570	2C,3CE..CE102,106,107,108..5F	01/1994 - 12/2999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137	2C..CE10#	06/1991 - 05/1993	1
90099-10137	2C..CE106,108,109	05/1993 - 01/1994	1
90099-10178	4A#,5AFE,2C,4EFE..AE10#,CE106,108,EE101..MTM	01/1994 - 04/1997	1
90099-10178	4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM	04/1997 - 12/2999	1
27312 - PLATE, RETAINER
27312-70200	4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM	04/1997 - 12/2999	1
27312-57060	2C..CE10#	06/1991 - 05/1993	1
27312-57060	2C..CE106,108,109	05/1993 - 01/1994	1
27312-70200	4A#,5AFE,2C,4EFE..AE10#,CE106,108,EE101..MTM	01/1994 - 04/1997	1
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060	2C..CE10#	06/1991 - 10/1992	1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060	2C..CE10#	06/1991 - 05/1993	1
27315-57060	2C..CE106,108,109	05/1993 - 01/1994	1
27330 - ROTOR ASSY, ALTERNATOR
27330-64171	2C..CE10#	06/1991 - 05/1993	1
27330-64171	2C..CE106,108,109	05/1993 - 01/1994	1
27330-64570	4AFE,2C..AE109,CE106,108..5F	01/1994 - 04/1997	1
27330-64570	4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM	04/1997 - 12/2999	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103	2C..CE106,108,109	05/1993 - 01/1994	1
90099-07103	2C..CE10#	06/1991 - 05/1993	1
27333 - COLLAR, SPACE(FOR ALTERNATOR ROTOR)
27333-57060	2C..CE106,108,109	05/1993 - 01/1994	1
27333-57060	2C..CE10#	06/1991 - 05/1993	1
27350 - FRAME ASSY, RECTIFIER END
27350-64060	2C..CE10#	06/1991 - 05/1993	1
27350-64570	2C..CE106,108..5F	01/1994 - 01/1996	1
27350-64571	2C..CE106,108..5F	01/1996 - 01/1997	1
27350-64572	2C,3CE..CE102,106,107,108..5F	01/1997 - 12/2999	1
27350-64060	2C..CE106,108,109	05/1993 - 01/1994	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-64060	2C..CE106,108,109	05/1993 - 01/1994	1
27351-64060	2C..CE10#	06/1991 - 05/1993	1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-64310	2C..CE10#	06/1991 - 05/1993	1
27353-64310	2C..CE106,108,109	05/1993 - 01/1994	1
27371 - BRUSH, ALTERNATOR
27371-54412	2C..CE106,108,109	05/1993 - 01/1994	2
27371-70300	4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..MTM	01/1994 - 12/2999	2
27371-54412	2C..CE10#	06/1991 - 05/1993	2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070	2C..CE10#	06/1991 - 05/1993	2
27372-63020	4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..MTM	01/1994 - 12/2999	2
27372-56070	2C..CE106,108,109	05/1993 - 01/1994	2
27373 - HOLDER, ALTERNATOR BRUSH, A
27373-64170	2C..CE10#	06/1991 - 05/1993	1
27373-64170	2C..CE106,108,109	05/1993 - 01/1994	1
27388 - COVER, ALTERNATOR BRUSH
27388-64170	2C..CE106,108,109	05/1993 - 01/1994	1
27388-64170	2C..CE10#	06/1991 - 05/1993	1
27410 - STATOR ASSY, ALTERNATOR
27410-43040	2C..CE10#	06/1991 - 05/1993	1
27410-43040	2C..CE106,108,109	05/1993 - 01/1994	1
27411 - PULLEY, ALTERNATOR
27411-64220	2C..CE106,108,109	05/1993 - 01/1994	1
27411-64220	2C..CE10#	06/1991 - 05/1993	1
27411-64570	2C..CE106,108..5F	01/1994 - 04/1998	1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-64060	2C..CE10#	06/1991 - 05/1993	1
27412-64060	2C..CE106,108,109	05/1993 - 01/1994	1
27441 - FAN, ALTERNATOR
27441-64060	2C..CE10#	06/1991 - 05/1993	1
27441-64060	2C..CE106,108,109	05/1993 - 01/1994	1
27700A - REGULATOR ASSY, GENERATOR
27700-64110	2C..CE10#	06/1991 - 05/1993	1
27700-64110	2C..CE106,108,109	05/1993 - 01/1994	1
27700-74030	2C..CE106,108..5F;5EFE..EE103,104..3FC;4A#,5AFE,4EFE..AE10#,EE101,102..3FC,4FC,5F	01/1994 - 08/1995	1
27700-74040	4AFE..AE109;2C,3CE..CE102,106,107,108..5F	08/1995 - 12/2999	1
Common parts
27378-45020
27378-54010
27387-54310
90099-00197
90099-00893
90099-02209
90099-02216
90099-04948
90099-05118
90099-05119
90099-05185
90099-14055
90099-34013
90179-06158
Linked diagrams

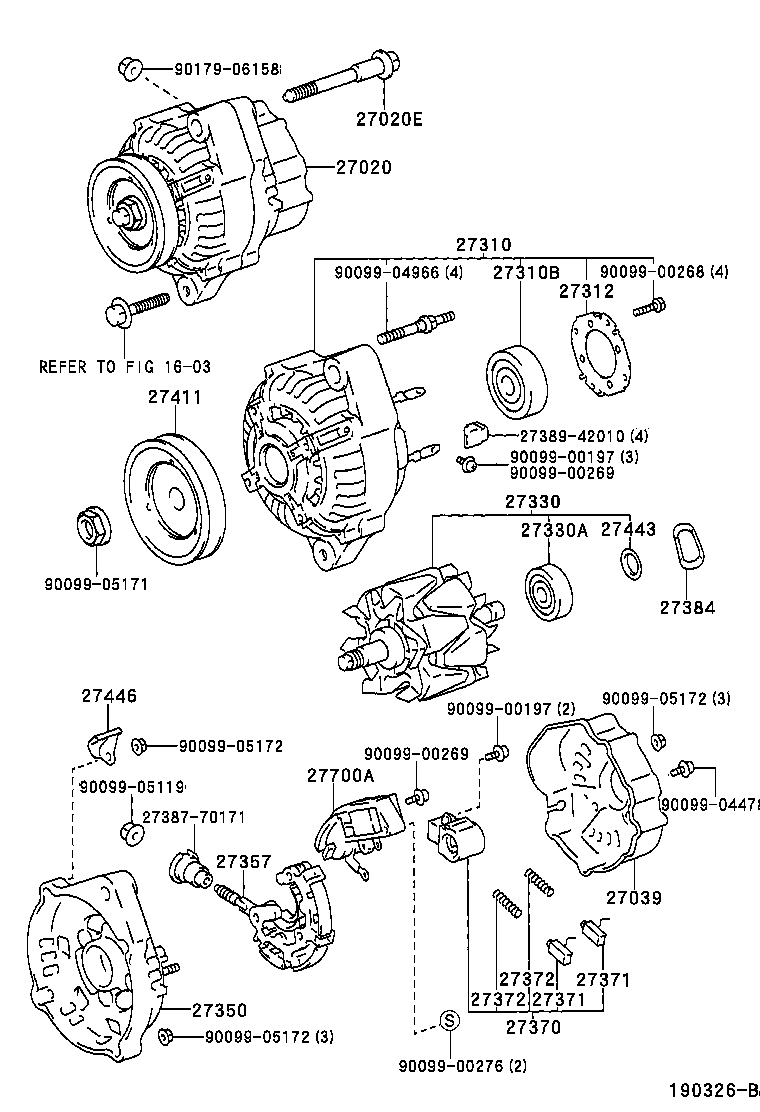

1603

(9401- )2C,3CE..CE102,106,107,108..5F

Click highlighted areas on diagram

12V 70A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-64310	2C..CE10# 12V 60A	06/1991 - 05/1993	1
27020-64310	2C..CE106,108,109 12V 60A	05/1993 - 01/1994	1
27060-64250	2C..CE106,108..5F 12V 70A	08/1995 - 04/1998	1
27060-64240	2C..CE106,108..5F 12V 70A	01/1994 - 08/1995	1
27020E - BOLT(FOR ALTERNATOR)
90901-05004	2C,3CE..CE10#	06/1991 - 12/2999	1
27039 - COVER, ALTERNATOR REAR END
27039-16380	4AFE,2C..AE109,CE106,108..5F	01/1997 - 04/1997	1
27039-73020	4A#,5AFE,2C,4EFE..AE10#,CE106,108,EE101..MTM	01/1994 - 01/1997	1
27039-16380	4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM	04/1997 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-64060	2C..CE10#	06/1991 - 05/1993	1
27310-64060	2C..CE106,108,109	05/1993 - 01/1994	1
27310-64570	2C,3CE..CE102,106,107,108..5F	01/1994 - 12/2999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137	2C..CE10#	06/1991 - 05/1993	1
90099-10137	2C..CE106,108,109	05/1993 - 01/1994	1
90099-10178	4A#,5AFE,2C,4EFE..AE10#,CE106,108,EE101..MTM	01/1994 - 04/1997	1
90099-10178	4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM	04/1997 - 12/2999	1
27312 - PLATE, RETAINER
27312-70200	4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM	04/1997 - 12/2999	1
27312-57060	2C..CE10#	06/1991 - 05/1993	1
27312-57060	2C..CE106,108,109	05/1993 - 01/1994	1
27312-70200	4A#,5AFE,2C,4EFE..AE10#,CE106,108,EE101..MTM	01/1994 - 04/1997	1
27330 - ROTOR ASSY, ALTERNATOR
27330-64171	2C..CE10#	06/1991 - 05/1993	1
27330-64171	2C..CE106,108,109	05/1993 - 01/1994	1
27330-64570	4AFE,2C..AE109,CE106,108..5F	01/1994 - 04/1997	1
27330-64570	4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM	04/1997 - 12/2999	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	4AFE,2C,3CE,4EFE,5EFE..AE109,CE10#,EE10#	04/1997 - 12/2999	1
90099-10140	4EFE,5EFE..EE102,103,104..3FC;4AFE,5AFE,2C,4EFE..AE10#,CE10#,EE101	01/1994 - 04/1997	1
27350 - FRAME ASSY, RECTIFIER END
27350-64060	2C..CE10#	06/1991 - 05/1993	1
27350-64570	2C..CE106,108..5F	01/1994 - 01/1996	1
27350-64571	2C..CE106,108..5F	01/1996 - 01/1997	1
27350-64572	2C,3CE..CE102,106,107,108..5F	01/1997 - 12/2999	1
27350-64060	2C..CE106,108,109	05/1993 - 01/1994	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-16380	4AFE,2C..AE109,CE106,108..5F	01/1997 - 04/1997	1
27357-63020	4A#,5AFE,2C,4EFE..AE10#,CE106,108,EE101..MTM	01/1994 - 01/1997	1
27357-16380	4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM	04/1997 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58320	2C,3CE,4EFE,5EFE..CE102,106,107,108,EE10#..MTM	01/1996 - 12/2999	1
27370-54450	4AGE,2C,4EFE..AE101,CE106,108,EE101..MTM	01/1994 - 01/1996	1
27371 - BRUSH, ALTERNATOR
27371-54412	2C..CE106,108,109	05/1993 - 01/1994	2
27371-70300	4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..MTM	01/1994 - 12/2999	2
27371-54412	2C..CE10#	06/1991 - 05/1993	2
27371 - BRUSH, ALTERNATOR
27371-54412	2C..CE106,108,109	05/1993 - 01/1994	2
27371-70300	4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..MTM	01/1994 - 12/2999	2
27371-54412	2C..CE10#	06/1991 - 05/1993	2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070	2C..CE10#	06/1991 - 05/1993	2
27372-63020	4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..MTM	01/1994 - 12/2999	2
27372-56070	2C..CE106,108,109	05/1993 - 01/1994	2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070	2C..CE10#	06/1991 - 05/1993	2
27372-63020	4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..MTM	01/1994 - 12/2999	2
27372-56070	2C..CE106,108,109	05/1993 - 01/1994	2
27384 - WASHER
27384-16380	4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM	04/1997 - 12/2999	1
27384-16380	4AFE,2C..AE109,CE106,108..5F	01/1996 - 04/1997	1
27411 - PULLEY, ALTERNATOR
27411-64220	2C..CE106,108,109	05/1993 - 01/1994	1
27411-64220	2C..CE10#	06/1991 - 05/1993	1
27411-64570	2C..CE106,108..5F	01/1994 - 04/1998	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE10#,EE10#	01/1994 - 12/2999	1
27446 - CLIP, ALTERNATOR CORD
27446-64450	2C,3CE..CE10#	01/1994 - 12/2999	1
27700A - REGULATOR ASSY, GENERATOR
27700-64110	2C..CE10#	06/1991 - 05/1993	1
27700-64110	2C..CE106,108,109	05/1993 - 01/1994	1
27700-74030	2C..CE106,108..5F;5EFE..EE103,104..3FC;4A#,5AFE,4EFE..AE10#,EE101,102..3FC,4FC,5F	01/1994 - 08/1995	1
27700-74040	4AFE..AE109;2C,3CE..CE102,106,107,108..5F	08/1995 - 12/2999	1
Common parts
27387-70171
27389-42010
90099-00197
90099-00268
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05171
90099-05172
90179-06158
Linked diagrams
1603
