CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9804)2C

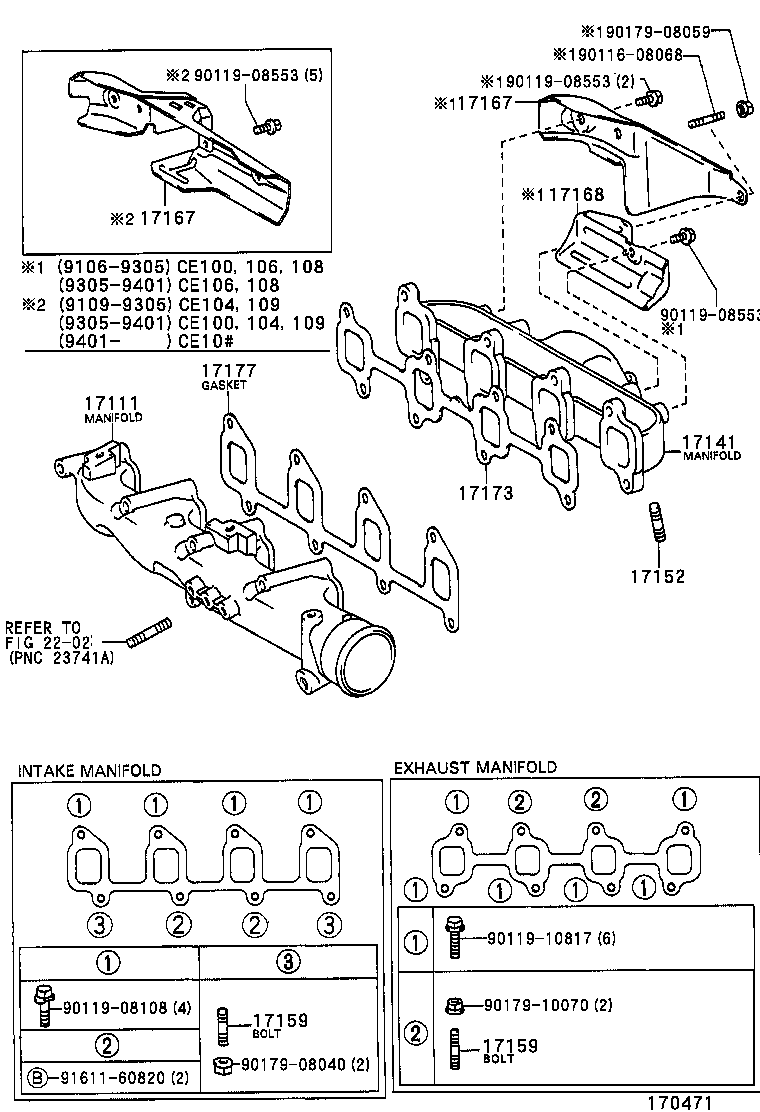

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17167 17168 17173 17177 2202 9011608068 9011908108 9011908553 9011908553 9011908553 9011910817 9017908040 9017908059 9017910070 9161160820
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-64180

2C..CE100,104,108

 1
17111-64180

2C..CE106..4FC;2C..CE100,104,108

 1
17141 - MANIFOLD, EXHAUST
17141-64091

2C..CE108

 1
17141-64091

2C..CE100,108

 1
17141-64200

2C..CE100,108;2C..CE106..4FC

 1
17141-64181

2C..CE106..4FC;2C,3CE..CE102,107,108

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146

2C,3CE..CE100,102,104,106,107,108,109

 2
90116-10058

2C..CE100,106,108

 2
90126-10003

2C..CE10#

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60820

2C,3CE..CE10#

INTAKE SIDE

 2
90126-10017

2C,3CE..CE10#

EXHAUST SIDE

 2
90116-10095

2C..CE10#

EXHAUST SIDE

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60820

2C,3CE..CE10#

INTAKE SIDE

 2
90126-10017

2C,3CE..CE10#

EXHAUST SIDE

 2
90116-10095

2C..CE10#

EXHAUST SIDE

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-64070

2C..CE100,106,108

 1
17167-64090

2C..CE10#

 1
17167-64070

2C..CE106,108

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-64070

2C..CE100,106,108

 1
17167-64090

2C..CE10#

 1
17167-64070

2C..CE106,108

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-64050

2C..CE106,108

 1
17168-64050

2C..CE100,106,108

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-64060

2C,3CE..CE10#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-64020

2C,3CE..CE10#

 1
Common parts
90116-08068
90119-08108
90119-08553
90119-10817
90179-08040
90179-08059
90179-10070
91611-60820
Linked diagrams
2202
