CE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )2C,3CE

Click highlighted areas on diagram

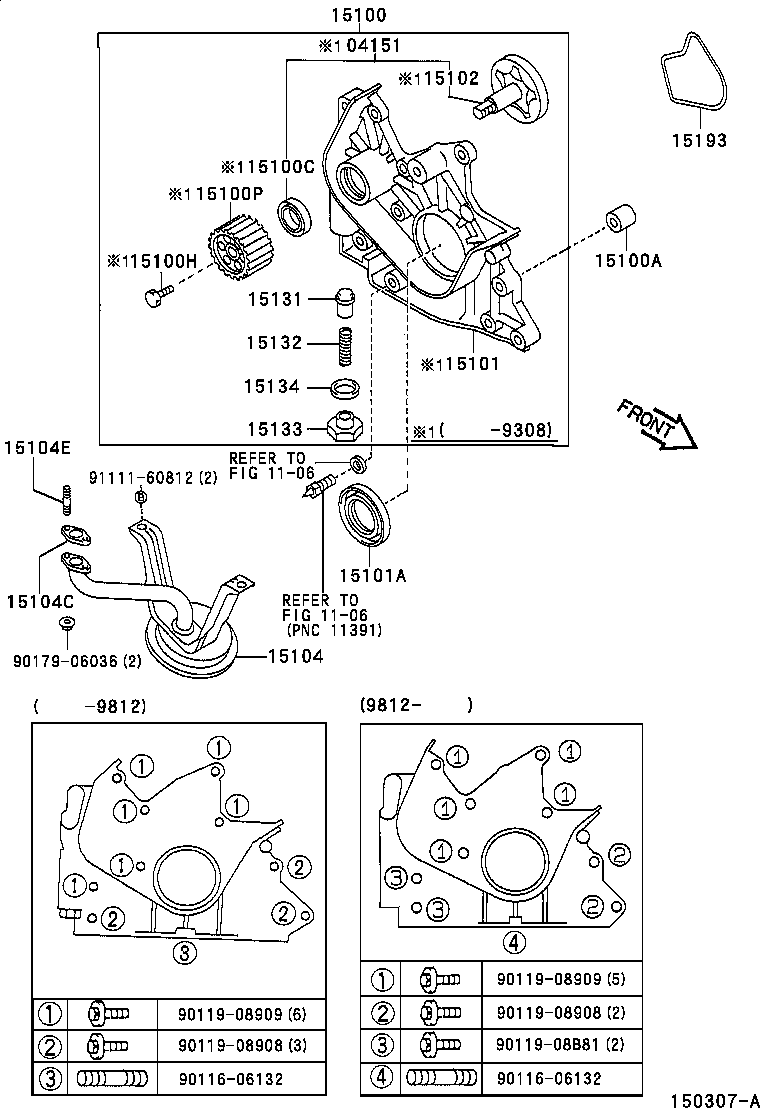

diagram 04151 1106 1106 15100 15100A 15100C 15100H 15100P 15101 15101A 15102 15104 15104C 15104E 15131 15132 15133 15134 15193 9011606132 9011606132 9011908908 9011908908 9011908909 9011908909 9011908B81 9017906036 9111160812
Part # Description Qty Price
04151 - ROTOR KIT, OIL PUMP
04151-64020

2C..CE10#

 1
15100 - PUMP ASSY, OIL
15100-64040

2C,3CE..CE10#

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

2C,3CE..CE10#

 2
15100C - SEAL(FOR OIL PUMP)
90029-21022

2C..CE10#

 1
15100H - BOLT, SEAL
15189-55010

2C..CE10#

 1
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-64020

2C..CE10#

 1
15101 - BODY SUB-ASSY, OIL PUMP
15101-64030

2C..CE10#

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-42031

2C,3CE..CE10#

 1
90311-42030

2C..CE10#

 1
90311-42026

2C..CE10#

 1
15102 - ROTOR SET, OIL PUMP
15102-64040

2C..CE10#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-64021

2C..CE10#

 1
15104-64060

2C..CE10#

 1
15104-64070

2C..CE10#

 1
15104C - GASKET(FOR OIL STRAINER)
15149-64030

2C,3CE..CE10#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-64020

2C,3CE..CE10#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-64012

2C,3CE..CE10#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

2C,3CE..CE10#

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

2C,3CE..CE10#

 1
15193 - GASKET, OIL PUMP
15193-64021

2C..CE10#

 1
Common parts
90116-06132
90119-08908
90119-08909
90119-08B81
90179-06036
91111-60812
Linked diagrams
1106
