CE106V-BXMBS (1991)
Toyota Sprinter

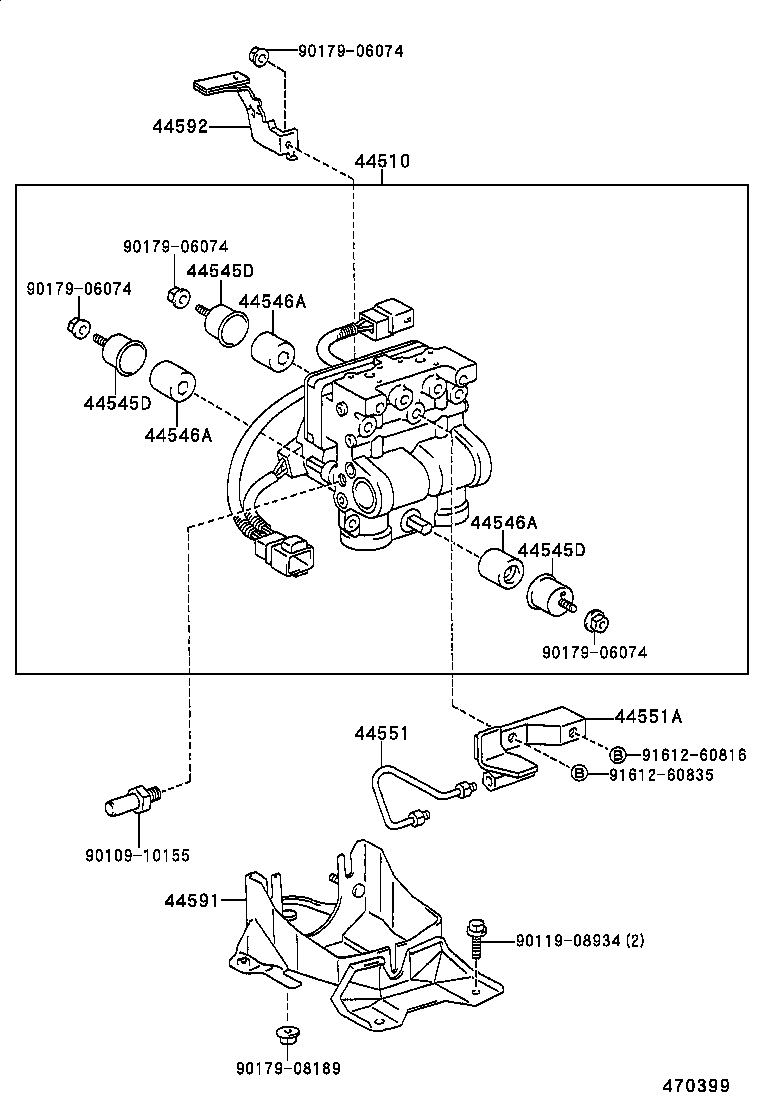

ILLUST NO. 2 OF 2(9106-9505)AE100..4FC,5F ; (9106-9505)AE100..3FC..DX,LX ; (9106-9505)AE101,104,CE10
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-10155 | ||||
| 90119-08934 | ||||
| 90179-06074 | ||||
| 90179-08189 | ||||
| 91612-60816 | ||||
| 91612-60835 | ||||

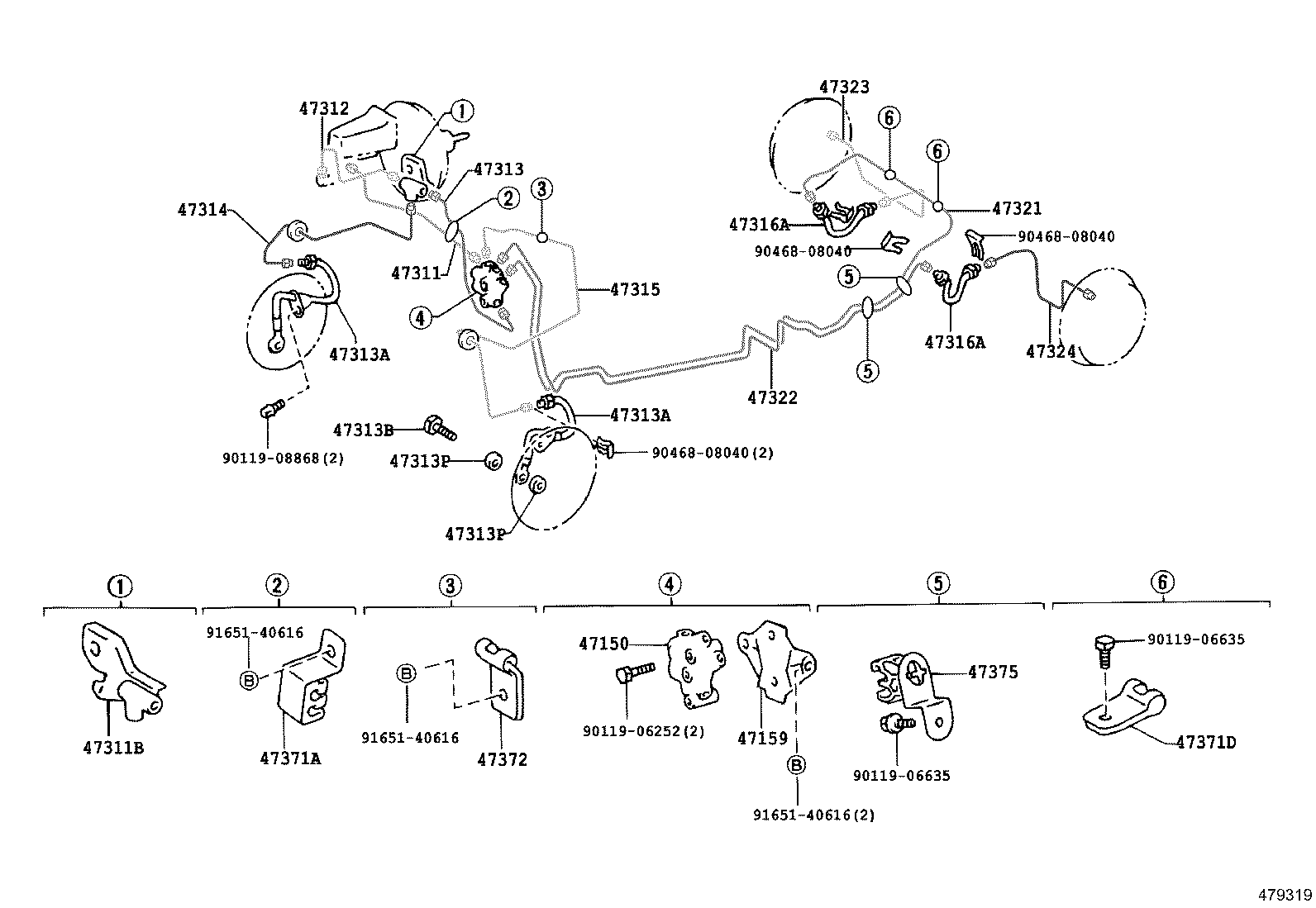

(9109-9704)CE106,EE102,103,106,107 ; (9109-9705)CE108,EE104,108
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-16050 |
AE101,CE106,EE102,103,106,107..CTD,DX,DXJ,GT,XL |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12070 |
AE10#,CE10#,EE10# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12450 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47311-12450 |
CE106,108,EE106,107,108 |
1 | ||
| 47311-12540 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10262 |
AE10#,CE10#,EE10# |
1 | ||
| 90413-10262 |
CE106,108,109,EE106,107,108 |
1 | ||
| 47391-12010 |
AE100,101,109,CE100,102,105,106,107,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12290 |
AE100,101,CE100,106,108,109,EE10# |
1 | ||
| 47312-12290 |
CE106,108,109,EE106,107,108 |
1 | ||
| 47312-12330 |
AE100,101,109,CE100,102,105,106,107,108,109,EE10# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12260 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47313-12340 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47313-12260 |
CE106,108,EE106,107,108 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02659 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02799 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02910 |
CE102,106,107,108,EE10# 右側 |
1 | ||
| 90947-02798 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02913 |
CE102,106,107,108,EE10# 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02659 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02799 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02910 |
CE102,106,107,108,EE10# 右側 |
1 | ||
| 90947-02798 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02913 |
CE102,106,107,108,EE10# 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE10#,CE10#,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12320 |
CE106,108,EE106,107,108 |
1 | ||
| 47314-12290 |
AE109,CE10#,EE10# |
1 | ||
| 47314-12320 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47314-12400 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12460 |
AE10#,CE10#,EE10# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02830 |
CE106,108,EE10# |
2 | ||
| 90947-02678 |
CE106,108,EE102,103,104,106,107,108 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02830 |
CE106,108,EE10# |
2 | ||
| 90947-02678 |
CE106,108,EE102,103,104,106,107,108 |
2 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-13060 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-13100 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12100 |
AE10#,CE10#,EE10# |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08652 |
CE106,108,EE102,103,104,106,107,108 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90461-06119 |
AE10#,CE10#,EE10# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-12030 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 91651-40616 | ||||
(9109- )CE102,106,107,108,EE102,103,104
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-16050 |
AE101,CE106,EE102,103,106,107..CTD,DX,DXJ,GT,XL |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12070 |
AE10#,CE10#,EE10# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12450 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47311-12450 |
CE106,108,EE106,107,108 |
1 | ||
| 47311-12540 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10262 |
AE10#,CE10#,EE10# |
1 | ||
| 90413-10262 |
CE106,108,109,EE106,107,108 |
1 | ||
| 47391-12010 |
AE100,101,109,CE100,102,105,106,107,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12290 |
AE100,101,CE100,106,108,109,EE10# |
1 | ||
| 47312-12290 |
CE106,108,109,EE106,107,108 |
1 | ||
| 47312-12330 |
AE100,101,109,CE100,102,105,106,107,108,109,EE10# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12260 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47313-12340 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47313-12260 |
CE106,108,EE106,107,108 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02659 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02799 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02910 |
CE102,106,107,108,EE10# 右側 |
1 | ||
| 90947-02798 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02913 |
CE102,106,107,108,EE10# 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02659 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02799 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02910 |
CE102,106,107,108,EE10# 右側 |
1 | ||
| 90947-02798 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02913 |
CE102,106,107,108,EE10# 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE10#,CE10#,EE10# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE10#,CE10#,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12320 |
CE106,108,EE106,107,108 |
1 | ||
| 47314-12290 |
AE109,CE10#,EE10# |
1 | ||
| 47314-12320 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47314-12400 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12460 |
AE10#,CE10#,EE10# |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02908 |
CE102,106,107,108,EE10# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02908 |
CE102,106,107,108,EE10# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-13060 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-13100 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12100 |
AE10#,CE10#,EE10# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90461-06119 |
AE10#,CE10#,EE10# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-12030 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90461-06118 | ||||
| 90461-08652 | ||||
| 90468-08040 | ||||
| 91626-60618 | ||||
| 91651-60614 | ||||
