CE104-BEMES (1991)

Toyota Sprinter

Production Sep 1991 - May 1995
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )CE100,104,106,108,109

Click highlighted areas on diagram

diagram 1708 8271124070 88031 8846714070 88609 886881A010 88691C 88691C 9009120609 9009932127 9009932144 9011906336 9046400074 9331915008
Part # Description Qty Price
88609 - DEVICE SUB-ASSY, IDLE UP
88690-12840

CE100..DX;CE104,106,109;CE100,108..5F..(L,LX,SEL,XE)

 1
88609-1A020

CE100,104..DX,SEL,XE

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88690-12811

AE100,104

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88690-12870

EE101,102,103,104..DX,DXJ,L,XL

 1
88609-12790

CE100,104..5F..(SEL,XE)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CE100..DX;CE100,104,108..5F..(L,LX,SEL,XE)

*H,L=300,ﾏｰｸ=#*

 1
90999-92003

CE104;CE100..5F..LX;CE100..DX,SEL,XE

*H,L=450,ﾏｰｸ=#*

 1
90999-92002

CE100..DX;CE100,104..5F..(LX,SEL,XE)

*H,L=190,ﾏｰｸ=#*

 1
90999-92002

CE100..DX;CE100,104,108..5F..(L,LX,XE)

*H,L=270,ﾏｰｸ=#0

 1
90999-92002

CE100,106,108..4FC;CE100,104..5F..(DX,SEL,XE)

*H,L=110,ﾏｰｸ=#0

 1
90999-92002

EE101,102,103,104

*H,L=150,ﾏｰｸ=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CE100..DX;CE100,104,108..5F..(L,LX,SEL,XE)

*H,L=300,ﾏｰｸ=#*

 1
90999-92003

CE104;CE100..5F..LX;CE100..DX,SEL,XE

*H,L=450,ﾏｰｸ=#*

 1
90999-92002

CE100..DX;CE100,104..5F..(LX,SEL,XE)

*H,L=190,ﾏｰｸ=#*

 1
90999-92002

CE100..DX;CE100,104,108..5F..(L,LX,XE)

*H,L=270,ﾏｰｸ=#0

 1
90999-92002

CE100,106,108..4FC;CE100,104..5F..(DX,SEL,XE)

*H,L=110,ﾏｰｸ=#0

 1
90999-92002

EE101,102,103,104

*H,L=150,ﾏｰｸ=#0

 1
Common parts
82711-24070
88467-14070
88688-1A010
90091-20609
90099-32127
90099-32144
90119-06336
90464-00074
93319-15008
Linked diagrams
1708

(9305- )CE100,104,106,108,109

Click highlighted areas on diagram

diagram 88031 8846714070 88609 88691C 88691C 9009932127 9009932144 9011906540 9011906540 9046400082 9331914006
Part # Description Qty Price
88609 - DEVICE SUB-ASSY, IDLE UP
88690-12840

CE100..DX;CE104,106,109;CE100,108..5F..(L,LX,SEL,XE)

 1
88609-1A020

CE100,104..DX,SEL,XE

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88690-12811

AE100,104

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88690-12870

EE101,102,103,104..DX,DXJ,L,XL

 1
88609-12790

CE100,104..5F..(SEL,XE)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CE100..DX;CE100,104,108..5F..(L,LX,SEL,XE)

*H,L=300,ﾏｰｸ=#*

 1
90999-92003

CE104;CE100..5F..LX;CE100..DX,SEL,XE

*H,L=450,ﾏｰｸ=#*

 1
90999-92002

CE100..DX;CE100,104..5F..(LX,SEL,XE)

*H,L=190,ﾏｰｸ=#*

 1
90999-92002

CE100..DX;CE100,104,108..5F..(L,LX,XE)

*H,L=270,ﾏｰｸ=#0

 1
90999-92002

CE100,106,108..4FC;CE100,104..5F..(DX,SEL,XE)

*H,L=110,ﾏｰｸ=#0

 1
90999-92002

EE101,102,103,104

*H,L=150,ﾏｰｸ=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CE100..DX;CE100,104,108..5F..(L,LX,SEL,XE)

*H,L=300,ﾏｰｸ=#*

 1
90999-92003

CE104;CE100..5F..LX;CE100..DX,SEL,XE

*H,L=450,ﾏｰｸ=#*

 1
90999-92002

CE100..DX;CE100,104..5F..(LX,SEL,XE)

*H,L=190,ﾏｰｸ=#*

 1
90999-92002

CE100..DX;CE100,104,108..5F..(L,LX,XE)

*H,L=270,ﾏｰｸ=#0

 1
90999-92002

CE100,106,108..4FC;CE100,104..5F..(DX,SEL,XE)

*H,L=110,ﾏｰｸ=#0

 1
90999-92002

EE101,102,103,104

*H,L=150,ﾏｰｸ=#0

 1
Common parts
88467-14070
90099-32127
90099-32144
90119-06540
90464-00082
93319-14006

(9106- )EE103,104..L,XL ; (9106- )EE101,102,103..3FC,4F..DX,DXJ,LX,XE

Click highlighted areas on diagram

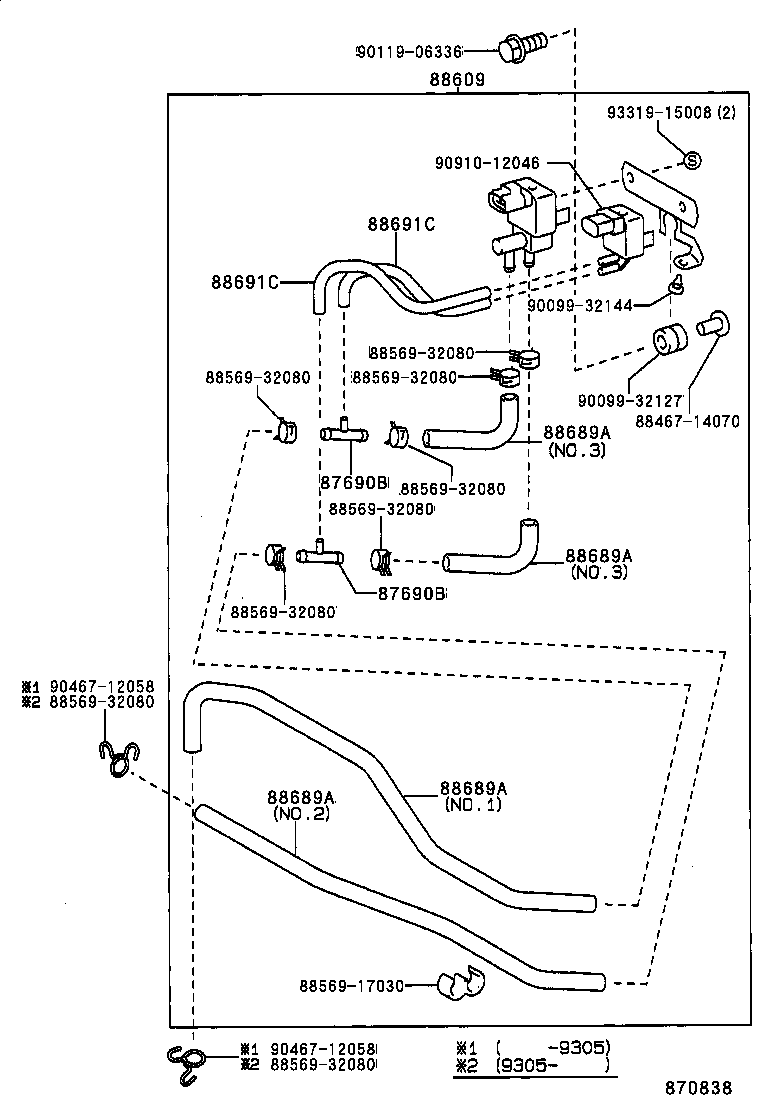

diagram 87690B 87690B 8846714070 8856917030 8856932080 8856932080 8856932080 8856932080 8856932080 8856932080 8856932080 8856932080 88609 88689A 88689A 88689A 88689A 88691C 88691C 9009932127 9009932144 9011906336 9046712058 9046712058 9091012046 9331915008
Part # Description Qty Price
87690B - WAY, 3
90413-08005

EE101,102,103,104

 2
87690B - WAY, 3
90413-08005

EE101,102,103,104

 2
88609 - DEVICE SUB-ASSY, IDLE UP
88690-12840

CE100..DX;CE104,106,109;CE100,108..5F..(L,LX,SEL,XE)

 1
88609-1A020

CE100,104..DX,SEL,XE

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88690-12811

AE100,104

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88690-12870

EE101,102,103,104..DX,DXJ,L,XL

 1
88609-12790

CE100,104..5F..(SEL,XE)

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-12490

EE101,102,103,104

NO.1(IN)

 1
88689-12510

EE101,102,103,104

NO.3

 2
88689-12500

EE101,102,103,104

NO.2(OUT)

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-12490

EE101,102,103,104

NO.1(IN)

 1
88689-12510

EE101,102,103,104

NO.3

 2
88689-12500

EE101,102,103,104

NO.2(OUT)

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-12490

EE101,102,103,104

NO.1(IN)

 1
88689-12510

EE101,102,103,104

NO.3

 2
88689-12500

EE101,102,103,104

NO.2(OUT)

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-12490

EE101,102,103,104

NO.1(IN)

 1
88689-12510

EE101,102,103,104

NO.3

 2
88689-12500

EE101,102,103,104

NO.2(OUT)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CE100..DX;CE100,104,108..5F..(L,LX,SEL,XE)

*H,L=300,ﾏｰｸ=#*

 1
90999-92003

CE104;CE100..5F..LX;CE100..DX,SEL,XE

*H,L=450,ﾏｰｸ=#*

 1
90999-92002

CE100..DX;CE100,104..5F..(LX,SEL,XE)

*H,L=190,ﾏｰｸ=#*

 1
90999-92002

CE100..DX;CE100,104,108..5F..(L,LX,XE)

*H,L=270,ﾏｰｸ=#0

 1
90999-92002

CE100,106,108..4FC;CE100,104..5F..(DX,SEL,XE)

*H,L=110,ﾏｰｸ=#0

 1
90999-92002

EE101,102,103,104

*H,L=150,ﾏｰｸ=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

CE100..DX;CE100,104,108..5F..(L,LX,SEL,XE)

*H,L=300,ﾏｰｸ=#*

 1
90999-92003

CE104;CE100..5F..LX;CE100..DX,SEL,XE

*H,L=450,ﾏｰｸ=#*

 1
90999-92002

CE100..DX;CE100,104..5F..(LX,SEL,XE)

*H,L=190,ﾏｰｸ=#*

 1
90999-92002

CE100..DX;CE100,104,108..5F..(L,LX,XE)

*H,L=270,ﾏｰｸ=#0

 1
90999-92002

CE100,106,108..4FC;CE100,104..5F..(DX,SEL,XE)

*H,L=110,ﾏｰｸ=#0

 1
90999-92002

EE101,102,103,104

*H,L=150,ﾏｰｸ=#0

 1
Common parts
88467-14070
88569-17030
88569-32080
90099-32127
90099-32144
90119-06336
90467-12058
90910-12046
93319-15008
