CE104-BEMES (1991)
Toyota Sprinter

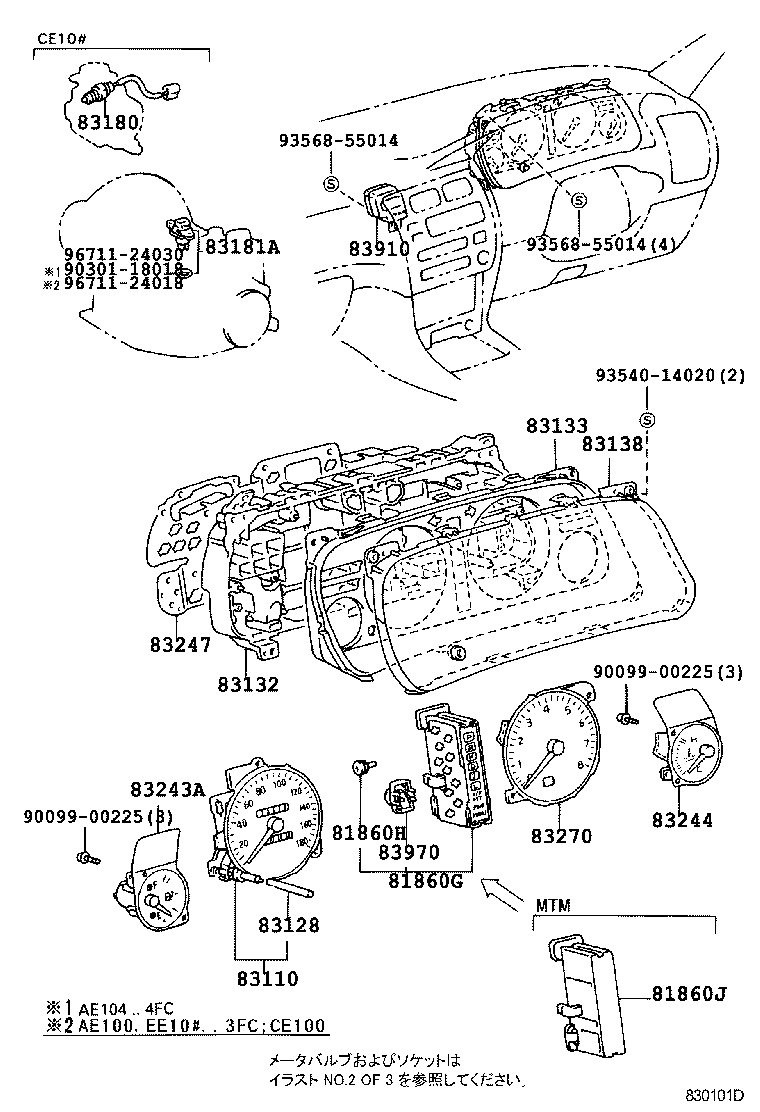

ILLUST NO. 1 OF 3(9106- )CTD,DX,DXJ,L,LX,XL
ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀﾅｼ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E690 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE DENSO |
1 | ||
| 83110-1E660 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL YAZAKI |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1E020 |
AE100,CE10#,EE10#..CTD,DX,L,LX,XL |
1 | ||
| 83132-1A530 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-1E040 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89320 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89320 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL |
2 | ||
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-32020 |
CE10# |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12050 |
AE104,109,CE104,105,109..5F |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1H090 |
CE104..SEL,XE |
1 | ||
| 83243-1H090 |
CE100,104..SEL,XE |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1E020 |
AE100,104,EE10#..CTD,DX,L,LX,XL |
1 | ||
| 83244-1E040 |
CE10#..CTD,DX,L,LX,XL |
1 | ||
| 83244-1A850 |
CE100,104..SEL,XE |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83149-1E020 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL |
1 | ||
| 83247-1H330 |
AE100,CE100,104,EE101..SEL,XE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12460 |
AE10#,CE10#,EE10# JECO |
1 | ||
| 83910-12480 |
AE10#,CE10#,EE10# RHYTHM |
1 | ||
| Common parts | ||||
| 83161-1E020 | ||||
| 83161-20280 | ||||
| 93568-55014 | ||||
| 96711-24018 | ||||
| 96711-24030 | ||||
ILLUST NO. 1 OF 3(9106- )GT,SEG,SEL,XE
ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81860J - PLUG, METER PLATE | ||||
| 81860-12100 |
AE100,104,CE100,EE101..MTM..(SEL,XE) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E690 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE DENSO |
1 | ||
| 83110-1E660 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL YAZAKI |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12770 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1E020 |
AE100,CE10#,EE10#..CTD,DX,L,LX,XL |
1 | ||
| 83132-1A530 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1H010 |
AE101..4FC;AE100,104,CE100,EE101..SEL,XE |
1 | ||
| 83133-1H030 |
AE101,CE104..5F..(GT,SEG,SEL,XE) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A110 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
1 | ||
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-32020 |
CE10# |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12050 |
AE104,109,CE104,105,109..5F |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1H090 |
CE104..SEL,XE |
1 | ||
| 83243-1H090 |
CE100,104..SEL,XE |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1E020 |
AE100,104,EE10#..CTD,DX,L,LX,XL |
1 | ||
| 83244-1E040 |
CE10#..CTD,DX,L,LX,XL |
1 | ||
| 83244-1A850 |
CE100,104..SEL,XE |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83149-1E020 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL |
1 | ||
| 83247-1H330 |
AE100,CE100,104,EE101..SEL,XE |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1E750 |
CE100,104..SEL,XE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12460 |
AE10#,CE10#,EE10# JECO |
1 | ||
| 83910-12480 |
AE10#,CE10#,EE10# RHYTHM |
1 | ||
| Common parts | ||||
| 90099-00225 | ||||
| 90301-18018 | ||||
| 93540-14020 | ||||
| 93568-55014 | ||||
| 96711-24018 | ||||
| 96711-24030 | ||||
ILLUST NO. 3 OF 3(9205- )
| Part # | Description | Qty | Price |
|---|

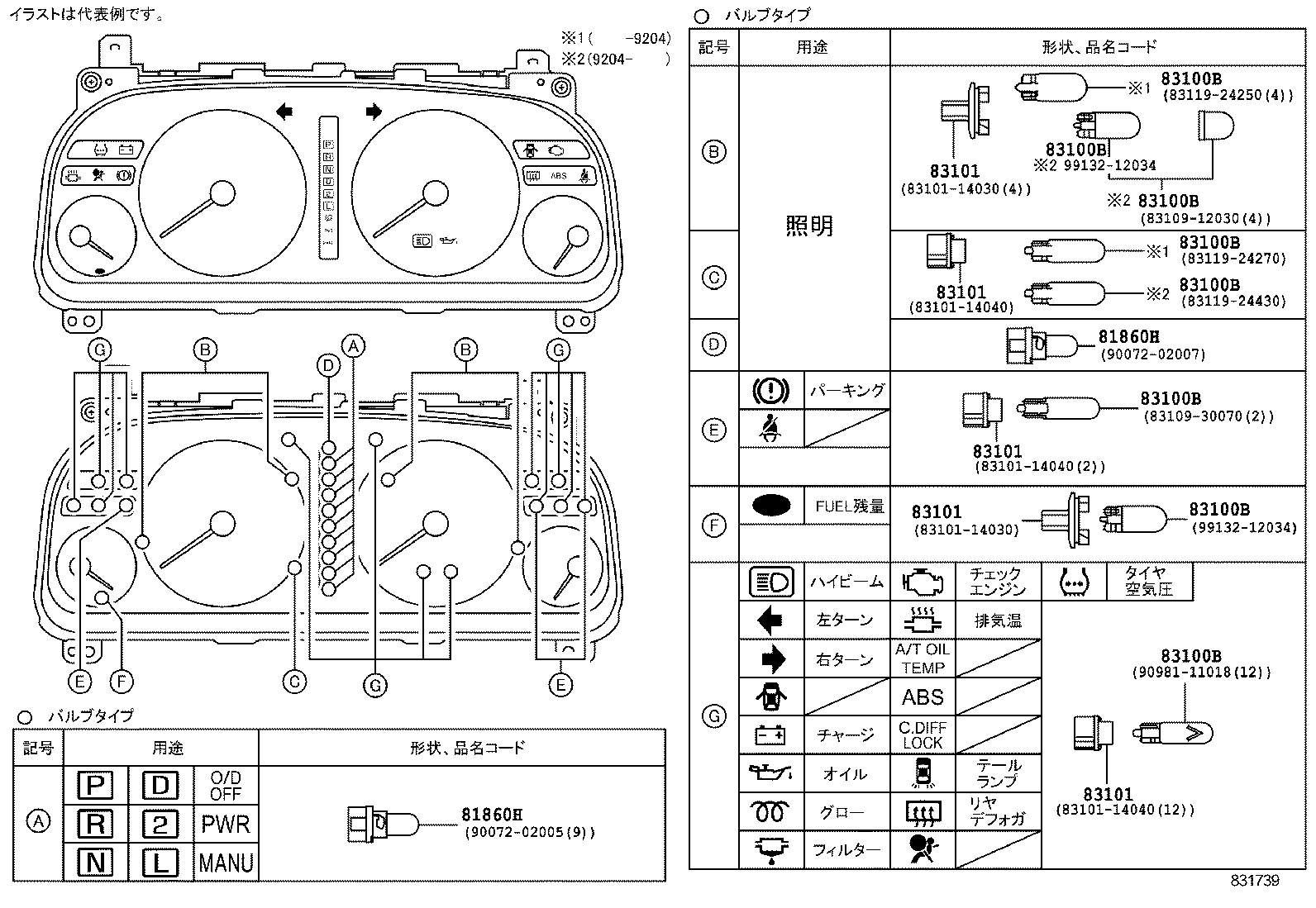

ILLUST NO. 2 OF 3(9106- )CTD,DX,DXJ,L,LX,XL
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(YAZAKI)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE10#,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL ﾅｼ(ﾀｺﾒ-ﾀ),12V 3.4W |
1 | ||
| 83101-14030 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE10#,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL ﾅｼ(ﾀｺﾒ-ﾀ),12V 3.4W |
1 | ||
| 83101-14030 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE10#,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL ﾅｼ(ﾀｺﾒ-ﾀ),12V 3.4W |
1 | ||
| 83101-14030 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE10#,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL ﾅｼ(ﾀｺﾒ-ﾀ),12V 3.4W |
1 | ||
| 83101-14030 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 12V 3.4W |
1 | ||
ILLUST NO. 2 OF 3(9106- )CTD,DX,DXJ,L,LX,XL
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(AMERICA YAZAKI)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
ILLUST NO. 2 OF 3(9106- )GT,SEG,SEL,XE
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ - ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A100 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,YAZAKI,*89 |
1 | ||
| 83109-95J00 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XL 14V 3.78W,YAZAKI,*89 |
1 | ||
| 83119-24270 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 2.0W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
1 | ||
| 99132-12034 |
AE10#,CE10#,EE10# 12V 3.4W |
1 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-04040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 3.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83119-24250 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾘ(ﾀｺﾒ-ﾀ) |
1 | ||
| 83120-0W020 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 2.0W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-0W010 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 14V 3.8W,AMERICA−YAZAKI,*89 |
1 | ||
| 83120-04050 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL 12V 1.4W,ｿｹｯﾄ付き,AMERICA−YAZAKI,*89 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE10#,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL ﾅｼ(ﾀｺﾒ-ﾀ),12V 3.4W |
1 | ||
| 83101-14030 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE10#,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL ﾅｼ(ﾀｺﾒ-ﾀ),12V 3.4W |
1 | ||
| 83101-14030 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE10#,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL ﾅｼ(ﾀｺﾒ-ﾀ),12V 3.4W |
1 | ||
| 83101-14030 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE10#,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL ﾅｼ(ﾀｺﾒ-ﾀ),12V 3.4W |
1 | ||
| 83101-14030 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE10#,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL ﾅｼ(ﾀｺﾒ-ﾀ),12V 3.4W |
1 | ||
| 83101-14030 |
AE100,101,104,CE100,104,EE101..GT,SEG,SEL,XE 12V 3.4W |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
