CE104-BEMES (1991)
Toyota Sprinter

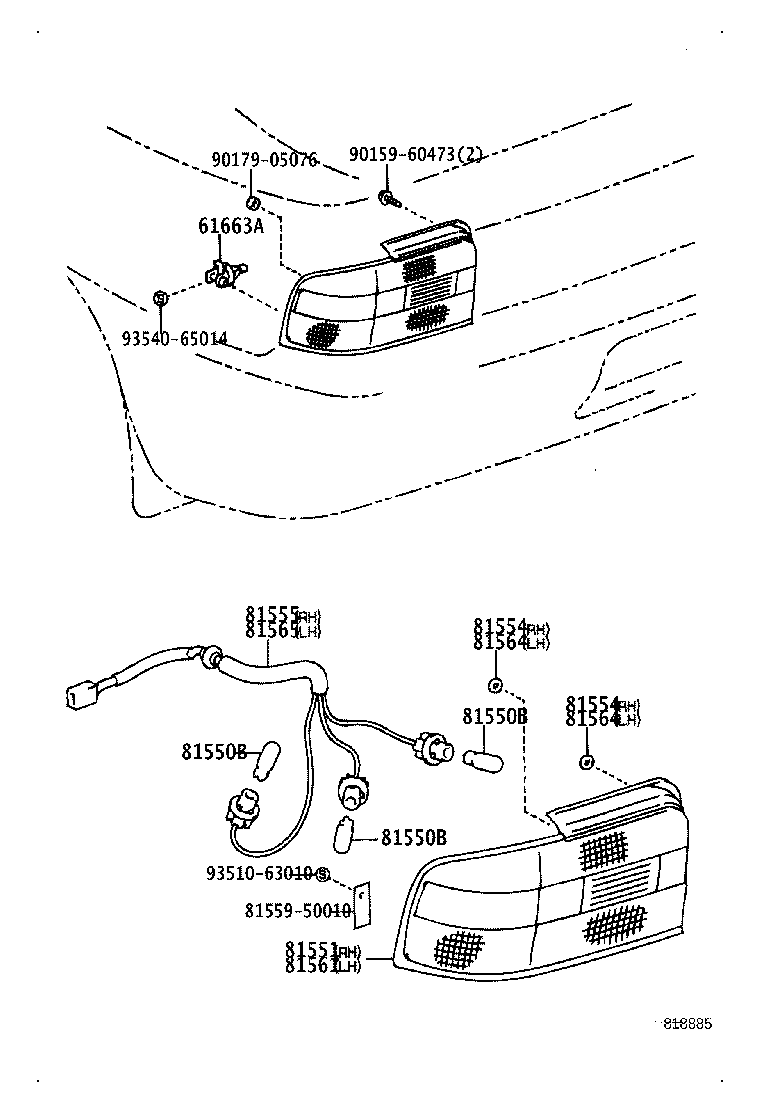

ILLUST NO. 1 OF 2(9305- )AE10#,CE100,104,EE101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61663A - BRACKET, REAR COMBINATION LAMP MOUNTING | ||||
| 61663-12010 |
AE10#,CE100,104,EE101 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13050 |
AE10#,CE100,104,EE101 12V 21W,TURN |
2 | ||
| 90981-11039 |
AE10#,CE100,104,EE101 12V 16W,BACK |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13050 |
AE10#,CE100,104,EE101 12V 21W,TURN |
2 | ||
| 90981-11039 |
AE10#,CE100,104,EE101 12V 16W,BACK |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13050 |
AE10#,CE100,104,EE101 12V 21W,TURN |
2 | ||
| 90981-11039 |
AE10#,CE100,104,EE101 12V 16W,BACK |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-1A730 |
AE10#,CE100,104,EE101 |
1 | ||
| 81551-13320 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 81551-1A880 |
AE10#,CE100,104,EE101 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-32150 |
AE10#,CE100,104,EE101 |
1 | ||
| 81554-32150 |
AE10#,CE100,104,EE101 |
2 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-1A730 |
AE10#,CE100,104,EE101 |
1 | ||
| 81555-13340 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 81555-1A880 |
AE10#,CE100,104,EE101 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-1A840 |
AE10#,CE100,104,EE101 |
1 | ||
| 81561-1A670 |
AE10#,CE100,104,EE101 |
1 | ||
| 81561-13320 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-32150 |
AE10#,CE100,104,EE101 |
2 | ||
| 81554-32150 |
AE10#,CE100,104,EE101 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-1A880 |
AE10#,CE100,104,EE101 |
1 | ||
| 81555-13340 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 81555-1A730 |
AE10#,CE100,104,EE101 |
1 | ||
| Common parts | ||||
| 81559-50010 | ||||
| 90159-60540 | ||||
| 90179-05076 | ||||
| 93510-63010 | ||||
| 93540-65014 | ||||

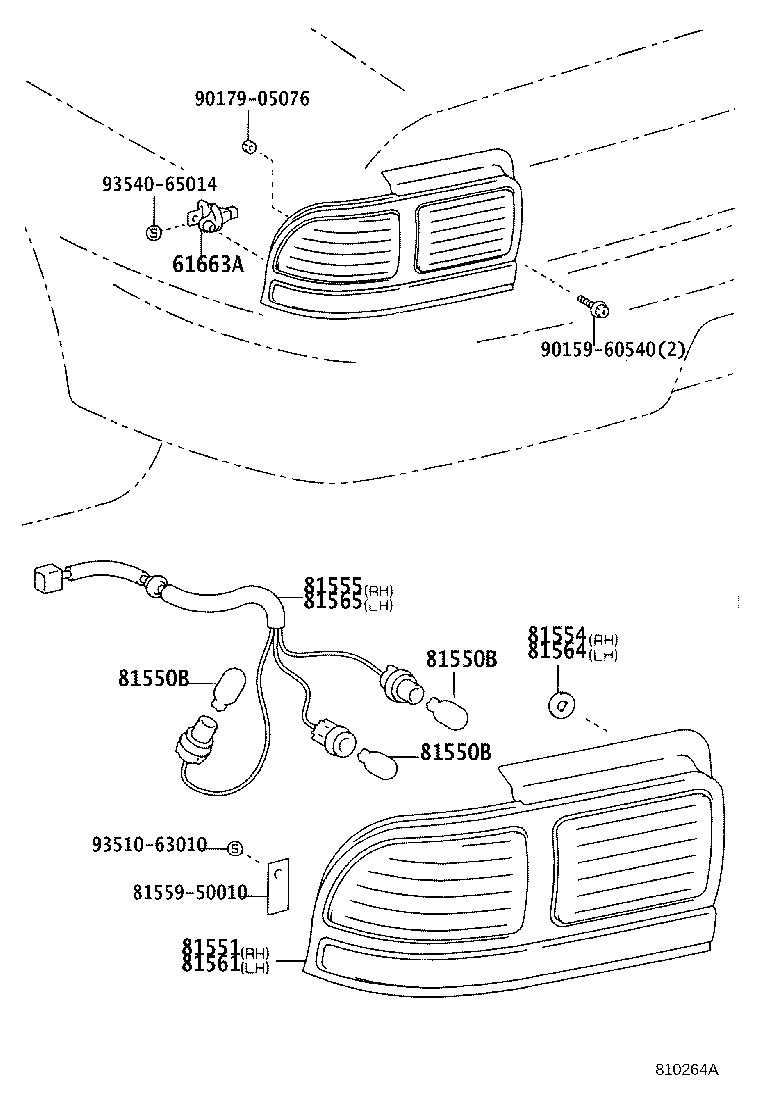

ILLUST NO. 1 OF 2(9106-9305)AE10#,CE100,104,EE101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61663A - BRACKET, REAR COMBINATION LAMP MOUNTING | ||||
| 61663-12010 |
AE10#,CE100,104,EE101 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13050 |
AE10#,CE100,104,EE101 12V 21W,TURN |
2 | ||
| 90981-11039 |
AE10#,CE100,104,EE101 12V 16W,BACK |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13050 |
AE10#,CE100,104,EE101 12V 21W,TURN |
2 | ||
| 90981-11039 |
AE10#,CE100,104,EE101 12V 16W,BACK |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13050 |
AE10#,CE100,104,EE101 12V 21W,TURN |
2 | ||
| 90981-11039 |
AE10#,CE100,104,EE101 12V 16W,BACK |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-1A730 |
AE10#,CE100,104,EE101 |
1 | ||
| 81551-13320 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 81551-1A880 |
AE10#,CE100,104,EE101 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-32150 |
AE10#,CE100,104,EE101 |
1 | ||
| 81554-32150 |
AE10#,CE100,104,EE101 |
2 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-32150 |
AE10#,CE100,104,EE101 |
1 | ||
| 81554-32150 |
AE10#,CE100,104,EE101 |
2 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-1A730 |
AE10#,CE100,104,EE101 |
1 | ||
| 81555-13340 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 81555-1A880 |
AE10#,CE100,104,EE101 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-1A840 |
AE10#,CE100,104,EE101 |
1 | ||
| 81561-1A670 |
AE10#,CE100,104,EE101 |
1 | ||
| 81561-13320 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-32150 |
AE10#,CE100,104,EE101 |
2 | ||
| 81554-32150 |
AE10#,CE100,104,EE101 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-32150 |
AE10#,CE100,104,EE101 |
2 | ||
| 81554-32150 |
AE10#,CE100,104,EE101 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-1A880 |
AE10#,CE100,104,EE101 |
1 | ||
| 81555-13340 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 81555-1A730 |
AE10#,CE100,104,EE101 |
1 | ||
| Common parts | ||||
| 81559-50010 | ||||
| 90159-60473 | ||||
| 90179-05076 | ||||
| 93510-63010 | ||||
| 93540-65014 | ||||
ILLUST NO. 1 OF 2(9109- )AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13050 |
AE10#,CE100,104,EE101 12V 21W,TURN |
2 | ||
| 90981-11039 |
AE10#,CE100,104,EE101 12V 16W,BACK |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13050 |
AE10#,CE100,104,EE101 12V 21W,TURN |
2 | ||
| 90981-11039 |
AE10#,CE100,104,EE101 12V 16W,BACK |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13050 |
AE10#,CE100,104,EE101 12V 21W,TURN |
2 | ||
| 90981-11039 |
AE10#,CE100,104,EE101 12V 16W,BACK |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
2 | ||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W,TAIL & STOP |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-1A730 |
AE10#,CE100,104,EE101 |
1 | ||
| 81551-13320 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 81551-1A880 |
AE10#,CE100,104,EE101 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-1A730 |
AE10#,CE100,104,EE101 |
1 | ||
| 81555-13340 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 81555-1A880 |
AE10#,CE100,104,EE101 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-1A840 |
AE10#,CE100,104,EE101 |
1 | ||
| 81561-1A670 |
AE10#,CE100,104,EE101 |
1 | ||
| 81561-13320 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-1A880 |
AE10#,CE100,104,EE101 |
1 | ||
| 81555-13340 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 81555-1A730 |
AE10#,CE100,104,EE101 |
1 | ||
| Common parts | ||||
| 90159-60540 | ||||
| 90467-18013 | ||||
ILLUST NO. 2 OF 2(9305- )AE10#,CE100,104,EE101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81580A - LAMP ASSY, REAR | ||||
| 81580-12020 |
AE10#,CE100,104,EE101 |
1 | ||
| 81580A - LAMP ASSY, REAR | ||||
| 81580-12020 |
AE10#,CE100,104,EE101 |
1 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W |
2 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 90981-13051 |
AE10#,CE100,104,EE101 12V 21/5W |
2 | ||
| 81581 - LENS, REAR LAMP | ||||
| 81581-12020 |
AE10#,CE100,104,EE101 |
1 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81554-32150 |
AE10#,CE100,104,EE101 NO.1 |
2 | ||
| 81672-12040 |
AE10#,CE100,104,EE101 NO.2 |
2 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81554-32150 |
AE10#,CE100,104,EE101 NO.1 |
2 | ||
| 81672-12040 |
AE10#,CE100,104,EE101 NO.2 |
2 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81554-32150 |
AE10#,CE100,104,EE101 NO.1 |
2 | ||
| 81672-12040 |
AE10#,CE100,104,EE101 NO.2 |
2 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81554-32150 |
AE10#,CE100,104,EE101 NO.1 |
2 | ||
| 81672-12040 |
AE10#,CE100,104,EE101 NO.2 |
2 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81595-12020 |
AE10#,CE100,104,EE101 左側 |
1 | ||
| 81585-12020 |
AE10#,CE100,104,EE101 右側 |
1 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81595-12020 |
AE10#,CE100,104,EE101 左側 |
1 | ||
| 81585-12020 |
AE10#,CE100,104,EE101 右側 |
1 | ||
| Common parts | ||||
| 76817-23010 | ||||
| 90179-05011 | ||||
| 93510-14012 | ||||
