CE104-BEMES (1991)
Toyota Sprinter

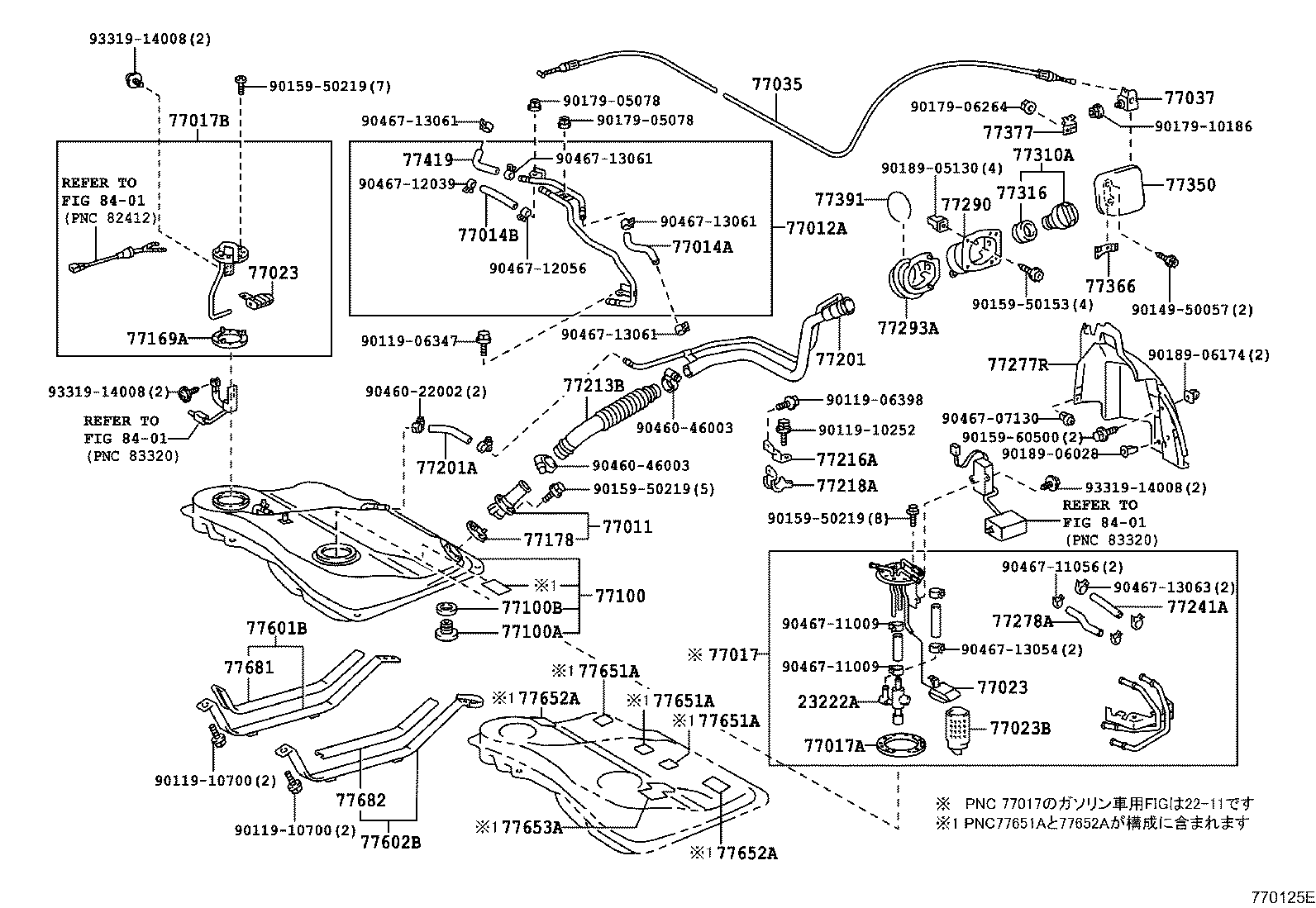

ILLUST NO. 1 OF 2(9109-9505)AE104,CE104
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23222A - TUBE, FUEL RETURN JET | ||||
| 23222-64010 |
2C..CE104 |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
AE104,CE104,109 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12120 |
CE104 |
1 | ||
| 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 | ||||
| 77279-12100 |
AE104,CE104 |
1 | ||
| 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) | ||||
| 95333-06010 |
AE104,CE104 *H,L=100 |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-12480 |
CE104 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-12030 |
CE104 |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-12500 |
AE104,CE104 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32040 |
CE104 |
2 | ||
| 77023-32030 |
AE104;CE104..SEL,XE |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32040 |
CE104 |
2 | ||
| 77023-32030 |
AE104;CE104..SEL,XE |
1 | ||
| 77023B - FILTER SUB-ASSY, FUEL SUCTION TUBE, NO.2 | ||||
| 77023-12040 |
CE104 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12190 |
AE10#,CE100,104,EE101 |
1 | ||
| 77035-13020 |
CE106,108,109,EE102,103,104,106,107,108..DX,L,XL |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
AE10#,CE10#,EE10#..DX,GT,L,LX,SEG,SEL,XE,XL |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12933 |
AE104,CE104 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
CE104 |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
CE104 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
AE104,CE104 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AE10#,CE10#,EE10# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12460 |
AE104,CE104 |
1 | ||
| 77201-13160 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95311-13022 |
AE10#,CE100,104,EE101 長さ=220 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12150 |
AE104,CE104 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12080 |
AE104,CE104 |
1 | ||
| 77216-13030 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-12040 |
AE104,CE104 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
CE104 *H,L=110,内径=7.6 |
1 | ||
| 95333-08020 |
EE103,104..L,XL;EE102,103..(3FC,4F)..(DX,DXJ) |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-13041 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 77277-12130 |
AE10#,CE100,104,EE101 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 77259-12210 |
CE104 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12090 |
AE10#,CE10#,EE10#..DX,GT,L,LX,SEG,SEL,XE,XL |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12060 |
AE10#,CE10#,EE10#..DX,GT,L,LX,SEG,SEL,XE,XL |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-32011 |
CE10# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AE10#,CE10#,EE10# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12310 |
AE10#,CE100,104,EE101 |
1 | ||
| 77350-13040 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..DX,L,XL |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12040 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 77360-12050 |
AE10#,CE100,104,EE101 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20050 |
AE10#,CE10#,EE10#..DX,GT,L,LX,SEG,SEL,XE,XL |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE10#,CE10#,EE10# |
1 | ||
| 77419 - HOSE, FUEL, NO.3 | ||||
| 77419-12020 |
CE104 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-13040 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77601-12190 |
AE104,CE104 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-13020 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77602-12140 |
AE104,CE104 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AE104,CE104 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AE104,CE104 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AE104,CE104 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE100,101,104,CE100,104,106,108,EE10# |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE100,101,104,CE100,104,106,108,EE10# |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-12100 |
AE104,CE104 |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-12030 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| 77681-32060 |
AE104,CE104,106,108,EE102,103,104 |
1 | ||
| 77681-32060 |
AE104,CE104 |
1 | ||
| 77681-32060 |
AE100,101,104,CE100,102,104,106,107,108,EE10# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-12030 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| 77681-32060 |
AE104,CE104 |
1 | ||
| 77681-32060 |
AE100,101,104,CE100,102,104,106,107,108,EE10# |
1 | ||
| 77682-12020 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| 77681-32060 |
AE104,CE104,106,108,EE102,103,104 |
1 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-06398 | ||||
| 90119-10252 | ||||
| 90119-10700 | ||||
| 90149-50057 | ||||
| 90159-50153 | ||||
| 90159-50219 | ||||
| 90159-60500 | ||||
| 90179-05078 | ||||
| 90179-06264 | ||||
| 90179-10186 | ||||
| 90189-05130 | ||||
| 90189-06028 | ||||
| 90189-06174 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90467-07130 | ||||
| 90467-11009 | ||||
| 90467-11056 | ||||
| 90467-12039 | ||||
| 90467-12056 | ||||
| 90467-13054 | ||||
| 90467-13061 | ||||
| 90467-13063 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 8401 | ||||

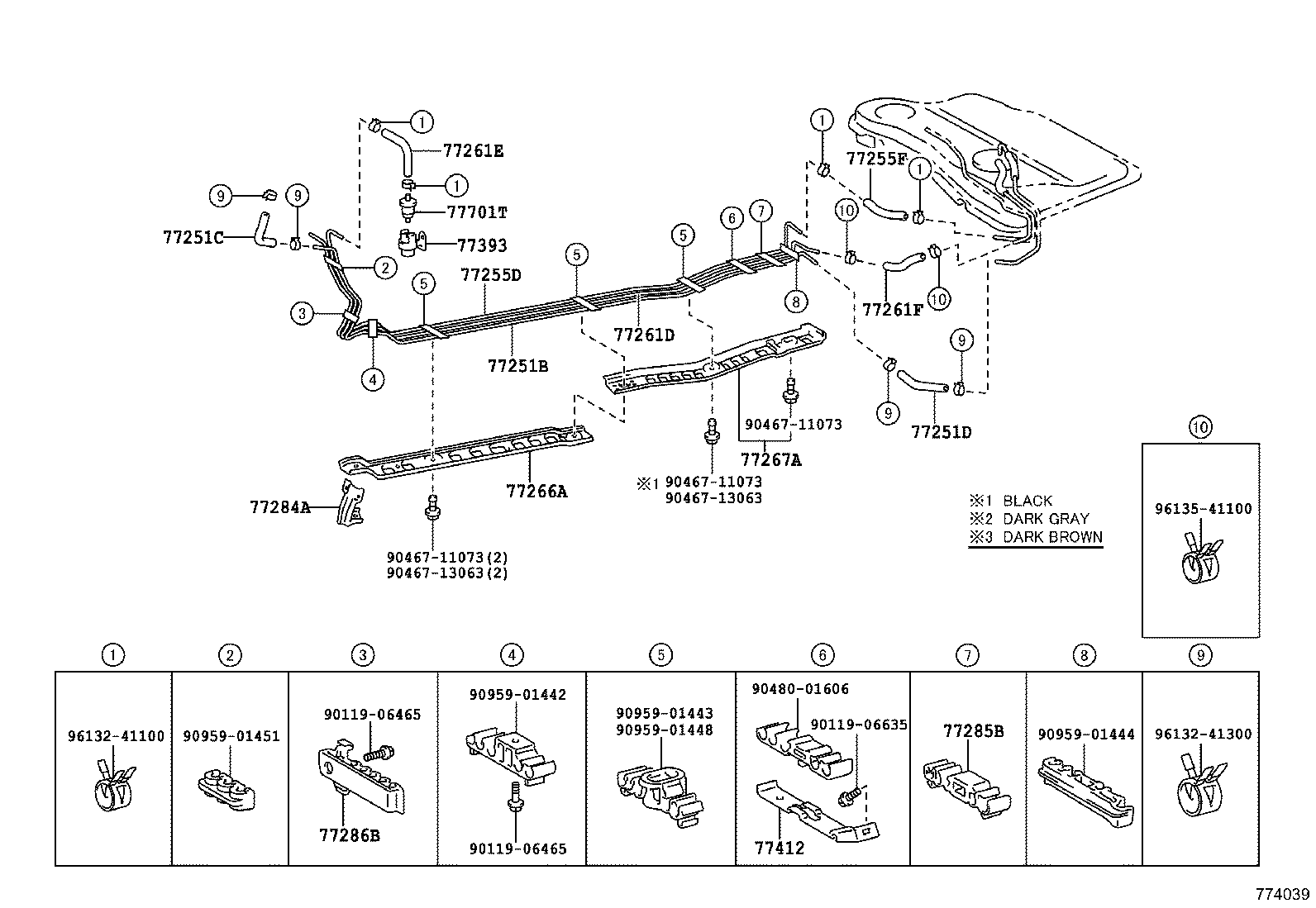

ILLUST NO. 2 OF 2(9109-9505)CE104
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12520 |
AE100,101,EE101,102,103,104 |
1 | ||
| 77251-12610 |
CE104 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
CE10# *H,L=140,内径=7.6 |
1 | ||
| 95333-08020 |
CE104 *H,L=130,内径=7.6 |
1 | ||
| 95333-08020 |
CE100,104,106,108 *H,L=130,内径=7.6 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
CE100,104,106,108 *H,L=130,内径=7.6 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12550 |
CE104 |
1 | ||
| 77255-12460 |
AE100,101,EE101,102,103,104 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
CE100,102,104,106,107,108 *H,L=130 |
1 | ||
| 95333-06020 |
AE100,101,104,EE101,102,103,104 *H,L=130 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12360 |
CE104 |
1 | ||
| 77261-12380 |
AE100,101,EE101,102,103,104 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE100,101,104,CE100,102,104,106,107,108,EE101,102,103,104 *H,L=160 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12180 |
AE104,CE104 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12080 |
AE10#,CE10#,EE10# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12100 |
AE10#,CE10#,EE10# |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-12030 |
AE10#,CE10#,EE10# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-12020 |
AE10#,CE104,109,EE101,102,103,104 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12020 |
AE10#,CE10#,EE101,102,103,104 |
1 | ||
| 77393 - PROTECTOR, CHECK VALVE | ||||
| 77393-12010 |
CE100,102,104,106,107,108 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-12020 |
AE10#,CE10#,EE10# |
1 | ||
| 77412-12020 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10082 |
CE100,104,106,108 |
1 | ||
| 90917-10082 |
CE10# |
1 | ||
| Common parts | ||||
| 90119-06465 | ||||
| 90119-06635 | ||||
| 90467-11073 | ||||
| 90467-13063 | ||||
| 90480-01606 | ||||
| 90959-01442 | ||||
| 90959-01443 | ||||
| 90959-01444 | ||||
| 90959-01448 | ||||
| 90959-01451 | ||||
| 96132-41100 | ||||
| 96132-41300 | ||||
| 96135-41100 | ||||
