CE104-BEMES (1991)
Toyota Sprinter
Production
Sep 1991
-
May 1995
Engine
2C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9106- )AE100,101,104,CE100,104,EE101

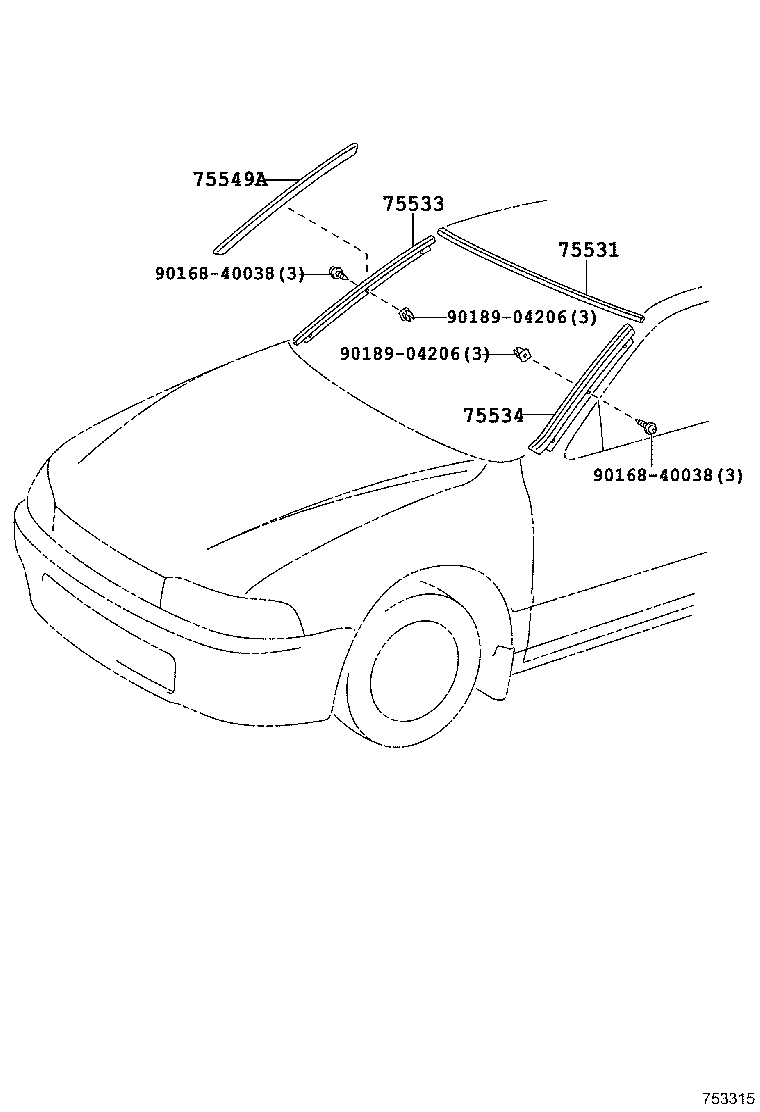

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75531 - MOULDING, WINDSHIELD, OUTER UPPER | ||||
| 75531-12510 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 75503-12090 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 75531-12500 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE |
1 | ||
| 75533 - MOULDING, WINDSHIELD, OUTSIDE RH | ||||
| 75533-12510 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE |
1 | ||
| 75533-12520 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 75534 - MOULDING, WINDSHIELD, OUTSIDE LH | ||||
| 75534-12450 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 75534-12440 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE |
1 | ||
| 75549A - MOULDING, WINDSHIELD OUTSIDE SUB | ||||
| 75539-12090 |
AE10#,CE100,104,EE101 |
1 | ||
| Common parts | ||||
| 90168-40038 | ||||
| 90189-04206 | ||||
(9109- )AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75531 - MOULDING, WINDSHIELD, OUTER UPPER | ||||
| 75531-12510 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 75503-12090 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 75531-12500 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE |
1 | ||
