CE104-BEMES (1991)
Toyota Sprinter
(9109- )AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

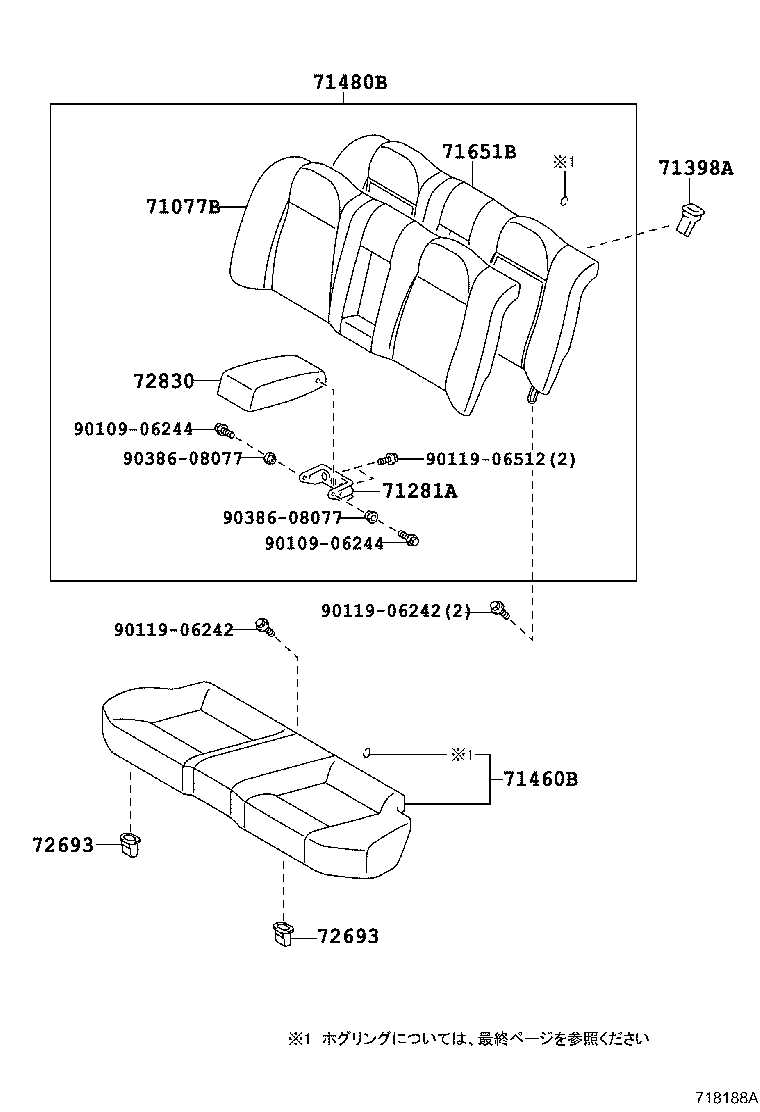

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1K620B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1K620J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 71077-1K630B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1K620K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 71077-1K720B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1K630K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 71077-1K720K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 71077-1K621B1 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1K621K1 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 71250B - BRACKET ASSY, SEAT, OUTER RH | ||||
| 58215-13030 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 71260 - BRACKET ASSY, SEAT, OUTER LH | ||||
| 58216-13030 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-13030 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-13030 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-1303003 |
CE106,108,109,EE102,103,104,106,107,108 SHADOW GRAY,TRIM1# |
2 | ||
| 71398-12030 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
3 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1E800K1 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 71460-1E800J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 71460-1E810K1 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 71460-1E800B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1E810B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 71560-1E040K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 71560-1E040B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1E801B1 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1E801K2 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1K600J0 |
AE100,104,CE100,104..SEL ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-1K600B0 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1K600K1 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71480-1K601K2 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71480-1K601B1 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-12110 |
AE10#,CE100,104..SEG,SEL |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-13060 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-13030 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-13040 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72652-13040 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| Common parts | ||||
| 90105-08159 | ||||
| 90119-06318 | ||||
| 90149-60062 | ||||
| 90159-40246 | ||||
| 90159-50321 | ||||
| 90159-60070 | ||||
| 90159-60311 | ||||
| 90164-35004 | ||||
| 90508-12096 | ||||
| 90541-09105 | ||||
| 91631-60612 | ||||
| 93240-46025 | ||||
| 93240-56014 | ||||
| 94120-40600 | ||||
(9106- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(9106- )SEG,SEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1K620B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1K620J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 71077-1K630B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1K620K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 71077-1K720B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1K630K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 71077-1K720K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 71077-1K621B1 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1K621K1 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-12030 |
AE10#,CE100,104..SEG,SEL |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-1303003 |
CE106,108,109,EE102,103,104,106,107,108 SHADOW GRAY,TRIM1# |
2 | ||
| 71398-12030 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
3 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1E800K1 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 71460-1E800J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 71460-1E810K1 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 71460-1E800B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1E810B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 71560-1E040K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 71560-1E040B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1E801B1 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1E801K2 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1K600J0 |
AE100,104,CE100,104..SEL ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-1K600B0 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1K600K1 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71480-1K601K2 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71480-1K601B1 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-12110 |
AE10#,CE100,104..SEG,SEL |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
AE10#,CE100,104,EE101 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
AE10#,CE100,104,EE101 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-12070J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 72830-12090K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 72830-12070B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 72830-12080B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 72830-12080K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 72830-12071K1 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 72830-12090B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 72830-12071B1 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 72830-12070K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| Common parts | ||||
| 90109-06244 | ||||
| 90119-06242 | ||||
| 90119-06512 | ||||
| 90386-08077 | ||||
