CE104-BEMES (1991)
Toyota Sprinter

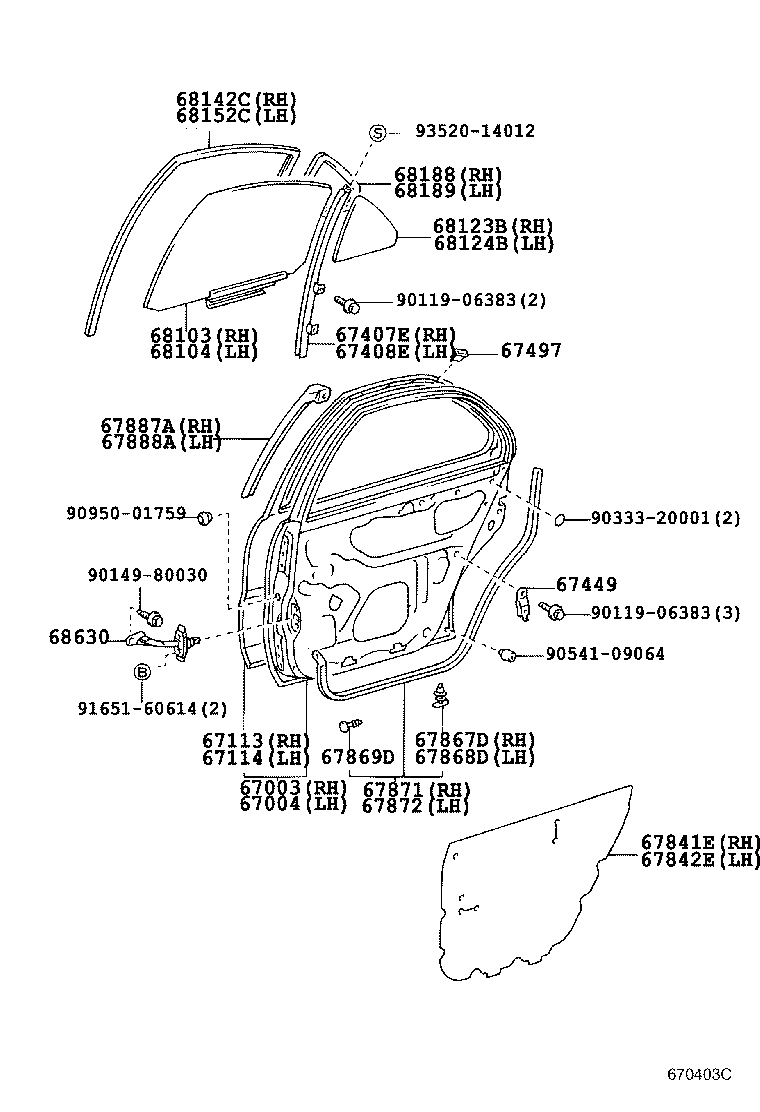

ILLUST NO. 2 OF 2(9109- )AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12660 |
AE10#,CE100,104,EE101 |
1 | ||
| 67003-13240 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..DX,L,XL ｱﾘ(ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ) |
1 | ||
| 67003-12661 |
AE10#,CE100,104,EE101 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12660 |
AE10#,CE100,104,EE101 |
1 | ||
| 67004-12661 |
AE10#,CE100,104,EE101 |
1 | ||
| 67004-13240 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..DX,L,XL ｱﾘ(ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ) |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12220 |
AE10#,CE100,104,EE101 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12220 |
AE10#,CE100,104,EE101 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12170 |
AE10#,CE100,104,EE101 |
1 | ||
| 67407-13040 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-13040 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 67408-12180 |
AE10#,CE100,104,EE101 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-13020 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L |
1 | ||
| 67841-12250 |
CE106,109,EE107..XL;AE10#,CE100,104,EE101 |
1 | ||
| 67841-12250 |
AE10#,CE100,102,104,105,106,107,109,EE101,102,103..DX,GT,L,LX,SEG,SEL,XE,XL ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ---ﾌﾛﾝﾄ ﾉﾐ) |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-12080 |
CE106,109,EE107..XL;AE10#,CE100,104,EE101 |
1 | ||
| 67841-13020 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L |
1 | ||
| 67841-12250 |
CE106,109,EE107..XL;AE10#,CE100,104,EE101 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ---ﾌﾛﾝﾄ ﾉﾐ) |
1 | ||
| 67841-12250 |
AE10#,CE100,102,104,105,106,107,109,EE101,102,103..DX,GT,L,LX,SEG,SEL,XE,XL ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ---ﾌﾛﾝﾄ ﾉﾐ) |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-20140 |
CE106,108,109,EE102,103,104,106,107,108 |
18 | ||
| 67867-12150 |
AE109,CE102,105,106,107,108,109,EE102,103,104 |
18 | ||
| 67867-12150 |
AE10#,CE100,104,EE101 |
10 | ||
| 67868-12050 |
AE10#,CE100,104,EE101 |
10 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
AE10#,CE100,104,EE101 |
10 | ||
| 67867-12150 |
AE10#,CE100,104,EE101 |
10 | ||
| 67868-20140 |
CE106,108,109,EE102,103,104,106,107,108 |
18 | ||
| 67867-12150 |
AE109,CE102,105,106,107,108,109,EE102,103,104 |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12350 |
AE10#,CE100,104,EE101 |
1 | ||
| 67871-13100 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12350 |
AE10#,CE100,104,EE101 |
1 | ||
| 67872-13090 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-12400 |
AE10#,CE100,104,EE101..SEG,SEL,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68103-12400 |
AE10#,CE100,104..SEG,SEL *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68103-12390 |
AE10#,CE100,104,EE101 *TT,厚さ=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-12410 |
AE10#,CE100,104,EE101..SEG,SEL,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104-12410 |
AE10#,CE100,104..SEG,SEL *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104-12400 |
AE10#,CE100,104,EE101 *TT,厚さ=3.5 |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-12570 |
AE10#,CE100,104,EE101..SEG,SEL,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68123-12560 |
AE10#,CE100,104,EE101 *TT,厚さ=3.5 |
1 | ||
| 68123-12570 |
AE10#,CE100,104..SEG,SEL *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-12570 |
AE10#,CE100,104,EE101..SEG,SEL,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68124-12570 |
AE10#,CE100,104..SEG,SEL *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68124-12560 |
AE10#,CE100,104,EE101 *TT,厚さ=3.5 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-12160 |
AE10#,CE100,104,EE101 |
1 | ||
| 68142-13070 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-12070 |
AE10#,CE100,104,EE101 |
1 | ||
| 68152-13030 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 68162A - CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-12160 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L |
12 | ||
| 68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER | ||||
| 68164-13010 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L 左側 |
1 | ||
| 68163-13010 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L 右側 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-12250 |
AE10#,CE100,104,EE101 |
1 | ||
| 68188-13060 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L |
1 | ||
| 68188-12251 |
AE10#,CE100,104,EE101 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-12250 |
AE10#,CE100,104,EE101 |
1 | ||
| 68189-13060 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L |
1 | ||
| 68189-12251 |
AE10#,CE100,104,EE101 |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12050 |
AE10#,CE10#,EE10# 右側 |
1 | ||
| 68640-12011 |
AE10#,CE10#,EE10# 左側 |
1 | ||
| 68640-12010 |
AE10#,CE10#,EE10# 左側 |
1 | ||
| 68630-12051 |
AE10#,CE10#,EE10# 右側 |
1 | ||
| Common parts | ||||
| 90149-80030 | ||||
| 90151-50016 | ||||
| 90541-09069 | ||||
| 90901-19020 | ||||
| 90950-01759 | ||||
| 91511-60614 | ||||
| Linked diagrams | ||||
| 7503 | ||||
ILLUST NO. 2 OF 2(9106- )AE100,101,104,CE100,104,EE101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12660 |
AE10#,CE100,104,EE101 |
1 | ||
| 67003-13240 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..DX,L,XL ｱﾘ(ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ) |
1 | ||
| 67003-12661 |
AE10#,CE100,104,EE101 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12660 |
AE10#,CE100,104,EE101 |
1 | ||
| 67004-12661 |
AE10#,CE100,104,EE101 |
1 | ||
| 67004-13240 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..DX,L,XL ｱﾘ(ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ) |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12220 |
AE10#,CE100,104,EE101 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12220 |
AE10#,CE100,104,EE101 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12170 |
AE10#,CE100,104,EE101 |
1 | ||
| 67407-13040 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-13040 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 67408-12180 |
AE10#,CE100,104,EE101 |
1 | ||
| 67449 - BRACKET, REAR DOOR INSIDE PANEL | ||||
| 67449-12030 |
AE10#,CE100,104,EE101 |
2 | ||
| 67497 - BRACKET, REAR DOOR FRAME | ||||
| 67497-12020 |
AE10#,CE100,104,EE101 |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-13020 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L |
1 | ||
| 67841-12250 |
CE106,109,EE107..XL;AE10#,CE100,104,EE101 |
1 | ||
| 67841-12250 |
AE10#,CE100,102,104,105,106,107,109,EE101,102,103..DX,GT,L,LX,SEG,SEL,XE,XL ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ---ﾌﾛﾝﾄ ﾉﾐ) |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-12080 |
CE106,109,EE107..XL;AE10#,CE100,104,EE101 |
1 | ||
| 67841-13020 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L |
1 | ||
| 67841-12250 |
CE106,109,EE107..XL;AE10#,CE100,104,EE101 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ---ﾌﾛﾝﾄ ﾉﾐ) |
1 | ||
| 67841-12250 |
AE10#,CE100,102,104,105,106,107,109,EE101,102,103..DX,GT,L,LX,SEG,SEL,XE,XL ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ---ﾌﾛﾝﾄ ﾉﾐ) |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-20140 |
CE106,108,109,EE102,103,104,106,107,108 |
18 | ||
| 67867-12150 |
AE109,CE102,105,106,107,108,109,EE102,103,104 |
18 | ||
| 67867-12150 |
AE10#,CE100,104,EE101 |
10 | ||
| 67868-12050 |
AE10#,CE100,104,EE101 |
10 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
AE10#,CE100,104,EE101 |
10 | ||
| 67867-12150 |
AE10#,CE100,104,EE101 |
10 | ||
| 67868-20140 |
CE106,108,109,EE102,103,104,106,107,108 |
18 | ||
| 67867-12150 |
AE109,CE102,105,106,107,108,109,EE102,103,104 |
18 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-22010 |
AE10#,CE100,104,EE101 |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12350 |
AE10#,CE100,104,EE101 |
1 | ||
| 67871-13100 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12350 |
AE10#,CE100,104,EE101 |
1 | ||
| 67872-13090 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-12010 |
AE10#,CE100,104,EE101 |
1 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-12010 |
AE10#,CE100,104,EE101 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-12400 |
AE10#,CE100,104,EE101..SEG,SEL,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68103-12400 |
AE10#,CE100,104..SEG,SEL *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68103-12390 |
AE10#,CE100,104,EE101 *TT,厚さ=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-12410 |
AE10#,CE100,104,EE101..SEG,SEL,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104-12410 |
AE10#,CE100,104..SEG,SEL *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104-12400 |
AE10#,CE100,104,EE101 *TT,厚さ=3.5 |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-12570 |
AE10#,CE100,104,EE101..SEG,SEL,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68123-12560 |
AE10#,CE100,104,EE101 *TT,厚さ=3.5 |
1 | ||
| 68123-12570 |
AE10#,CE100,104..SEG,SEL *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-12570 |
AE10#,CE100,104,EE101..SEG,SEL,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68124-12570 |
AE10#,CE100,104..SEG,SEL *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68124-12560 |
AE10#,CE100,104,EE101 *TT,厚さ=3.5 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-12160 |
AE10#,CE100,104,EE101 |
1 | ||
| 68142-13070 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-12070 |
AE10#,CE100,104,EE101 |
1 | ||
| 68152-13030 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-12250 |
AE10#,CE100,104,EE101 |
1 | ||
| 68188-13060 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L |
1 | ||
| 68188-12251 |
AE10#,CE100,104,EE101 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-12250 |
AE10#,CE100,104,EE101 |
1 | ||
| 68189-13060 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L |
1 | ||
| 68189-12251 |
AE10#,CE100,104,EE101 |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12050 |
AE10#,CE10#,EE10# 右側 |
1 | ||
| 68640-12011 |
AE10#,CE10#,EE10# 左側 |
1 | ||
| 68640-12010 |
AE10#,CE10#,EE10# 左側 |
1 | ||
| 68630-12051 |
AE10#,CE10#,EE10# 右側 |
1 | ||
| Common parts | ||||
| 90119-06383 | ||||
| 90149-80030 | ||||
| 90333-20001 | ||||
| 90541-09064 | ||||
| 90950-01759 | ||||
| 91651-60614 | ||||
| 93520-14012 | ||||
ILLUST NO. 1 OF 2(9305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1E450B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E730B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E460B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E450J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 67630-1E460K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67630-1E730K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67630-1H140B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1H140K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67630-1E450K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-13030 |
CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L ﾌﾞﾗｳﾝ |
5 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1E460B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1E460K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67640-1E450J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 67640-1E730K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67640-1E730B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1E450B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1E450K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67640-1H140B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1H140K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-13030 |
CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L ﾌﾞﾗｳﾝ |
5 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12180 |
AE10#,CE100,104,EE101 |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B0 |
AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 69751-12050B0 |
CE106,109,EE107..XL;AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..XL;AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050B0 |
AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| Common parts | ||||
| 90950-06105 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(9106- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1E450B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E730B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E460B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E450J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 67630-1E460K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67630-1E730K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67630-1H140B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1H140K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67630-1E450K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1E450B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E730B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E460B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E450J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 67630-1E460K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67630-1E730K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67630-1H140B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1H140K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67630-1E450K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1E450B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E730B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E460B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1E450J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 67630-1E460K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67630-1E730K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67630-1H140B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1H140K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67630-1E450K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-13030 |
CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L ﾌﾞﾗｳﾝ |
5 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-13030 |
CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L ﾌﾞﾗｳﾝ |
5 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-13030 |
CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L ﾌﾞﾗｳﾝ |
5 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09141 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE ﾀｲﾌﾟ B |
4 | ||
| 90467-0706603 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07066J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
4 | ||
| 90467-07066K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
4 | ||
| 90467-07066J0 |
AE10#,CE100,104,EE101..SEG,SEL,XE DARK BLUE,TRIM8# |
4 | ||
| 90467-07066K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
4 | ||
| 90467-0706603 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
4 | ||
| 90467-09141 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE ﾀｲﾌﾟ B |
4 | ||
| 90467-09141 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE ﾀｲﾌﾟ B |
4 | ||
| 90467-0706603 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07066P0 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07066J0 |
AE10#,CE100,104,EE101..SEG,SEL,XE DARK BLUE,TRIM8# |
4 | ||
| 90467-07066K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
4 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09141 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE ﾀｲﾌﾟ B |
4 | ||
| 90467-0706603 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07066J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
4 | ||
| 90467-07066K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
4 | ||
| 90467-07066J0 |
AE10#,CE100,104,EE101..SEG,SEL,XE DARK BLUE,TRIM8# |
4 | ||
| 90467-07066K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
4 | ||
| 90467-0706603 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
4 | ||
| 90467-09141 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE ﾀｲﾌﾟ B |
4 | ||
| 90467-09141 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE ﾀｲﾌﾟ B |
4 | ||
| 90467-0706603 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07066P0 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07066J0 |
AE10#,CE100,104,EE101..SEG,SEL,XE DARK BLUE,TRIM8# |
4 | ||
| 90467-07066K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
4 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09141 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE ﾀｲﾌﾟ B |
4 | ||
| 90467-0706603 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07066J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
4 | ||
| 90467-07066K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
4 | ||
| 90467-07066J0 |
AE10#,CE100,104,EE101..SEG,SEL,XE DARK BLUE,TRIM8# |
4 | ||
| 90467-07066K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
4 | ||
| 90467-0706603 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
4 | ||
| 90467-09141 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE ﾀｲﾌﾟ B |
4 | ||
| 90467-09141 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE ﾀｲﾌﾟ B |
4 | ||
| 90467-0706603 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07066P0 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07066J0 |
AE10#,CE100,104,EE101..SEG,SEL,XE DARK BLUE,TRIM8# |
4 | ||
| 90467-07066K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1E460B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1E460K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67640-1E450J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 67640-1E730K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67640-1E730B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1E450B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1E450K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67640-1H140B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1H140K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1E460B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1E460K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67640-1E450J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 67640-1E730K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67640-1E730B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1E450B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1E450K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67640-1H140B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1H140K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1E460B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1E460K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67640-1E450J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 67640-1E730K0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,TAUPE,TRIM9# |
1 | ||
| 67640-1E730B0 |
AE100,104,CE100,104..SEL SEﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1E450B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1E450K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67640-1H140B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1H140K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-13030 |
CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L ﾌﾞﾗｳﾝ |
5 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-13030 |
CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L ﾌﾞﾗｳﾝ |
5 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-13030 |
CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L ﾌﾞﾗｳﾝ |
5 | ||
| 67771-28020 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
6 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12180 |
AE10#,CE100,104,EE101 |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12180 |
AE10#,CE100,104,EE101 |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12180 |
AE10#,CE100,104,EE101 |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B0 |
AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 69751-12050B0 |
CE106,109,EE107..XL;AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B0 |
AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 69751-12050B0 |
CE106,109,EE107..XL;AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B0 |
AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 69751-12050B0 |
CE106,109,EE107..XL;AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..XL;AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050B0 |
AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..XL;AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050B0 |
AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..XL;AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050B0 |
AE10#,CE100,104,EE101 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 69751-12050K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| Common parts | ||||
| 90950-06105 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
