CE104-BEMES (1991)

Toyota Sprinter

Production Sep 1991 - May 1995
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )AE100,101,104,CE100,104,EE101

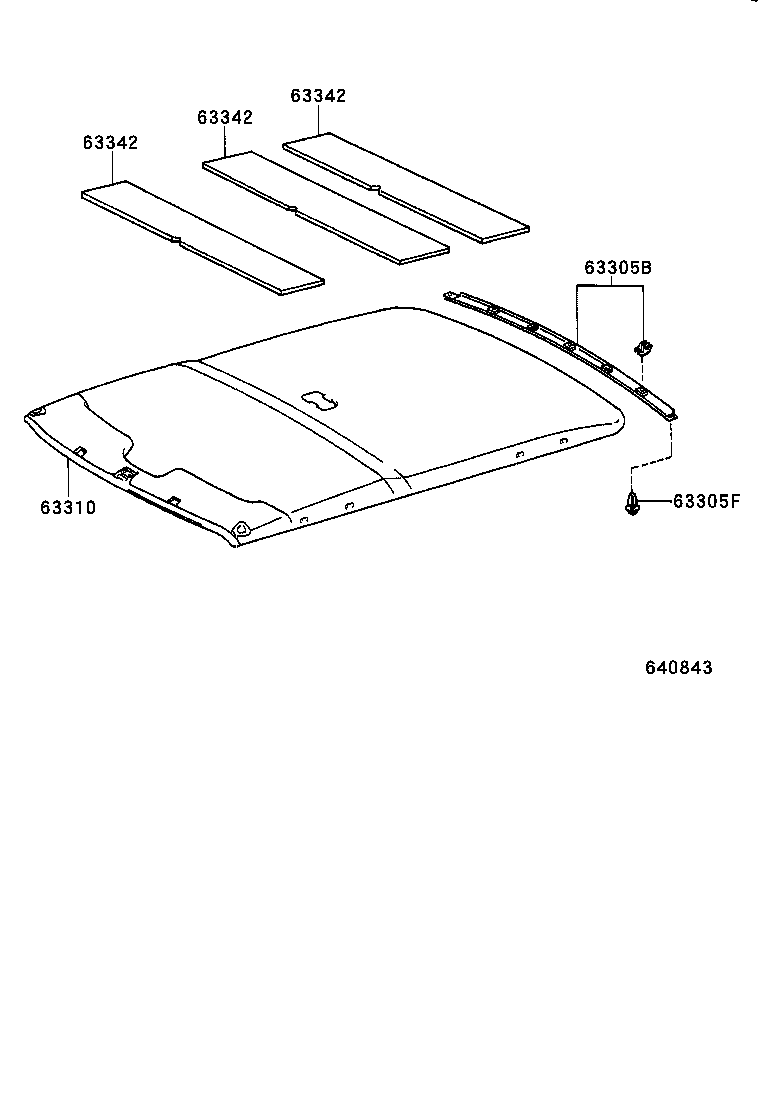

Click highlighted areas on diagram

diagram 63305B 63305F 63310 63342 63342 63342
Part # Description Qty Price
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-12150P0

AE10#,CE100,104,EE101

SHADOW GRAY,TRIM1#

 1
63305-12150K0

AE10#,CE100,104,EE101..LX,SEG,SEL,XE

TAUPE,TRIM9#

 1
63305-12150W3

AE10#,CE100,104,EE101..LX,SEG,SEL,XE

DARK BLUE,TRIM8#

 1
63305-12151W3

AE10#,CE100,104,EE101..LX,SEG,SEL,XE

DARK BLUE,TRIM8#

 1
63305-12151P0

AE10#,CE100,104,EE101

SHADOW GRAY,TRIM1#

 1
63305-12151K0

AE10#,CE100,104,EE101..LX,SEG,SEL,XE

TAUPE,TRIM9#

 1
63305F - CLIP(FOR ROOF HEADLINING TRIM)
90467-05062B0

AE10#,CE100,104,EE101

SHADOW GRAY,TRIM1#

 2
63310 - HEADLINING ASSY, ROOF
63310-1A270J0

AE10#,CE100,104..SEG,SEL

LIGHT BLUE,TRIM8#

 1
63310-1A270B0

AE10#,CE100,104..GT,SEG,SEL

LIGHT GRAY,TRIM1#

 1
63310-1A270K0

AE10#,CE100,104..SEG,SEL

LIGHT TAUPE,TRIM9#

 1
63310-13170S3

AE109,CE102,105,106,107,108,109,EE102,103,104

LIGHT GRAY,TRIM1#

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-12060

AE10#,CE100,104,EE101

 3
63342 - PAD, ROOF SILENCER, NO.2
63342-12060

AE10#,CE100,104,EE101

 3
63342 - PAD, ROOF SILENCER, NO.2
63342-12060

AE10#,CE100,104,EE101

 3

(9109- )AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

Click highlighted areas on diagram

diagram 62355 62356 63310 63341 63341 63341 9354014510
Part # Description Qty Price
62355 - RETAINER, QUARTER WINDOW INSIDE TRIM, RH
62355-13020

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
62356 - RETAINER, QUARTER WINDOW INSIDE TRIM, LH
62356-13020

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
63310 - HEADLINING ASSY, ROOF
63310-1A270J0

AE10#,CE100,104..SEG,SEL

LIGHT BLUE,TRIM8#

 1
63310-1A270B0

AE10#,CE100,104..GT,SEG,SEL

LIGHT GRAY,TRIM1#

 1
63310-1A270K0

AE10#,CE100,104..SEG,SEL

LIGHT TAUPE,TRIM9#

 1
63310-13170S3

AE109,CE102,105,106,107,108,109,EE102,103,104

LIGHT GRAY,TRIM1#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-13100

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-13100

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-13100

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 3
Common parts
93540-14510
