CE104-BEMES (1991)

Toyota Sprinter

Production Sep 1991 - May 1995
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )AE100,101,104,CE100,104,EE101

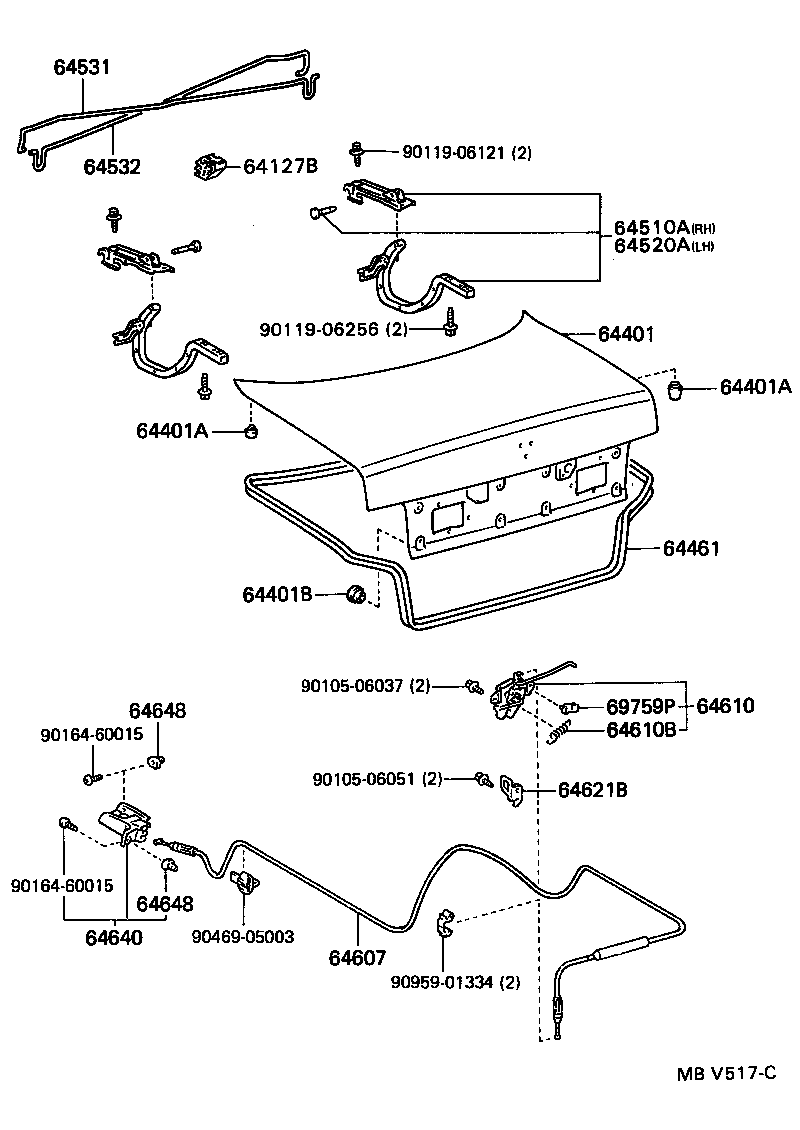

Click highlighted areas on diagram

diagram 64127B 64401 64401A 64401A 64401B 64461 64510A 64520A 64531 64532 64607 64610 64610B 64621B 64640 64648 64648 69759P 9010506037 9010506051 9011906121 9011906256 9016460015 9016460015 9046905003 9095901334
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-12080

AE10#,CE100,104,EE101

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-1A540

AE10#,CE100,104,EE101

 1
64401-1A541

AE10#,CE100,104,EE101

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06056

AE10#,CE100,104,EE101

FRONT

 2
64459-12050

AE10#,CE100,104,EE101

REAR

 2
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06056

AE10#,CE100,104,EE101

FRONT

 2
64459-12050

AE10#,CE100,104,EE101

REAR

 2
64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90950-01820

AE10#,CE100,104,EE101

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-12470

AE10#,CE100,104,EE101

 1
64510A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-12230

AE10#,CE100,104,EE101

 1
64510-12260

AE10#,CE100,104,EE101

 1
64520A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-12220

AE10#,CE100,104,EE101

 1
64520-12250

AE10#,CE100,104,EE101

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-12461

AE10#,CE100,104,EE101

 1
64531-12471

AE10#,CE100,104,EE101

ｶﾝﾚｲﾁ ｼﾖｳ

 1
64531-12460

AE10#,CE100,104,EE101

 1
64531-12470

AE10#,CE100,104,EE101

ｶﾝﾚｲﾁ ｼﾖｳ

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-12460

AE10#,CE100,104,EE101

ｶﾝﾚｲﾁ ｼﾖｳ

 1
64532-12450

AE10#,CE100,104,EE101

 1
64532-12451

AE10#,CE100,104,EE101

 1
64532-12461

AE10#,CE100,104,EE101

ｶﾝﾚｲﾁ ｼﾖｳ

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-12560

AE10#,CE100,104,EE101

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-12180

AE10#,CE100,104,EE101

 1
64610B - SPRING, TENSION(FOR LOCK)
90506-05001

AE10#,CE100,104,EE101

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-12070

AE10#,CE100,104,EE101

 1
64640 - OPENER ASSY, LUGGAGE DOOR LOCK
64640-1209002

AE10#,CE100,104,EE101..LX,SEG,SEL,XE

TAUPE,TRIM9#

 1
64640-1209004

AE10#,CE100,104,EE101..LX,SEG,SEL,XE

DARK BLUE,TRIM8#

 1
64640-1209003

AE10#,CE100,104,EE101

SHADOW GRAY,TRIM1#

 1
64648 - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-12010

AE10#,CE100,104,EE101

 2
64648 - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-12010

AE10#,CE100,104,EE101

 2
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-24050

AE10#,CE100,104,EE101

 1
Common parts
90105-06037
90105-06051
90119-06121
90119-06256
90164-60015
90469-05003
90959-01334
