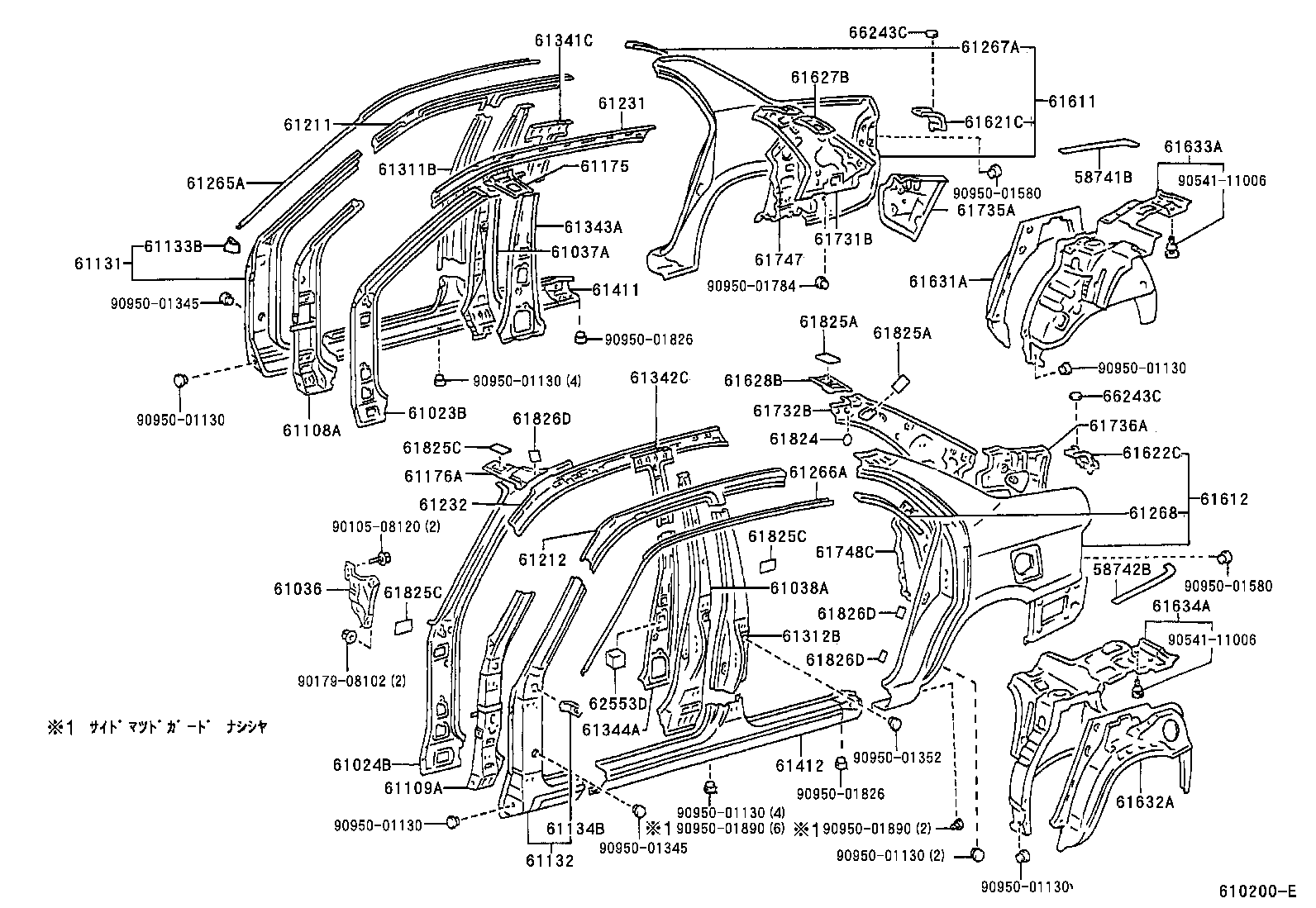

CE104-BEMES (1991)
Toyota Sprinter
(9106- )AE100,101,104,CE100,104,EE101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 52462-12040 |
AE10#,CE100,104,EE101 |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 52463-12030 |
AE10#,CE100,104,EE101 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-12110 |
AE10#,CE100,104,EE101 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-12110 |
AE10#,CE100,104,EE101 |
1 | ||
| 61024-12140 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61036-12050 |
AE10#,CE10#,EE10# |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-12060 |
AE10#,CE100,104,EE101 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-12060 |
AE10#,CE100,104,EE101 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-12120 |
AE10#,CE100,104,EE101 |
1 | ||
| 61108-12110 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-12110 |
AE10#,CE100,104,EE101 |
1 | ||
| 61109-12100 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-12370 |
AE10#,CE100,104,EE101 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-12380 |
AE10#,CE100,104,EE101 |
1 | ||
| 61133B - BRACKET, FRONT BODY PILLAR ,OUTER RH | ||||
| 61133-12190 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61133-12240 |
AE10#,CE100,104,EE101 |
1 | ||
| 61134B - BRACKET, FRONT BODY PILLAR OUTER, LH | ||||
| 61133-12190 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61134-12210 |
AE10#,CE100,104,EE101 |
1 | ||
| 61175 - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH | ||||
| 61175-12090 |
AE10#,CE100,104,EE101 |
1 | ||
| 61175-12080 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61176A - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH | ||||
| 61176-12090 |
AE10#,CE100,104,EE101 |
1 | ||
| 61176-12080 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12300 |
AE10#,CE100,104,EE101 |
1 | ||
| 61211-13050 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12300 |
AE10#,CE100,104,EE101 |
1 | ||
| 61212-13050 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-12760 |
AE10#,CE100,104,EE101 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-12600 |
AE10#,CE100,104,EE101 |
1 | ||
| 61265A - CHANNEL, ROOF DRIP SIDE, CENTER RH | ||||
| 61265-13030 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61265-12190 |
AE10#,CE100,104,EE101 |
1 | ||
| 61266A - CHANNEL, ROOF DRIP SIDE, CENTER LH | ||||
| 61266-13030 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61266-12190 |
AE10#,CE100,104,EE101 |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-13040 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61267-12140 |
AE10#,CE100,104,EE101 |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-13040 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61268-12140 |
AE10#,CE100,104,EE101 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-12190 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61311-12200 |
AE10#,CE100,104,EE101 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-12240 |
AE10#,CE100,104,EE101 |
1 | ||
| 61312-12230 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61341C - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-12100 |
AE10#,CE100,104,EE101 |
1 | ||
| 61342C - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-12100 |
AE10#,CE100,104,EE101 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-12100 |
AE10#,CE100,104,EE101 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-12100 |
AE10#,CE100,104,EE101 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-12540 |
AE10#,CE100,104,EE101 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-12530 |
AE10#,CE100,104,EE101 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-1E916 |
AE10#,CE100,104,EE101 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-1E925 |
AE10#,CE100,104,EE101 |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-12370 |
AE10#,CE100,104,EE101 |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-12370 |
AE10#,CE100,104,EE101 |
1 | ||
| 61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH | ||||
| 61627-12080 |
AE10#,CE100,104,EE101 |
1 | ||
| 61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH | ||||
| 61628-12100 |
AE10#,CE100,104,EE101 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-13070 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61631-12210 |
AE10#,CE100,104,EE101 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-12210 |
AE10#,CE100,104,EE101 |
1 | ||
| 61632-13060 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-12918 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
1 | ||
| 61607-13070 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-13070 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61608-12916 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-12911 |
AE10#,CE100,104,EE101 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-12911 |
AE10#,CE100,104,EE101 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-12905 |
AE10#,CE100,104,EE101 |
1 | ||
| 61735-13060 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-12906 |
AE10#,CE100,104,EE101 |
1 | ||
| 61736-13060 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-12190 |
AE10#,CE100,104,EE101 |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-12190 |
AE10#,CE100,104,EE101 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12040 |
AE10#,CE100,104,EE101 |
4 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-12010 |
AE10#,CE100,104..GT,SEG,SEL |
3 | ||
| 61825-12010 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
3 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-12010 |
AE10#,CE100,104..GT,SEG,SEL |
3 | ||
| 61825-12010 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
3 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-12010 |
AE10#,CE100,104,EE101 |
4 | ||
| 61825-12010 |
AE10#,CE100,104,EE101 |
2 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-12010 |
AE10#,CE100,104,EE101 |
4 | ||
| 61825-12010 |
AE10#,CE100,104,EE101 |
2 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-12010 |
AE10#,CE100,104,EE101 |
4 | ||
| 61825-12010 |
AE10#,CE100,104,EE101 |
2 | ||
| 61826D - PLATE, NOISE CONTROL, NO.3 | ||||
| 61824-12040 |
AE10#,CE10#,EE10# OD=60 |
2 | ||
| 61826D - PLATE, NOISE CONTROL, NO.3 | ||||
| 61824-12040 |
AE10#,CE10#,EE10# OD=60 |
2 | ||
| 61826D - PLATE, NOISE CONTROL, NO.3 | ||||
| 61824-12040 |
AE10#,CE10#,EE10# OD=60 |
2 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62151-12130 |
AE100,101,104,CE100,102,104,105,107,EE101 85X85X85 |
2 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
AE10#,CE100,104,EE101 |
2 | ||
| 66243-13010 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
2 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
AE10#,CE100,104,EE101 |
2 | ||
| 66243-13010 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
2 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90179-08102 | ||||
| 90541-11006 | ||||
| 90950-01130 | ||||
| 90950-01345 | ||||
| 90950-01352 | ||||
| 90950-01580 | ||||
| 90950-01784 | ||||
| 90950-01826 | ||||
| 90950-01890 | ||||
(9109- )AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58790 - CARRIER ASSY, JACK | ||||
| 58790-13020 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-12110 |
AE10#,CE100,104,EE101 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-12110 |
AE10#,CE100,104,EE101 |
1 | ||
| 61024-12140 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61036-12050 |
AE10#,CE10#,EE10# |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-12060 |
AE10#,CE100,104,EE101 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-12060 |
AE10#,CE100,104,EE101 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-12120 |
AE10#,CE100,104,EE101 |
1 | ||
| 61108-12110 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-12110 |
AE10#,CE100,104,EE101 |
1 | ||
| 61109-12100 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-12370 |
AE10#,CE100,104,EE101 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-12380 |
AE10#,CE100,104,EE101 |
1 | ||
| 61133B - BRACKET, FRONT BODY PILLAR ,OUTER RH | ||||
| 61133-12190 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61133-12240 |
AE10#,CE100,104,EE101 |
1 | ||
| 61134B - BRACKET, FRONT BODY PILLAR OUTER, LH | ||||
| 61133-12190 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61134-12210 |
AE10#,CE100,104,EE101 |
1 | ||
| 61175 - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH | ||||
| 61175-12090 |
AE10#,CE100,104,EE101 |
1 | ||
| 61175-12080 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61176A - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH | ||||
| 61176-12090 |
AE10#,CE100,104,EE101 |
1 | ||
| 61176-12080 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12300 |
AE10#,CE100,104,EE101 |
1 | ||
| 61211-13050 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12300 |
AE10#,CE100,104,EE101 |
1 | ||
| 61212-13050 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-12760 |
AE10#,CE100,104,EE101 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-12600 |
AE10#,CE100,104,EE101 |
1 | ||
| 61265A - CHANNEL, ROOF DRIP SIDE, CENTER RH | ||||
| 61265-13030 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61265-12190 |
AE10#,CE100,104,EE101 |
1 | ||
| 61266A - CHANNEL, ROOF DRIP SIDE, CENTER LH | ||||
| 61266-13030 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61266-12190 |
AE10#,CE100,104,EE101 |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-13040 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61267-12140 |
AE10#,CE100,104,EE101 |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-13040 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61268-12140 |
AE10#,CE100,104,EE101 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-12190 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61311-12200 |
AE10#,CE100,104,EE101 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-12240 |
AE10#,CE100,104,EE101 |
1 | ||
| 61312-12230 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61341C - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-12100 |
AE10#,CE100,104,EE101 |
1 | ||
| 61342C - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-12100 |
AE10#,CE100,104,EE101 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-12100 |
AE10#,CE100,104,EE101 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-12100 |
AE10#,CE100,104,EE101 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-12540 |
AE10#,CE100,104,EE101 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-12530 |
AE10#,CE100,104,EE101 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-1E916 |
AE10#,CE100,104,EE101 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-1E925 |
AE10#,CE100,104,EE101 |
1 | ||
| 61615B - REINFORCEMENT, QUARTER PANEL, OUTER FRONT | ||||
| 61615-13020 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61616B - REINFORCEMENT, QUARTER PANEL, OUTER REAR | ||||
| 61616-13010 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-13020 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-13020 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-13070 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61631-12210 |
AE10#,CE100,104,EE101 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-12210 |
AE10#,CE100,104,EE101 |
1 | ||
| 61632-13060 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-12918 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
1 | ||
| 61607-13070 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-13070 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61608-12916 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
1 | ||
| 61715A - EXTENSION, ROOF SIDE, INNER UPPER RH | ||||
| 61715-13020 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61716A - EXTENSION, ROOF SIDE, INNER UPPER LH | ||||
| 61716-13010 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-12911 |
AE10#,CE100,104,EE101 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-12911 |
AE10#,CE100,104,EE101 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-12905 |
AE10#,CE100,104,EE101 |
1 | ||
| 61735-13060 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-12906 |
AE10#,CE100,104,EE101 |
1 | ||
| 61736-13060 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-13070 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-13070 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-13060 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-13050 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-12010 |
AE10#,CE100,104,EE101 |
4 | ||
| 61825-12010 |
AE10#,CE100,104,EE101 |
2 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-12010 |
AE10#,CE100,104,EE101 |
4 | ||
| 61825-12010 |
AE10#,CE100,104,EE101 |
2 | ||
| 61826D - PLATE, NOISE CONTROL, NO.3 | ||||
| 61824-12040 |
AE10#,CE10#,EE10# OD=60 |
2 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62151-12130 |
AE100,101,104,CE100,102,104,105,107,EE101 85X85X85 |
2 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
AE10#,CE100,104,EE101 |
2 | ||
| 66243-13010 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
2 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90179-06263 | ||||
| 90179-08102 | ||||
| 90950-01006 | ||||
| 90950-01130 | ||||
| 90950-01266 | ||||
| 90950-01345 | ||||
| 90950-01352 | ||||
| 90950-01415 | ||||
| 90950-01637 | ||||
| 90950-01670 | ||||
| 90950-01826 | ||||
| 90950-01866 | ||||
| 90950-01922 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
