CE104-BEMES (1991)

Toyota Sprinter

Production Sep 1991 - May 1995
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )AE104,109,CE104,105,109

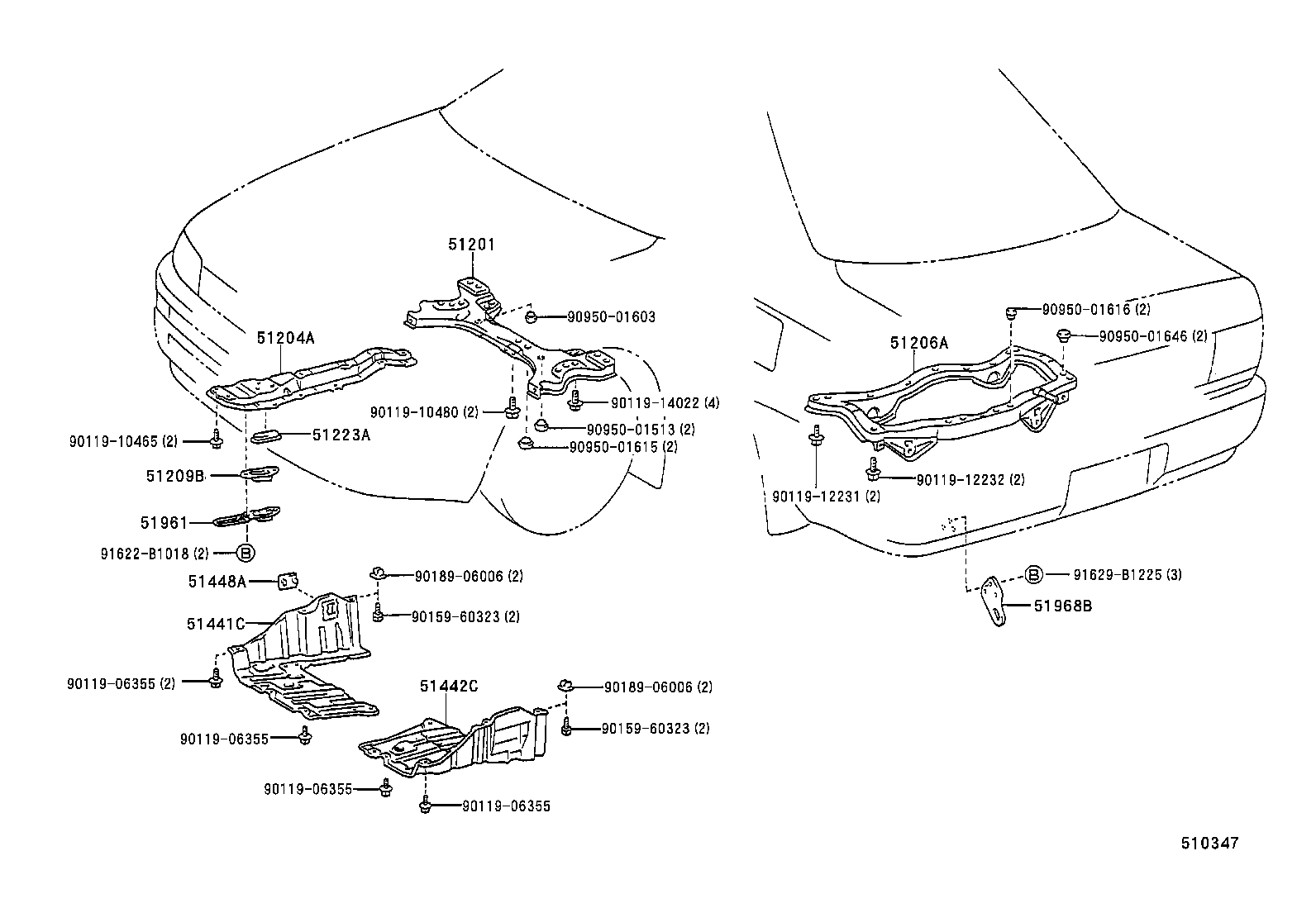

Click highlighted areas on diagram

diagram 51201 51204A 51206A 51209B 51223A 51441C 51442C 51448A 51961 51968B 9011906355 9011906355 9011906355 9011906355 9011910465 9011910480 9011912231 9011912232 9011914022 9015960323 9015960323 9018906006 9018906006 9095001513 9095001603 9095001615 9095001616 9095001646 91622B1018 91629B1225
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-12350

AE104,CE104,109

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-12090

AE104,CE104,109

 1
51204-12110

AE104,109,CE104,105,109

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-12050

AE104,CE104

 1
51209B - PROTECTOR SUB-ASSY, CENTER MEMBER, FRONT
51209-12010

AE10#,CE10#,EE10#

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-12010

AE10#,CE10#,EE10#

 1
51441C - COVER, ENGINE UNDER, RH
51441-12140

AE10#,CE10#,EE10#

 1
51442C - COVER, ENGINE UNDER, LH
51442-12080

AE10#,CE10#,EE10#..MTM

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20010

AE10#,CE10#,EE10#

 1
51968B - HOOK, TRANSPORT, REAR LH
51968-12110

AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE

 1
Common parts
90119-06355
90119-10465
90119-10480
90119-12231
90119-12232
90119-14022
90159-60323
90189-06006
90950-01513
90950-01603
90950-01615
90950-01616
90950-01646
91622-B1018
91629-B1225
