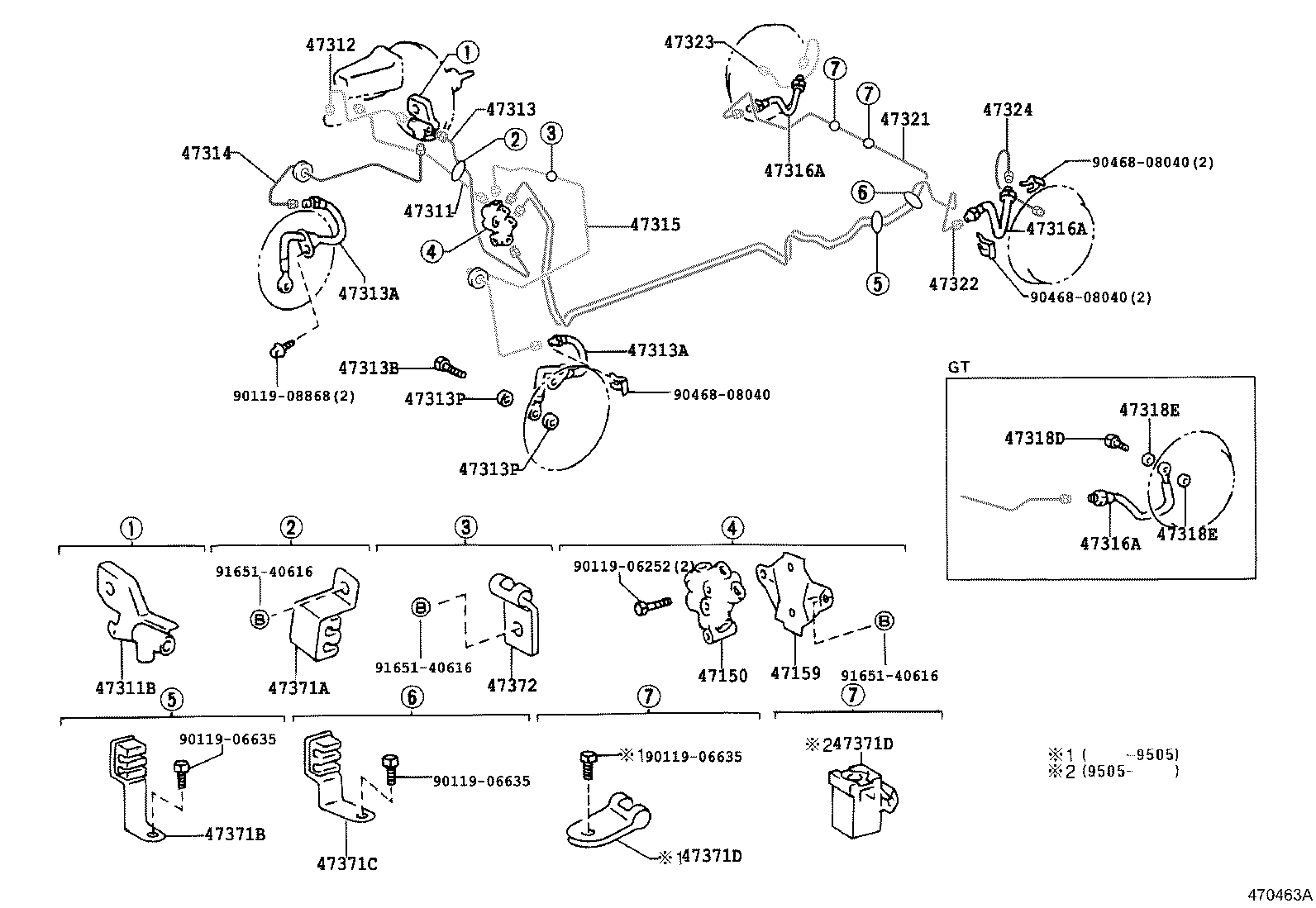

CE104-BEMES (1991)
Toyota Sprinter
(9106-9704)AE10#,CE100,104,EE101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12150 |
AE104,CE104 ｱﾘ(ABS) |
1 | ||
| 47150-10090 |
AE104,CE100,104 |
1 | ||
| 47150-12140 |
AE104,CE100,104 ｱﾘ(ABS) |
1 | ||
| 47150-12270 |
AE100,101,CE108,109,EE101,104,108..DX,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12070 |
AE10#,CE10#,EE10# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12550 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE ｱﾘ(ABS) |
1 | ||
| 47311-12470 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE ｱﾘ(ABS) |
1 | ||
| 47311-12460 |
AE101,104,CE104..GT,LX,SEL,XE |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10262 |
AE10#,CE10#,EE10# |
1 | ||
| 47391-12030 |
AE101,104,CE104..GT,LX,SEL,XE |
1 | ||
| 90412-10116 |
AE10#,CE100,104,EE101 ｱﾘ(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12340 |
AE104,CE104 |
1 | ||
| 47312-12310 |
AE104,CE104 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12250 |
AE10#,CE100,104,EE101 ｱﾘ(ABS) |
1 | ||
| 47313-12350 |
AE101,104,CE104..GT,LX,SEL,XE |
1 | ||
| 47313-12270 |
AE101,104,CE104..GT,LX,SEL,XE |
1 | ||
| 47313-12360 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02681 |
AE104,CE104,109 左側 |
1 | ||
| 90947-02680 |
AE104,CE104,109 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02681 |
AE104,CE104,109 左側 |
1 | ||
| 90947-02680 |
AE104,CE104,109 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE10#,CE10#,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12330 |
AE101,104,CE104..GT,LX,SEL,XE |
1 | ||
| 47314-12360 |
CE104 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12460 |
AE10#,CE10#,EE10# |
1 | ||
| 47315-12450 |
AE10#,CE100,104,EE101 ｱﾘ(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
2 | ||
| 90947-02657 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
2 | ||
| 90947-02657 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
2 | ||
| 90947-02657 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
2 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-13060 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 47321-12110 |
AE104,CE104 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-13100 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 47322-12260 |
AE10#,CE100,104,EE101 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-12240 |
AE104,CE104 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12200 |
AE104,CE104 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12090 |
AE10#,CE100,104,EE101 ｱﾘ(ABS) |
1 | ||
| 47371-12100 |
AE10#,CE10#,EE10# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47375-12010 |
AE10#,CE100,104,EE101 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47375-12020 |
AE10#,CE100,104,EE101 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08687 |
AE10#,CE100,104,EE101 |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08687 |
AE10#,CE100,104,EE101 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-12020 |
AE10#,CE100,104,EE101 ｱﾘ(ABS) |
1 | ||
| 90461-06119 |
AE10#,CE10#,EE10# |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 91651-40616 | ||||

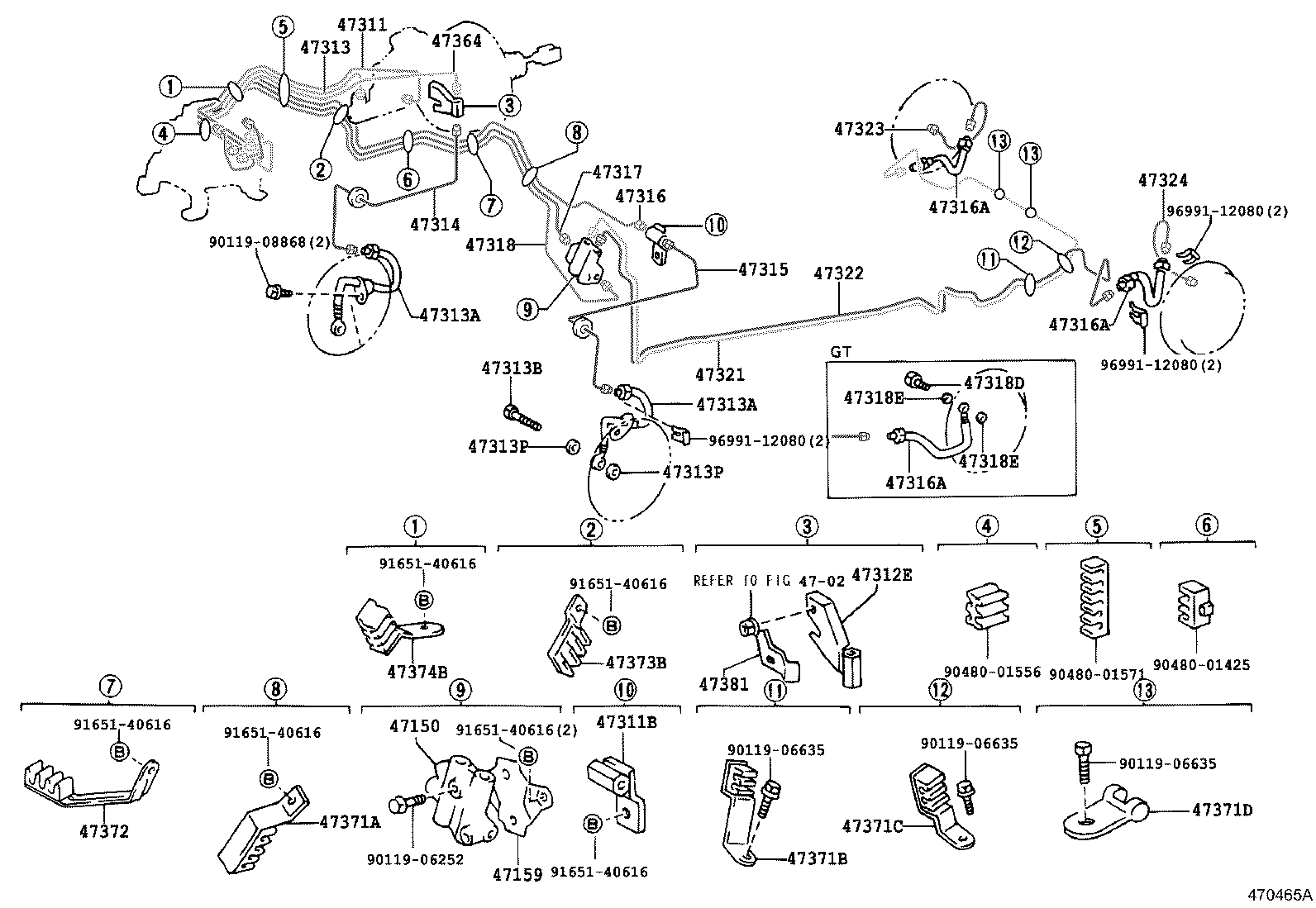

ILLUST NO. 1 OF 2(9106-9505)AE10#,CE100,104,EE101
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12150 |
AE104,CE104 ｱﾘ(ABS) |
1 | ||
| 47150-10090 |
AE104,CE100,104 |
1 | ||
| 47150-12140 |
AE104,CE100,104 ｱﾘ(ABS) |
1 | ||
| 47150-12270 |
AE100,101,CE108,109,EE101,104,108..DX,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12070 |
AE10#,CE10#,EE10# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12550 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE ｱﾘ(ABS) |
1 | ||
| 47311-12470 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE ｱﾘ(ABS) |
1 | ||
| 47311-12460 |
AE101,104,CE104..GT,LX,SEL,XE |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10262 |
AE10#,CE10#,EE10# |
1 | ||
| 47391-12030 |
AE101,104,CE104..GT,LX,SEL,XE |
1 | ||
| 90412-10116 |
AE10#,CE100,104,EE101 ｱﾘ(ABS) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10183 |
AE10#,CE100,104,EE101 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12250 |
AE10#,CE100,104,EE101 ｱﾘ(ABS) |
1 | ||
| 47313-12350 |
AE101,104,CE104..GT,LX,SEL,XE |
1 | ||
| 47313-12270 |
AE101,104,CE104..GT,LX,SEL,XE |
1 | ||
| 47313-12360 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02681 |
AE104,CE104,109 左側 |
1 | ||
| 90947-02680 |
AE104,CE104,109 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02681 |
AE104,CE104,109 左側 |
1 | ||
| 90947-02680 |
AE104,CE104,109 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE10#,CE10#,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12330 |
AE101,104,CE104..GT,LX,SEL,XE |
1 | ||
| 47314-12360 |
CE104 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12460 |
AE10#,CE10#,EE10# |
1 | ||
| 47315-12450 |
AE10#,CE100,104,EE101 ｱﾘ(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-12200 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE |
1 | ||
| 47316-12290 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
2 | ||
| 90947-02657 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
2 | ||
| 90947-02657 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
2 | ||
| 90947-02657 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12050 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE |
1 | ||
| 47317-12130 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12190 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE |
1 | ||
| 47318-12260 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-13060 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 47321-12110 |
AE104,CE104 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-13100 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 47322-12260 |
AE10#,CE100,104,EE101 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-12240 |
AE104,CE104 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12200 |
AE104,CE104 |
1 | ||
| 47364 - TUBE, FRONT BRAKE, NO.13 | ||||
| 47364-12010 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE |
1 | ||
| 47364-12100 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12090 |
AE10#,CE100,104,EE101 ｱﾘ(ABS) |
1 | ||
| 47371-12100 |
AE10#,CE10#,EE10# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47375-12010 |
AE10#,CE100,104,EE101 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47375-12020 |
AE10#,CE100,104,EE101 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08687 |
AE10#,CE100,104,EE101 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-12020 |
AE10#,CE100,104,EE101 ｱﾘ(ABS) |
1 | ||
| 90461-06119 |
AE10#,CE10#,EE10# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-12020 |
CE100,104 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-12020 |
AE10#,CE100,104,EE101 |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-12190 |
AE104..LX,XE;AE100..3FC,5F;AE100..4FC..XE;AE104..5F..SEL;AE101,CE100,104,EE101 |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90480-01425 | ||||
| 90480-01556 | ||||
| 90480-01571 | ||||
| 91651-40616 | ||||
| 96991-12080 | ||||
| Linked diagrams | ||||
| 4702 | ||||
(9109- )CE102,106,107,108,EE102,103,104
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12150 |
AE104,CE104 ｱﾘ(ABS) |
1 | ||
| 47150-10090 |
AE104,CE100,104 |
1 | ||
| 47150-12140 |
AE104,CE100,104 ｱﾘ(ABS) |
1 | ||
| 47150-12270 |
AE100,101,CE108,109,EE101,104,108..DX,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12070 |
AE10#,CE10#,EE10# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12550 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE ｱﾘ(ABS) |
1 | ||
| 47311-12470 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE ｱﾘ(ABS) |
1 | ||
| 47311-12460 |
AE101,104,CE104..GT,LX,SEL,XE |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10262 |
AE10#,CE10#,EE10# |
1 | ||
| 47391-12030 |
AE101,104,CE104..GT,LX,SEL,XE |
1 | ||
| 90412-10116 |
AE10#,CE100,104,EE101 ｱﾘ(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12340 |
AE104,CE104 |
1 | ||
| 47312-12310 |
AE104,CE104 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12250 |
AE10#,CE100,104,EE101 ｱﾘ(ABS) |
1 | ||
| 47313-12350 |
AE101,104,CE104..GT,LX,SEL,XE |
1 | ||
| 47313-12270 |
AE101,104,CE104..GT,LX,SEL,XE |
1 | ||
| 47313-12360 |
AE101,CE100,104,EE101..DX,GT,LX,SEL,XE ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02681 |
AE104,CE104,109 左側 |
1 | ||
| 90947-02680 |
AE104,CE104,109 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02681 |
AE104,CE104,109 左側 |
1 | ||
| 90947-02680 |
AE104,CE104,109 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE10#,CE10#,EE10# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE10#,CE10#,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12330 |
AE101,104,CE104..GT,LX,SEL,XE |
1 | ||
| 47314-12360 |
CE104 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12460 |
AE10#,CE10#,EE10# |
1 | ||
| 47315-12450 |
AE10#,CE100,104,EE101 ｱﾘ(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-13060 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 47321-12110 |
AE104,CE104 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-13100 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 47322-12260 |
AE10#,CE100,104,EE101 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-12240 |
AE104,CE104 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12200 |
AE104,CE104 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12090 |
AE10#,CE100,104,EE101 ｱﾘ(ABS) |
1 | ||
| 47371-12100 |
AE10#,CE10#,EE10# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-12020 |
AE10#,CE100,104,EE101 ｱﾘ(ABS) |
1 | ||
| 90461-06119 |
AE10#,CE10#,EE10# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-12030 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90461-06118 | ||||
| 90461-08652 | ||||
| 90468-08040 | ||||
| 91626-60618 | ||||
| 91651-60614 | ||||

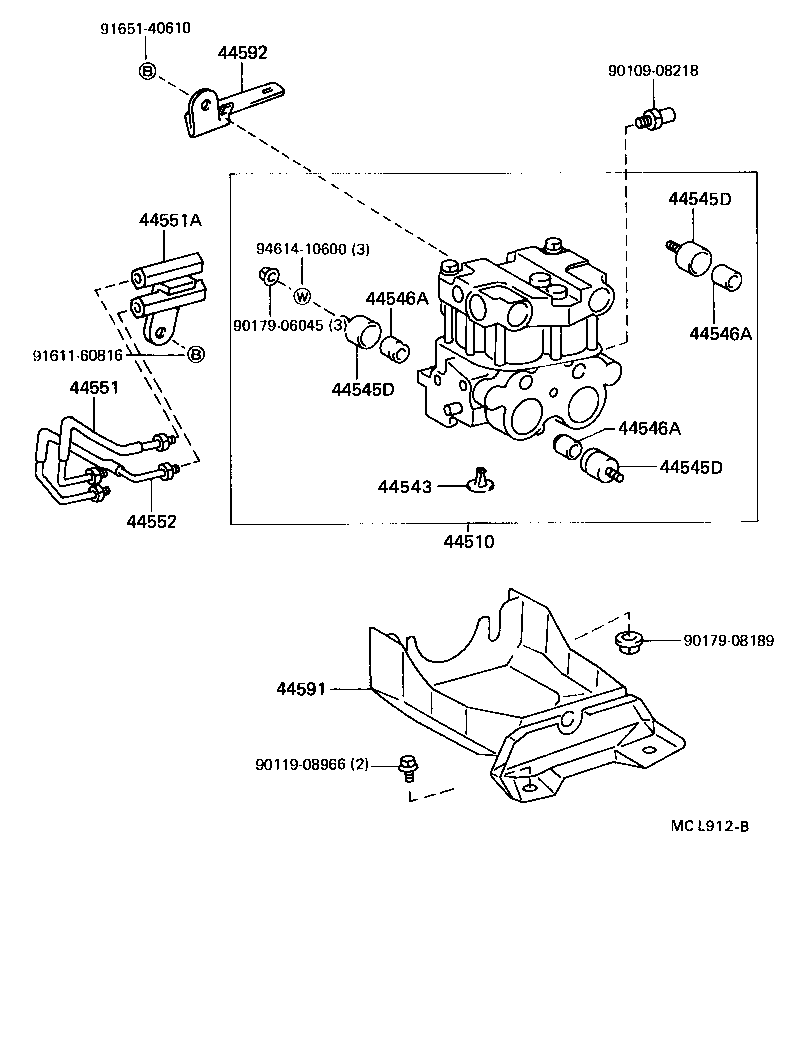

ILLUST NO. 2 OF 2(9106- )AE100,101,104,CE100,104,EE101
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-12020 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE TOYOTA |
1 | ||
| 44510-12040 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE AISIN |
1 | ||
| 44510-12090 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-12010 |
AE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12010 |
AE10#,CE100,104,EE101 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12010 |
AE10#,CE100,104,EE101 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12010 |
AE10#,CE100,104,EE101 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE10#,CE100,104,EE101 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE10#,CE100,104,EE101 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE10#,CE100,104,EE101 |
3 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-12031 |
AE10#,CE100,104,EE101 |
1 | ||
| 44551-12040 |
AE10#,CE100,104,EE101 |
1 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90412-10184 |
AE10#,CE100,104,EE101 |
1 | ||
| 90904-12006 |
AE10#,CE100,104,EE101 |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-12021 |
AE10#,CE100,104,EE101 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-12030 |
AE10#,CE100,104,EE101 |
1 | ||
| 44591-12020 |
AE10#,CE100,104,EE101 |
1 | ||
| 44591-12031 |
AE10#,CE100,104,EE101 |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-12010 |
AE10#,CE100,104,EE101 |
1 | ||
| 44592-12020 |
AE10#,CE100,104,EE101 |
1 | ||
| Common parts | ||||
| 90109-08218 | ||||
| 90119-08966 | ||||
| 90179-06045 | ||||
| 90179-08189 | ||||
| 91611-60816 | ||||
| 91651-40610 | ||||
| 94614-10600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
