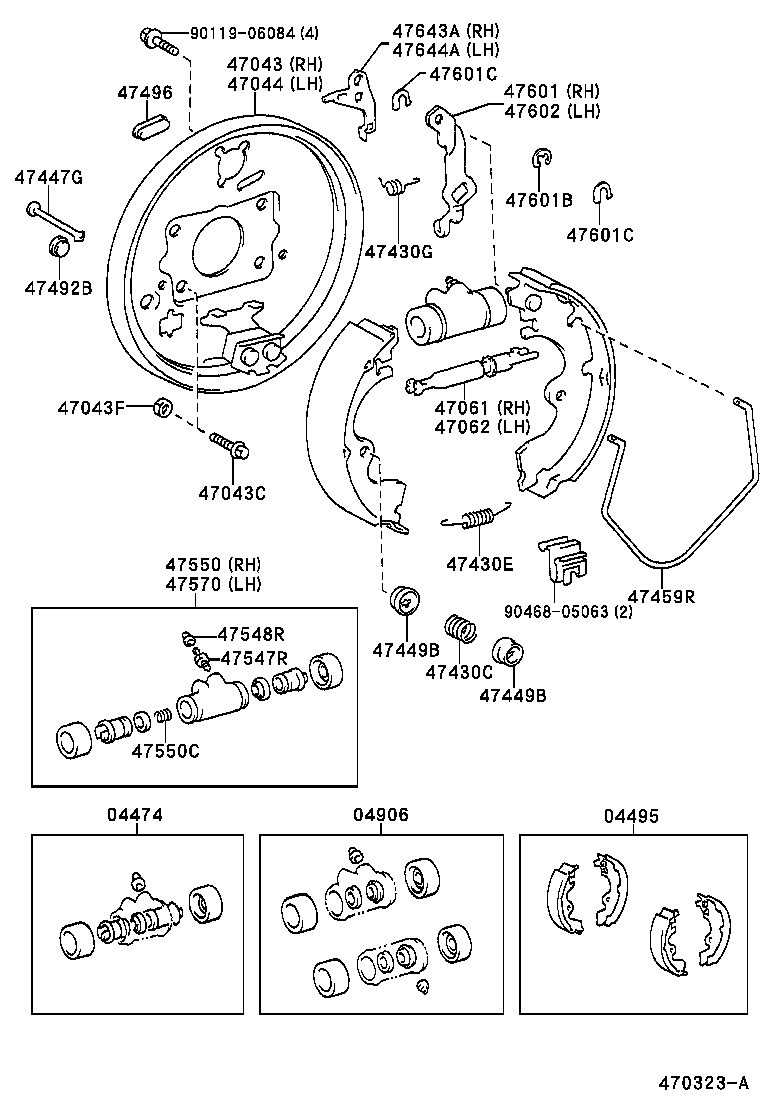

CE104-BEMES (1991)
Toyota Sprinter
(9109-9505)AE104,CE104 ; (9804- )CE102,107,EE10#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-16020 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04497-12120 |
AE104,CE104 ﾘﾋﾞﾙﾄ |
1 | ||
| 04495-12220 |
AE104,CE104 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-16020 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-12080 |
AE104,CE104 |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90105-10329 |
AE104,CE104 *10−1.25PX16−16 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-12080 |
AE104,CE104 |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-16030 |
AE104,CE104 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-16030 |
AE104,CE104 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-18017 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-18034 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-12036 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-30010 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30030 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30030 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
8 | ||
| 47459R - SPRING, SHOE RETURN(FOR REAR BRAKE) | ||||
| 47459-12010 |
AE104,CE104 |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-32010 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20010 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-12090 |
AE10#,CE100,104,106,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-07006 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-12030 |
AE10#,CE100,104,106,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-32010 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47601B - SHIM, REAR PARKING BRAKE SHOE LEVER | ||||
| 90564-08150 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL 厚さ=0.3 |
1 | ||
| 90564-08151 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL 厚さ=0.6 |
1 | ||
| 90564-08173 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL 厚さ=0.4 |
1 | ||
| 90564-08152 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL 厚さ=0.9 |
1 | ||
| 90564-08172 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL 厚さ=0.2 |
1 | ||
| 90564-08174 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL 厚さ=0.5 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL 厚さ=1.2 |
4 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL 厚さ=1.2 |
4 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-32010 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-32010 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-32010 |
AE100,101,104,CE100,102,104,106,107,108,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
| 90468-05063 | ||||
