CE104-BEMES (1991)

Toyota Sprinter

Production Sep 1991 - May 1995
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )AE104,109,CE104,105,109..5F

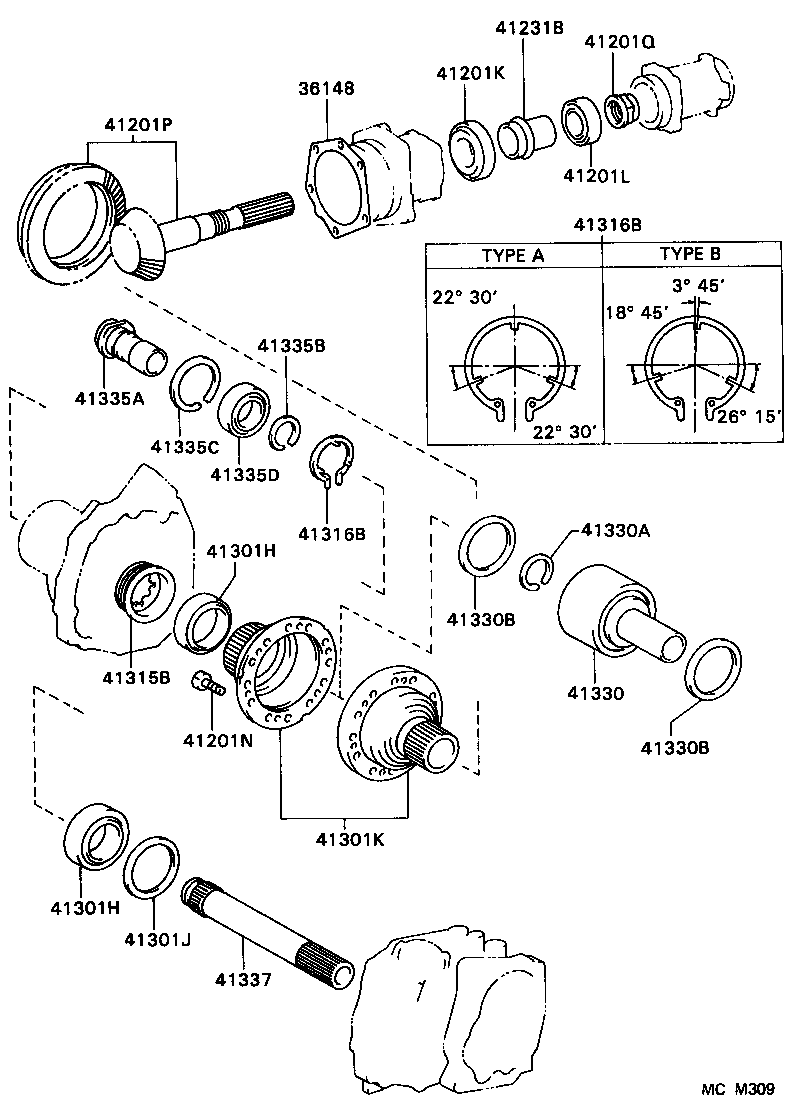

Click highlighted areas on diagram

E59F,E55F ｱﾘ(ABS)

diagram 36148 41201K 41201L 41201N 41201P 41201Q 41231B 41301H 41301H 41301J 41301K 41315B 41316B 41316B 41330 41330A 41330B 41330B 41335A 41335B 41335C 41335D 41337
Part # Description Qty Price
36148 - SHIM, PINION BEARING CAGE
36148-32090

AE104,109,CE104,105,109..5F

厚さ=0.54,ﾏｰｸ J

 1
36148-32020

AE104,109,CE104,105,109..5F

厚さ=0.33,ﾏｰｸ B

 1
36148-32080

AE104,109,CE104,105,109..5F

厚さ=0.51,ﾏｰｸ H

 1
36148-32040

AE104,109,CE104,105,109..5F

厚さ=0.39,ﾏｰｸ D

 1
36148-32010

AE104,109,CE104,105,109..5F

厚さ=0.30,ﾏｰｸ A

 1
36148-32030

AE104,109,CE104,105,109..5F

厚さ=0.36,ﾏｰｸ C

 1
36148-32050

AE104,109,CE104,105,109..5F

厚さ=0.42,ﾏｰｸ E

 1
36148-32060

AE104,109,CE104,105,109..5F

厚さ=0.45,ﾏｰｸ F

 1
36148-32100

AE104,109,CE104,105,109..5F

厚さ=0.57,ﾏｰｸ K

 1
36148-32070

AE104,109,CE104,105,109..5F

厚さ=0.48,ﾏｰｸ G

 1
41201N - BOLT (FOR TRANSFER GEAR )
90105-11026

AE104,109,CE104,105,109..5F

 12
41231B - SPACER, TRANSFER PINION BEARING
41231-12040

AE104,109,CE104,105,109..5F

 1
41301H - BEARING(FOR RING GEAR MOUNTING CASE)
90366-58007

CE104,105,109

左側

 1
90366-55039

CE104,105,109

右側

 1
41301H - BEARING(FOR RING GEAR MOUNTING CASE)
90366-58007

CE104,105,109

左側

 1
90366-55039

CE104,105,109

右側

 1
41301J - WASHER, PLATE(FOR RING GEAR MOUNTING CASE)
90201-68033

AE104,109,CE104,105,109..5F

厚さ=2.37,ﾏｰｸ 09

 1
90201-68026

AE104,109,CE104,105,109..5F

厚さ=2.16,ﾏｰｸ 02

 1
90201-68027

AE104,109,CE104,105,109..5F

厚さ=2.19,ﾏｰｸ 03

 1
90201-68037

AE104,109,CE104,105,109..5F

厚さ=2.49,ﾏｰｸ 13

 1
90201-68028

AE104,109,CE104,105,109..5F

厚さ=2.22,ﾏｰｸ 04

 1
90201-68030

AE104,109,CE104,105,109..5F

厚さ=2.28,ﾏｰｸ 06

 1
90201-68032

AE104,109,CE104,105,109..5F

厚さ=2.34,ﾏｰｸ 08

 1
90201-68034

AE104,109,CE104,105,109..5F

厚さ=2.40,ﾏｰｸ 10

 1
90201-68025

AE104,109,CE104,105,109..5F

厚さ=2.13,ﾏｰｸ 01

 1
90201-68035

AE104,109,CE104,105,109..5F

厚さ=2.43,ﾏｰｸ 11

 1
90201-68036

AE104,109,CE104,105,109..5F

厚さ=2.46,ﾏｰｸ 12

 1
90201-68031

AE104,109,CE104,105,109..5F

厚さ=2.31,ﾏｰｸ 07

 1
90201-68029

AE104,109,CE104,105,109..5F

厚さ=2.25,ﾏｰｸ 05

 1
90201-68044

AE104,109,CE104,105,109..5F

厚さ=2.70,ﾏｰｸ 20

 1
90201-68041

AE104,109,CE104,105,109..5F

厚さ=2.61,ﾏｰｸ 17

 1
90201-68040

AE104,109,CE104,105,109..5F

厚さ=2.58,ﾏｰｸ 16

 1
90201-68045

AE104,109,CE104,105,109..5F

厚さ=2.73,ﾏｰｸ 21

 1
90201-68039

AE104,109,CE104,105,109..5F

厚さ=2.55,ﾏｰｸ 15

 1
90201-68047

AE104,109,CE104,105,109..5F

厚さ=2.79,ﾏｰｸ 23

 1
90201-68042

AE104,109,CE104,105,109..5F

厚さ=2.64,ﾏｰｸ 18

 1
90201-68038

AE104,109,CE104,105,109..5F

厚さ=2.52,ﾏｰｸ 14

 1
90201-68048

AE104,109,CE104,105,109..5F

厚さ=2.82,ﾏｰｸ 24

 1
90201-68043

AE104,109,CE104,105,109..5F

厚さ=2.67,ﾏｰｸ 19

 1
90201-68046

AE104,109,CE104,105,109..5F

厚さ=2.76,ﾏｰｸ 22

 1
41301K - CASE SUB-ASSY, CENTER DIFFERENTIAL RING GEAR MOUNTING
41301-20170

AE104,CE104..5F

 1
41301-12160

AE104,CE104,109..5F

 1
41315B - NUT, BEARING ADJUSTING
41315-12050

CE104,105,109

 1
41316B - PLATE, ADJUSTING NUT LOCK
41316-20040

AE104,CE104,109..5F

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
41316-20030

AE104,CE104,109..5F

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
41316B - PLATE, ADJUSTING NUT LOCK
41316-20040

AE104,CE104,109..5F

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
41316-20030

AE104,CE104,109..5F

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
41330B - WASHER (FOR CENTER DIFFERENTIAL CONTROL COUPLING)
90209-69001

AE104,CE104,109..5F

 2
41330B - WASHER (FOR CENTER DIFFERENTIAL CONTROL COUPLING)
90209-69001

AE104,CE104,109..5F

 2
