CE104-BEMES (1991)
Toyota Sprinter
(9109-9505)AE104,CE104,109..5F

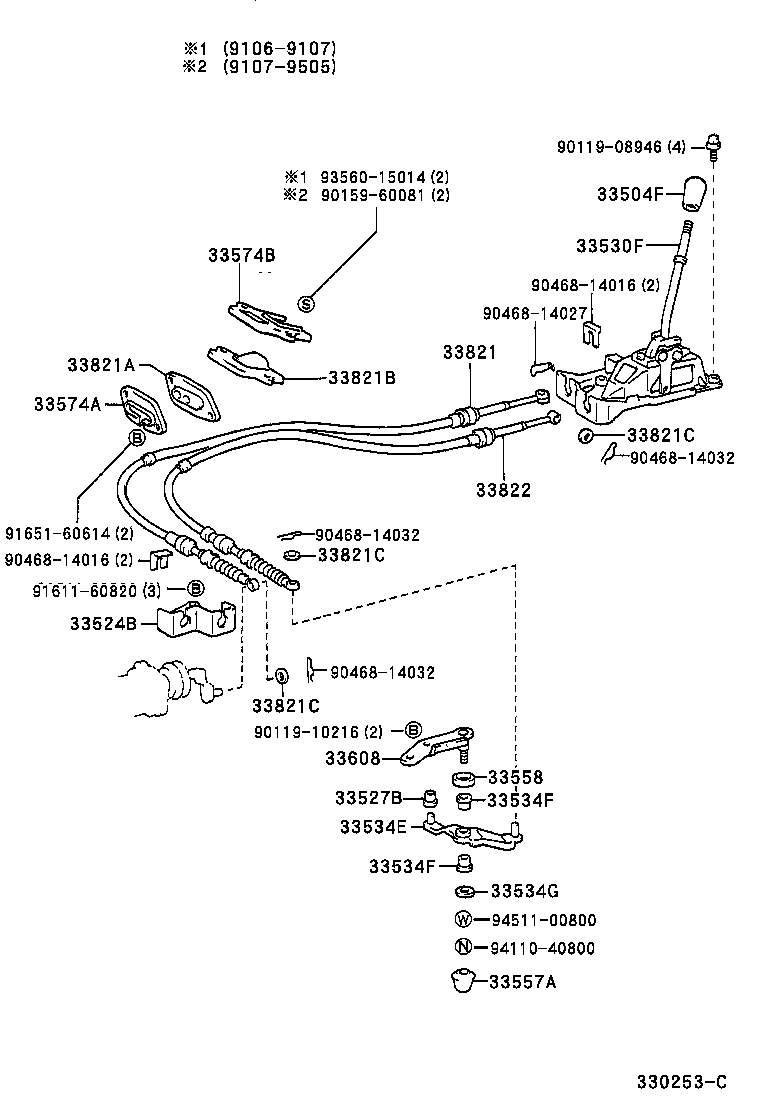

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12180P0 |
CE106,109..5F..XL;AE10#,CE100,104,EE103,107..5F..(DX,LX,SEG,SEL,XE,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180J0 |
AE10#,CE100,104..5F..(LX,SEG,SEL,XE) DARK BLUE,TRIM8# |
1 | ||
| 33504-12180K0 |
AE10#,CE100,104..5F..(LX,SEG,SEL,XE) TAUPE,TRIM9# |
1 | ||
| 33524B - BRACKET, CONTROL CABLE | ||||
| 33524-20010 |
AE104,109,CE104,105,109..5F |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 33557-33010 |
AE104,109,CE10#..5F |
1 | ||
| 90389-10009 |
AE104,CE10#..5F |
1 | ||
| 90389-10009 |
AE104,CE104,109..5F |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-12580 |
AE104,CE104,109..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-12091 |
AE104,109,CE104,105,109..5F |
1 | ||
| 33534-12090 |
AE104,CE104,109..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE10#,CE10#,EE10#..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE10#,CE10#,EE10#..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-12010 |
AE104,CE104,109..5F |
1 | ||
| 33558-10030 |
AE10#,CE104,105,109,EE10#..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12080 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-12060 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-12030 |
AE104,CE104,109..5F |
1 | ||
| 33608-12031 |
AE104,109,CE104,105,109..5F |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-12540 |
CE104,109 |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01400 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01398 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM 外径=30,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM 外径=30,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM 外径=30,TRANSAXLE SIDE |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-12280 |
CE104,109 |
1 | ||
| Common parts | ||||
| 90119-08946 | ||||
| 90119-10216 | ||||
| 90159-60081 | ||||
| 90468-14016 | ||||
| 90468-14027 | ||||
| 90468-14032 | ||||
| 91611-60820 | ||||
| 91651-60614 | ||||
| 93560-15014 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
