CE104-BEMES (1991)
Toyota Sprinter
(9106-9305)2C ; (9305-9401)2C..CE106,108,109
12V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-64310 |
2C..CE10# 12V 60A |
1 | ||
| 27060-64130 |
2C..CE100,104 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90901-05004 |
2C,3CE..CE10# |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-64310 |
2C..CE10# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-64060 |
2C..CE10# |
1 | ||
| 27310-64450 |
2C..CE100,104 |
1 | ||
| 27310-64450 |
2C..CE106,108..4FC;2C,3CE..CE100,104,105,109 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
2C..CE10# |
1 | ||
| 90099-10192 |
2C,3CE..CE100,104,105,109;4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..ATM |
1 | ||
| 90099-10192 |
2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
2C,3CE..CE100,104,105,109;4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..ATM |
1 | ||
| 27312-42010 |
2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM |
1 | ||
| 27312-57060 |
2C..CE10# |
1 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
2C..CE10# |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
2C..CE10# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64171 |
2C..CE10# |
1 | ||
| 27330-76030 |
2C..CE100,104;4AFE,5AFE,4EFE..AE10#,EE101..ATM |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
2C..CE10# |
1 | ||
| 27333 - COLLAR, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
2C..CE10# |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-64060 |
2C..CE10# |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-64060 |
2C..CE10# |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-64310 |
2C..CE10# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-54412 |
2C..CE10# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
2C..CE10# |
2 | ||
| 27373 - HOLDER, ALTERNATOR BRUSH, A | ||||
| 27373-64170 |
2C..CE10# |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-64170 |
2C..CE10# |
1 | ||
| 27388-42010 |
2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
2C..CE10# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-64220 |
2C..CE10# |
1 | ||
| 27411-64320 |
2C..CE100,104 |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-64060 |
2C..CE10# |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-64060 |
2C..CE10# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-64110 |
2C..CE10# |
1 | ||
| 27700-65010 |
2C..CE100,104 |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27387-54310 | ||||
| 90099-00197 | ||||
| 90099-00893 | ||||
| 90099-02209 | ||||
| 90099-02216 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90099-14055 | ||||
| 90099-34013 | ||||
| 90179-06158 | ||||
| Linked diagrams | ||||
| 1603 | ||||

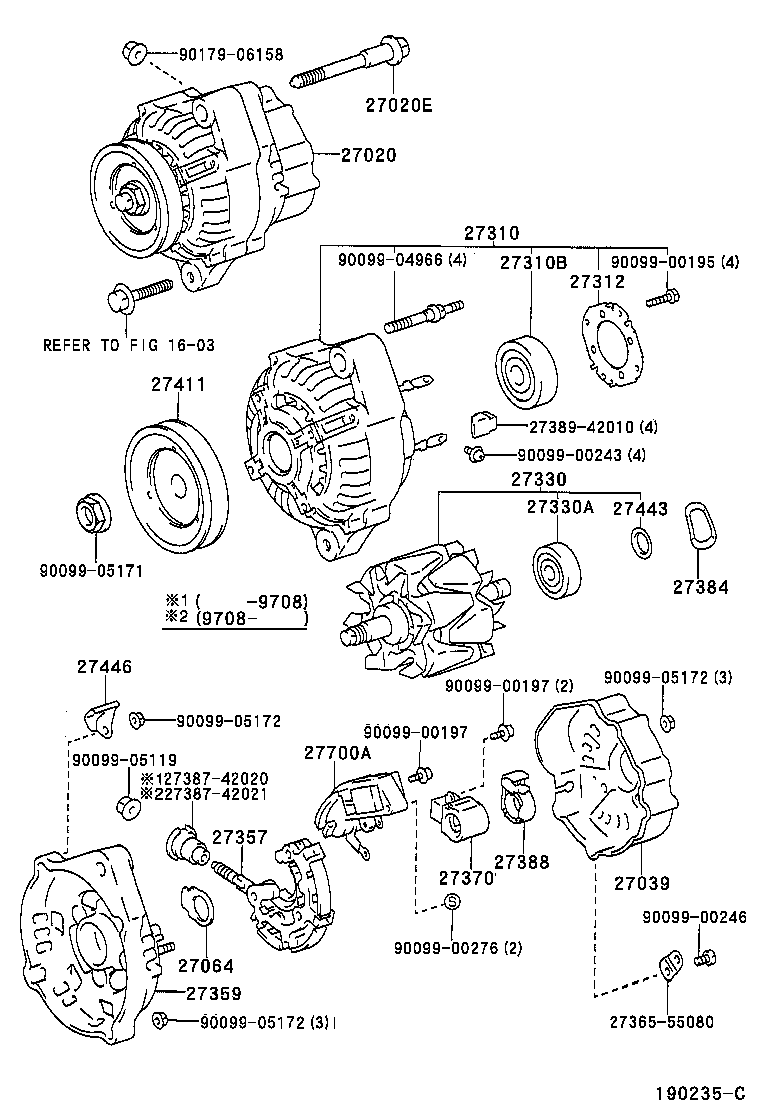

(9305- )2C,3CE..CE100,104,105,109 ; (9401-)2C,3CE..CE102,106,107,108..4FC
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-64310 |
2C..CE10# 12V 60A |
1 | ||
| 27060-64130 |
2C..CE100,104 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90901-05004 |
2C,3CE..CE10# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-64060 |
2C..CE10# |
1 | ||
| 27310-64450 |
2C..CE100,104 |
1 | ||
| 27310-64450 |
2C..CE106,108..4FC;2C,3CE..CE100,104,105,109 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
2C..CE10# |
1 | ||
| 90099-10192 |
2C,3CE..CE100,104,105,109;4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..ATM |
1 | ||
| 90099-10192 |
2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
2C,3CE..CE100,104,105,109;4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..ATM |
1 | ||
| 27312-42010 |
2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM |
1 | ||
| 27312-57060 |
2C..CE10# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64171 |
2C..CE10# |
1 | ||
| 27330-76030 |
2C..CE100,104;4AFE,5AFE,4EFE..AE10#,EE101..ATM |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2E,3E..EE106,107,108..3FC;4AFE,5AFE,2C,4EFE..AE10#,CE100,104,EE101 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-55080 |
2C,3CE..CE100,104,105,109;4AFE,5AFE,2C,3CE,4EFE,5EFE..AE100,101,109,CE102,106,107,108,EE10#..ATM |
1 | ||
| 27357-55080 |
2C..CE100,104;4AFE,5AFE,4EFE..AE100,101,EE101..ATM |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-64450 |
2C..CE100,104 |
1 | ||
| 27359-64450 |
2C,3CE..CE100,104,105,109;2C,3CE..CE102,106,107,108..4FC |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM |
1 | ||
| 27370-75060 |
2C,3CE..CE100,104,105,109;4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..ATM |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM |
1 | ||
| 27384-50030 |
2C,3CE..CE100,104,105,109;4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..ATM |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-64170 |
2C..CE10# |
1 | ||
| 27388-42010 |
2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-64220 |
2C..CE10# |
1 | ||
| 27411-64320 |
2C..CE100,104 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
4A#,5AFE,2C,2E,3E,4EFE..AE10#,CE100,104,EE10# |
1 | ||
| 27443-63020 |
4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE10#,EE10# |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-64450 |
2C..CE100,104 |
1 | ||
| 27446-64450 |
2C,3CE..CE10# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-64110 |
2C..CE10# |
1 | ||
| 27700-65010 |
2C..CE100,104 |
1 | ||
| Common parts | ||||
| 27365-55080 | ||||
| 27387-42020 | ||||
| 27387-42021 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-00276 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| Linked diagrams | ||||
| 1603 | ||||
