CE100-BEPNS (1991)

Toyota Sprinter

Production Jun 1991 - May 1995
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )CE100,102,106,107,108..4FC

Click highlighted areas on diagram

A241L

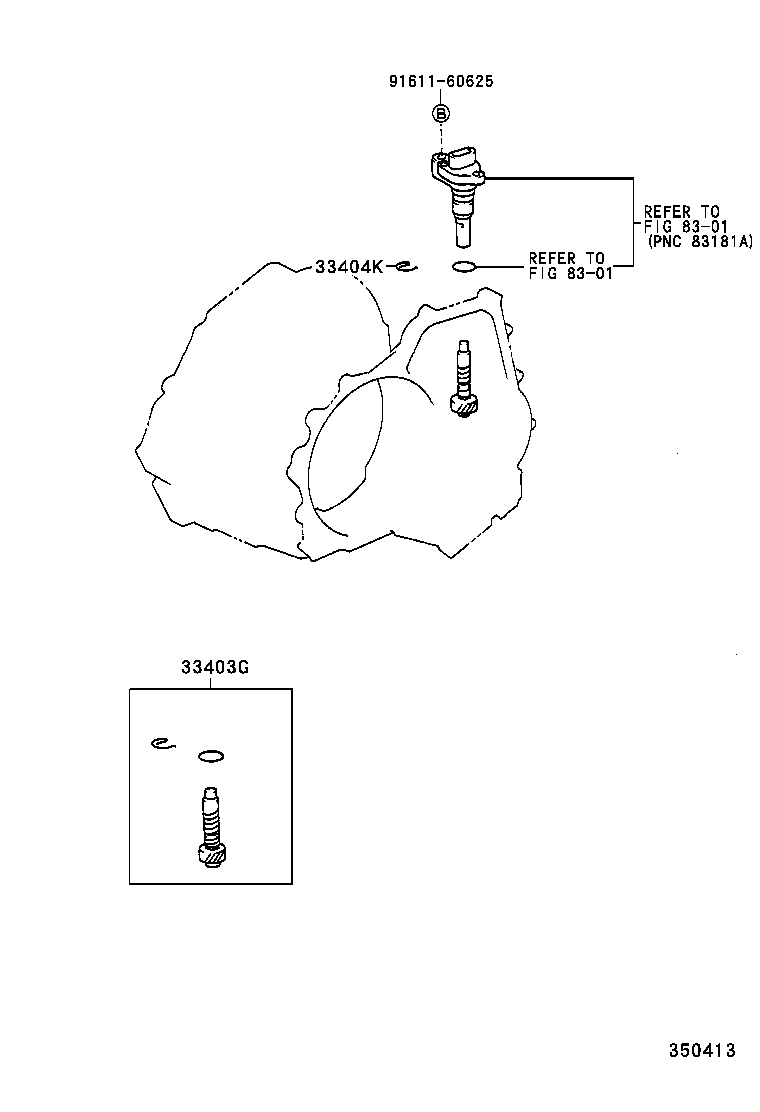

diagram 33403G 33404K 8301 8301 9161160625
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-19525

CE100,108..4FC..(DX,L,LX,XE)

歯数=21,ﾏｰｸ 21:25

 1
33403-19535

CE106..4FC;CE100..4FC..(SEL,XE)

歯数=22,ﾏｰｸ 22:25

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

EE10#..3FC;AE10#,CE100,102,106,107,108..4FC

 1
90468-12005

AE10#,CE100,106,108,EE10#..ATM

 1
Common parts
91611-60625
Linked diagrams
8301
