AE95G-CWPGK (1988)
Toyota Sprinter

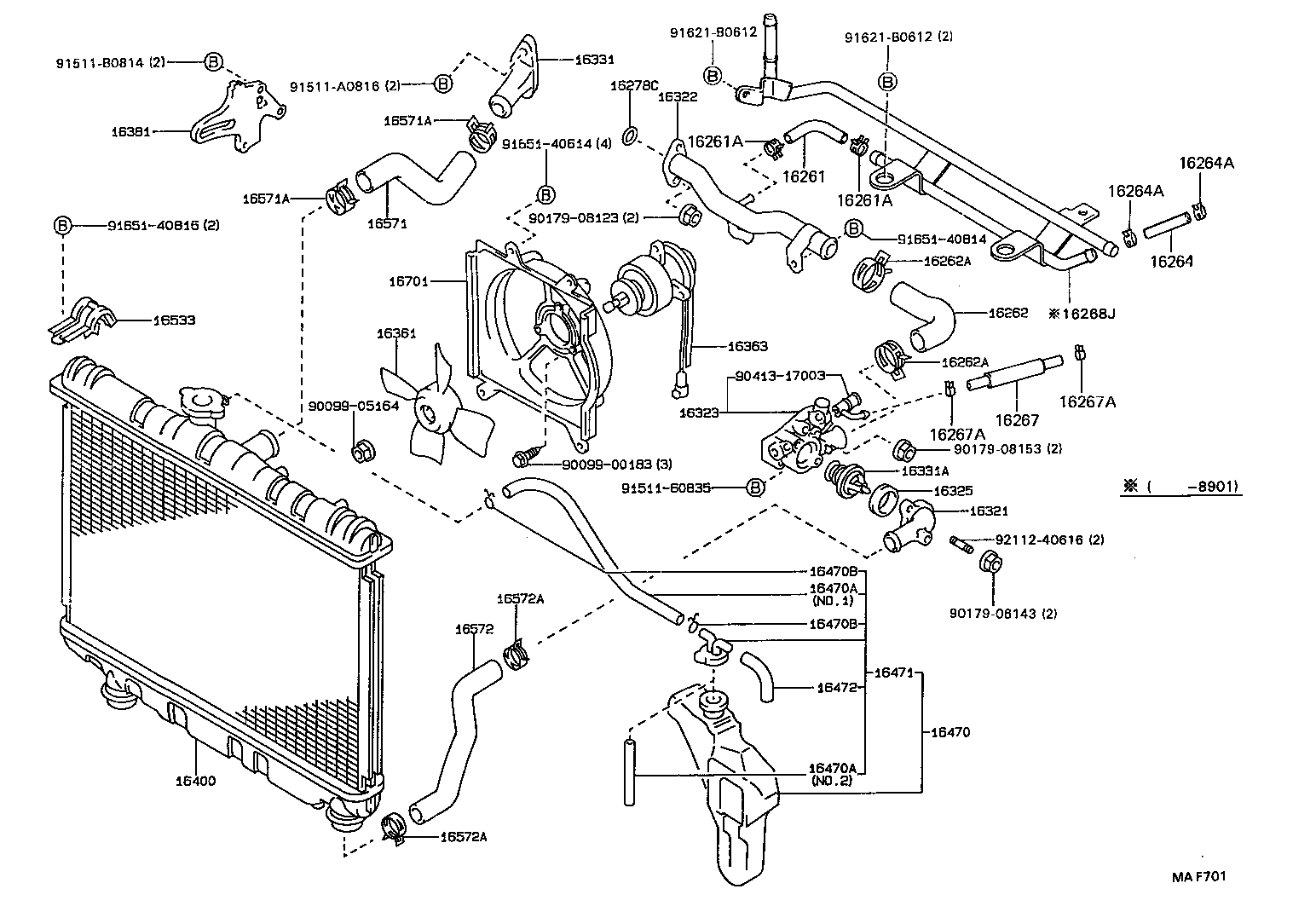

ILLUST NO. 1 OF 2(8705-8905)4AFE,5AFE ; (8905- )4AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 99555-10180 |
4AFE,5AFE..AE91,95 *H,L=180 |
1 | ||
| 99555-10200 |
4AF,5AF..AE91,95 *H,L=200 |
1 | ||
| 99555-10180 |
4AFE..AE95 *H,L=180 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
4AF#,5AF#..AE91,95 |
2 | ||
| 90467-13001 |
4AFE..AE95 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
4AF#,5AF#..AE91,95 |
2 | ||
| 90467-13001 |
4AFE..AE95 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-15030 |
4AFE,5AF#..AE91,95 |
1 | ||
| 16262-15030 |
4AF#,5AF#..AE91,95 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-36001 |
4AF#,5AF#..AE91,95 |
2 | ||
| 90467-36001 |
4AFE,5AF#..AE91,95 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-36001 |
4AF#,5AF#..AE91,95 |
2 | ||
| 90467-36001 |
4AFE,5AF#..AE91,95 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99555-10180 |
4AFE,5AFE..AE91,95 *H,L=180 |
1 | ||
| 99555-10180 |
4AFE..AE95 *H,L=180 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
4AGE,4AFE,5AFE..AE9# |
2 | ||
| 90467-13001 |
4A#,5AF#..AE9# |
2 | ||
| 90467-13001 |
4A#,5AF#..AE9# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
4AGE,4AFE,5AFE..AE9# |
2 | ||
| 90467-13001 |
4A#,5AF#..AE9# |
2 | ||
| 90467-13001 |
4A#,5AF#..AE9# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 90447-15021 |
4AFE,5AFE..AE91,95 |
1 | ||
| 99555-10180 |
4AFE,5AFE..AE91,95 *H,L=180 |
1 | ||
| 90447-15021 |
4AFE..AE95 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
4AGE,4AFE,5AFE..AE9# |
2 | ||
| 90467-13001 |
4A#..AE92,95 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
4AGE,4AFE,5AFE..AE9# |
2 | ||
| 90467-13001 |
4A#..AE92,95 |
2 | ||
| 16268J - PIPE, WATER BY-PASS, NO.5 | ||||
| 16268-15080 |
4AFE,5AFE..AE91,95 |
1 | ||
| 16268-16080 |
4AFE..AE95 |
1 | ||
| 16278C - RING, O(FOR WATER BY-PASS PIPE NO.2) | ||||
| 96711-24035 |
4AGE,4AF#,5AF#..AE9# |
1 | ||
| 96711-24035 |
4A#,5AF#..AE9# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-15020 |
4AF#,5AF#..AE91,95 |
1 | ||
| 16321-15020 |
4AFE,5AF#..AE91,95 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-15040 |
4AFE,5AF#..AE91,95 |
1 | ||
| 16322-15020 |
4AF#,5AF#..AE91,95 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-15060 |
4AF,5AF..AE91,95 |
1 | ||
| 16323-15060 |
4AF..AE95 |
1 | ||
| 16323-15100 |
4AFE..AE95..WG..4FC |
1 | ||
| 16323-15070 |
4AFE..AE95..4FC |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
4AGE,4AF#,5AF#..AE9# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15080 |
4AF,5AF..AE91,95..MTM;4AFE,5AFHE,5AFE..AE91,95 |
1 | ||
| 16331-15070 |
4AF,5AF..AE91,95..ATM |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
4AF#,5AF#..AE91,95 *WAX 82−95 |
1 | ||
| 16361 - FAN | ||||
| 16361-63020 |
4AF#..AE95..4FC |
1 | ||
| 16361-63020 |
4AFE..AE95..4FC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-64030 |
4AF#..AE95..4FC |
1 | ||
| 16363-64030 |
4AFE..AE95..4FC |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15060 |
4AF#,5AF#..AE91,95 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15420 |
4AFE..AE95..WG..4FC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-15040 |
4AF#,5AF#..AE91,95 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4A#,5AF#..AE9# 長さ=600,NO.2 |
1 | ||
| 90445-12078 |
4AGE,4AF#,5AF#..AE9# 長さ=600,NO.2 |
1 | ||
| 90445-12117 |
4AF#,5AF#..AE91,95 *H,L=460,NO.1 |
1 | ||
| 90445-12043 |
4AF#,5AF#..AE91,95 *H,L=360,*H.L=260,NO.2 |
1 | ||
| 90445-12117 |
4AFE,5AF#..AE91,95 *H,L=460,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4A#,5AF#..AE9# 長さ=600,NO.2 |
1 | ||
| 90445-12078 |
4AGE,4AF#,5AF#..AE9# 長さ=600,NO.2 |
1 | ||
| 90445-12117 |
4AF#,5AF#..AE91,95 *H,L=460,NO.1 |
1 | ||
| 90445-12043 |
4AF#,5AF#..AE91,95 *H,L=360,*H.L=260,NO.2 |
1 | ||
| 90445-12117 |
4AFE,5AF#..AE91,95 *H,L=460,NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AGE,4AF#,5AF#..AE9# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AGE,4AF#,5AF#..AE9# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15050 |
4AF#,5AF#..AE91,95 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74040 |
4AGE,4AF#,5AF#..AE9# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-15090 |
4AGE,4AF#,5AF#..AE9# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4AGE,4AF#,5AF#..AE9# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4AGE,4AF#,5AF#..AE9# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-15190 |
4AF#,5AF#..AE91,95 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AGE,4AF#,5AF#..AE9# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AGE,4AF#,5AF#..AE9# |
2 | ||
| Common parts | ||||
| 90099-00183 | ||||
| 90099-05164 | ||||
| 90179-06143 | ||||
| 90179-08123 | ||||
| 90179-08153 | ||||
| 90413-17003 | ||||
| 91511-60835 | ||||
| 91511-A0816 | ||||
| 91511-B0814 | ||||
| 91621-B0612 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 92112-40616 | ||||
