AE95G-CWPDK (1988)
Toyota Sprinter
(8901- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

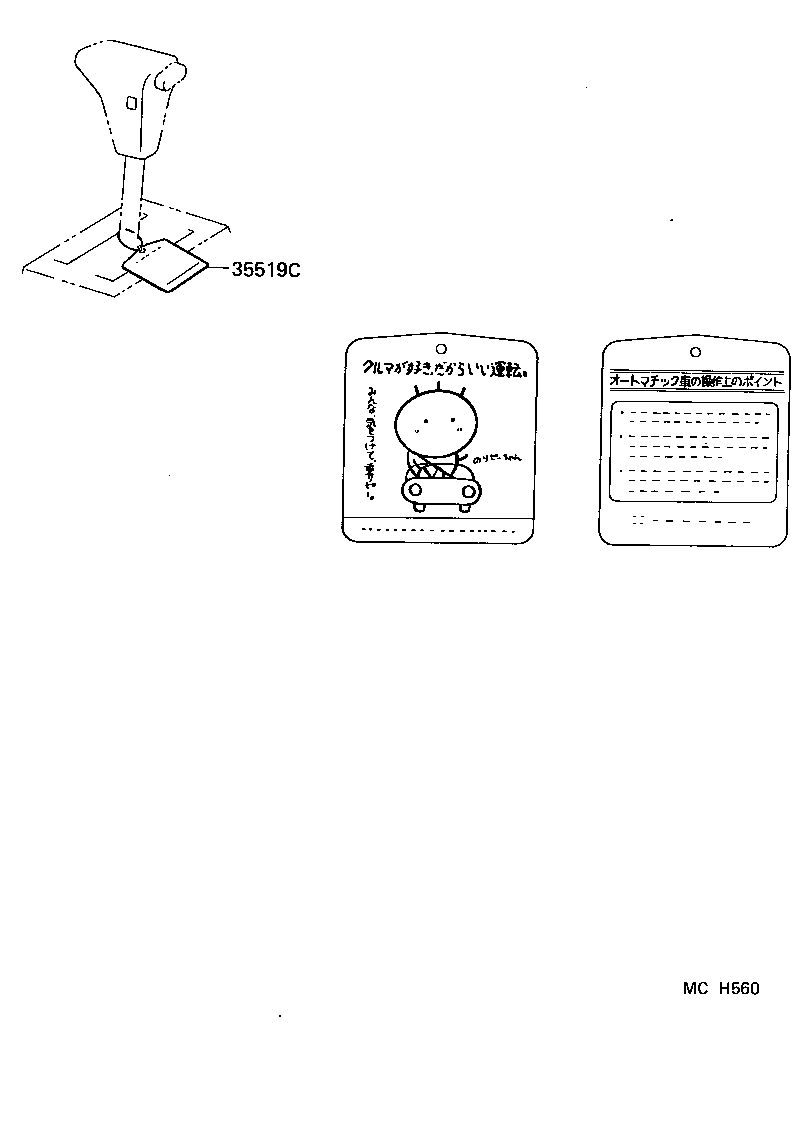

| 35519C - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-24010 |
AE9#,CE9#,EE90,98..ATM |
1 | ||
| 35519-24010 |
AE95,CE96,EE98..(V,WG)..ATM |
1 | ||

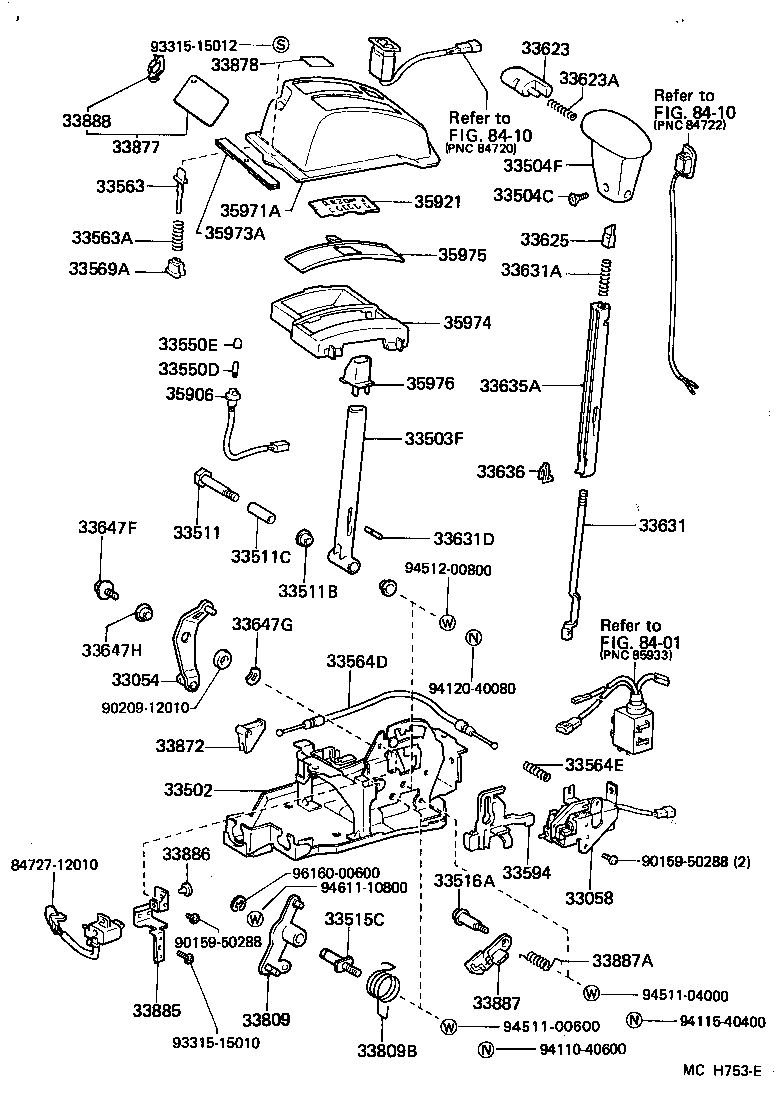

ILLUST NO. 1 OF 2(8905- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-12040 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 33054-12040 |
AE9#,CE9#..4FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-12320 |
AE95..WG..4FC |
1 | ||
| 33503-12320 |
AE9#,CE9#..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
AE9#,CE90,96..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3204003 |
AE91,95,CE9#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33542-3204015 |
CE90..4FC..(LX,MX,SE);AE91,95,CE96..4FC..(AV1,DX,G,MX,RVS,SE,XI,XL) DARK BEIGE,TRIM4# |
1 | ||
| 33542-3204015 |
AE95,CE96..4FC..(AV1,DX,RVS,XL) DARK BEIGE,TRIM4# |
1 | ||
| 33542-3204003 |
AE95,CE96..(V,WG)..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20240 |
AE95,CE96..(V,WG)..4FC |
1 | ||
| 33511-20240 |
AE9#,CE9#..4FC |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11010 |
AE95,CE96..(V,WG)..4FC |
2 | ||
| 90386-11010 |
AE9#,CE9#..4FC |
2 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
AE9#,CE9#..4FC 12V 3.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09004 |
AE9#,CE9#..4FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-1403013 |
AE91,95,CE9#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33623-1403013 |
AE95,CE96..(V,WG)..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33623-1403005 |
CE90..4FC..(LX,MX,SE);AE91,95,CE96..4FC..(AV1,DX,G,MX,RVS,SE,XI,XL) DARK BEIGE,TRIM4# |
1 | ||
| 33623-1403005 |
AE95,CE96..4FC..(AV1,DX,RVS,XL) DARK BEIGE,TRIM4# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 90501-07009 |
AE9#,CE9#..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
AE95..WG..4FC |
1 | ||
| 33625-32010 |
AE9#,CE9#..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-16050 |
AE9#,CE9#..4FC |
1 | ||
| 33631-16050 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07005 |
AE95..WG..4FC |
1 | ||
| 90501-07005 |
AE9#,CE9#..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 90256-04003 |
AE9#,CE9#..4FC |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-12020 |
AE9#,CE9#..4FC |
1 | ||
| 33635-12020 |
AE95..WG..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
AE9#,CE9#..4FC |
1 | ||
| 33636-35010 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 90119-08606 |
AE9#,CE9#..4FC |
1 | ||
| 90119-08606 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-12002 |
AE9#,CE9#..4FC |
1 | ||
| 90206-12002 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-12029 |
AE9#,CE9#..4FC |
1 | ||
| 90386-12029 |
AE95..WG..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-10030 |
AE9#,CE9#..4FC |
1 | ||
| 35906-10030 |
AE95..WG..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12280 |
AE95..WG..4FC |
1 | ||
| 35921-12280 |
AE9#,CE9#..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-1214003 |
AE91,95,CE9#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35971-1214005 |
CE90..4FC..(LX,MX,SE);AE91,95,CE96..4FC..(AV1,DX,G,MX,RVS,SE,XI,XL) DARK BEIGE,TRIM4# |
1 | ||
| 35971-1214005 |
AE95,CE96..4FC..(AV1,DX,RVS,XL) DARK BEIGE,TRIM4# |
1 | ||
| 35971-1214003 |
AE95,CE96..(V,WG)..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER | ||||
| 35973-12030 |
AE9#,CE9#..4FC |
1 | ||
| 35973-12030 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-12120 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 35974-12120 |
AE9#,CE9#..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-1218003 |
AE91,95,CE90,96..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35975-1218004 |
AE91,95,CE90,96..4FC DARK BLUE,TRIM8# |
1 | ||
| 35975-12160 |
AE95..WG..4FC |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-12030 |
AE95..WG..4FC |
1 | ||
| 35976-1205003 |
AE91,95,CE90,96..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35976-1205004 |
AE91,95,CE90,96..4FC DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 84727-12010 | ||||
| 90159-50288 | ||||
| 90209-12010 | ||||
| 93315-15010 | ||||
| 93315-15012 | ||||
| 94110-40600 | ||||
| 94115-40400 | ||||
| 94120-40080 | ||||
| 94511-00600 | ||||
| 94511-04000 | ||||
| 94512-00800 | ||||
| 94611-10800 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||

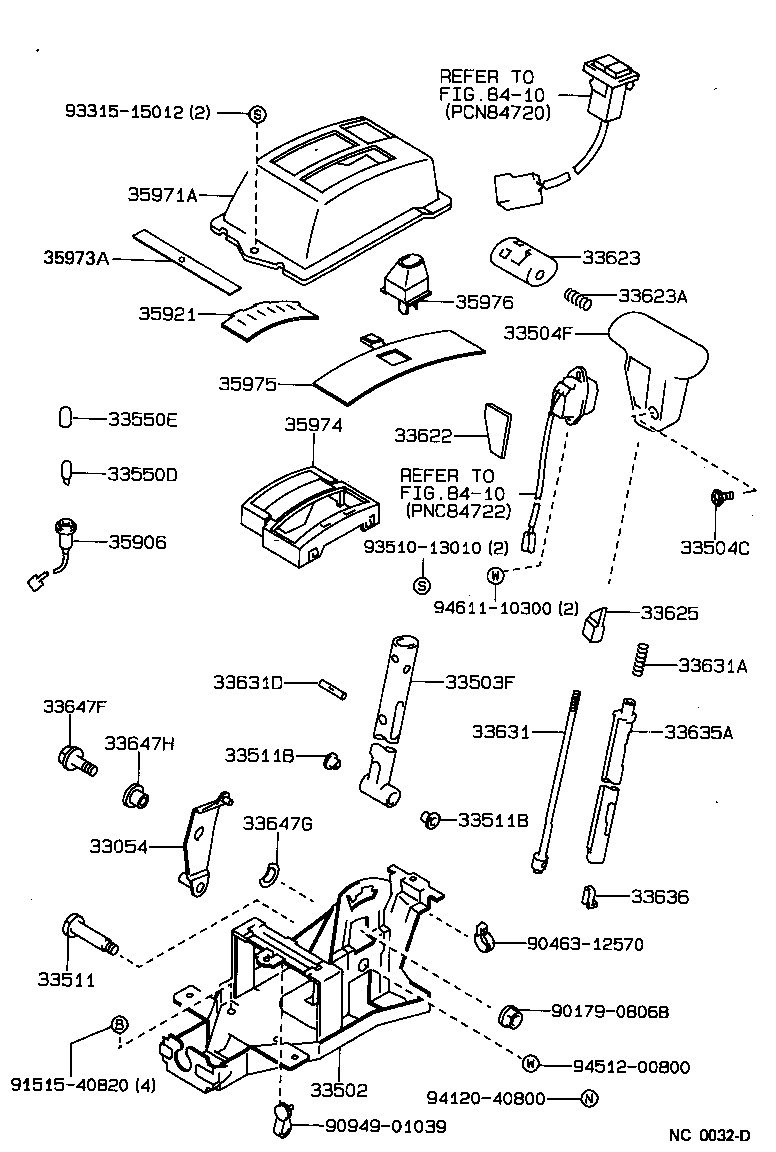

ILLUST NO. 1 OF 2(8705-8905)4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-12040 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 33054-12040 |
AE9#,CE9#..4FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-12320 |
AE95..WG..4FC |
1 | ||
| 33503-12320 |
AE9#,CE9#..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
AE9#,CE90,96..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3204003 |
AE91,95,CE9#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33542-3204015 |
CE90..4FC..(LX,MX,SE);AE91,95,CE96..4FC..(AV1,DX,G,MX,RVS,SE,XI,XL) DARK BEIGE,TRIM4# |
1 | ||
| 33542-3204015 |
AE95,CE96..4FC..(AV1,DX,RVS,XL) DARK BEIGE,TRIM4# |
1 | ||
| 33542-3204003 |
AE95,CE96..(V,WG)..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20240 |
AE95,CE96..(V,WG)..4FC |
1 | ||
| 33511-20240 |
AE9#,CE9#..4FC |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11010 |
AE95,CE96..(V,WG)..4FC |
2 | ||
| 90386-11010 |
AE9#,CE9#..4FC |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11010 |
AE95,CE96..(V,WG)..4FC |
2 | ||
| 90386-11010 |
AE9#,CE9#..4FC |
2 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
AE9#,CE9#..4FC 12V 3.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09004 |
AE9#,CE9#..4FC |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-1601023 |
AE91,95,CE9#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33622-1601025 |
CE90..4FC..(LX,MX,SE);AE91,95,CE96..4FC..(AV1,DX,G,MX,RVS,SE,XI,XL) DARK BEIGE,TRIM4# |
1 | ||
| 33622-1601013 |
AE91,95,CE90..4FC GRAY,TRIM1# |
1 | ||
| 33622-1601023 |
AE95,CE96..(V,WG)..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33622-1601025 |
AE95,CE96..4FC..(AV1,DX,RVS,XL) DARK BEIGE,TRIM4# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-1403013 |
AE91,95,CE9#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33623-1403013 |
AE95,CE96..(V,WG)..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33623-1403005 |
CE90..4FC..(LX,MX,SE);AE91,95,CE96..4FC..(AV1,DX,G,MX,RVS,SE,XI,XL) DARK BEIGE,TRIM4# |
1 | ||
| 33623-1403005 |
AE95,CE96..4FC..(AV1,DX,RVS,XL) DARK BEIGE,TRIM4# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 90501-07009 |
AE9#,CE9#..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
AE95..WG..4FC |
1 | ||
| 33625-32010 |
AE9#,CE9#..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-16050 |
AE9#,CE9#..4FC |
1 | ||
| 33631-16050 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07005 |
AE95..WG..4FC |
1 | ||
| 90501-07005 |
AE9#,CE9#..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 90256-04003 |
AE9#,CE9#..4FC |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-12020 |
AE9#,CE9#..4FC |
1 | ||
| 33635-12020 |
AE95..WG..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
AE9#,CE9#..4FC |
1 | ||
| 33636-35010 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 90119-08606 |
AE9#,CE9#..4FC |
1 | ||
| 90119-08606 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-12002 |
AE9#,CE9#..4FC |
1 | ||
| 90206-12002 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-12029 |
AE9#,CE9#..4FC |
1 | ||
| 90386-12029 |
AE95..WG..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-10030 |
AE9#,CE9#..4FC |
1 | ||
| 35906-10030 |
AE95..WG..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12280 |
AE95..WG..4FC |
1 | ||
| 35921-12280 |
AE9#,CE9#..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-1214003 |
AE91,95,CE9#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35971-1214005 |
CE90..4FC..(LX,MX,SE);AE91,95,CE96..4FC..(AV1,DX,G,MX,RVS,SE,XI,XL) DARK BEIGE,TRIM4# |
1 | ||
| 35971-1214005 |
AE95,CE96..4FC..(AV1,DX,RVS,XL) DARK BEIGE,TRIM4# |
1 | ||
| 35971-1214003 |
AE95,CE96..(V,WG)..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER | ||||
| 35973-12030 |
AE9#,CE9#..4FC |
1 | ||
| 35973-12030 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-12120 |
AE95..WG..4FC;AE91,92,CE9#..4FC |
1 | ||
| 35974-12120 |
AE9#,CE9#..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-1218003 |
AE91,95,CE90,96..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35975-1218004 |
AE91,95,CE90,96..4FC DARK BLUE,TRIM8# |
1 | ||
| 35975-12160 |
AE95..WG..4FC |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-12030 |
AE95..WG..4FC |
1 | ||
| 35976-1205003 |
AE91,95,CE90,96..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35976-1205004 |
AE91,95,CE90,96..4FC DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90179-08068 | ||||
| 90463-12570 | ||||
| 90949-01039 | ||||
| 91515-40820 | ||||
| 93315-15012 | ||||
| 93510-13010 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94611-10300 | ||||
| Linked diagrams | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
