AE95G-CWMNK (1988)
Toyota Sprinter

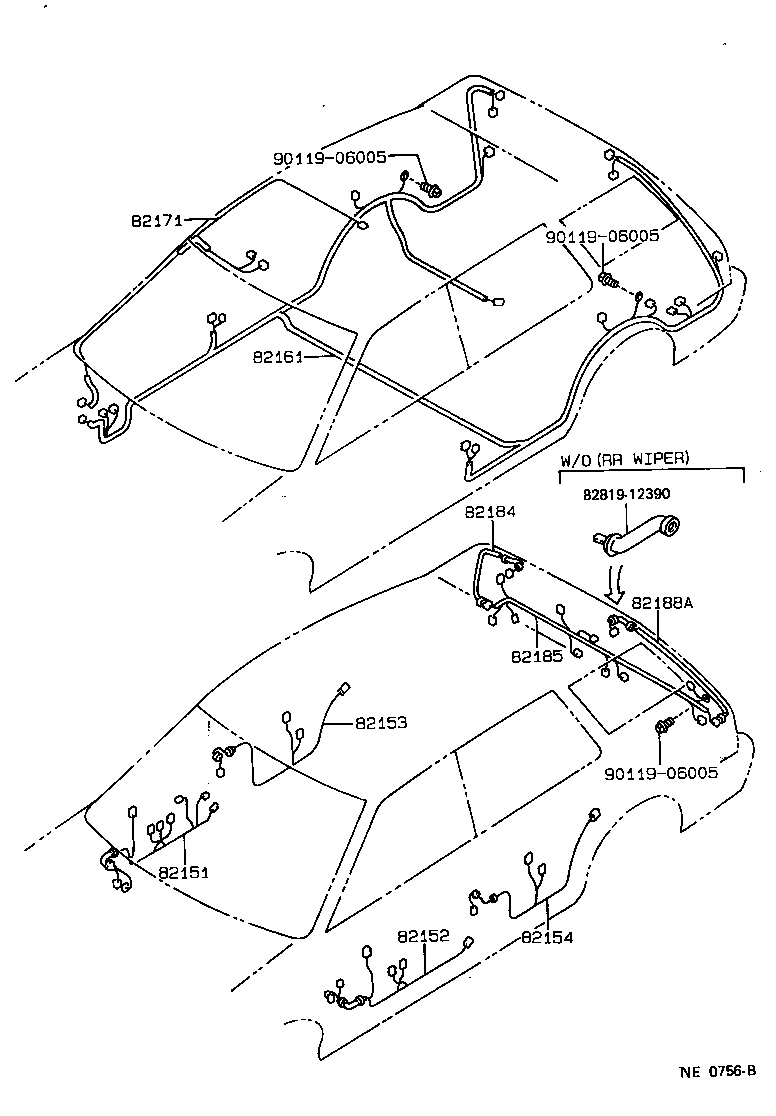

ILLUST NO. 2 OF 5(8802-9008)WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12260 |
CE90..SE;AE91..3FC..MX;AE91,EE90..G,LX,SE,XI;AE92,95..AV2,GT,MX,RVS,SE |
1 | ||
| 82151-12300 |
AE9#..AV2,G,GT,XI ｱﾘ(*PW) |
1 | ||
| 82151-12260 |
AE91..XI;AE91,EE90..(G,LX,MX,SE)..CBR;AE92,95,CE90..AV2,GT,MX,RVS,SE |
1 | ||
| 82151-12260 |
AE91..XS;AE9#,CE90,EE90..(AV2,GT,MX,RVS,SE)..(CBR,DSL,EFI) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12400 |
CE90..SE;AE91..3FC..MX;AE91,EE90..G,LX,SE,XI;AE92,95..AV2,GT,MX,RVS,SE |
1 | ||
| 82152-12210 |
AE9#..AV2,G,GT,XI ｱﾘ(*PW) |
1 | ||
| 82152-12400 |
AE91..XI;AE91,EE90..(G,LX,MX,SE)..CBR;AE92,95,CE90..AV2,GT,MX,RVS,SE |
1 | ||
| 82152-12400 |
AE91..XS;AE9#,CE90,EE90..(AV2,GT,MX,RVS,SE)..(CBR,DSL,EFI) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12150 |
AE9#,CE90,EE90..G,GT,MX,XS |
1 | ||
| 82153-12080 |
AE91..SE..EFI;AE9#..AV2,G,GT,XI |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12070 |
AE91..SE..EFI;AE9#..AV2,G,GT,XI |
1 | ||
| 82154-12150 |
AE9#,CE90,EE90..G,GT,MX,XS |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1E190 |
AE95..AV2,RVS |
1 | ||
| 82161-1H200 |
AE95..AV1,RVS |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12410 |
AE95..AV2,RVS ｱﾘ(ｻﾝ ﾙ-ﾌ) |
1 | ||
| 82171-12400 |
AE95..WG |
1 | ||
| 82171-12270 |
AE95..WG |
1 | ||
| 82171-12280 |
AE95..AV2,RVS ｱﾘ(ｻﾝ ﾙ-ﾌ) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-12270 |
AE95..EFI |
1 | ||
| 82184-12280 |
AE95..WG |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-12240 |
AE95..RVS ｱﾘ(*BDEL) |
1 | ||
| 82185-12370 |
AE95..RVS |
1 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-12010 |
AE95..RVS |
1 | ||
| 82188-12020 |
AE95..AV1,RVS ｱﾘ(*BDEL) |
1 | ||
| 82188-12010 |
AE95..WG |
1 | ||
| Common parts | ||||
| 82819-12390 | ||||
| 90119-06005 | ||||
