Toyota Sprinter AE95 FRONT DOOR PANEL & GLASS

Manufacturers Home
Toyota
JP
SPRINTER
AE95G-CWMNK (1988)
6701 - FRONT DOOR PANEL & GLASS

AE95G-CWMNK (1988)

Toyota Sprinter

Production Feb 1988 - Sep 1990

Engine 4AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

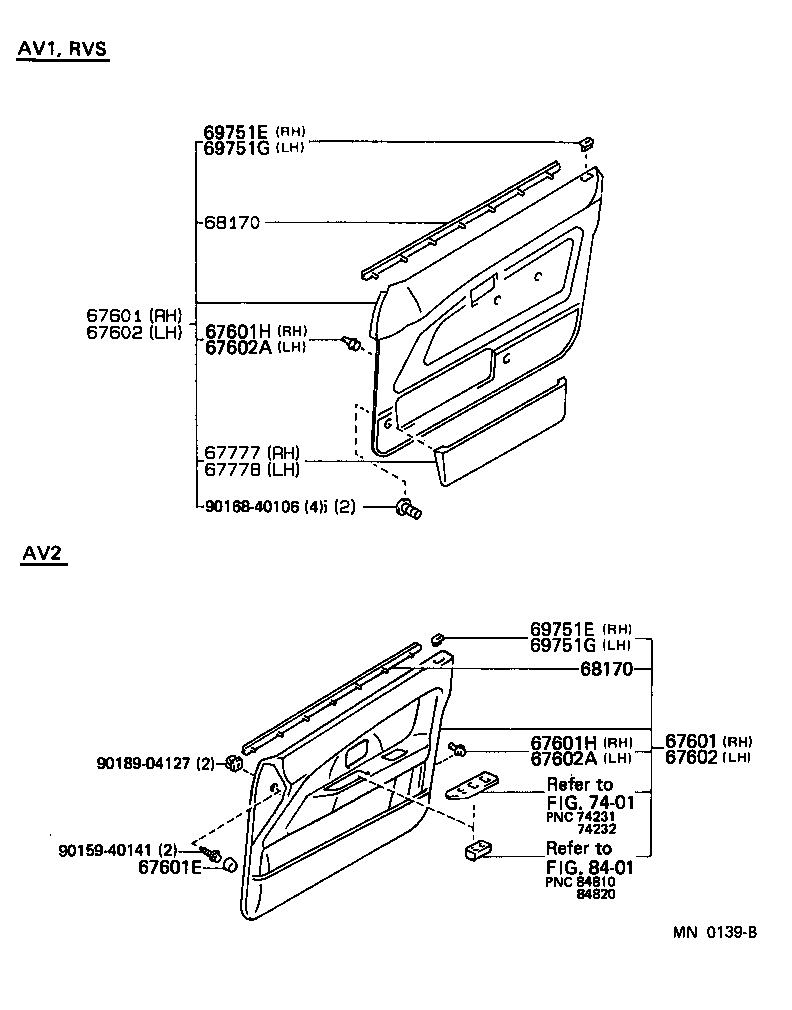

ILLUST NO. 2 OF 2(8905- )G,GT,SE,XS

Click highlighted areas on diagram

Part #	Description	Period	Qty
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1E26005	AE95..RVS DARK BEIGE,TRIM4#	02/1988 - 08/1989	1
67610-1E26003	AE95..RVS SHADOW GRAY,TRIM1#	02/1988 - 09/1990	1
67610-1E26004	AE95..RVS DARK BLUE,TRIM8#	08/1989 - 09/1990	1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1E26005	AE95..RVS DARK BEIGE,TRIM4#	02/1988 - 08/1989	1
67610-1E26003	AE95..RVS SHADOW GRAY,TRIM1#	02/1988 - 09/1990	1
67610-1E26004	AE95..RVS DARK BLUE,TRIM8#	08/1989 - 09/1990	1
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
90339-1000205	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	2
90339-1000213	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	05/1987 - 08/1990	2
90339-10002J1	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	2
90339-10002E1	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 05/1989	2
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
90339-1000205	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	2
90339-1000213	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	05/1987 - 08/1990	2
90339-10002J1	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	2
90339-10002E1	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 05/1989	2
67601H - RETAINER, DOOR TRIM, RH
67771-12040	AE9#,CE90..G,GT,SE,XI	05/1987 - 09/1987	8
67771-89104	AE91..SE..EFI;AE9#..AV2,G,GT,XI WHITE	10/1988 - 05/1989	3
67771-12050	AE9#,CE90..AV2,G,GT,SE,XS ﾚｯﾄﾞ	05/1989 - 10/1989	5
67771-12050	AE91..SE..EFI;AE9#..AV2,G,GT,XI ﾚｯﾄﾞ	10/1988 - 05/1989	5
67771-12040	AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS	05/1987 - 06/1991	10
67771-89104	AE9#,CE90..AV2,G,GT,SE,XS WHITE	05/1989 - 10/1989	3
67601H - RETAINER, DOOR TRIM, RH
67771-12040	AE9#,CE90..G,GT,SE,XI	05/1987 - 09/1987	8
67771-89104	AE91..SE..EFI;AE9#..AV2,G,GT,XI WHITE	10/1988 - 05/1989	3
67771-12050	AE9#,CE90..AV2,G,GT,SE,XS ﾚｯﾄﾞ	05/1989 - 10/1989	5
67771-12050	AE91..SE..EFI;AE9#..AV2,G,GT,XI ﾚｯﾄﾞ	10/1988 - 05/1989	5
67771-12040	AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS	05/1987 - 06/1991	10
67771-89104	AE9#,CE90..AV2,G,GT,SE,XS WHITE	05/1989 - 10/1989	3
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1H42005	AE95..RVS DARK BEIGE,TRIM4#	02/1988 - 08/1989	1
67620-1H42003	AE95..RVS SHADOW GRAY,TRIM1#	02/1988 - 09/1990	1
67620-1H42004	AE95..RVS DARK BLUE,TRIM8#	08/1989 - 09/1990	1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1H42005	AE95..RVS DARK BEIGE,TRIM4#	02/1988 - 08/1989	1
67620-1H42003	AE95..RVS SHADOW GRAY,TRIM1#	02/1988 - 09/1990	1
67620-1H42004	AE95..RVS DARK BLUE,TRIM8#	08/1989 - 09/1990	1
67602A - RETAINER, DOOR TRIM, LH
67771-12040	AE9#,CE90..G,GT,SE,XI	05/1987 - 09/1987	8
67771-12040	AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS	05/1987 - 06/1991	10
67771-89104	AE9#,CE90..AV2,G,GT,SE,XS WHITE	05/1989 - 10/1989	3
67771-12050	AE9#,CE90..AV2,G,GT,SE,XS ﾚｯﾄﾞ	05/1989 - 10/1989	5
67602A - RETAINER, DOOR TRIM, LH
67771-12040	AE9#,CE90..G,GT,SE,XI	05/1987 - 09/1987	8
67771-12040	AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS	05/1987 - 06/1991	10
67771-89104	AE9#,CE90..AV2,G,GT,SE,XS WHITE	05/1989 - 10/1989	3
67771-12050	AE9#,CE90..AV2,G,GT,SE,XS ﾚｯﾄﾞ	05/1989 - 10/1989	5
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12130	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 左側	05/1987 - 01/1989	1
68172-12110	AE9#,CE90..G,GT,SE,XI,XS 左側	05/1987 - 08/1989	1
68171-12180	AE9#,CE90..G,GT,SE,XI,XS 右側	05/1987 - 08/1989	1
68171-12200	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 右側	05/1987 - 01/1989	1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12130	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 左側	05/1987 - 01/1989	1
68172-12110	AE9#,CE90..G,GT,SE,XI,XS 左側	05/1987 - 08/1989	1
68171-12180	AE9#,CE90..G,GT,SE,XI,XS 右側	05/1987 - 08/1989	1
68171-12200	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 右側	05/1987 - 01/1989	1
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-3201005	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	1
69751-2006025	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	05/1987 - 10/1988	1
69751-2006003	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-32010E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 10/1988	1
69751-3201013	AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-1204003	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	10/1988 - 09/1990	1
69751-1203005	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-12040E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-12040J0	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	1
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-3201005	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	1
69751-2006025	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	05/1987 - 10/1988	1
69751-2006003	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-32010E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 10/1988	1
69751-3201013	AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-1204003	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	10/1988 - 09/1990	1
69751-1203005	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-12040E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-12040J0	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	1
69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-2006003	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-3201005	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	1
69751-3201013	AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-12040E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-2006025	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	05/1987 - 10/1988	1
69751-32010E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 10/1988	1
69751-12040J0	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	1
69751-1204003	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	10/1988 - 09/1990	1
69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-2006003	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-3201005	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	1
69751-3201013	AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-12040E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-2006025	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	05/1987 - 10/1988	1
69751-32010E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 10/1988	1
69751-12040J0	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	1
69751-1204003	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	10/1988 - 09/1990	1
Common parts
90159-40141
90189-04127
Linked diagrams
7401
8401

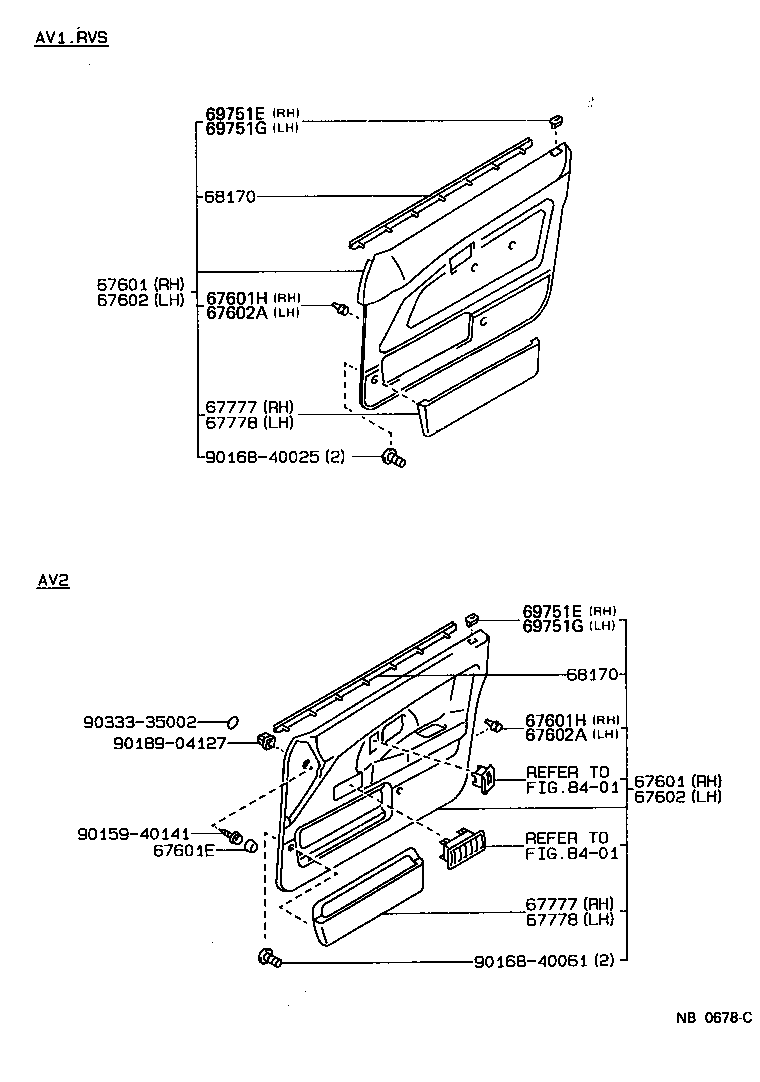

ILLUST NO. 2 OF 2(8908- )WG

Click highlighted areas on diagram

Part #	Description	Period	Qty
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1E26005	AE95..RVS DARK BEIGE,TRIM4#	02/1988 - 08/1989	1
67610-1E26003	AE95..RVS SHADOW GRAY,TRIM1#	02/1988 - 09/1990	1
67610-1E26004	AE95..RVS DARK BLUE,TRIM8#	08/1989 - 09/1990	1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1E26005	AE95..RVS DARK BEIGE,TRIM4#	02/1988 - 08/1989	1
67610-1E26003	AE95..RVS SHADOW GRAY,TRIM1#	02/1988 - 09/1990	1
67610-1E26004	AE95..RVS DARK BLUE,TRIM8#	08/1989 - 09/1990	1
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
90339-1000205	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	2
90339-1000213	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	05/1987 - 08/1990	2
90339-10002J1	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	2
90339-10002E1	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 05/1989	2
67601H - RETAINER, DOOR TRIM, RH
67771-12040	AE9#,CE90..G,GT,SE,XI	05/1987 - 09/1987	8
67771-89104	AE91..SE..EFI;AE9#..AV2,G,GT,XI WHITE	10/1988 - 05/1989	3
67771-12050	AE9#,CE90..AV2,G,GT,SE,XS ﾚｯﾄﾞ	05/1989 - 10/1989	5
67771-12050	AE91..SE..EFI;AE9#..AV2,G,GT,XI ﾚｯﾄﾞ	10/1988 - 05/1989	5
67771-12040	AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS	05/1987 - 06/1991	10
67771-89104	AE9#,CE90..AV2,G,GT,SE,XS WHITE	05/1989 - 10/1989	3
67601H - RETAINER, DOOR TRIM, RH
67771-12040	AE9#,CE90..G,GT,SE,XI	05/1987 - 09/1987	8
67771-89104	AE91..SE..EFI;AE9#..AV2,G,GT,XI WHITE	10/1988 - 05/1989	3
67771-12050	AE9#,CE90..AV2,G,GT,SE,XS ﾚｯﾄﾞ	05/1989 - 10/1989	5
67771-12050	AE91..SE..EFI;AE9#..AV2,G,GT,XI ﾚｯﾄﾞ	10/1988 - 05/1989	5
67771-12040	AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS	05/1987 - 06/1991	10
67771-89104	AE9#,CE90..AV2,G,GT,SE,XS WHITE	05/1989 - 10/1989	3
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1H42005	AE95..RVS DARK BEIGE,TRIM4#	02/1988 - 08/1989	1
67620-1H42003	AE95..RVS SHADOW GRAY,TRIM1#	02/1988 - 09/1990	1
67620-1H42004	AE95..RVS DARK BLUE,TRIM8#	08/1989 - 09/1990	1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1H42005	AE95..RVS DARK BEIGE,TRIM4#	02/1988 - 08/1989	1
67620-1H42003	AE95..RVS SHADOW GRAY,TRIM1#	02/1988 - 09/1990	1
67620-1H42004	AE95..RVS DARK BLUE,TRIM8#	08/1989 - 09/1990	1
67602A - RETAINER, DOOR TRIM, LH
67771-12040	AE9#,CE90..G,GT,SE,XI	05/1987 - 09/1987	8
67771-12040	AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS	05/1987 - 06/1991	10
67771-89104	AE9#,CE90..AV2,G,GT,SE,XS WHITE	05/1989 - 10/1989	3
67771-12050	AE9#,CE90..AV2,G,GT,SE,XS ﾚｯﾄﾞ	05/1989 - 10/1989	5
67602A - RETAINER, DOOR TRIM, LH
67771-12040	AE9#,CE90..G,GT,SE,XI	05/1987 - 09/1987	8
67771-12040	AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS	05/1987 - 06/1991	10
67771-89104	AE9#,CE90..AV2,G,GT,SE,XS WHITE	05/1989 - 10/1989	3
67771-12050	AE9#,CE90..AV2,G,GT,SE,XS ﾚｯﾄﾞ	05/1989 - 10/1989	5
67777 - POCKET, FRONT DOOR TRIM, RH
67777-1207005	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	05/1987 - 05/1989	1
67777-1207003	AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 06/1991	1
67777-1207005	AE95..AV1,RVS DARK BEIGE,TRIM4#	05/1989 - 08/1989	1
67778 - POCKET, FRONT DOOR TRIM, LH
67777-1207005	AE95..RVS DARK BEIGE,TRIM4#	05/1989 - 08/1989	1
67777-1207003	AE91,95,CE90,95,EE90..MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 06/1991	1
67777-1207005	AE91,95,CE90,EE90..MX,RVS DARK BEIGE,TRIM4#	05/1987 - 05/1989	1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12130	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 左側	05/1987 - 01/1989	1
68172-12110	AE9#,CE90..G,GT,SE,XI,XS 左側	05/1987 - 08/1989	1
68171-12180	AE9#,CE90..G,GT,SE,XI,XS 右側	05/1987 - 08/1989	1
68171-12200	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 右側	05/1987 - 01/1989	1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12130	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 左側	05/1987 - 01/1989	1
68172-12110	AE9#,CE90..G,GT,SE,XI,XS 左側	05/1987 - 08/1989	1
68171-12180	AE9#,CE90..G,GT,SE,XI,XS 右側	05/1987 - 08/1989	1
68171-12200	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 右側	05/1987 - 01/1989	1
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-3201005	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	1
69751-2006025	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	05/1987 - 10/1988	1
69751-2006003	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-32010E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 10/1988	1
69751-3201013	AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-1204003	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	10/1988 - 09/1990	1
69751-1203005	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-12040E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-12040J0	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	1
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-3201005	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	1
69751-2006025	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	05/1987 - 10/1988	1
69751-2006003	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-32010E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 10/1988	1
69751-3201013	AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-1204003	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	10/1988 - 09/1990	1
69751-1203005	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-12040E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-12040J0	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	1
69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-2006003	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-3201005	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	1
69751-3201013	AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-12040E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-2006025	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	05/1987 - 10/1988	1
69751-32010E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 10/1988	1
69751-12040J0	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	1
69751-1204003	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	10/1988 - 09/1990	1
69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-2006003	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-3201005	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	1
69751-3201013	AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-12040E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-2006025	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	05/1987 - 10/1988	1
69751-32010E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 10/1988	1
69751-12040J0	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	1
69751-1204003	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	10/1988 - 09/1990	1
Common parts
90159-40141
90168-40106
90189-04127
Linked diagrams
7401
8401

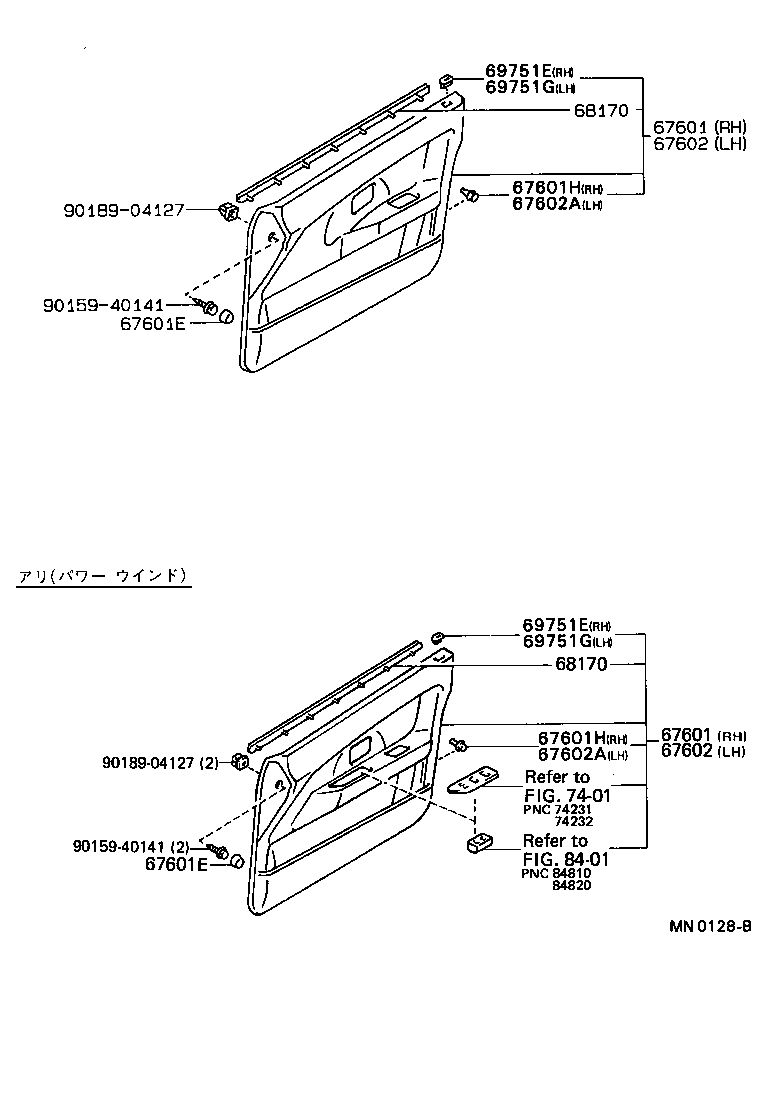

ILLUST NO. 2 OF 2(8802-8908)WG

Click highlighted areas on diagram

Part #	Description	Period	Qty
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1E26005	AE95..RVS DARK BEIGE,TRIM4#	02/1988 - 08/1989	1
67610-1E26003	AE95..RVS SHADOW GRAY,TRIM1#	02/1988 - 09/1990	1
67610-1E26004	AE95..RVS DARK BLUE,TRIM8#	08/1989 - 09/1990	1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1E26005	AE95..RVS DARK BEIGE,TRIM4#	02/1988 - 08/1989	1
67610-1E26003	AE95..RVS SHADOW GRAY,TRIM1#	02/1988 - 09/1990	1
67610-1E26004	AE95..RVS DARK BLUE,TRIM8#	08/1989 - 09/1990	1
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
90339-1000205	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	2
90339-1000213	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	05/1987 - 08/1990	2
90339-10002J1	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	2
90339-10002E1	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 05/1989	2
67601H - RETAINER, DOOR TRIM, RH
67771-12040	AE9#,CE90..G,GT,SE,XI	05/1987 - 09/1987	8
67771-89104	AE91..SE..EFI;AE9#..AV2,G,GT,XI WHITE	10/1988 - 05/1989	3
67771-12050	AE9#,CE90..AV2,G,GT,SE,XS ﾚｯﾄﾞ	05/1989 - 10/1989	5
67771-12050	AE91..SE..EFI;AE9#..AV2,G,GT,XI ﾚｯﾄﾞ	10/1988 - 05/1989	5
67771-12040	AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS	05/1987 - 06/1991	10
67771-89104	AE9#,CE90..AV2,G,GT,SE,XS WHITE	05/1989 - 10/1989	3
67601H - RETAINER, DOOR TRIM, RH
67771-12040	AE9#,CE90..G,GT,SE,XI	05/1987 - 09/1987	8
67771-89104	AE91..SE..EFI;AE9#..AV2,G,GT,XI WHITE	10/1988 - 05/1989	3
67771-12050	AE9#,CE90..AV2,G,GT,SE,XS ﾚｯﾄﾞ	05/1989 - 10/1989	5
67771-12050	AE91..SE..EFI;AE9#..AV2,G,GT,XI ﾚｯﾄﾞ	10/1988 - 05/1989	5
67771-12040	AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS	05/1987 - 06/1991	10
67771-89104	AE9#,CE90..AV2,G,GT,SE,XS WHITE	05/1989 - 10/1989	3
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1H42005	AE95..RVS DARK BEIGE,TRIM4#	02/1988 - 08/1989	1
67620-1H42003	AE95..RVS SHADOW GRAY,TRIM1#	02/1988 - 09/1990	1
67620-1H42004	AE95..RVS DARK BLUE,TRIM8#	08/1989 - 09/1990	1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1H42005	AE95..RVS DARK BEIGE,TRIM4#	02/1988 - 08/1989	1
67620-1H42003	AE95..RVS SHADOW GRAY,TRIM1#	02/1988 - 09/1990	1
67620-1H42004	AE95..RVS DARK BLUE,TRIM8#	08/1989 - 09/1990	1
67602A - RETAINER, DOOR TRIM, LH
67771-12040	AE9#,CE90..G,GT,SE,XI	05/1987 - 09/1987	8
67771-12040	AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS	05/1987 - 06/1991	10
67771-89104	AE9#,CE90..AV2,G,GT,SE,XS WHITE	05/1989 - 10/1989	3
67771-12050	AE9#,CE90..AV2,G,GT,SE,XS ﾚｯﾄﾞ	05/1989 - 10/1989	5
67602A - RETAINER, DOOR TRIM, LH
67771-12040	AE9#,CE90..G,GT,SE,XI	05/1987 - 09/1987	8
67771-12040	AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS	05/1987 - 06/1991	10
67771-89104	AE9#,CE90..AV2,G,GT,SE,XS WHITE	05/1989 - 10/1989	3
67771-12050	AE9#,CE90..AV2,G,GT,SE,XS ﾚｯﾄﾞ	05/1989 - 10/1989	5
67777 - POCKET, FRONT DOOR TRIM, RH
67777-1207005	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	05/1987 - 05/1989	1
67777-1207003	AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 06/1991	1
67777-1207005	AE95..AV1,RVS DARK BEIGE,TRIM4#	05/1989 - 08/1989	1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-1207005	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	05/1987 - 05/1989	1
67777-1207003	AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 06/1991	1
67777-1207005	AE95..AV1,RVS DARK BEIGE,TRIM4#	05/1989 - 08/1989	1
67778 - POCKET, FRONT DOOR TRIM, LH
67777-1207005	AE95..RVS DARK BEIGE,TRIM4#	05/1989 - 08/1989	1
67777-1207003	AE91,95,CE90,95,EE90..MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 06/1991	1
67777-1207005	AE91,95,CE90,EE90..MX,RVS DARK BEIGE,TRIM4#	05/1987 - 05/1989	1
67778 - POCKET, FRONT DOOR TRIM, LH
67777-1207005	AE95..RVS DARK BEIGE,TRIM4#	05/1989 - 08/1989	1
67777-1207003	AE91,95,CE90,95,EE90..MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 06/1991	1
67777-1207005	AE91,95,CE90,EE90..MX,RVS DARK BEIGE,TRIM4#	05/1987 - 05/1989	1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12130	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 左側	05/1987 - 01/1989	1
68172-12110	AE9#,CE90..G,GT,SE,XI,XS 左側	05/1987 - 08/1989	1
68171-12180	AE9#,CE90..G,GT,SE,XI,XS 右側	05/1987 - 08/1989	1
68171-12200	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 右側	05/1987 - 01/1989	1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12130	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 左側	05/1987 - 01/1989	1
68172-12110	AE9#,CE90..G,GT,SE,XI,XS 左側	05/1987 - 08/1989	1
68171-12180	AE9#,CE90..G,GT,SE,XI,XS 右側	05/1987 - 08/1989	1
68171-12200	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 右側	05/1987 - 01/1989	1
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-3201005	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	1
69751-2006025	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	05/1987 - 10/1988	1
69751-2006003	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-32010E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 10/1988	1
69751-3201013	AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-1204003	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	10/1988 - 09/1990	1
69751-1203005	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-12040E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-12040J0	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	1
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-3201005	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	1
69751-2006025	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	05/1987 - 10/1988	1
69751-2006003	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-32010E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 10/1988	1
69751-3201013	AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-1204003	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	10/1988 - 09/1990	1
69751-1203005	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-12040E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-12040J0	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	1
69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-2006003	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-3201005	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	1
69751-3201013	AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-12040E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-2006025	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	05/1987 - 10/1988	1
69751-32010E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 10/1988	1
69751-12040J0	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	1
69751-1204003	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	10/1988 - 09/1990	1
69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-2006003	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-3201005	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	05/1987 - 09/1988	1
69751-3201013	AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1#	05/1987 - 10/1988	1
69751-12040E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	10/1988 - 05/1989	1
69751-2006025	AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4#	05/1987 - 10/1988	1
69751-32010E0	AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4#	09/1988 - 10/1988	1
69751-12040J0	AE91,95,CE90..G,SE,XS DARK BLUE,TRIM8#	05/1989 - 08/1989	1
69751-1204003	AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1#	10/1988 - 09/1990	1
Common parts
90159-40141
90168-40025
90168-40061
90189-04127
90333-35002
Linked diagrams
8401

AE95G-CWMNK (1988)

ILLUST NO. 2 OF 2(8905- )G,GT,SE,XS

ILLUST NO. 2 OF 2(8908- )WG

ILLUST NO. 2 OF 2(8802-8908)WG

Part Price Details
