AE95-BEPNK (1989)
Toyota Sprinter

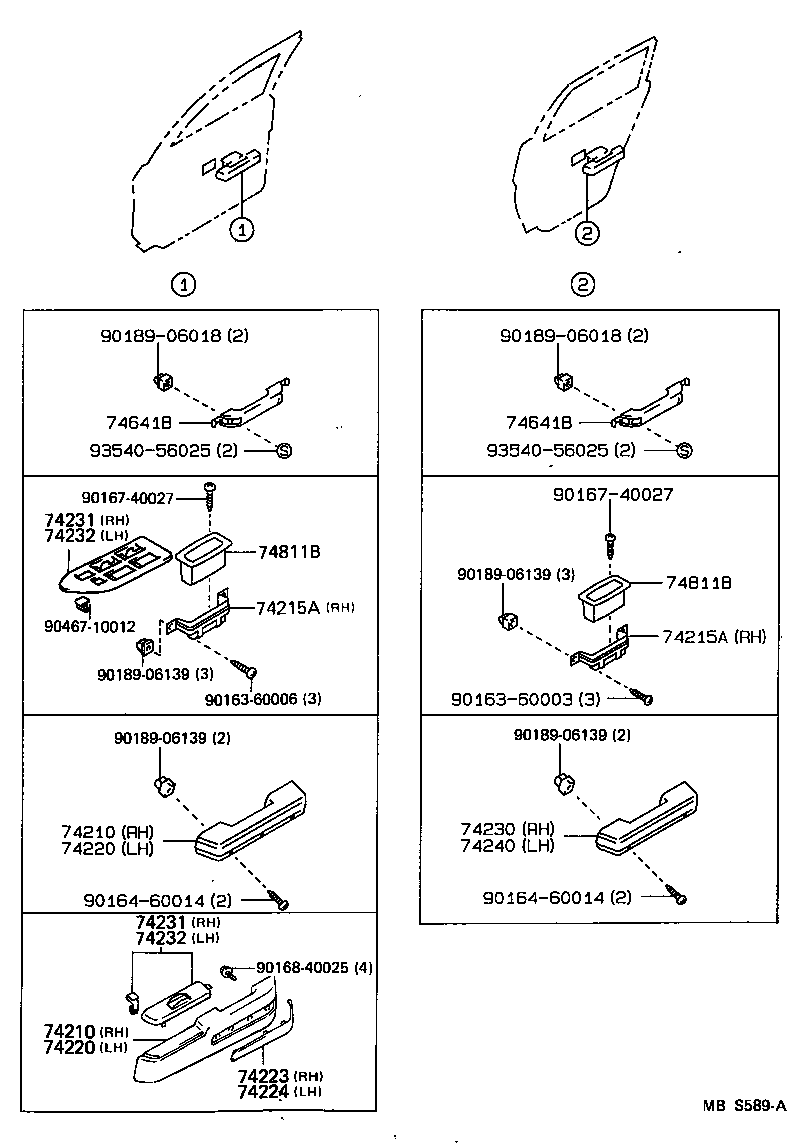

ILLUST NO. 1 OF 2(8905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-2206122 |
AE91,95,CE90,EE90..MX MAROON,TRIM3# |
1 | ||
| 74210-2206125 |
AE91,95,CE90,EE90..MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 74210-2206124 |
AE91,95,CE90,EE90..MX DARK BLUE,TRIM8# |
1 | ||
| 74210-1213004 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74210-1213003 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 74210-2206123 |
AE91,95,CE90,95,EE90..MX,RVS GRAY,TRIM1# |
1 | ||
| 74210-12130D0 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),MAROON,TRIM3# |
1 | ||
| 74210-2206124 |
AE91,95,CE90,95,EE90..MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 74210-12130J0 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74210-2206122 |
AE91,95,CE90,95,EE90..MX MAROON,TRIM3# |
1 | ||
| 74210-12130B0 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1#,3# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-2206122 |
AE91,95,CE90,EE90..MX MAROON,TRIM3# |
1 | ||
| 74210-2206125 |
AE91,95,CE90,EE90..MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 74210-2206124 |
AE91,95,CE90,EE90..MX DARK BLUE,TRIM8# |
1 | ||
| 74210-1213004 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74210-1213003 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 74210-2206123 |
AE91,95,CE90,95,EE90..MX,RVS GRAY,TRIM1# |
1 | ||
| 74210-12130D0 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),MAROON,TRIM3# |
1 | ||
| 74210-2206124 |
AE91,95,CE90,95,EE90..MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 74210-12130J0 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74210-2206122 |
AE91,95,CE90,95,EE90..MX MAROON,TRIM3# |
1 | ||
| 74210-12130B0 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1#,3# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-2206125 |
AE91,95,CE90,EE90..MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 74210-2206122 |
AE91,95,CE90,EE90..MX MAROON,TRIM3# |
1 | ||
| 74210-2206124 |
AE91,95,CE90,EE90..MX DARK BLUE,TRIM8# |
1 | ||
| 74210-2206123 |
AE91,95,CE90,95,EE90..MX,RVS GRAY,TRIM1# |
1 | ||
| 74220-1207003 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 74220-1207002 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),MAROON,TRIM3# |
1 | ||
| 74220-12070J0 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74220-1207004 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74210-2206124 |
AE91,95,CE90,95,EE90..MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 74210-2206122 |
AE91,95,CE90,95,EE90..MX MAROON,TRIM3# |
1 | ||
| 74220-12070B0 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 74220-12070D0 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),MAROON,TRIM3# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-2206125 |
AE91,95,CE90,EE90..MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 74210-2206122 |
AE91,95,CE90,EE90..MX MAROON,TRIM3# |
1 | ||
| 74210-2206124 |
AE91,95,CE90,EE90..MX DARK BLUE,TRIM8# |
1 | ||
| 74210-2206123 |
AE91,95,CE90,95,EE90..MX,RVS GRAY,TRIM1# |
1 | ||
| 74220-1207003 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 74220-1207002 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),MAROON,TRIM3# |
1 | ||
| 74220-12070J0 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74220-1207004 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74210-2206124 |
AE91,95,CE90,95,EE90..MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 74210-2206122 |
AE91,95,CE90,95,EE90..MX MAROON,TRIM3# |
1 | ||
| 74220-12070B0 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 74220-12070D0 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),MAROON,TRIM3# |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-1208003 |
AE91,95,CE90,EE90..MX SHADOW GRAY,TRIM1# |
1 | ||
| 74223-1208002 |
AE91,95,CE90,95,EE90..MX MAROON,TRIM3# |
1 | ||
| 74223-1208004 |
AE91,95,CE90,EE90..MX DARK BLUE,TRIM8# |
1 | ||
| 74223-12080D0 |
AE91,95,CE90,95,EE90..MX MAROON,TRIM3# |
1 | ||
| 74223-12080J0 |
AE91,95,CE90,95,EE90..MX DARK BLUE,TRIM8# |
1 | ||
| 74223-1208002 |
AE91,95,CE90,EE90..MX MAROON,TRIM3# |
1 | ||
| 74223-1208003 |
AE91,95,CE90,95,EE90..MX SHADOW GRAY,TRIM1# |
1 | ||
| 74223-12080B0 |
AE91,95,CE90,95,EE90..MX SHADOW GRAY,TRIM1# |
1 | ||
| 74223-1208004 |
AE91,95,CE90,95,EE90..MX DARK BLUE,TRIM8# |
1 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74224-1203002 |
AE91,95,CE90,95,EE90..MX MAROON,TRIM3# |
1 | ||
| 74224-12030J0 |
AE91,95,CE90,95,EE90..MX DARK BLUE,TRIM8# |
1 | ||
| 74224-1203004 |
AE91,95,CE90,95,EE90..MX DARK BLUE,TRIM8# |
1 | ||
| 74224-12030B0 |
AE91,95,CE90,95,EE90..MX SHADOW GRAY,TRIM1# |
1 | ||
| 74224-1203003 |
AE91,95,CE90,95,EE90..MX SHADOW GRAY,TRIM1# |
1 | ||
| 74224-1203004 |
AE91,95,CE90,EE90..MX DARK BLUE,TRIM8# |
1 | ||
| 74224-1203003 |
AE91,95,CE90,EE90..MX SHADOW GRAY,TRIM1# |
1 | ||
| 74224-12030D0 |
AE91,95,CE90,95,EE90..MX MAROON,TRIM3# |
1 | ||
| 74224-1203002 |
AE91,95,CE90,EE90..MX MAROON,TRIM3# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-1211003 |
AE91,95,CE90,95,EE90..AV1,DX,L,LX,MX,RVS GRAY,TRIM1# |
1 | ||
| 74210-1211002 |
AE91,95,CE90,EE90..MX MAROON,TRIM3# |
1 | ||
| 74210-1211024 |
AE91,95,CE90,EE90..DX,L,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 74210-1211005 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 74210-12110D0 |
AE91,95,CE90,95,EE90..MX MAROON,TRIM3# |
1 | ||
| 74210-12110J0 |
CE90,95,EE90..DX,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 74210-1211002 |
AE91,95,CE90,EE90..MX MAROON,TRIM3# |
1 | ||
| 74210-1211003 |
AE91,95,CE90,EE90..AV1,DX,L,LX,MX,RVS GRAY,TRIM1# |
1 | ||
| 74210-1211024 |
AE91,95,CE90,EE90..AV1,DX,L,LX,MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 74210-12110B1 |
CE90,95,EE90..DX,LX,MX SHADOW GRAY,TRIM1# |
1 | ||
| 74210-12110B1 |
AE95..LX,MX SHADOW GRAY,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-1204002 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),MAROON,TRIM3# |
1 | ||
| 74231-1204003 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 74231-1204004 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-1204002 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),MAROON,TRIM3# |
1 | ||
| 74231-1204003 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 74231-1204004 |
AE91,95,CE90,95,EE90..MX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-1203004 |
AE91,95,CE90,EE90..MX DARK BLUE,TRIM8# |
1 | ||
| 74232-1203003 |
AE91,95,CE90,EE90..MX SHADOW GRAY,TRIM1# |
1 | ||
| 74232-1203002 |
AE91,95,CE90,EE90..MX MAROON,TRIM3# |
1 | ||
| 74232-1203003 |
AE91,95,CE90,95,EE90..MX SHADOW GRAY,TRIM1# |
1 | ||
| 74232-1203004 |
AE91,95,CE90,95,EE90..MX DARK BLUE,TRIM8# |
1 | ||
| 74232-1203002 |
AE91,95,CE90,95,EE90..MX MAROON,TRIM3# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-1203004 |
AE91,95,CE90,EE90..MX DARK BLUE,TRIM8# |
1 | ||
| 74232-1203003 |
AE91,95,CE90,EE90..MX SHADOW GRAY,TRIM1# |
1 | ||
| 74232-1203002 |
AE91,95,CE90,EE90..MX MAROON,TRIM3# |
1 | ||
| 74232-1203003 |
AE91,95,CE90,95,EE90..MX SHADOW GRAY,TRIM1# |
1 | ||
| 74232-1203004 |
AE91,95,CE90,95,EE90..MX DARK BLUE,TRIM8# |
1 | ||
| 74232-1203002 |
AE91,95,CE90,95,EE90..MX MAROON,TRIM3# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-1211005 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 74210-1211024 |
AE91,95,CE90,EE90..DX,L,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 74210-1211002 |
AE91,95,CE90,EE90..MX MAROON,TRIM3# |
1 | ||
| 74210-1211002 |
AE91,95,CE90,EE90..MX MAROON,TRIM3# |
1 | ||
| 74210-1211003 |
AE91,95,CE90,EE90..AV1,DX,L,LX,MX,RVS GRAY,TRIM1# |
1 | ||
| 74210-12110B1 |
AE95..LX,MX SHADOW GRAY,TRIM1# |
1 | ||
| 74210-12110D0 |
AE91,95,CE90,95,EE90..MX MAROON,TRIM3# |
1 | ||
| 74210-1211024 |
AE91,95,CE90,EE90..AV1,DX,L,LX,MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 74210-1211003 |
AE91,95,CE90,95,EE90..AV1,DX,L,LX,MX,RVS GRAY,TRIM1# |
1 | ||
| 74210-12110J0 |
CE90,95,EE90..DX,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 74210-12110B1 |
CE90,95,EE90..DX,LX,MX SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90163-60003 | ||||
| 90163-60006 | ||||
| 90164-60014 | ||||
| 90167-40027 | ||||
| 90168-40025 | ||||
| 90189-06018 | ||||
| 90189-06139 | ||||
| 90467-10012 | ||||
| 93540-56025 | ||||
