AE95-BEPEU (1987)
Toyota Sprinter

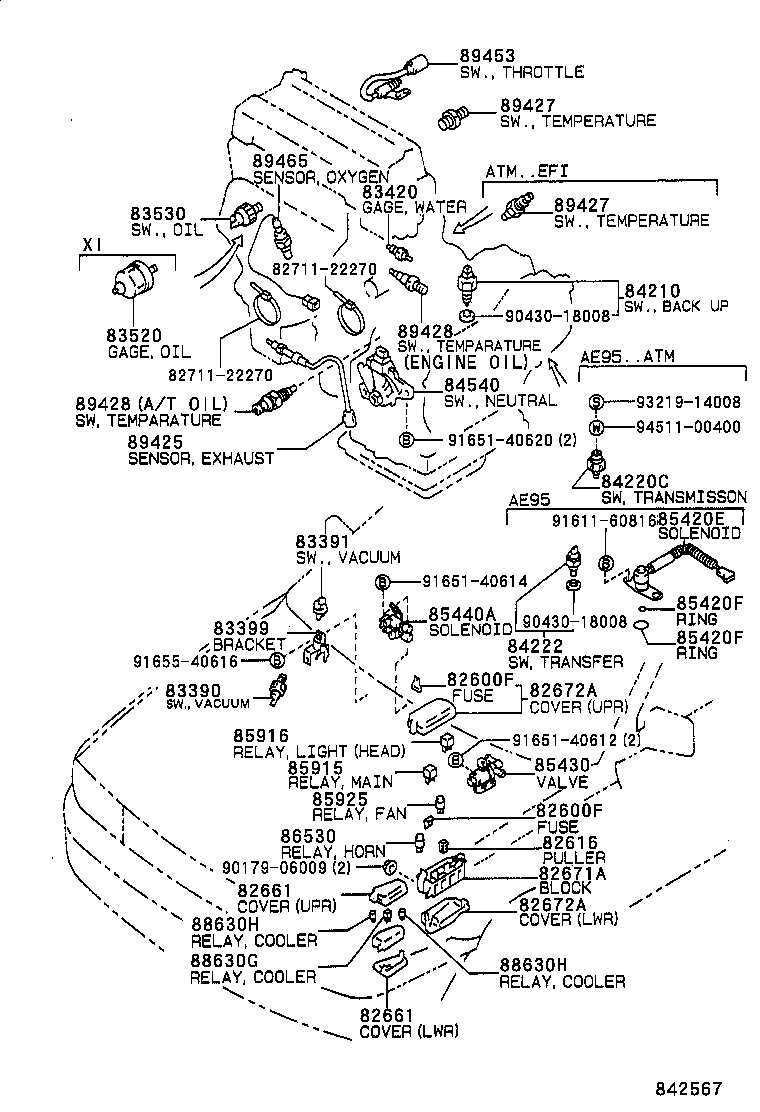

(8705-8905)AE91,95..4D,5D ; (8802-8908)WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09004 |
AE9#,CE90..G,GT,SE,XI 20A,黄 |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09004 |
AE9#,CE90..G,GT,SE,XI 20A,黄 |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12140 |
AE9#,CE9#,EE9# 上側 |
1 | ||
| 82661-12160 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12140 |
AE9#,CE9#,EE9# 上側 |
1 | ||
| 82661-12160 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12050 |
AE91,95,EE9#..CBR LPG ﾊﾞﾝ |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12010 |
AE91,95,EE9#..CBR 上側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12010 |
AE91,95,EE9#..CBR 上側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12210 |
AE95..CBR |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-12120 |
AE91,95..CBR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AE91,95,EE9# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30050 |
AE91,95 |
1 | ||
| 83530-30050 |
AE91,95..AV1,AV2,DX,G,L,LX,MX,RVS,SE |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16030 |
AE91,95,CE90,96,EE9#..ATM |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09036 |
AE91,95..CBR |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE9#,CE9#,EE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO,TAIL |
1 | ||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE9#,EE9# HEAD |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE9#,CE9#,EE9# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO |
1 | ||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE9#,CE90..AV2,G,GT,SE,XI |
2 | ||
| 90987-02004 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE9#,CE90..AV2,G,GT,SE,XI |
2 | ||
| 90987-02004 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI |
2 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12210 |
AE91,95..CBR,EFI |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12090 |
AE91,95..4FC |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12090 |
AE91,95..4FC |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AE9# ENGINE OIL TEMP. |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AE9# ENGINE OIL TEMP. |
1 | ||
| 89453 - SWITCH, THROTTLE POSITION (FOR T.C.S.) | ||||
| 89453-12030 |
AE91,95..CBR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12080 |
AE91,95..CBR |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90179-06009 | ||||
| 90430-18008 | ||||
| 91611-60816 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
| 93219-14008 | ||||
| 94511-00400 | ||||
(8705-8905)4D,5D ; (8708-8908)CE96,EE96,98 ; (8802-8908)WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80007 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84112-80005 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12210 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84140-12220 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12860 |
AE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..AV2,GT,SE |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE9#,CE90,EE90 MATSUSHITA |
1 | ||
| 84312-12040 |
AE9#,CE90,EE90 東海理化 |
1 | ||
| 84312-12040 |
AE9#,CE9#,EE9#..AV1,AV2,DX,G,GT,LX,SE,STD,XI 東海理化 |
1 | ||
| 84312-12050 |
AE9#,CE9#,EE9#..AV1,AV2,DX,G,GT,LX,SE,STD,XI MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AE9#,CE90,EE90 |
1 | ||
| 84329-12010 |
AE9#,CE9#,EE9#..AV1,AV2,DX,G,GT,LX,SE,STD,XI |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12250 |
AE91,95..CBR |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE9#,CE9#,EE9# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12470 |
AE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..AV2,GT,SE MATSUSHITA |
1 | ||
| 84652-12700 |
AE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..AV2,GT,SE 東海理化 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20090 |
AE91,95,CE90..G,SE |
1 | ||
| 84660-20090 |
AE91..XI;AE91..(G,L,LX,MX,SE)..CBR;AE92,95,CE90..AV2,GT,LX,MX,SE |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12250 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12250 |
AE9#,CE90..AV2,G,GT,SE,XI ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12260 |
AE91,95,CE90..SE..(CBR,DSL) SE ｻﾙ-ﾝ |
1 | ||
| 84732-12250 |
AE91..XI;AE91..(G,L,LX,MX,SE)..CBR;AE92,95,CE90..AV2,GT,LX,MX,SE ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12230 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12250 |
AE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12250 |
AE9#,CE90..AV2,G,GT,SE,XI ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12260 |
AE91,95,CE90..SE..(CBR,DSL) SE ｻﾙ-ﾝ |
1 | ||
| 84732-12250 |
AE91..XI;AE91..(G,L,LX,MX,SE)..CBR;AE92,95,CE90..AV2,GT,LX,MX,SE ｱﾘ(*LHC & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12230 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# 14V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1206005 |
CE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI 1 HOLE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1206003 |
AE91,95,CE9#,EE9# 1 HOLE,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1206002 |
AE91,95,CE90,EE90..MX,SE MAROON,TRIM3# |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1206005 |
CE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI 1 HOLE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1206003 |
AE91,95,CE9#,EE9# 1 HOLE,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1206002 |
AE91,95,CE90,EE90..MX,SE MAROON,TRIM3# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-1222002 |
AE91,95,CE90,EE90..MX,SE MAROON,TRIM3# |
1 | ||
| 84790-1222003 |
EE98..MTM;EE98..3FC..XL;CE96,EE96..STD,XL;AE91,95,CE90,EE90..AV1,DX,LX,MX,SE SHADOW GRAY,TRIM1# |
1 | ||
| 84790-1222005 |
EE98..MTM;EE98..3FC..XL;AE91,95,CE9#,EE90,96..AV1,LX,MX,SE,XL DARK BEIGE,TRIM4# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE9#,CE9#,EE9# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE9#,CE9#,EE9# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE9#,CE9#,EE9# |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-50020 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93567-55014 | ||||
(8705-8905)4D,5D ; (8708-8908)V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE9#,CE9#,EE9# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09004 |
AE9#,CE90..G,GT,SE,XI 20A,黄 |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09004 |
AE9#,CE90..G,GT,SE,XI 20A,黄 |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12010 |
AE9#,CE90,95..AV2,G,GT,SE,XI,XS |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE9#,CE9#,EE9# 30A |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20011 |
AE91..G,XI;AE91..SE..EFI;AE92,95..AV2,GT,SE 30A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AE9#,CE9#,EE9# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE9#,CE9#,EE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO,TAIL |
1 | ||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE9#,EE9# HEAD |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02002 |
AE9#,CE90..AV2,G,GT,SE,XI MARUKO |
1 | ||
| 90987-02004 |
AE9#,CE90..AV2,G,GT,SE,XI NIPPONDENSO |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12020 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-12030 |
AE91,95,EE90..CBR |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-1A160 |
AE95..4FC..CBR |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-1A160 |
AE95..4FC..CBR |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90179-06070 | ||||
| 91655-40616 | ||||
| 93319-15010 | ||||
(8705-8905)4D,5D ; (8708- )V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80089 |
AE95..SE |
1 | ||
| 83320-80093 |
AE95..SE |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE9#,CE9#,EE9# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE9#,CE9#,EE9# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE9#,CE9#,EE9# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006002 |
AE91,95,CE90..SE MAROON,TRIM3# |
3 | ||
| 84810-2006003 |
AE91,95,CE90..G,SE SHADOW GRAY,TRIM1# |
3 | ||
| 84810-2006005 |
AE91,95,CE90..G,SE DARK BEIGE,TRIM4# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006002 |
AE91,95,CE90..SE MAROON,TRIM3# |
3 | ||
| 84810-2006003 |
AE91,95,CE90..G,SE SHADOW GRAY,TRIM1# |
3 | ||
| 84810-2006005 |
AE91,95,CE90..G,SE DARK BEIGE,TRIM4# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006002 |
AE91,95,CE90..SE MAROON,TRIM3# |
3 | ||
| 84810-2006003 |
AE91,95,CE90..G,SE SHADOW GRAY,TRIM1# |
3 | ||
| 84810-2006005 |
AE91,95,CE90..G,SE DARK BEIGE,TRIM4# |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1213002 |
AE91,95,CE90..SE MAROON,MAROON,TRIM3# |
1 | ||
| 84820-1213005 |
AE91,95,CE90..(G,SE)..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 84820-1213003 |
AE91,95,CE90..(G,SE)..(CBR,DSL) SHADOW GRAY,TRIM1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20050 |
CE90..SE;AE91..3FC..MX;AE91,EE90..G,LX,SE,XI;AE92,95..AV2,GT,MX,RVS,SE |
1 | ||
| 84870-14080 |
AE91,95,CE90..SE..(CBR,DSL) ﾄﾞｱ ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾐﾗ- |
1 | ||
| 84870-20050 |
AE91..XI;AE91,EE90..(G,LX,MX,SE)..CBR;AE92,95,CE90,EE98..(3FC,4FC,5F)..(AV2,GT,MX,RVS,SE,XL) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601003 |
AE95..SE SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601005 |
AE95..SE DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601012 |
AE91,95,CE90..G,SE MAROON,MAROON,TRIM3# |
1 | ||
| 84930-1601012 |
AE95..SE MAROON,MAROON,TRIM3# |
1 | ||
| 84930-1601003 |
AE91,95,CE90..G,SE SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601005 |
AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601003 |
AE95..SE SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601005 |
AE95..SE DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601012 |
AE91,95,CE90..G,SE MAROON,MAROON,TRIM3# |
1 | ||
| 84930-1601012 |
AE95..SE MAROON,MAROON,TRIM3# |
1 | ||
| 84930-1601003 |
AE91,95,CE90..G,SE SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601005 |
AE91,95,CE90..G,SE,XI DARK BEIGE,TRIM4# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20150 |
AE9#,CE90..AV2,G,GT,SE |
1 | ||
| 84931-19015 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-12071 |
AE9#,CE90..AV2,G,GT,SE,XI |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 87989-12011 |
AE91,95,CE90,95..SE |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12210 |
AE91,95..CBR,EFI |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90189-06048 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
