AE95-BEPEU (1987)

Toyota Sprinter

Production Oct 1987 - May 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

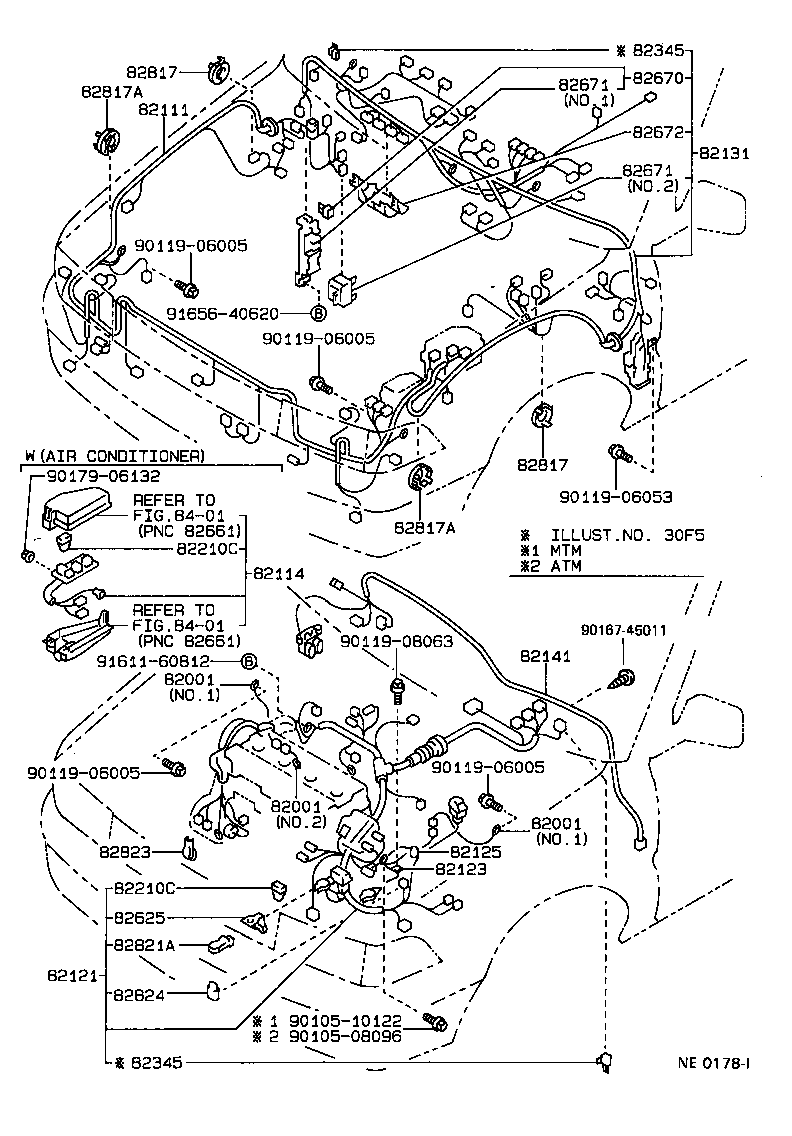

ILLUST NO. 1 OF 5(8705-8905)AE91,95..CBR

Click highlighted areas on diagram

diagram 82001 82001 82001 82111 82114 82121 82123 82125 82131 82141 82210C 82210C 82345 82345 82625 82670 82671 82671 82672 82817 82817 82817A 82817A 82821A 82823 82824 8401 8401 9010508096 9010510122 9011906005 9011906005 9011906005 9011906005 9011906053 9011908063 9016745011 9017906132 9161160812 9165640620
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07206

AE9#

NO.1

 2
82001 - CABLE, BOND, NO.1
90980-07206

AE9#

NO.1

 2
82001 - CABLE, BOND, NO.1
90980-07206

AE9#

NO.1

 2
82111 - WIRE, ENGINE ROOM MAIN
82111-1A210

CE90,EE90;AE91..(G,L,SE)..CBR;AE95..AV1,AV2,RVS,SE

 1
82114 - WIRE, ENGINE ROOM, NO.4
82114-12040

AE9#,CE9#,EE9#

 1
82121 - WIRE, ENGINE
82121-1A760

AE95..4FC..CBR

 1
82121-1A761

AE95..4FC..CBR

 1
82123 - WIRE, ENGINE, NO.3
82123-12160

AE9#,EE9#..4F,4FC,5F

 1
82131 - WIRE, COWL
82131-1E480

AE95..SE

 1
82131-1E490

AE95..SE

SE ｻﾙ-ﾝ

 1
82131-1E491

AE95..SE

SE ｻﾙ-ﾝ

 1
82131-1E481

AE95..SE

 1
82131-1K950

AE95..SE

SE ｻﾙ-ﾝ ﾘﾐﾃﾂﾄﾞ

 1
82131-1K890

AE95..SE

SE ｻﾙ-ﾝ ﾘﾐﾃﾂﾄﾞ

 1
82131-1E492

AE95..SE

SE ｻﾙ-ﾝ

 1
82131-1E482

AE95..SE

 1
82141 - WIRE, INSTRUMENT PANEL
82141-12010

AE91..G,XI;AE91..SE..EFI;AE92,95..AV2,GT,SE

 1
82210C - FUSIBLE LINK
90982-08188

AE9#,CE9#,EE9#

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08223

AE9#

30A,ｵｽ端子,ﾋﾟﾝｸ

 1
90982-08189

AE95;AE91,92,CE9#..DSL,EFI

40A,ﾒｽ端子,緑

 1
82210C - FUSIBLE LINK
90982-08188

AE9#,CE9#,EE9#

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08223

AE9#

30A,ｵｽ端子,ﾋﾟﾝｸ

 1
90982-08189

AE95;AE91,92,CE9#..DSL,EFI

40A,ﾒｽ端子,緑

 1
82345 - DIODE
82345-20050

AE91,95..ATM..CBR

NO.6

 1
82345-12050

AE95..5F..EFI;AE91..ATM..CBR;AE92,EE90,98..3FC,4F,5F;AE95,EE96..(4F,4FC)..(AV1,AV2,MX,RVS,SE,XL)

NO.4

 1
82345-32020

AE91,95..4D,5D

NO.8

 1
82345 - DIODE
82345-20050

AE91,95..ATM..CBR

NO.6

 1
82345-12050

AE95..5F..EFI;AE91..ATM..CBR;AE92,EE90,98..3FC,4F,5F;AE95,EE96..(4F,4FC)..(AV1,AV2,MX,RVS,SE,XL)

NO.4

 1
82345-32020

AE91,95..4D,5D

NO.8

 1
82625 - TERMINAL, FUSIBLE LINK
82625-12020

AE91,95..4D,5D

NO.1

 1
82670 - BLOCK ASSY, JUNCTION, NO.1
82670-12090

AE9#,CE90..AV1,AV2,G,GT,RVS,SE,XI

 1
82671 - BLOCK, JUNCTION
82671-12030

AE9#,CE90..G,GT,SE,XI

NO.1

 1
82671-12070

AE9#,CE90..G,GT,SE,XI

NO.2

 1
82671 - BLOCK, JUNCTION
82671-12030

AE9#,CE90..G,GT,SE,XI

NO.1

 1
82671-12070

AE9#,CE90..G,GT,SE,XI

NO.2

 1
82672 - COVER, JUNKTION BLOCK
82672-12080

AE9#,CE9#,EE9#

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-14350

AE9#,CE9#,EE9#

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-14350

AE9#,CE9#,EE9#

 2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-32010

AE9#,CE9#,EE9#

ﾅｼ(*66)

 2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-32010

AE9#,CE9#,EE9#

ﾅｼ(*66)

 2
82821A - COVER, CONNECTOR
82821-12180

AE91,95

 1
82823 - CAP, TERMINAL, NO.1
82823-22050

AE9#,EE9#

 1
82824 - CONNECTOR, WIRING HARNESS
82824-32030

AE9#,CE9#,EE9#

ｴｱｺﾝ ﾌﾟﾚﾂｼﾔ SW.

 1
Common parts
90105-08096
90105-10122
90119-06005
90119-06053
90119-08063
90167-45011
90179-06132
91611-60812
91656-40620
Linked diagrams
8401
