AE95-BEPEU (1987)

Toyota Sprinter

Production Oct 1987 - May 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )AE95..4D

Click highlighted areas on diagram

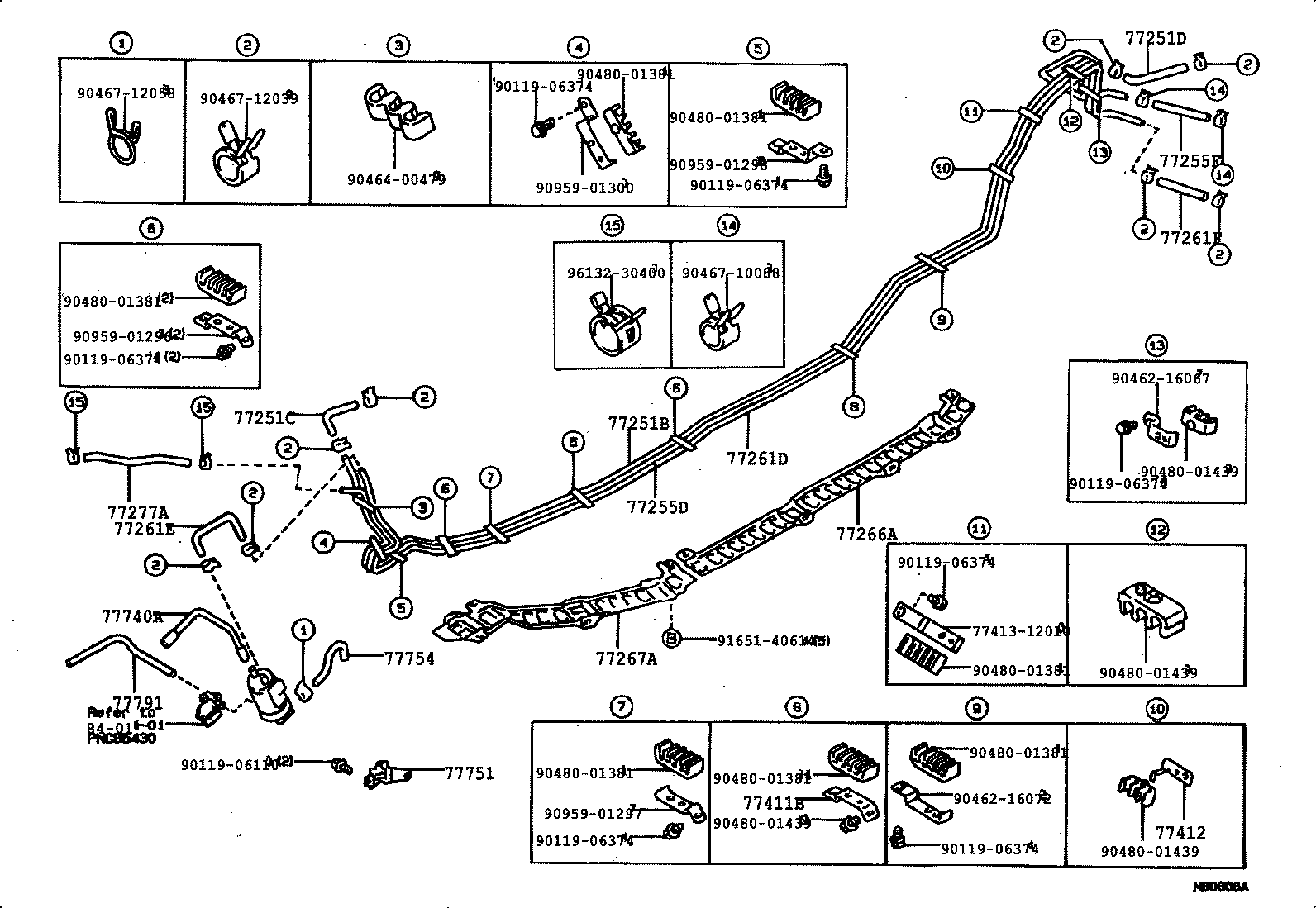

diagram 77251B 77251C 77251D 77255D 77255F 77261D 77261E 77261F 77266A 77267A 77277A 77411B 77412 7741312010 77740A 77751 77754 77791 8401 9011906110 9011906374 9011906374 9011906374 9011906374 9011906374 9011906374 9011906374 9046216067 9046216072 9046400479 9046710088 9046712039 9046712058 9048001381 9048001381 9048001381 9048001381 9048001381 9048001381 9048001381 9048001439 9048001439 9048001439 9048001439 9095901296 9095901297 9095901298 9095901300 9165140614 9613230400
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-12420

AE95..CBR

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-12100

AE91,95,EE9#..CBR

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-06030

AE95..CBR

*H,L=300

 1
77255D - TUBE, FUEL RETURN
77255-12370

AE95..CBR

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-04030

AE95..CBR

長さ=300

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77259-12130

AE91,95,EE9#..CBR

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-12060

AE9#,CE9#,EE9#

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-15210

AE91,95..CBR

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-12140

AE91,95,EE9#..CBR

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-12080

AE91,95,EE9#..CBR

 1
77791 - HOSE, OUTER VENT VALVE TO CARBURETOR
90445-14129

AE91,95..CBR

 1
Common parts
77413-12010
90119-06110
90119-06374
90462-16067
90462-16072
90464-00479
90467-10088
90467-12039
90467-12058
90480-01381
90480-01439
90959-01296
90959-01297
90959-01298
90959-01300
91651-40614
96132-30400
Linked diagrams
8401
