AE95-BEPEU (1987)

Toyota Sprinter

Production Oct 1987 - May 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )AE95,CE95..4D

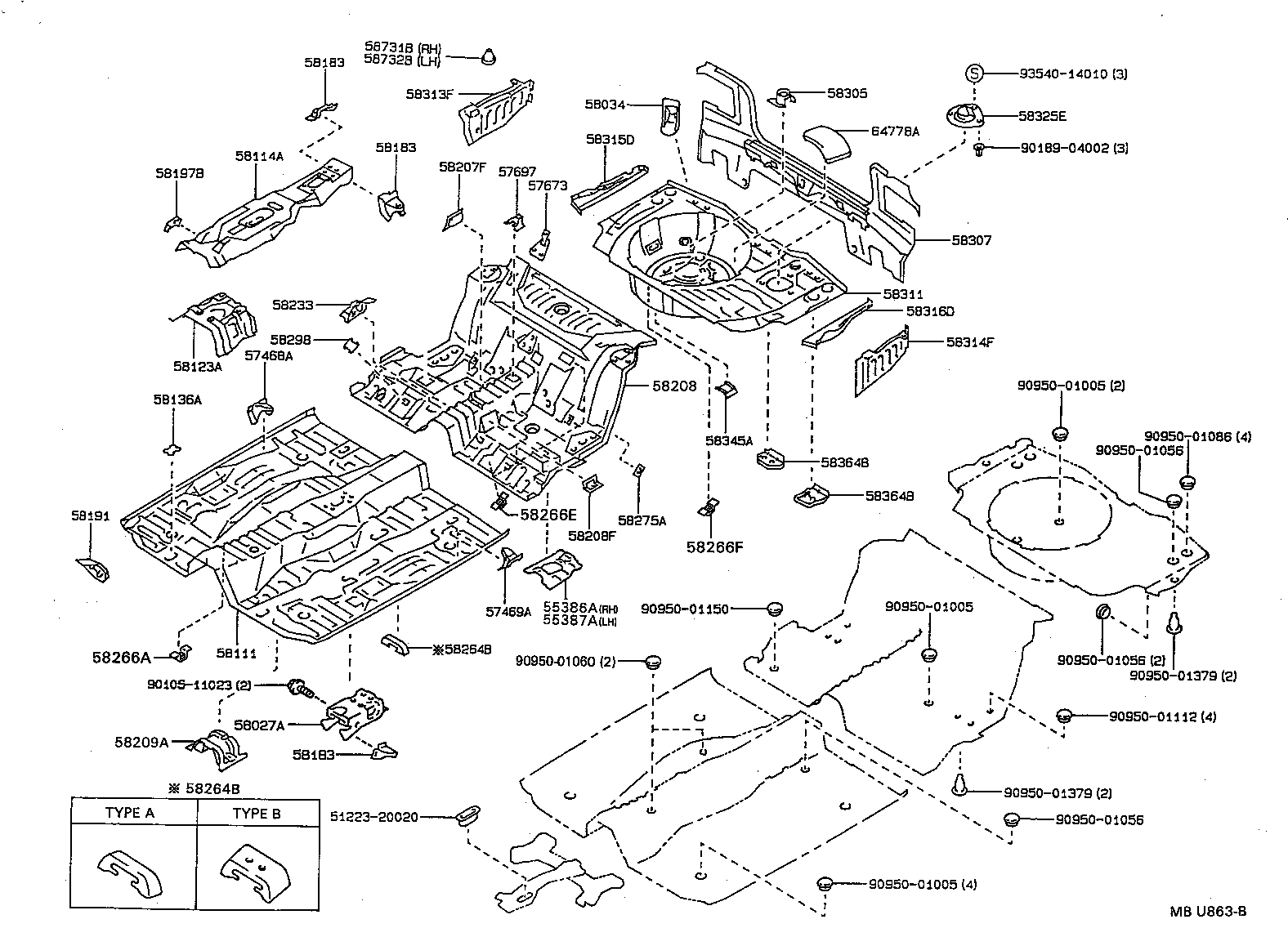

Click highlighted areas on diagram

diagram 5122320020 55386A 55387A 57468A 57469A 57673 57697 58027A 58034 58111 58114A 58123A 58136A 58183 58183 58183 58191 58197B 58207F 58208 58208F 58209A 58233 58264B 58264B 58266A 58266E 58266F 58275A 58298 58305 58307 58311 58313F 58314F 58315D 58316D 58325E 58345A 58364B 58364B 58731B 58732B 64778A 9010511023 9018904002 9095001005 9095001005 9095001005 9095001056 9095001056 9095001056 9095001060 9095001086 9095001112 9095001150 9095001379 9095001379 9354014010
Part # Description Qty Price
57697 - RETAINER, REAR SEAT CUSHION
57697-12020

AE9#,CE90,EE90

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-12020

AE95

 4
58191 - FOOTREST, FRONT FLOOR
58191-12100

CE90..SE;AE9#,CE95..(4FC,5F)..(AV1,AV2,G,GT,LX,MX,RVS,SE,XI,XS)

 1
58208 - PAN, CENTER FLOOR
58211-12240

AE95

 1
58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58209-12020

AE95

 1
58266A - BRACKET, FUEL TUBE CLAMP
58266-22040

AE91,95,CE9#,EE90,96

 1
58266E - BRACKET, FUEL TUBE CLAMP, CENTER
58266-22040

AE95,CE95

 3
58266F - BRACKET, FUEL TUBE CLAMP, REAR
58266-22040

AE95,CE95

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-1A200

AE95..CBR

 1
64778A - PROTECTOR, SPARE WHEEL
64778-12050

AE9#,CE90,95,EE90

 2
Common parts
51223-20020
90105-11023
90189-04002
90950-01005
90950-01056
90950-01060
90950-01086
90950-01112
90950-01150
90950-01379
93540-14010
