AE95-BEPEU (1987)

Toyota Sprinter

Production Oct 1987 - May 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )AE95,CE95..4D

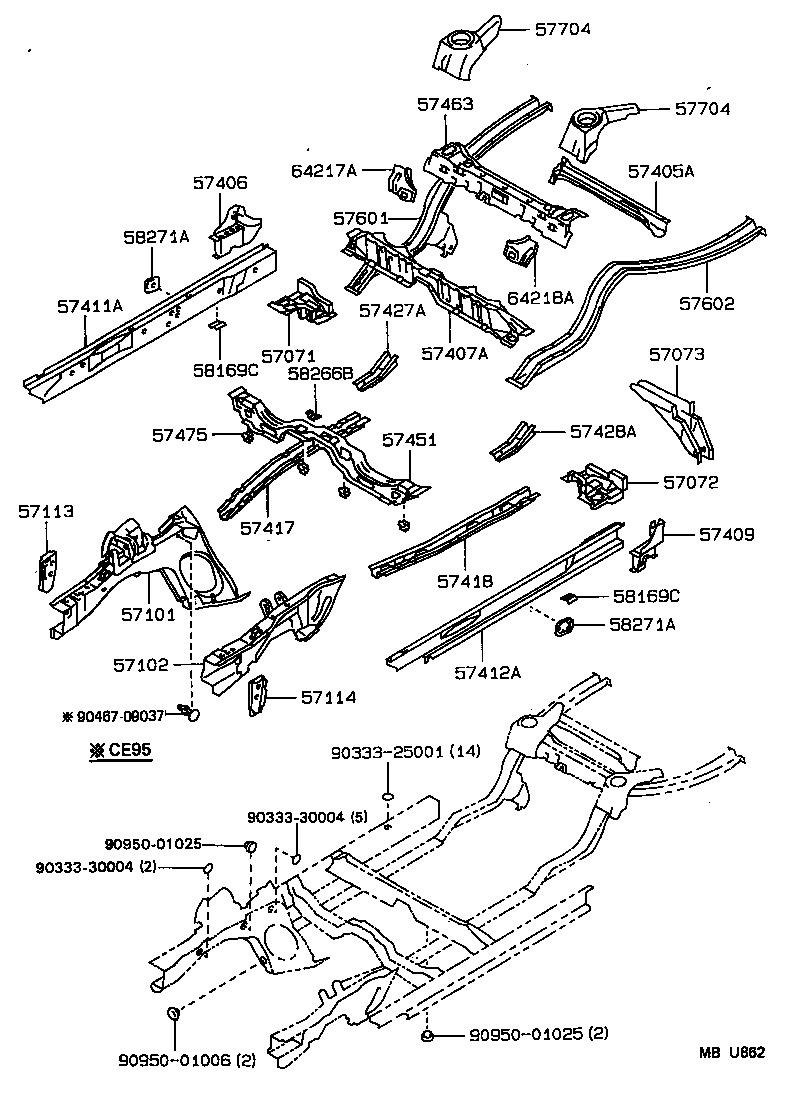

Click highlighted areas on diagram

diagram 57071 57072 57073 57101 57102 57113 57114 57405A 57406 57407A 57409 57411A 57412A 57417 57418 57427A 57428A 57451 57463 57475 57601 57602 57704 57704 58169C 58169C 58266B 58271A 58271A 64217A 64218A 9033325001 9033330004 9033330004 9046709037 9095001006 9095001025 9095001025
Part # Description Qty Price
57073 - BRACKET SUB-ASSY, LATERAL ROD
57073-12040

AE95

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-12340

AE9#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-12370

AE9#,EE90

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-12110

AE9#,CE9#,EE9#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-12110

AE9#,CE9#,EE9#

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-12150

AE9#,CE9#,EE9#

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-12150

AE9#,CE9#,EE9#

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-12540

AE95..CBR

 1
58169C - PATCH, FRONT FLOOR REAR
58169-12010

AE95

 2
58169C - PATCH, FRONT FLOOR REAR
58169-12010

AE95

 2
58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58271-12050

AE9#,CE9#,EE9#

 2
58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58271-12050

AE9#,CE9#,EE9#

 2
Common parts
90333-25001
90333-30004
90467-09037
90950-01006
90950-01025
