AE95-BEPEU (1987)

Toyota Sprinter

Production Oct 1987 - May 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )AE95,CE95

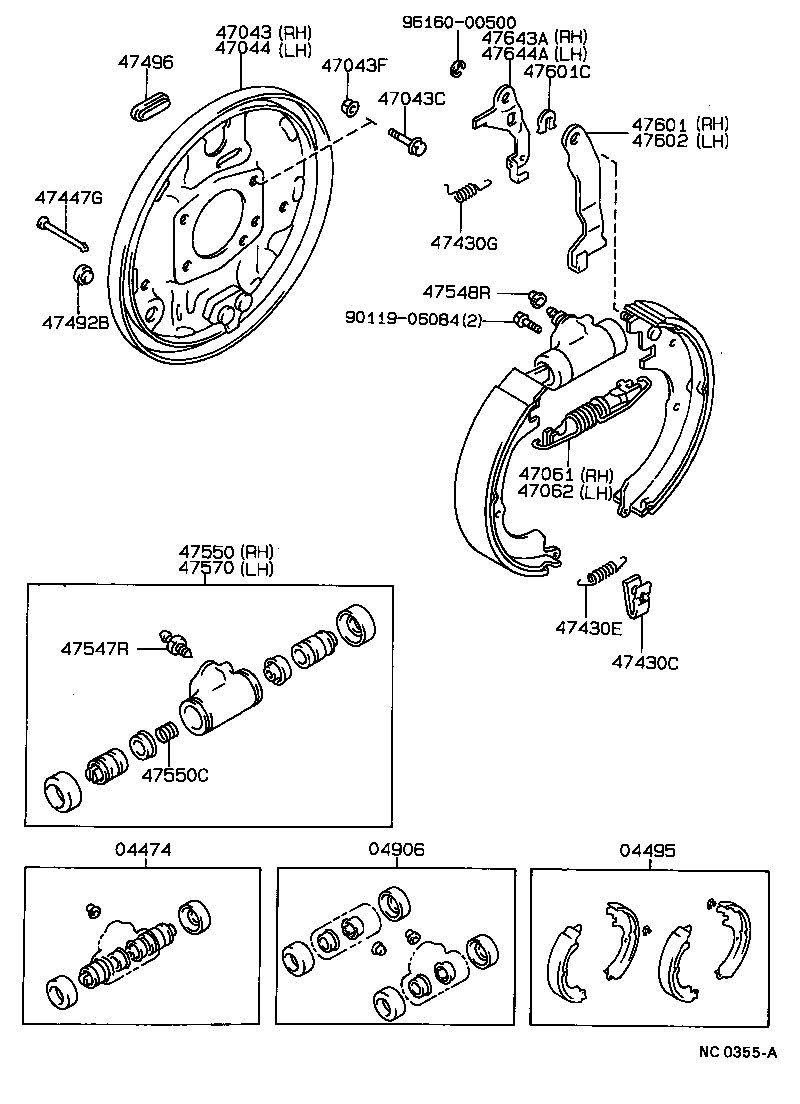

Click highlighted areas on diagram

diagram 04474 04495 04906 47043 47043C 47043F 47044 47061 47062 47430C 47430E 47430G 47447G 47492B 47496 47547R 47548R 47550 47550C 47570 47601 47601C 47602 47643A 47644A 9011906084 9616000500
Part # Description Qty Price
04495 - SHOE KIT, REAR BRAKE
04495-12130

AE95

 1
47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE)
47492-32010

AE91,95,CE9#,EE9#

 2
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-20011

AE91,95,CE9#,EE9#

 2
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-20010

AE91,95,CE9#,EE9#

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

AE91,95,CE9#,EE9#

 2
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90501-07006

AE91,95,CE9#,EE9#

 2
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

AE95

厚さ=1.2

 2
Common parts
90119-06084
96160-00500
