AE95-BEPEU (1987)

Toyota Sprinter

Production Oct 1987 - May 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )AE95..4FC

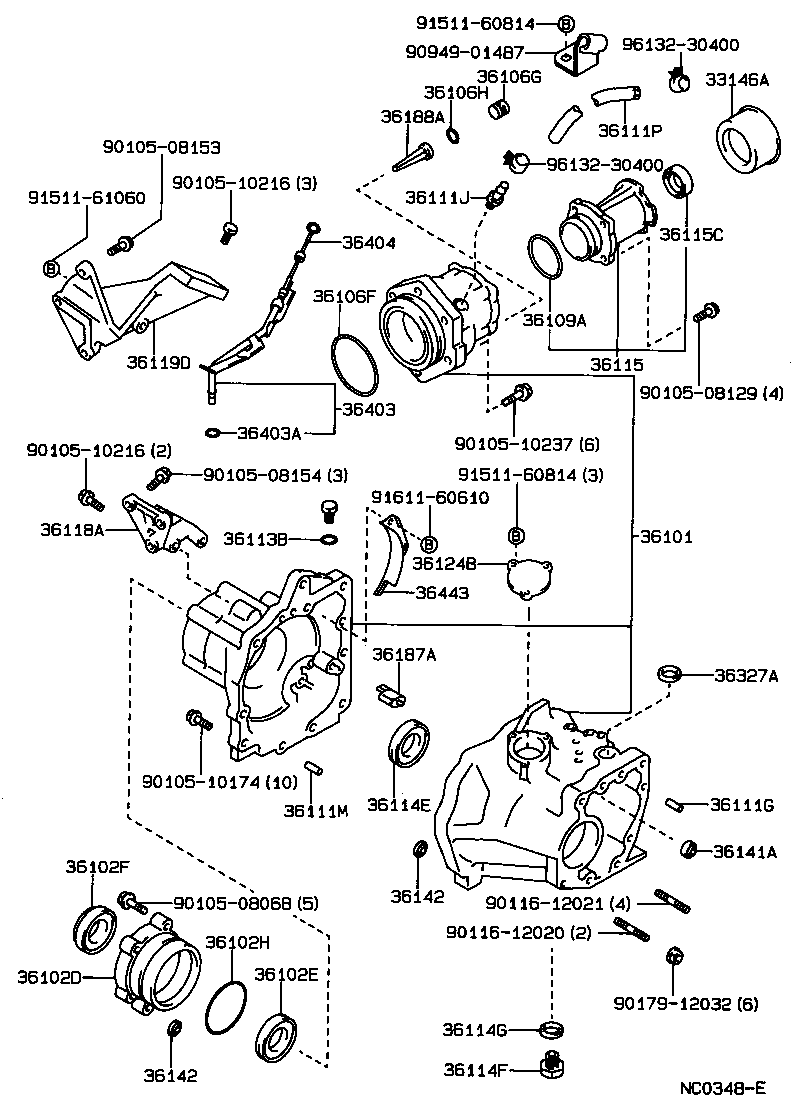

Click highlighted areas on diagram

A241H

diagram 33146A 36101 36102D 36102E 36102F 36102H 36106F 36106G 36106H 36109A 36111G 36111J 36111M 36111P 36113B 36114E 36114F 36114G 36115 36115C 36118A 36119D 36124B 36141A 36142 36142 36187A 36188A 36327A 36403 36403A 36404 36443 9010508068 9010508129 9010508153 9010508154 9010510174 9010510216 9010510216 9010510237 9011612020 9011612021 9017912032 9094901487 9151160814 9151160814 9151161060 9161160610 9613230400 9613230400
Part # Description Qty Price
36101 - CASE SUB-ASSY, TRANSFER
36101-12010

AE95..4FC

 1
36111P - HOSE, BREATHER (FOR TRANSFER CASE)
90999-92003

AE95..4FC

長さ=600

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18057

AE95..4FC

 1
36403 - TUBE SUB-ASSY, TRANSFER OIL FILLER
36403-12020

AE95..4FC

 1
36404 - GAGE SUB-ASSY, TRANSFER OIL LEVEL
36404-12020

AE95..4FC

 1
Common parts
90105-08068
90105-08129
90105-08153
90105-08154
90105-10174
90105-10216
90105-10237
90116-12020
90116-12021
90179-12032
90949-01487
91511-60814
91511-61060
91611-60610
96132-30400
