AE95-BEPEU (1987)

Toyota Sprinter

Production Oct 1987 - May 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

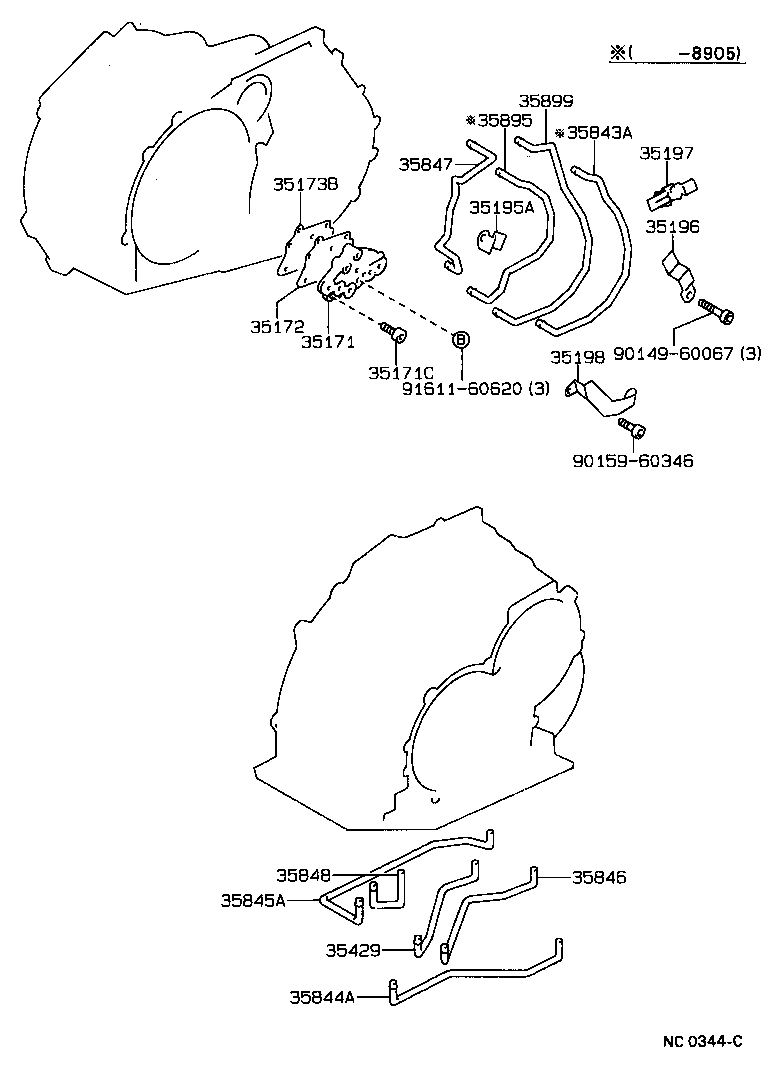

ILLUST NO. 4 OF 5(8710- )AE95..4FC

Click highlighted areas on diagram

A241H

diagram 35171 35171C 35172 35173B 35195A 35196 35197 35198 35429 35843A 35844A 35845A 35846 35847 35848 35895 35899 9014960067 9015960346 9161160620
Part # Description Qty Price
35429 - TUBE, LINE PRESSURE
35429-12030

AE9#,CE90..4FC..(AV1,AV2,G,GT,LX,MX,RVS,SE)

 1
35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1
35844-12030

AE9#,CE90..4FC..(AV1,AV2,G,GT,LX,MX,RVS,SE)

 1
35845A - TUBE, DIRECT CLUTCH ACCUMULATOR
35845-12030

AE9#,CE90..4FC..(AV1,AV2,G,GT,LX,MX,RVS,SE)

 1
35846 - TUBE, BRAKE ACCUMULATOR
35846-12040

AE9#,CE90..4FC..(AV1,AV2,G,GT,LX,MX,RVS,SE)

 1
35848 - TUBE, FORWARD CLUTCH ACCUMULATOR
35848-12030

AE9#,CE90..4FC..(AV1,AV2,G,GT,LX,MX,RVS,SE)

 1
Common parts
90149-60067
90159-60346
91611-60620
