AE95-BEPEU (1987)

Toyota Sprinter

Production Oct 1987 - May 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )AE95..4FC

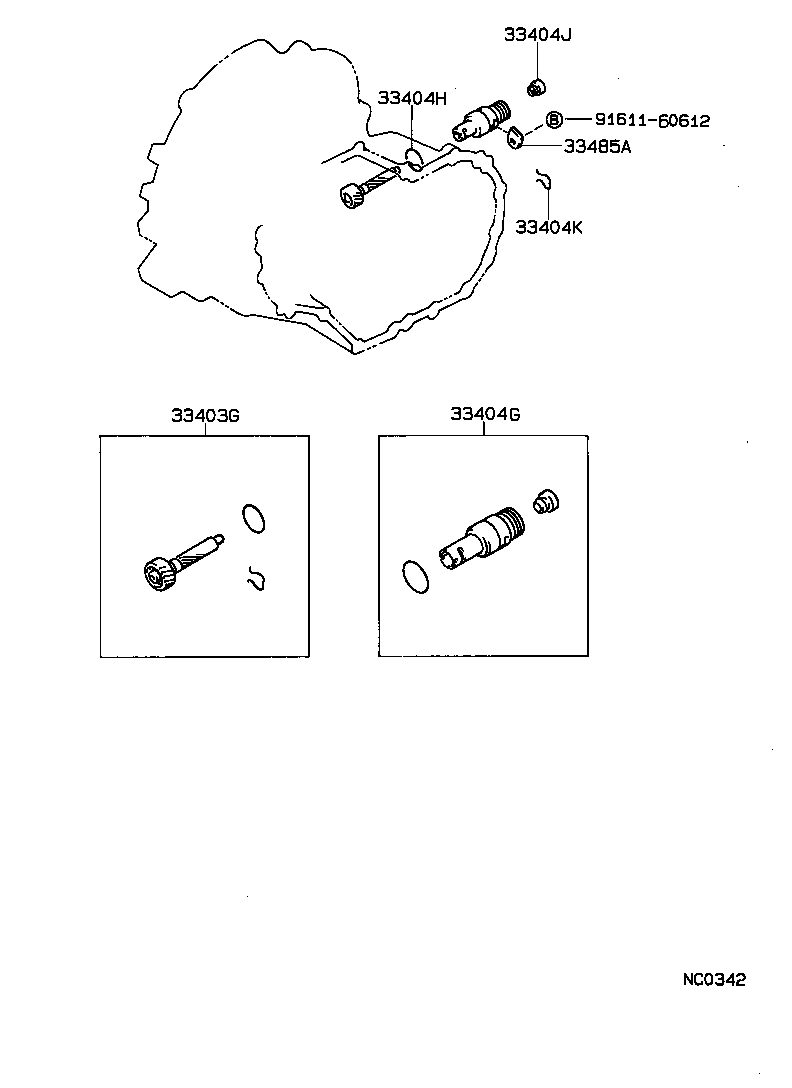

Click highlighted areas on diagram

A241H

diagram 33403G 33404G 33404H 33404J 33404K 33485A 9161160612
Part # Description Qty Price
33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

AE9#,CE90,96,EE9#..ATM

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AE9#,CE90,96,EE9#..ATM

 1
Common parts
91611-60612
